Exhibition Hall smart lighting control system

Solution for Exhibition Halls

Solution Overview

Based on the YC-BUS communication protocol, Easyctrl Intelligent has launched a smart control solution tailored for exhibition halls. This solution not only meets diverse high-end lighting requirements such as switching, dimming, and color tuning, but also integrates a wide range of controlled devices commonly found in exhibition halls into a centralized, efficient, and highly cost-effective smart control system. The system significantly enhances the exhibition hall’s overall quality, management efficiency, and intelligent user experience.

System Achievements

1.Diverse Smart Lighting Control Effects

The exhibition hall adopts Easyctrl Intelligent’s EASYCTRL brand smart lighting control system. Through functions such as switch control, dimming control, scene control, timer control, sensor-based control, panel control, and touchscreen control, the system delivers orderly brightness levels and vibrant, colorful lighting effects through precise dimming and color tuning.

2.Centralized Management of Exhibition Hall Devices

Exhibition halls typically contain a large number of controllable devices (often using serial ports or network ports). Yichuang Intelligent’s control system offers excellent scalability, enabling centralized management of all these devices while supporting highly complex logic control functions.

3.Diversified Control Methods

The system supports a wide range of control methods, including panel control, touchscreen control, mobile control, computer control, and voice control. It can be integrated with the Tuya platform and is also compatible with Home Assistant. The control interface app is fully customizable, with an easy and efficient editing process.

System architecture diagram

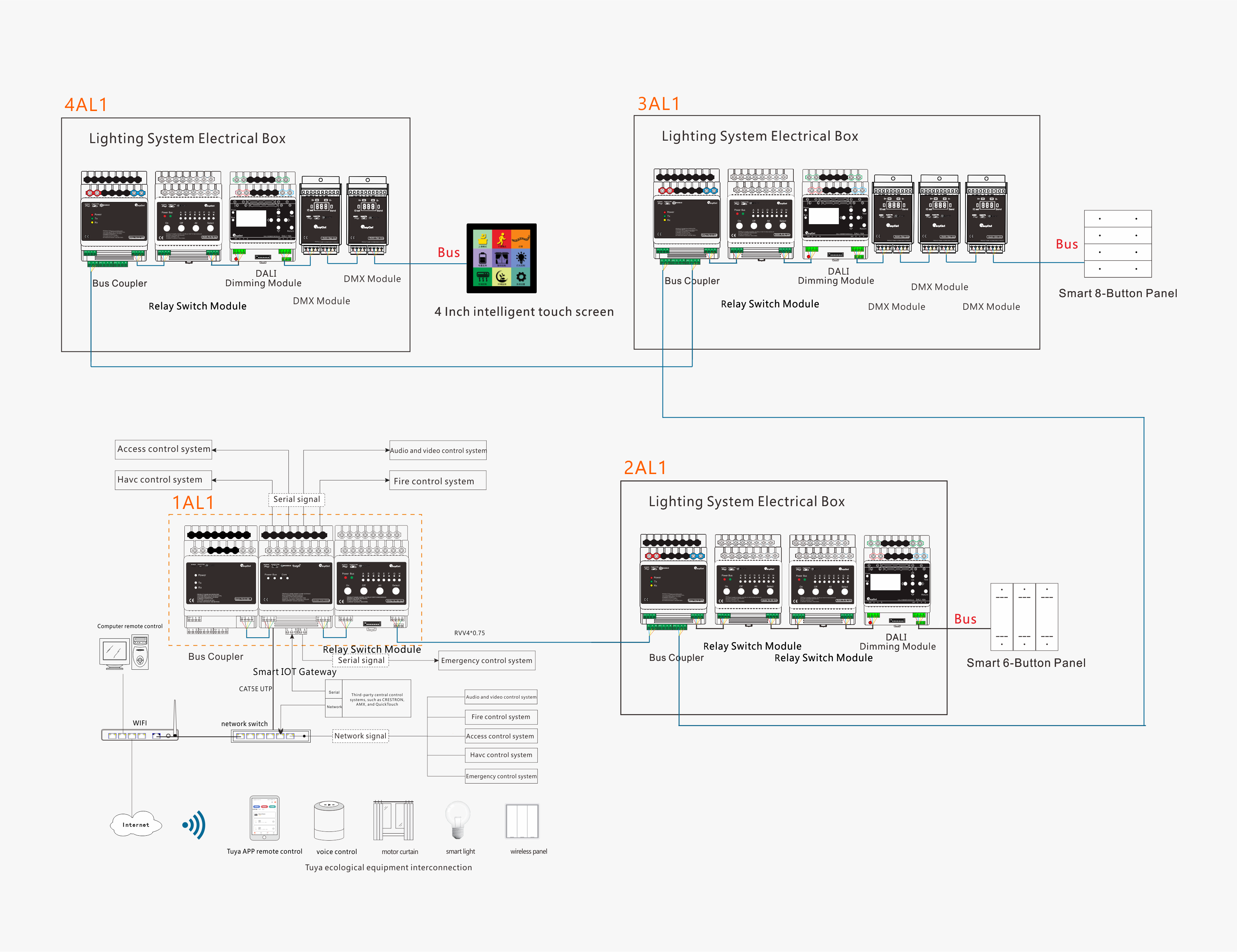

This solution adopts the EASYCTRL brand smart lighting control system based on the YC-BUS bus protocol. According to the needs of the exhibition hall project, a smart IoT gateway host is configured to manage multiple smart Relay switch modules and smart dimming modules (including 0-10V dimming module, DALI dimming module, or DMX dimming modules as required). Each control area is equipped with control panels or smart touchscreens as needed, all operating within the YC-BUS bus control architecture.The smart IoT gateway host is equipped with multiple serial ports and network ports, enabling control of both serial and networked devices, and supports the implementation of complex logic control scenarios. The DMX dimming module, combined with DMX decoders, enables vivid and colorful dimming and color tuning effects.Below is a partial system architecture diagram for the DMX section:

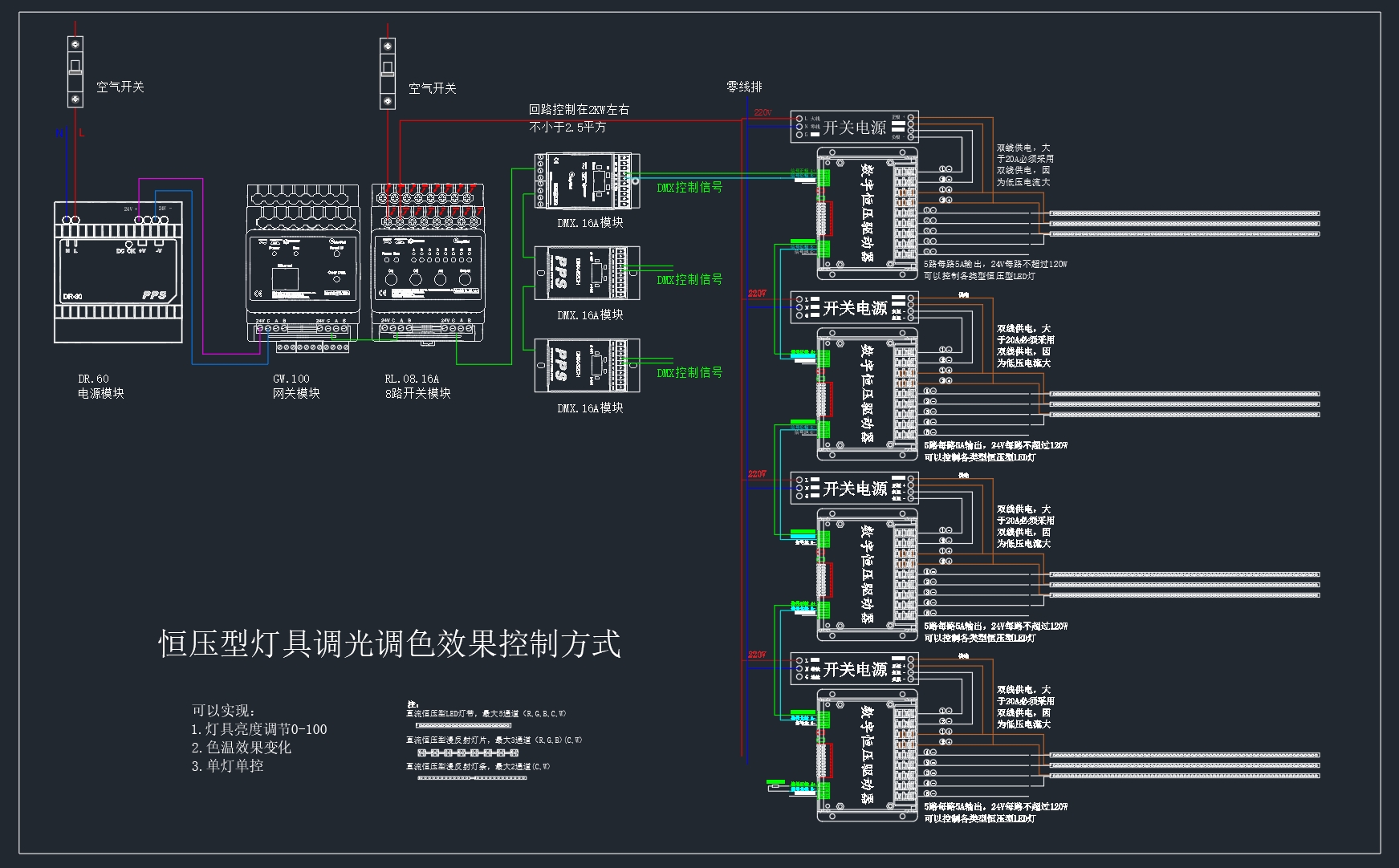

Main Products

Smart lighting Gateway

GW.100A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system.

GW.200A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system, equipped with logic functions and supporting voice control.

Depending on the project requirements, either gateway can be selected.

The gateway provides a MODBUS-TCP interface for integration with third-party systems (e.g., BA systems).

Relay Switch Module

RL.04.16A: 4-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.08.16A: 8-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.12.16A: 12-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.16.16A: 16-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.04.20A: 4-channel 20A relay switch module.

RL.08.20A: 8-channel 20A relay switch module.

RL.04.20C: 4-channel 20A relay switch module(With Current And Voltage Detection).

RL.08.20B: 8-channel 20A relay switch module(With Current Detection).

Dimming Module

DR.04.16A: 4-channel 0-10V Dimming module.

DALI.16B: Dali dimming module.

DMX.32A: DMX dimming module.

DM.04.05B: 4-channel 5A leading edge dimming module.

DM.06.03B: 6-channel 3A leading edge dimming module.

DM.02.10B: 2-channel 10A leading edge dimming module.

Touch panel and Faceplate

KP.02D: 2-Button Smart faceplate.

KP.04C: 4-Button Smart faceplate.

KP.06C: 6-Button Smart faceplate.

KP.08D: 8-Button Smart faceplate.

TP.40A: 4-inch Smart Touch panel.

TP.70A: 7-inch Smart Touch panel.

System Advantages

Robust and stable YC-BUS system bus architecture

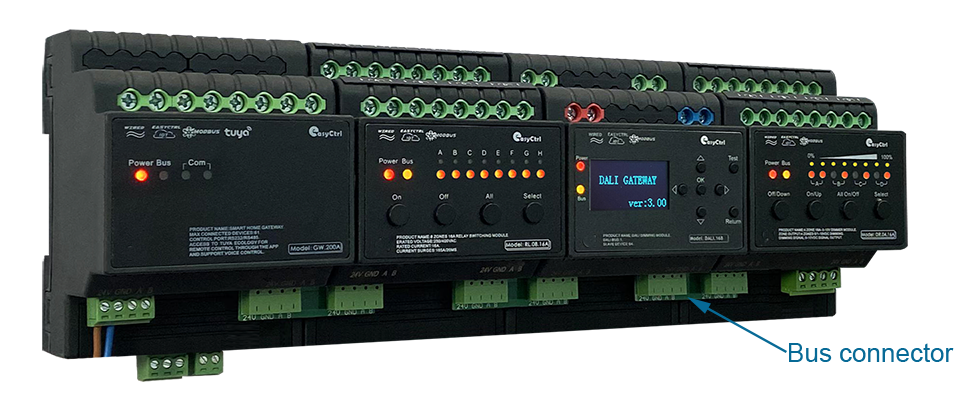

Based on YC-BUS technology,the system has powerful intelligent lighting gateway;stable switch control modules with diverse product range to meet project needs;comprehensive dimming control modules with outstanding dimming performance;complete range of supporting modules, panels, and touchpanels.The rail-mounted bus module uses a bus connector, eliminating the need for manual wiring, ensuring stability and reliability.The failure of a single bus device does not affect the normal operation of the entire bus system. Simply replacing the faulty device with a new product and properly setting the ID number completes the replacement.

Complete supporting software

1.System configuration software（Easy to configure, equipped with logic functions, and highly powerful）

2.Control interface APP for mobile phones and pads

3.PC control interface software(Lan-based)

4.Remote control interface software(Browser/server architecture)

The system offers a wide range of external interfaces.

Provides MODBUS-TCP and MODBUS-RTU interface protocols, facilitating integration with building automation (BA) systems.

Provides MODBUS-TCP interface protocol
Provides MODBUS-RTU interface protocol

Provides external interface protocols for TCP/UDP and RS232

Provides external Ethernet and serial ports for integration with third-party systems, such as various central control systems, SCADA software, and third-party cloud platforms.
TCP interface protocol
UDP interface protocol
RS232 interface protocol
