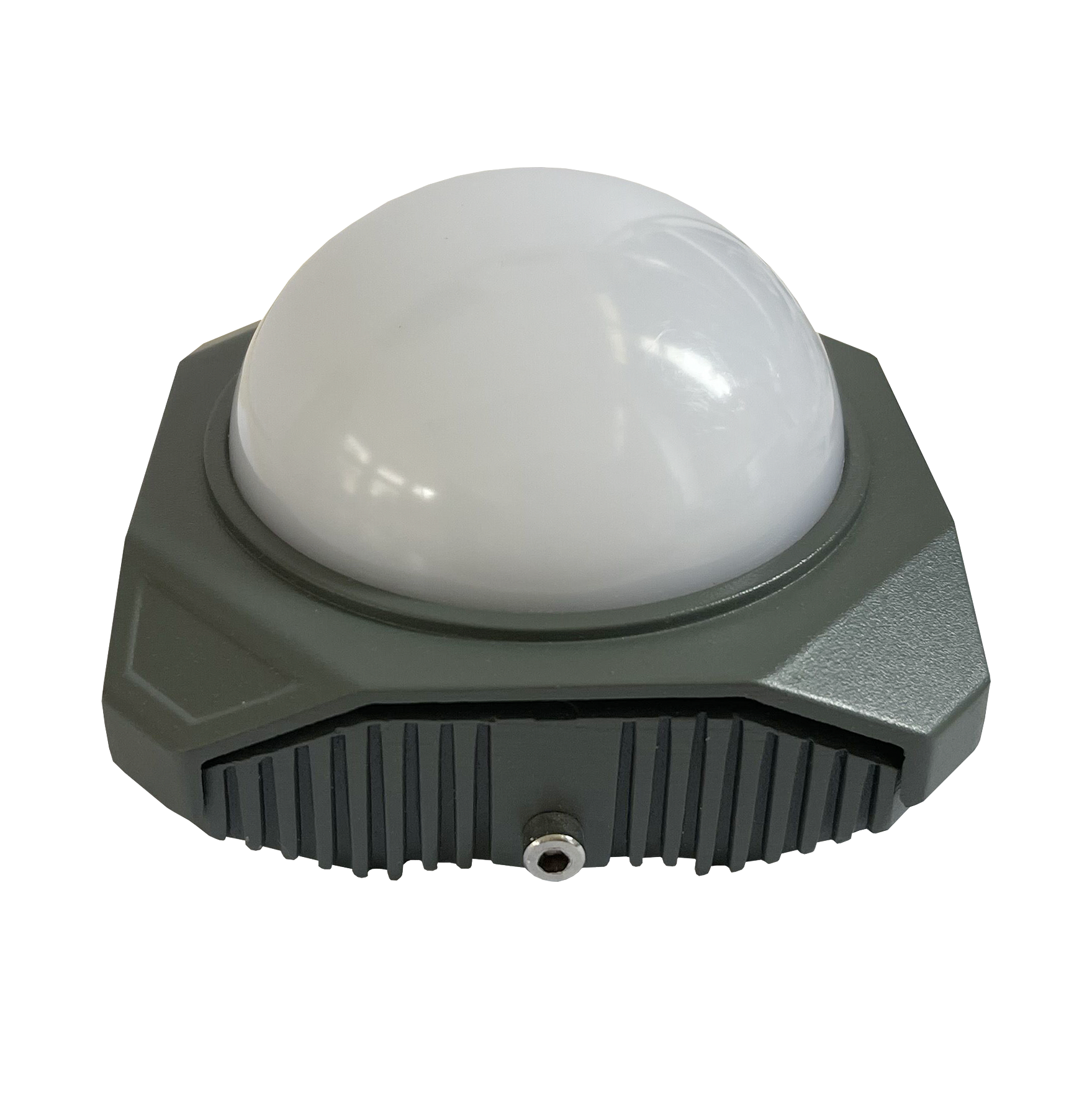

Illumination Sensor Module
Model No:SL.01A
Illumination Sensor Module serves as a system light sensing control unit, typically installed in the outdoor wall, ceiling type or side type installation.Through five sections of illumination value, to achieve different control requirements for each section, such as when the corridor illumination brightness is high - greater than 200lux, medium bright -150lux, low bright -100lux, slightly bright -50lux, Dark -0lux, corresponding to the light brightness 0%, 20%, 30%, 60%, 80% , adapt to the illumination needs of the corridor.
Contact Us
Wiring Diagram
Product Features
Ceiling-Mounted Installation
Built-in illuminance probe
Light Intensity Graded Acquisition
Built-in temperature probe
Temperature Graded Acquisition
Scene control
Simple wiring
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Rated Consumption
≤1W
Illumination Accuracy
0-65535Lux
Illuminance Measurement
5 level
Temperature Accuracy
-55℃~+125℃
Temperature Measurement
2 level
Indicator Light
LED*7
Bus Interface
Bus interface*1
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20˚C~60˚C
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
100 mm*100 mm*60 mm
Net Weight
≤360 g/pcs
Enclosure Material
Aluminum shell

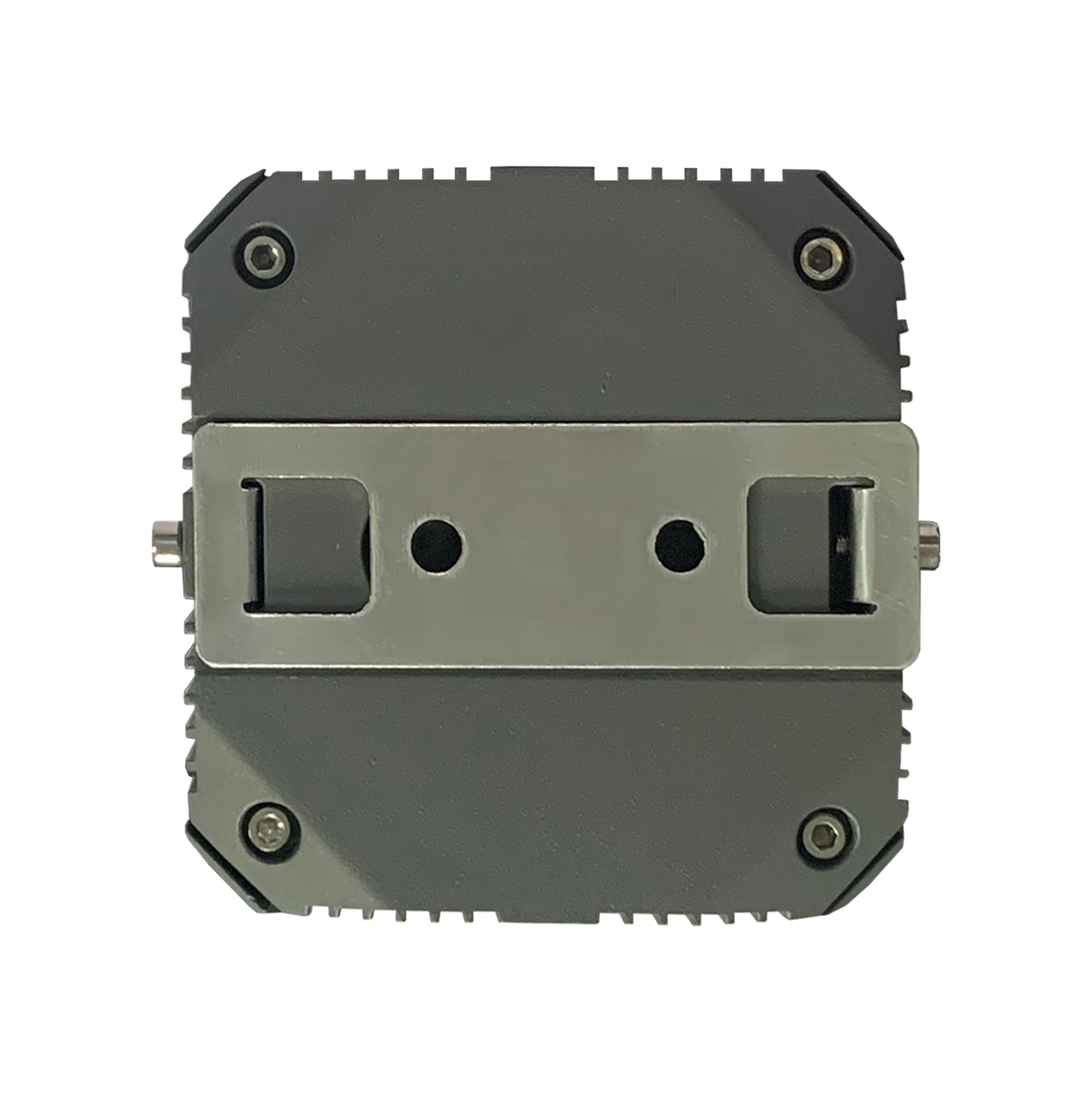

Installation Method
Ceiling mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
configuration software1280720
daliBdimmermodule1280
classroom
HA
hotel
controlinterface1280
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Shenzhen Huayi Design Office Smart Lighting Control System
