Project case for Smart Lighting Control System

Home Projects Comprehensive Project
Tiananmen Square Underground Tunnel Intelligent Lighting Control System Project
/upload/images/article/20250606/17491812877207940.jpg

Project information

Control Equipment

Non-dimmable Lights: Lighting fixtures inside the tunnel

Control Areas

Tiananmen Square Underground Tunnel

Control Requirements

1.Perform switch control on the Square Underground Tunnel's lighting circuits;

2.Enable zoned lighting control;

3.Enable timed control and scene control;

4.Centralized control via PC and mobile phone.

Control Solution
System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway,  intelligent relay switch module, system power supply,bus coupler.


Control Methods

A bus-type intelligent lighting control system enables localized control via mobile phone,alongside centralized management through a PC workstation(customizable interfaces).

Performance Outcome

The system includes a gateway, smart switch modules, bus coupler. It enables switch control, scheduled control, and scene-based control of lighting circuits. The system effectively reduces energy consumption, lowers labor costs, and enhances management efficiency for the Square Underground Tunnel.

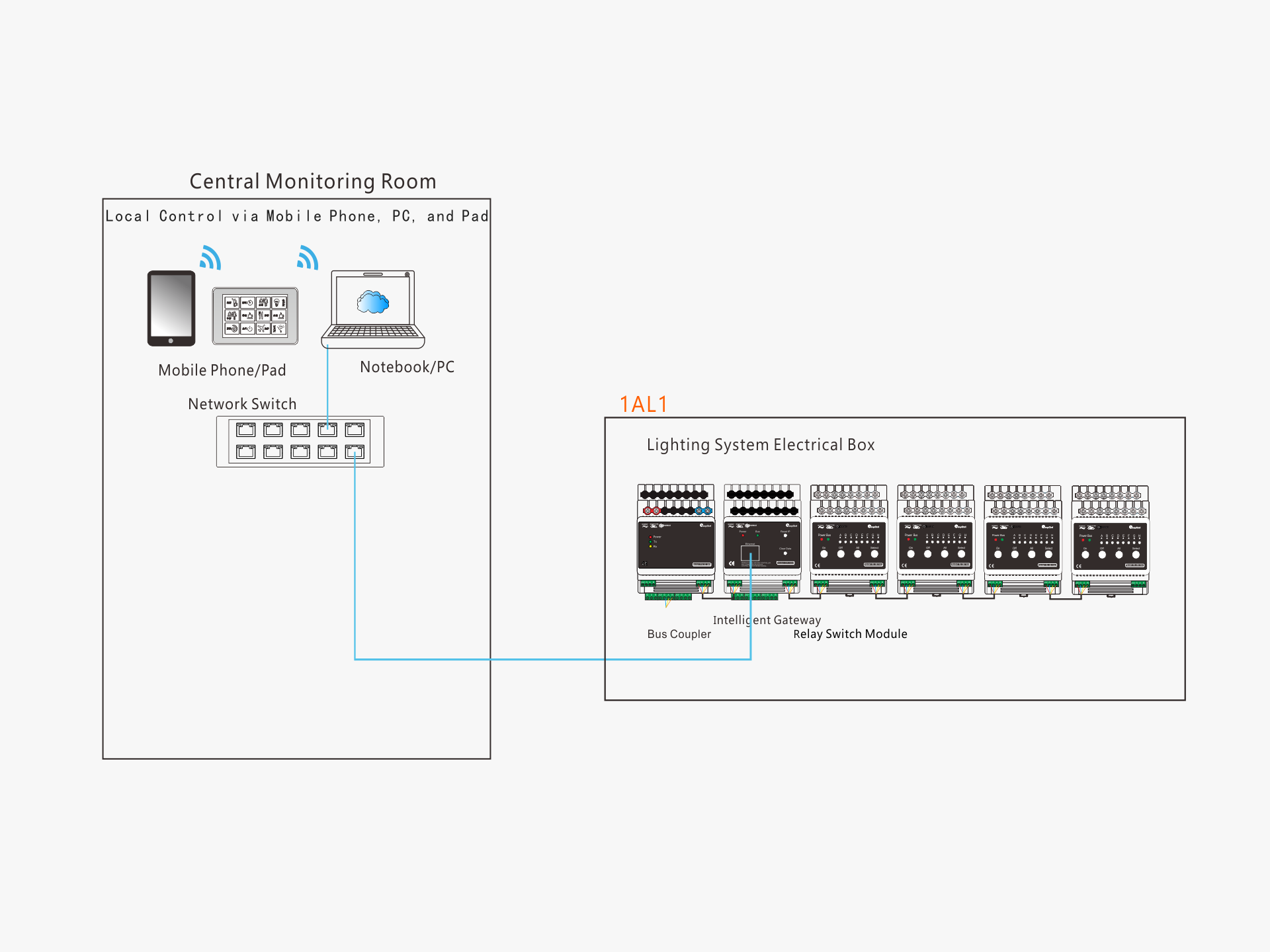

System Architecture Diagram

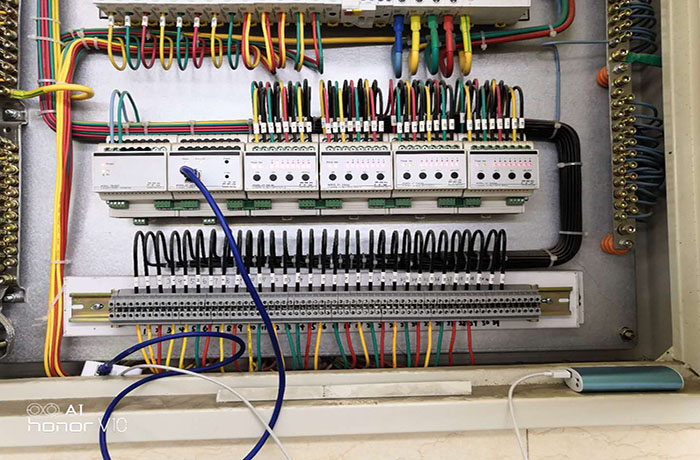

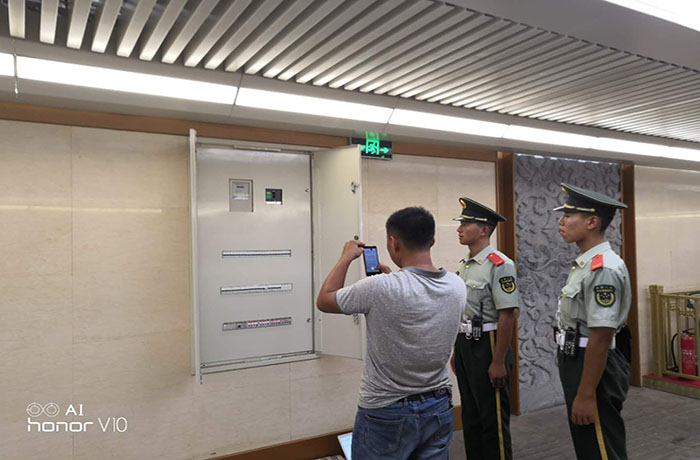

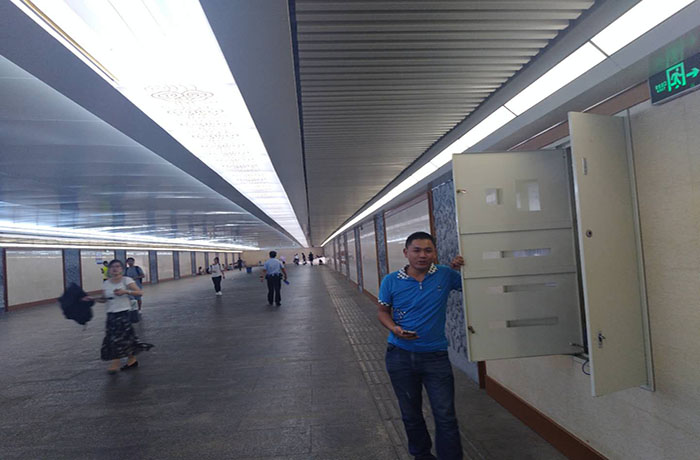

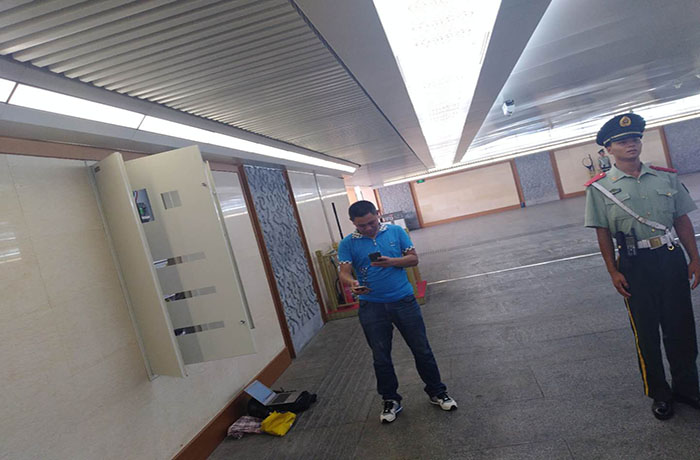

Project Site Photos





On-site Case Video
Click to play
