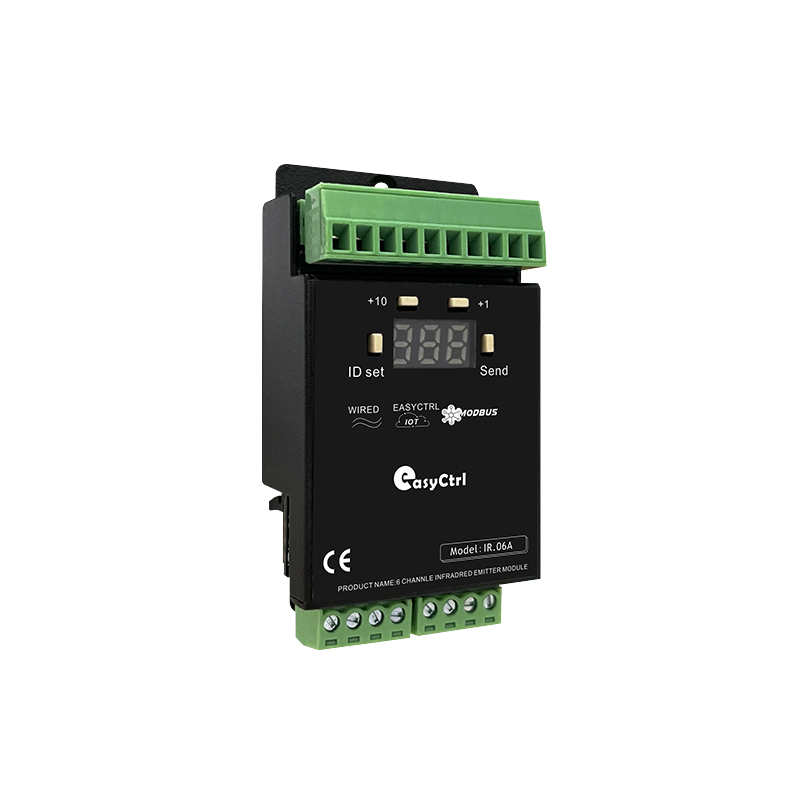

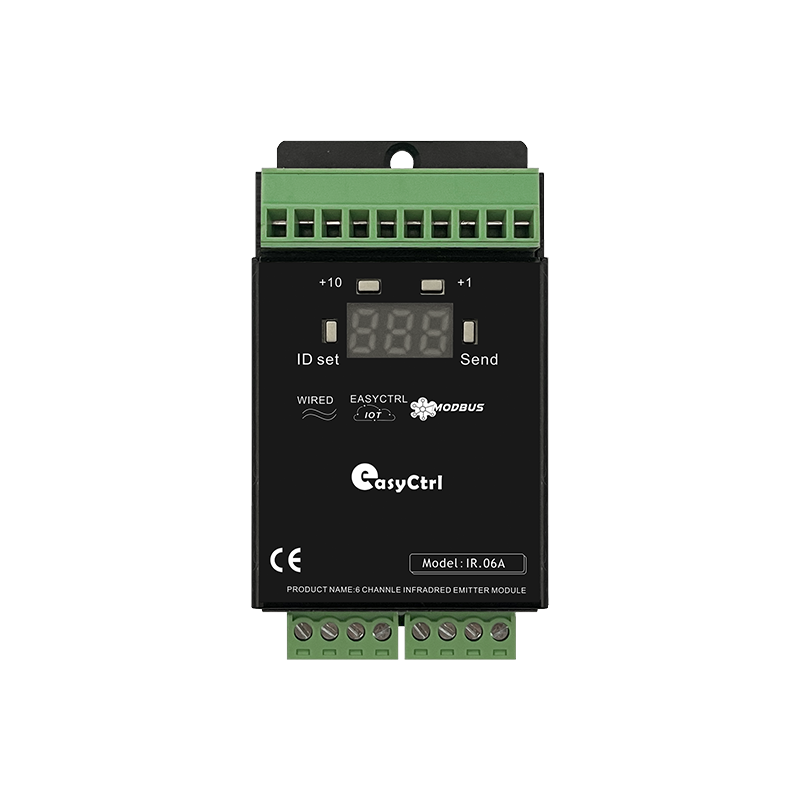

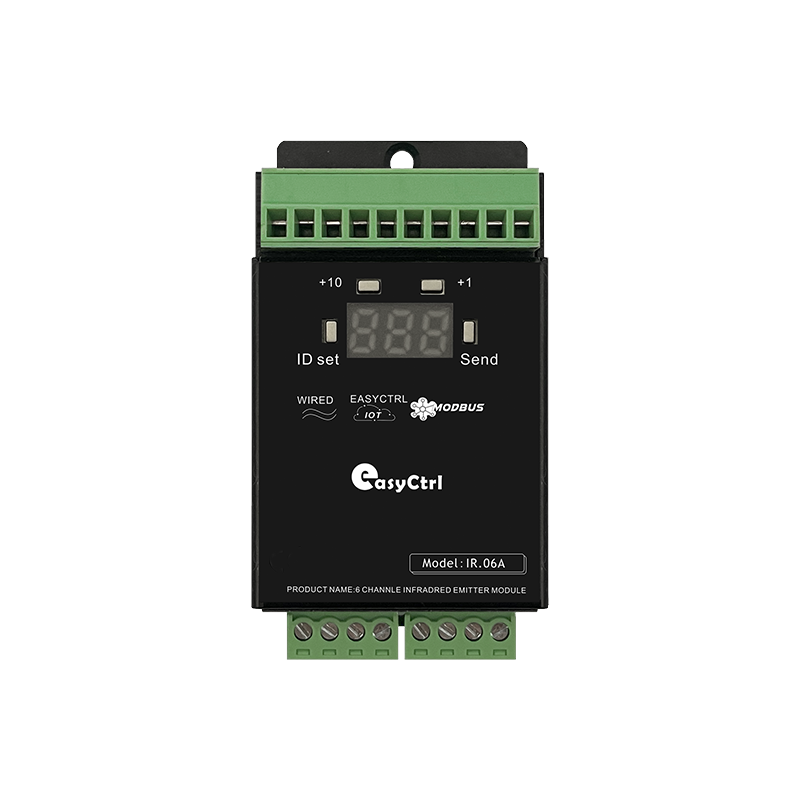

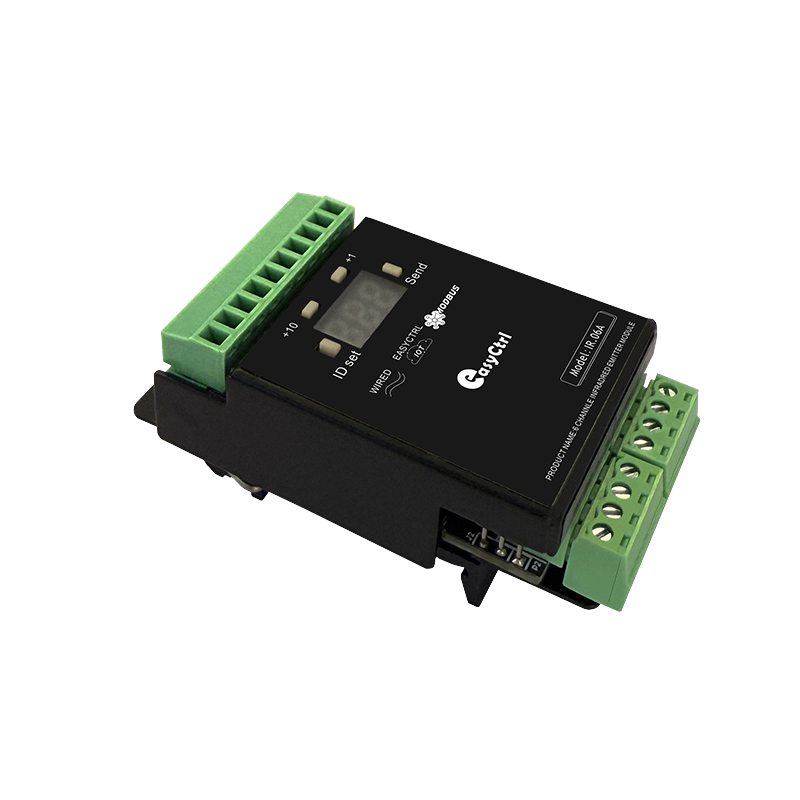

6 CH Infrared Emitter Module

Model No:IR.06A

The 6 CH Infrared Emitter Module serves as a system  third-party equipment control unit, typically installed in a distribution box, rail installation. Equipment that can be controlled by infrared remote control through the bus, such as: air conditioning, TV, TV box and other third party equipment.

Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
Rail-mounted installation
Provides 6 channels of infrared (IR) output
Can connect to various types of infrared (IR) remote control devices
Import the function codes through the software
Export the infrared code data through the software.
Remote control
Local control
Manual control
Digital tube display status
Simple wiring
Scene control
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Rated Consumption
≤0.4W
Infrared Channel
infrared channel*6
Data Store
single channel *99 infrared codes
Program Download
infrared library download *1
Bus Interface
bus interface*2
Display Interface
4*light touch function key; 3*digital tube LED light
Protection
NONE
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
42 mm*76 mm*32 mm
Net Weight
≤112 g/pcs
Enclosure Material
brushed aluminum shell technology
Installation Method
standard 35mm DIN rail mounting
Dimension
The module uses a compact 2.5P DIN rail mounting structure
Software Presentation
0405dimmermodule1280
classroom
configuration software1280720
controlinterface1280
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
SINGLEAREA2720470
Solution for Single-space lighting control system
Learn more
building720470
Solution for Traditional Building Lighting Retrofit and Upgrade
Learn more
SMARTHOME720470
Solution for Smart Home
Learn more
EXHIBITIONHALL720470
Solution for Exhibition Halls
Learn more
720470NEW
Solution for Office Buildings
Learn more
factory720470
Solution for Large Manufacturing Plant
Learn more
MUSEUMPHOTO720470
Solution for Museum
Learn more
Hotel intelligent dimming system
Solution for Hotel Public Areas
Learn more
User Manual(IR.06A)
