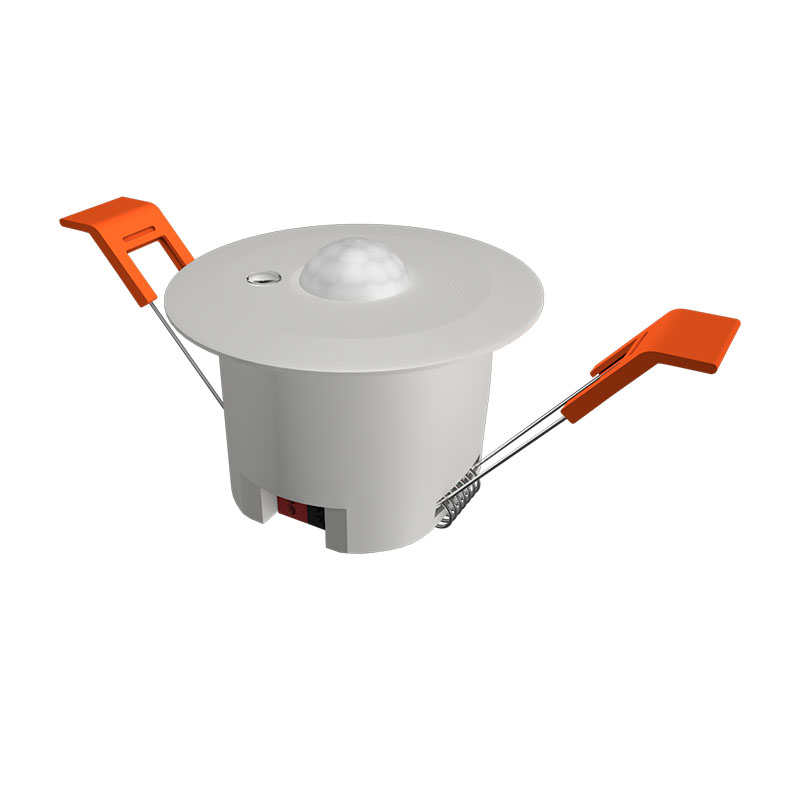

KNX Four-in-one Sensor (Embedded)
KNX 4-in-1 Sensor (Illuminance, IR Motion, Temp. & Humidity), Flush Mount, KNX Bus
The equipment is installed in the form of ceiling-mounted recessed installation, the cutout diameter d ranges from Φ 46mm to Φ 52mm, with the installation orientation perpendicular to the floor, in order to facilitate the rapid installation of the equipment, it is necessary to ensure that the equipment is operated, tested, tested, and maintained correctly.
(1) Cyclic output function for illuminance, temperature and humidity values;
(2) Illumination, temperature, humidity control each two channels, can output 1bit, 4bit, 1byte data;
(3) Infrared movement trigger control function;
(4) Temperature change trigger control function;
(5) Humidity change trigger control function;
(6) Infrared movement and brightness logic function;
(7) Master-slave function of infrared movement;
(8) Integrated control function for IR motion sensing and illumination sensing;
(9) Enable or disable the channel control output function of illumination and infrared movement by the object.
(10) Illumination and movement are used in combination to jointly controlthe function of the light;
(11) Temperature and humidity can be used together to control the air-conditioning on/off;
(12) Infrared movement, illumination, temperature and humidity four-in-one sensor.
