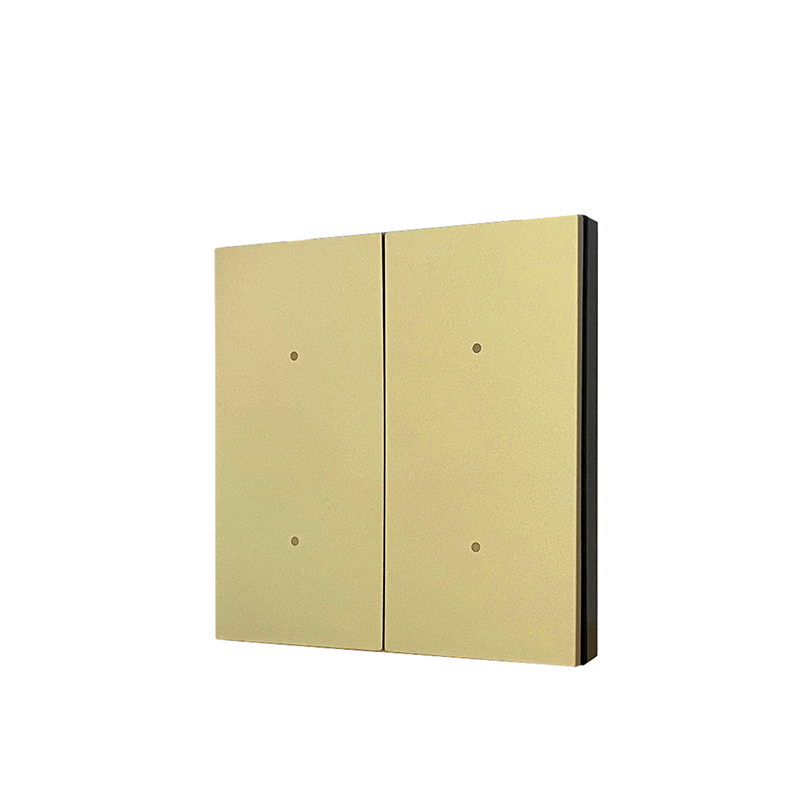

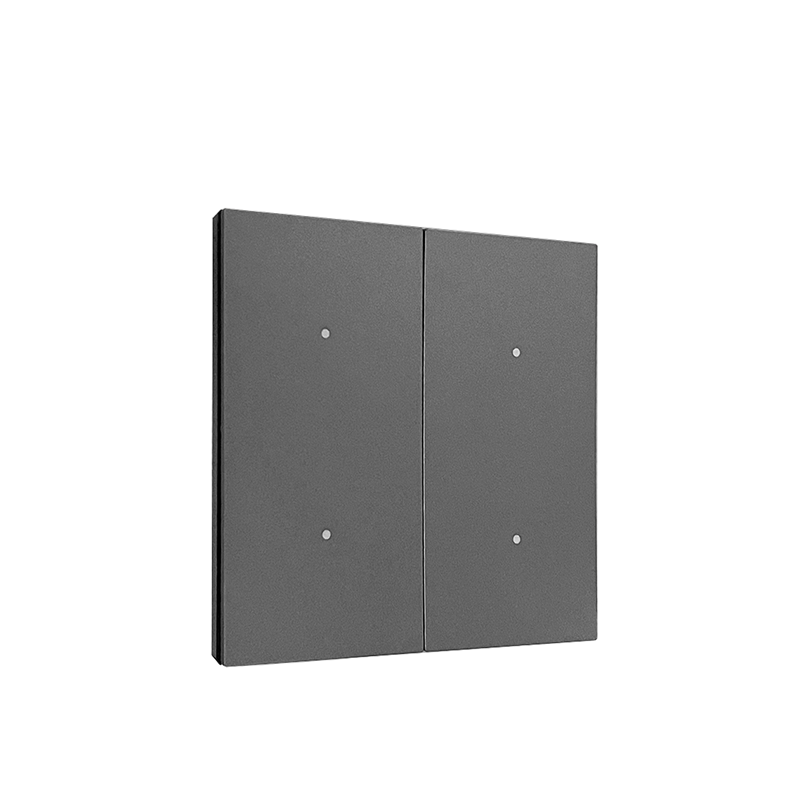

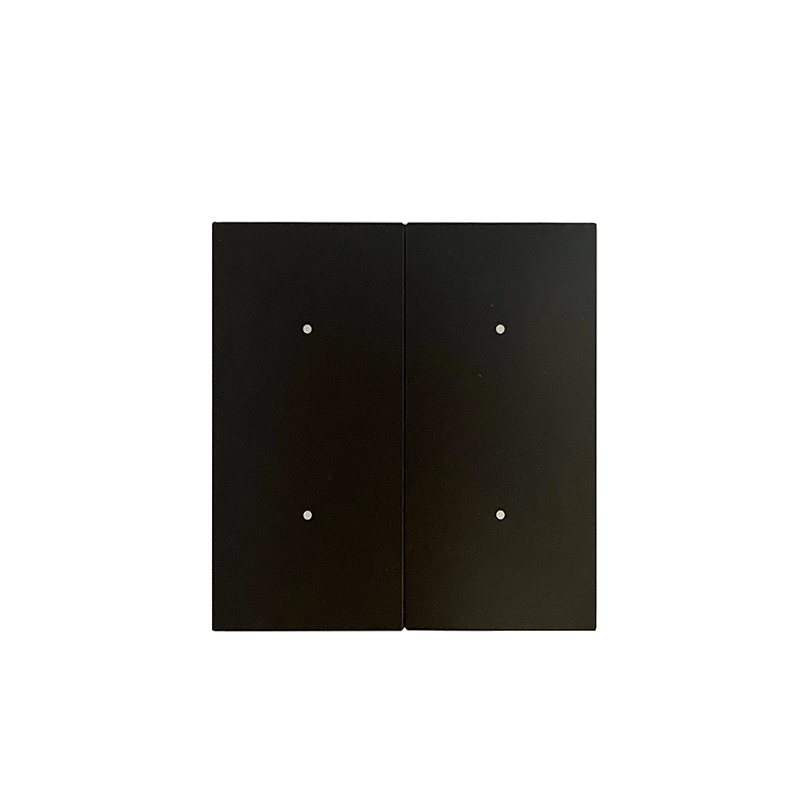

4-Button Smart Switch Panel (D series)

Model No:KP.04D

4-Button Smart Switch Panel, serves as a system control unit , typically installed in the local, to achieve single control or scene control of lighting switch, dimming, curtain opening and closing, music and other devices.

Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Provide 4 programmable keys
Multiple button operation methods
Icon markings can be engraved
Scene control
Simple wiring
Overvoltage protection
Overcurrent protection
Stable and reliable
Online program update
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±5%
Rated Power Consumption
≤1.1W
Key Indicator Light
white light
Backlight
orange light
Number Of Keys
four keys
Key Category
reset touch key
Operating Voltage
bus interface*1
Installation Method
standard 86 bottom box mounting
Operating Temperature
0℃~45℃
Operating Relative Humidity
≤93%
Storage Temperature
-20℃~55℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
85.6mm*85.6mm*35.5mm
Net Weight(Two/Four/Six/Eight Key)
≤90gpcs
Enclosure Material
plastic
Opening Size (L * W)
69mm*58mm，bottom box depth is greater than 40mm
Dimension

The panel adopts a standard 86-type back box for installation

Software Presentation
configuration software1280720
0820relaymodule1280
dalidimmermodule1280
classroom
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
SINGLEAREA2720470
Solution for Single-space lighting control system
