Office building smart lighting control system

Solution for Office Buildings

Solution Overview

Based on the YC-BUS communication protocol, Easyctrl Intelligent offers a smart lighting control system solution for public areas in office buildings. This solution enhances the building's overall image and management efficiency, supports energy conservation and emission reduction, and helps reduce operational costs. It is a comprehensive smart lighting control system tailored for office buildings.

System Achievements

1.Diversified Floor-Zoning Intelligent Lighting Control

The office building is equipped with the EASYCTRL intelligent lighting control system developed by Easyctrl Intelligence. The system utilizes various control functions including switch control, dimming control, scene control, timer control, sensor-based control, panel control, and touchscreen control. These features ensure an orderly and appropriate lighting environment, enabling effective intelligent lighting management across different floors of the building.

2.Centralized Management

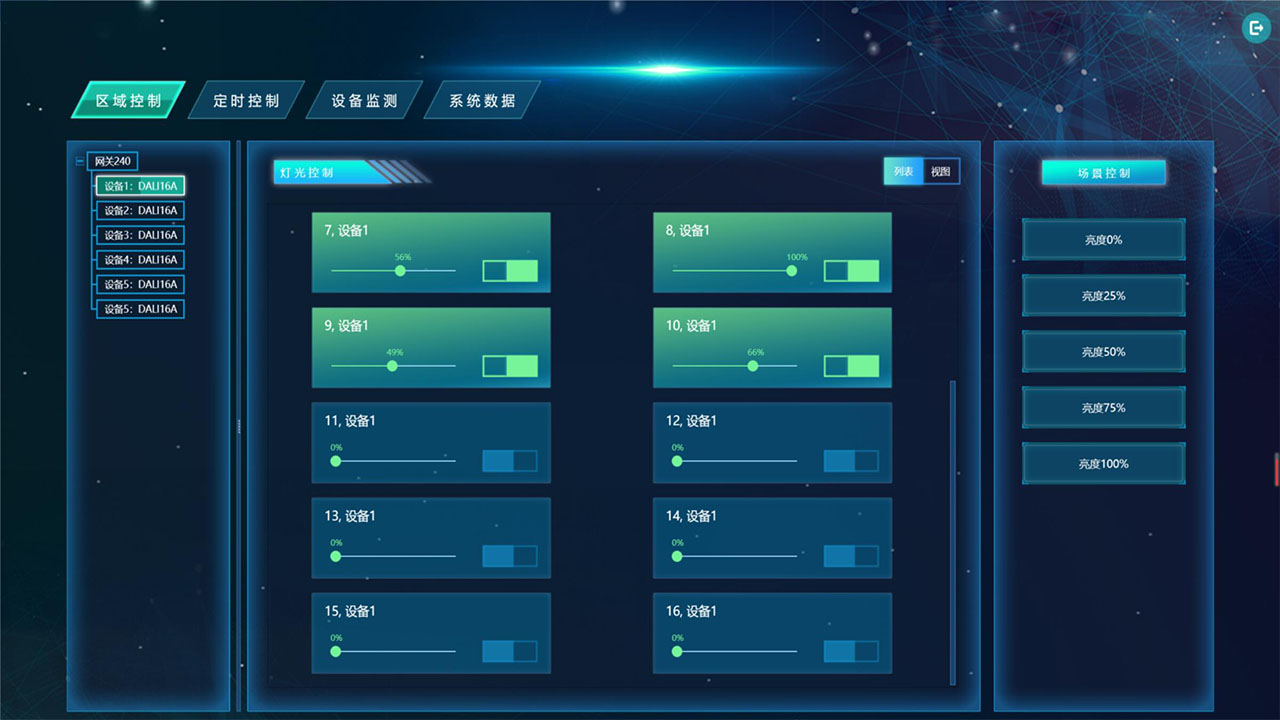

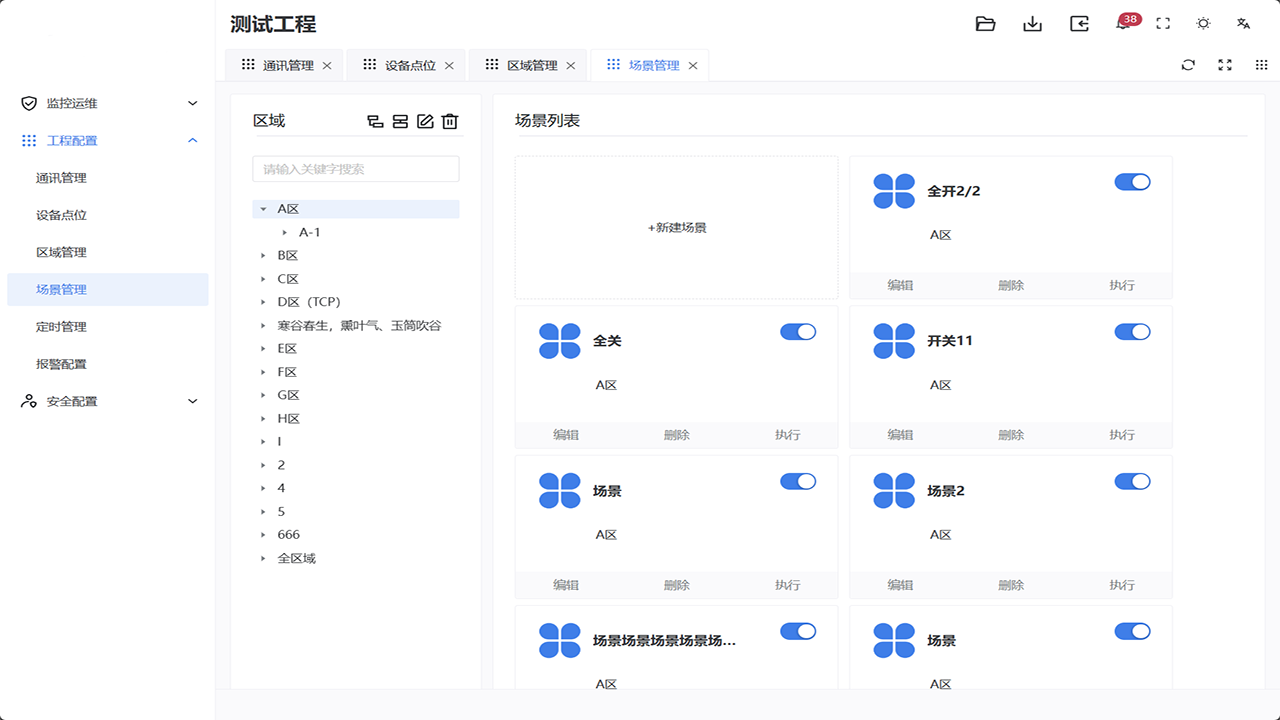

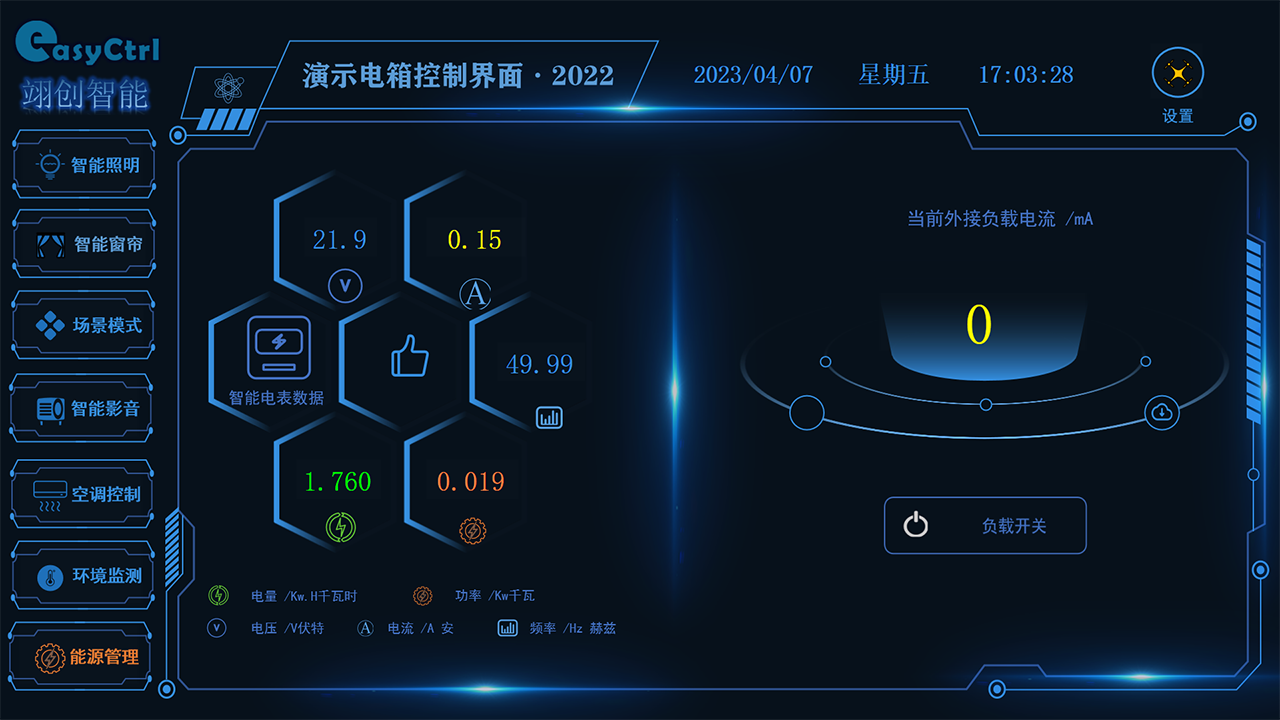

All lighting in the public areas of the office building is centrally managed through the system’s control software in the central monitoring room, significantly improving operational efficiency.

3.Energy Efficiency

Lighting accounts for approximately 35% of the total energy consumption in the office building. The use of the control system effectively reduces energy usage.

4.Cost Reduction

With a large number of lighting fixtures in the building, the EASYCTRL system offers superior and efficient control of switching and dimming circuits. This not only extends the lifespan of the fixtures but also reduces operation and maintenance costs, contributing to overall expense savings.

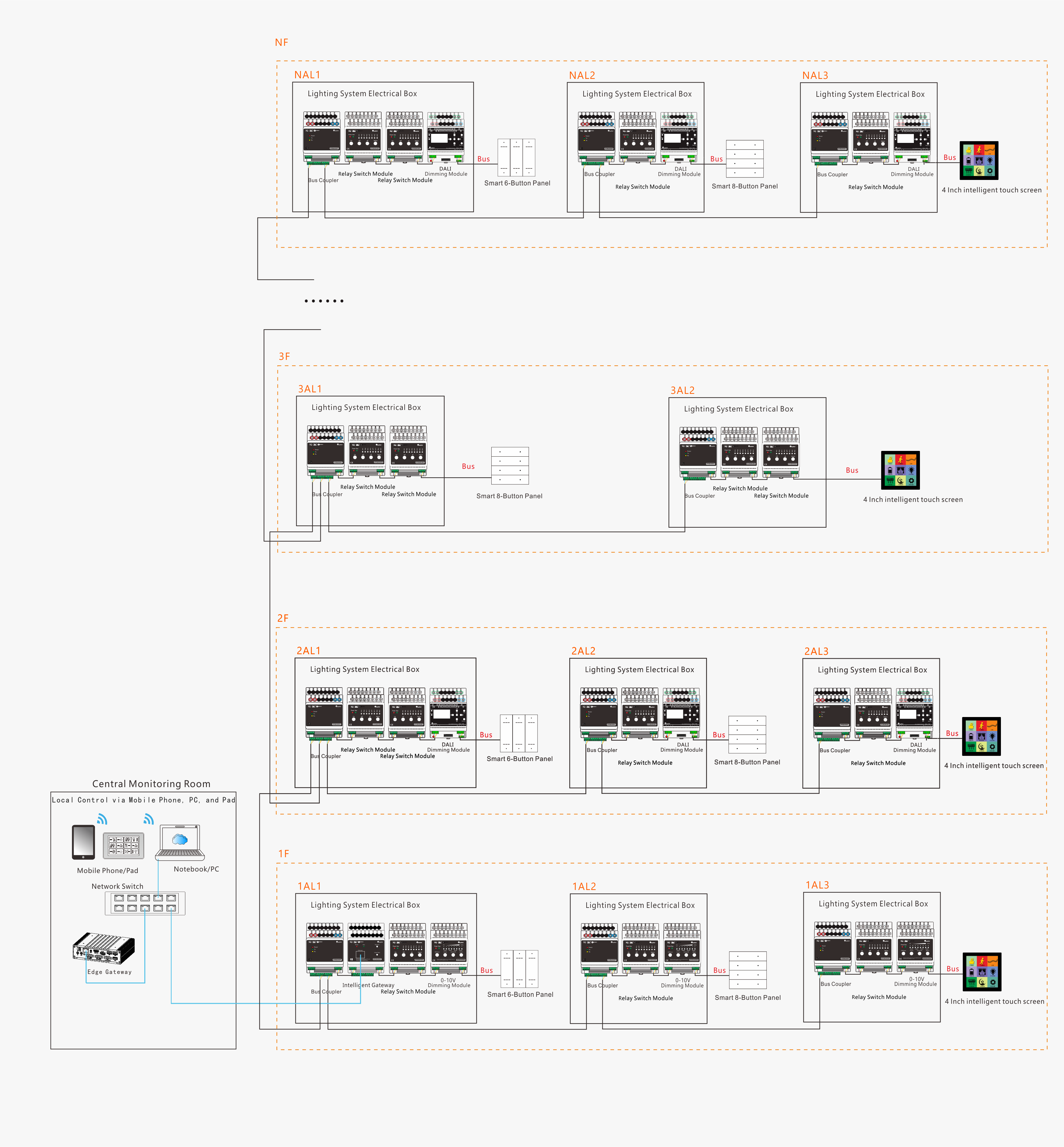

System architecture diagram

未命名 -1.png

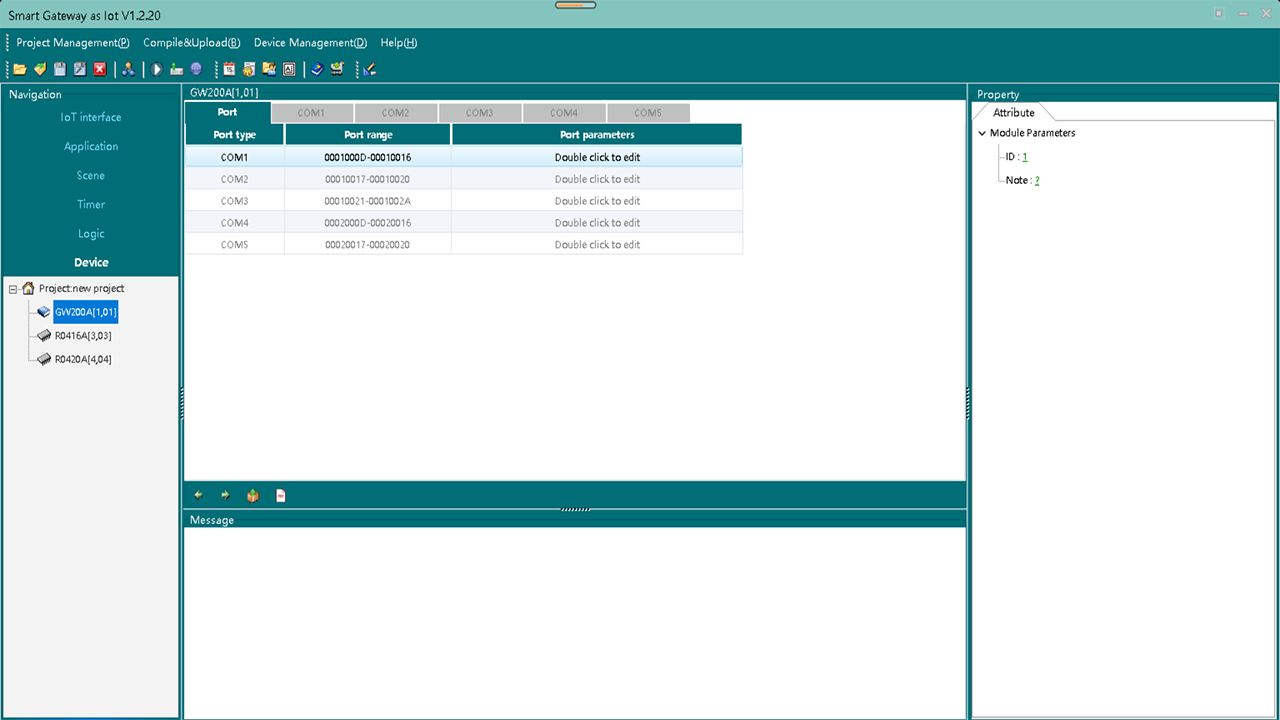

The system adopts the EASYCTRL brand intelligent lighting control solution based on the YC-BUS protocol. In the central monitoring room, an intelligent lighting gateway host is configured, with each gateway capable of managing up to 63 bus modules, control panels, and other devices. The system is structured with intelligent lighting distribution boxes configured by floor and control zone. Each distribution box is equipped with a corresponding number of intelligent lighting switch modules and dimming modules according to the controlled circuits. Depending on project requirements, dimming modules may include 0-10V dimming modules, DALI dimming modules, etc. Each control area is equipped with control panels or intelligent touch screens as needed.The overall architecture is built on the YC-BUS bus control structure. The intelligent lighting gateway host is equipped with a TCP/IP interface, allowing it to connect to the regional network switch. The entire intelligent lighting control system is operated through a PC-based software interface, and it also provides open integration interfaces to facilitate seamless integration with other subsystems of the smart building.

Main Products

Relay Switch Module

RL.04.16A: 4-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.08.16A: 8-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.12.16A: 12-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.16.16A: 16-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.04.20A: 4-channel 20A relay switch module.

RL.08.20A: 8-channel 20A relay switch module.

RL.04.20C: 4-channel 20A relay switch module(With Current And Voltage Detection).

RL.08.20B: 8-channel 20A relay switch module(With Current Detection).

Smart lighting Gateway

GW.100A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system.

GW.200A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system, equipped with logic functions and supporting voice control.

Depending on the project requirements, either gateway can be selected.

The gateway provides a MODBUS-TCP interface for integration with third-party systems (e.g., BA systems).

Dimming Module

DR.04.16A: 4-channel 0-10V Dimming module.

DALI.16B: Dali dimming module.

DMX.32A: DMX dimming module.

DM.04.05B: 4-channel 5A leading edge dimming module.

DM.06.03B: 6-channel 3A leading edge dimming module.

DM.02.10B: 2-channel 10A leading edge dimming module.

Touch panel and Faceplate

KP.02D: 2-Button Smart faceplate.

KP.04C: 4-Button Smart faceplate.

KP.06C: 6-Button Smart faceplate.

KP.08D: 8-Button Smart faceplate.

TP.40A: 4-inch Smart Touch panel.

TP.70A: 7-inch Smart Touch panel.

System Advantages

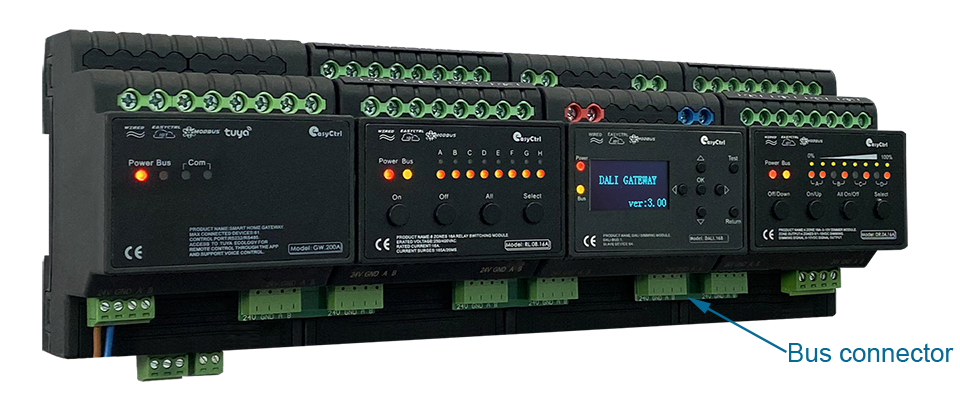

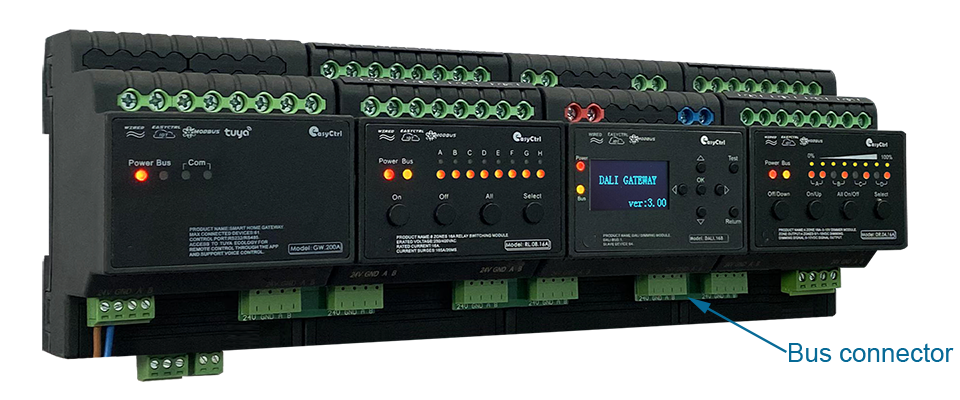

Robust and stable YC-BUS system bus architecture

Based on YC-BUS technology,the system has powerful intelligent lighting gateway;stable switch control modules with diverse product range to meet project needs;comprehensive dimming control modules with outstanding dimming performance;complete range of supporting modules, panels, and touchpanels.The rail-mounted bus module uses a bus connector, eliminating the need for manual wiring, ensuring stability and reliability.The failure of a single bus device does not affect the normal operation of the entire bus system. Simply replacing the faulty device with a new product and properly setting the ID number completes the replacement.
