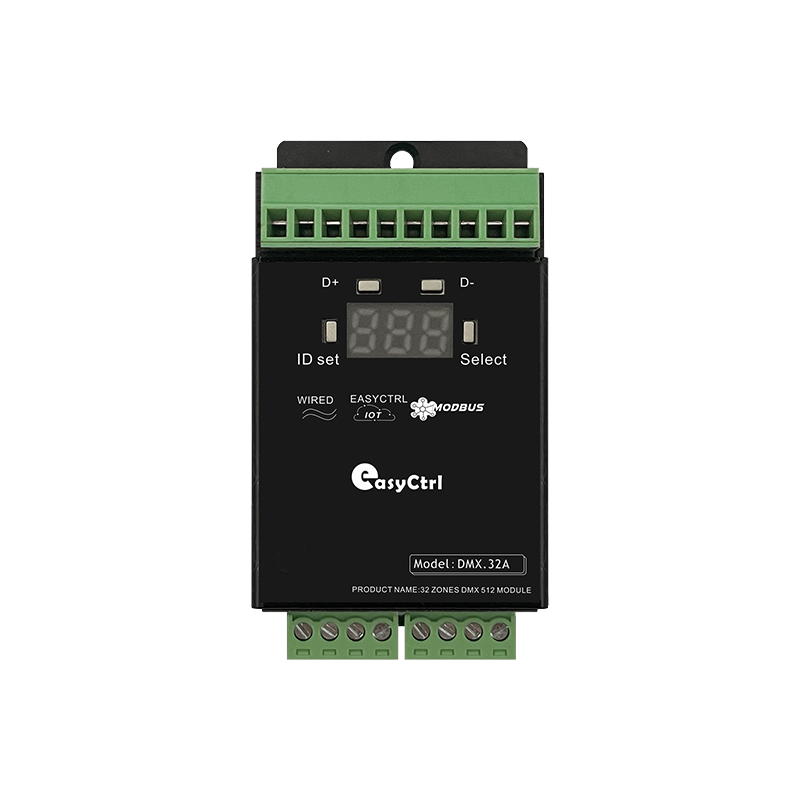

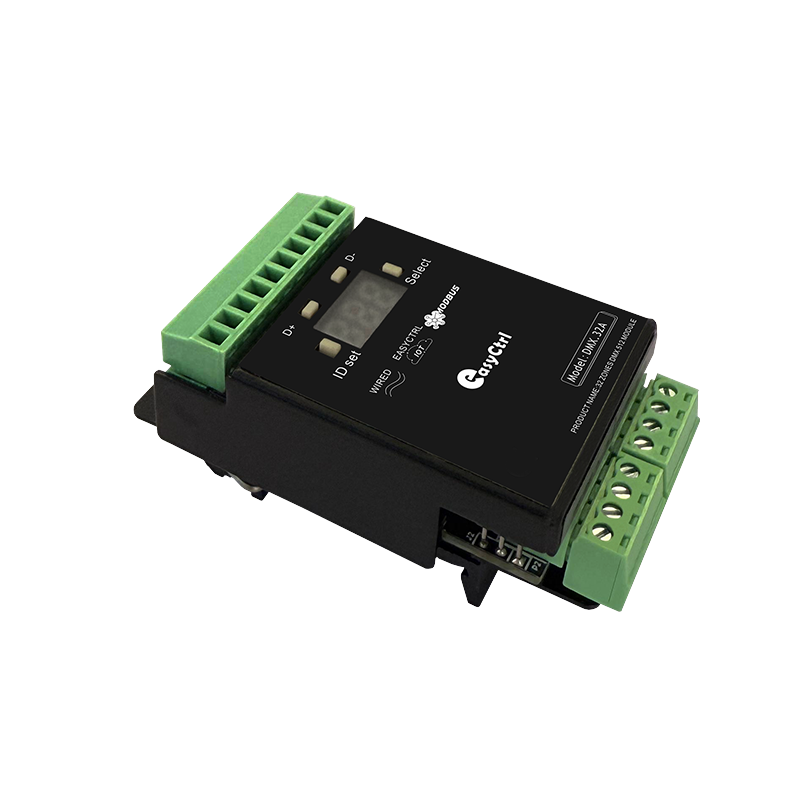

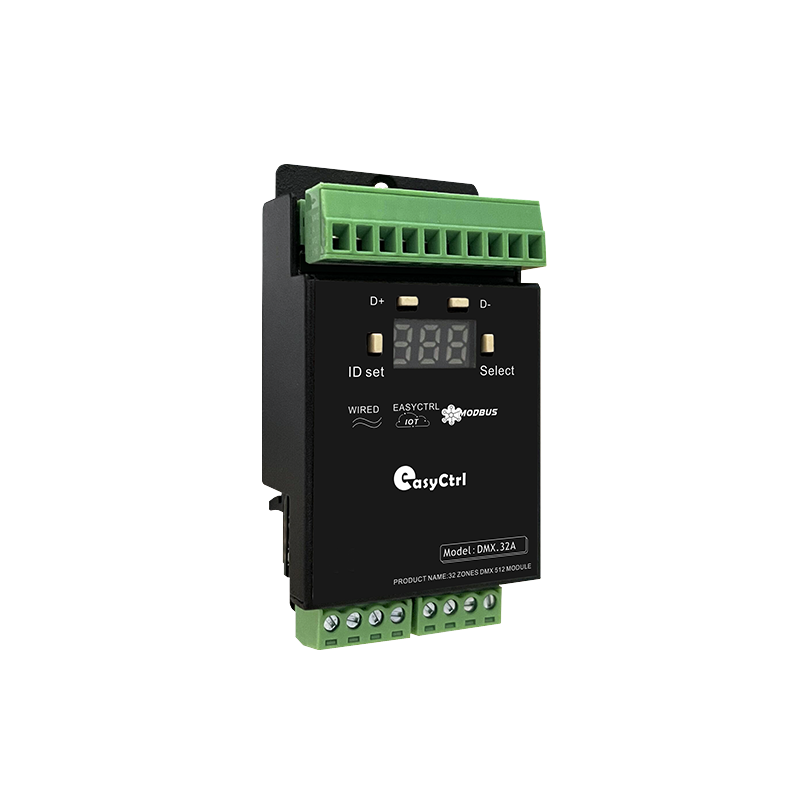

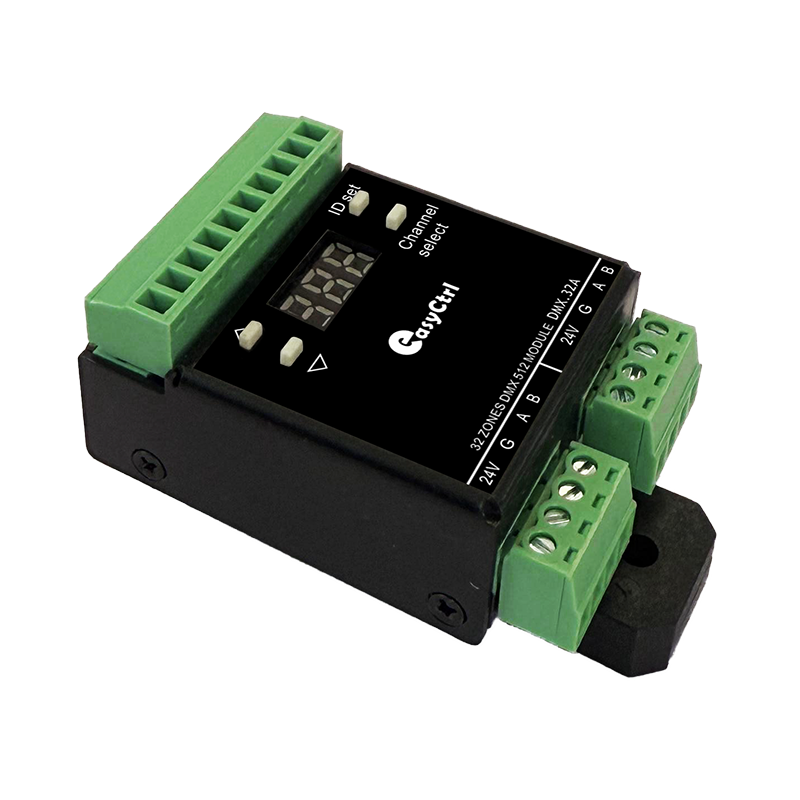

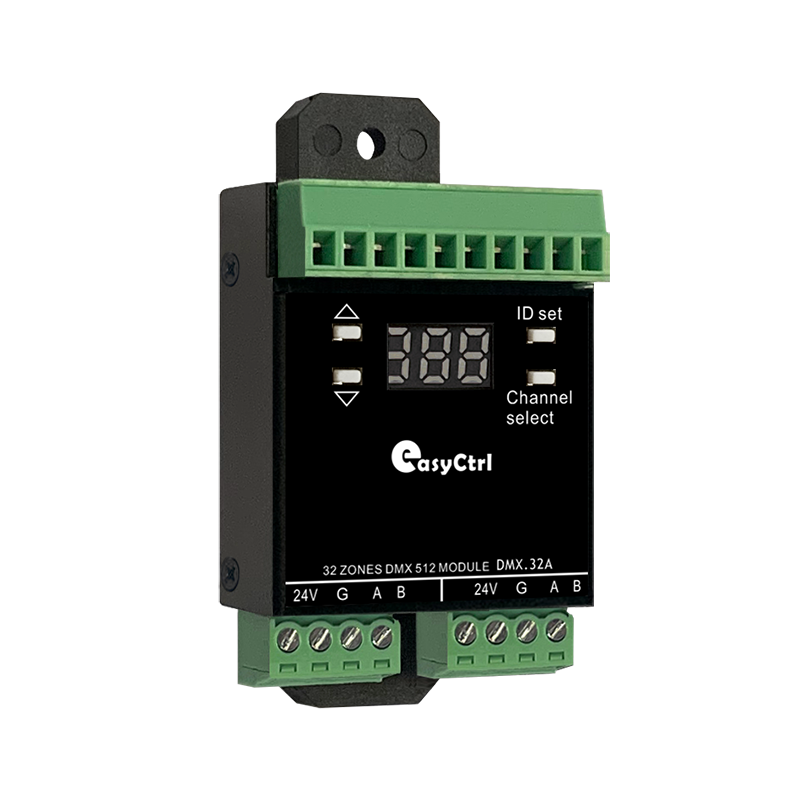

32 CH DMX Dimming and Color Tuning Module
Model No:DMX.32A

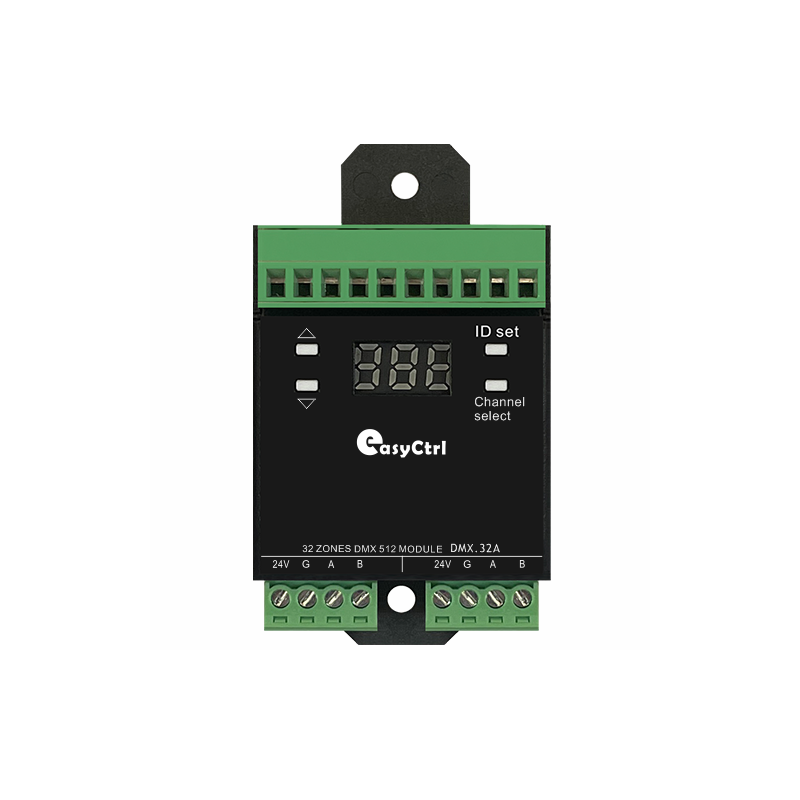

32 CH DMX Dimming and Color Tuning Module , serve as a system dimmer execution unit, typically installed in a distribution box, rail type or wall-mounted installation, occupies 2.5P module units. It can control 16 DMX channels, real-time feedback of each loop state; Realize the control of RGB light switch, dimmer, color matching, DMX wall washing lamp, moving head lamp and other equipment.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Provides 32 sets of DMX512 signal addresses
Each channel can independently control brightness from 0 to 100
Manual control
Simple wiring
Scene control
Status feedback
Digital tube display status
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Rated Consumption
≤0.4W
Input Voltage
24VDC±10%/5VDC±10%
Signal Path
32 CH DMX512 signal paths
Signal Interface
1 CH DMX512 interface
Bus Interface
bus interface*2
Display Interface
4* light touch function key; 3* digital tube LED light
Protection
NONE
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
42mm*76 mm*32 mm
Net Weight
≤112 g/pcs
Enclosure Material
brushed aluminum shell technology
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 2.5P DIN rail mounting structure
Software Presentation
ET-DMX32A1280
configuration software1280720
classroom
dalidimmermodule1280
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Shenzhen Huayi Design Office Smart Lighting Control System
