广州翊创智能科技有限公司

(1) Switch function: can be used to switch lighting on and off, with long press, short press, and invert functions;

(2) Dimming function: controls dimming devices, with relative dimming and absolute dimming outputs;

(3) Curtain control function: can control curtain opening and closing, projection screen raising and lowering, etc.;

(4) Value transmission: can send values of 1 bit/1 byte size;

(5) Scene control function: can perform 8-bit scene control and call pre-set scene numbers;

(6) Shift register: sends values in the form of a shift register;

(7) RGB and RGBW control: can be controlled by long press or short press;

(8) Multiple operation function: can send different values simultaneously and call different types of functions in one operation;

(9) Delayed value transmission: can send one value or not send it during operation, and send another value after a delay;

(10) Logic output function: supports OR, AND, XOR, NOR, and NAND logic outputs;

(11) Scene module conversion function: supports up to 8-channel scene group forwarding, each group supports up to 8 configurable outputs;

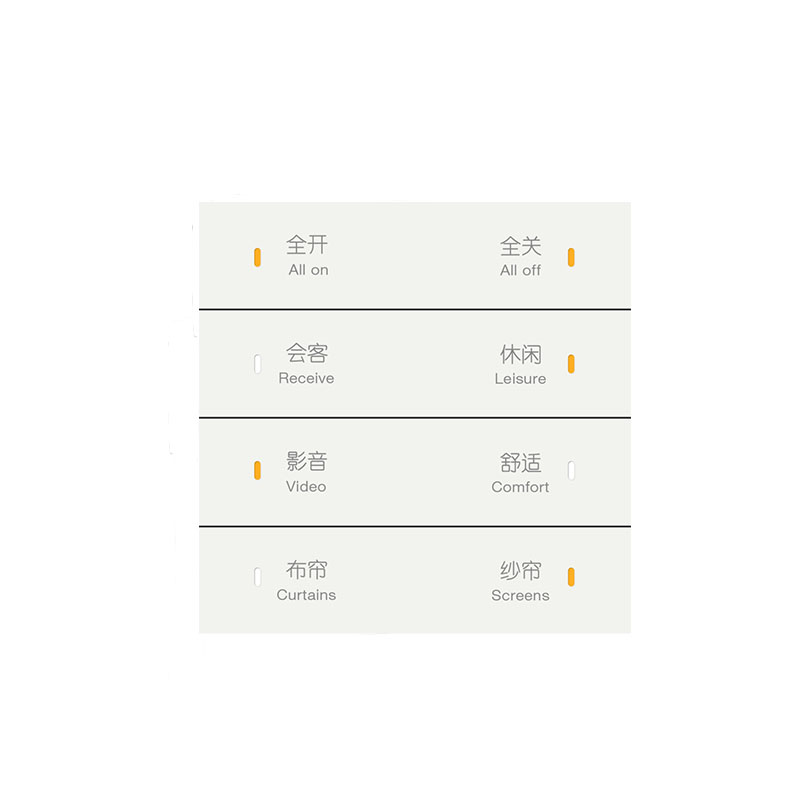

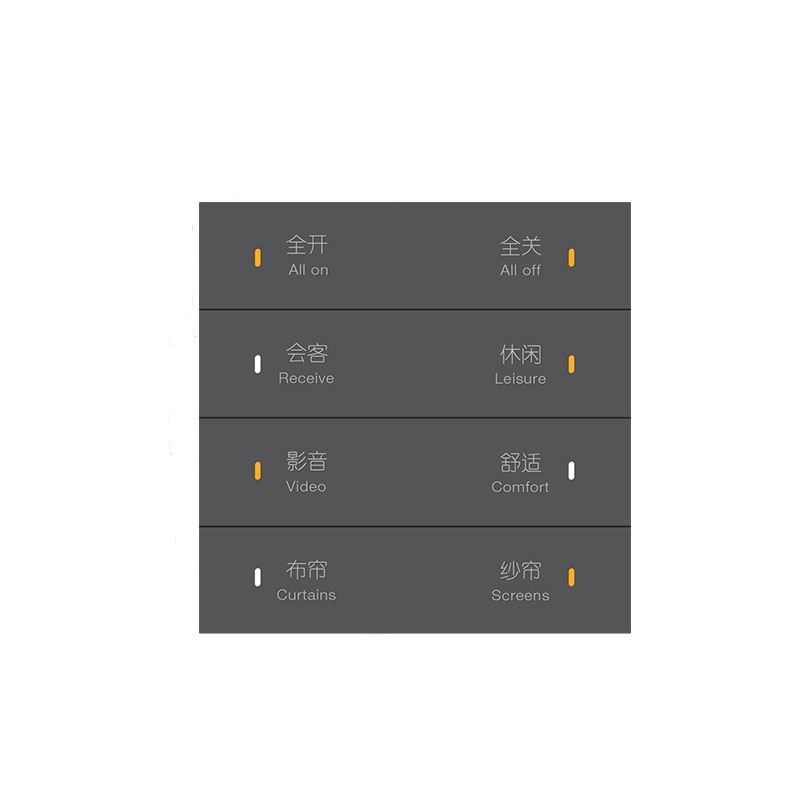

(12) LED indicator function, with multiple display states selectable, such as: normally open, normally closed,blinking...

(13) It has device lighting master-slave function, and can be used as a master device or slave device as needed;

(14) The status and backlight LEDs have brightness wake-up and delayed extinguishing functions. Wake-up conditions include button press, radar sensing, object triggering, etc.
