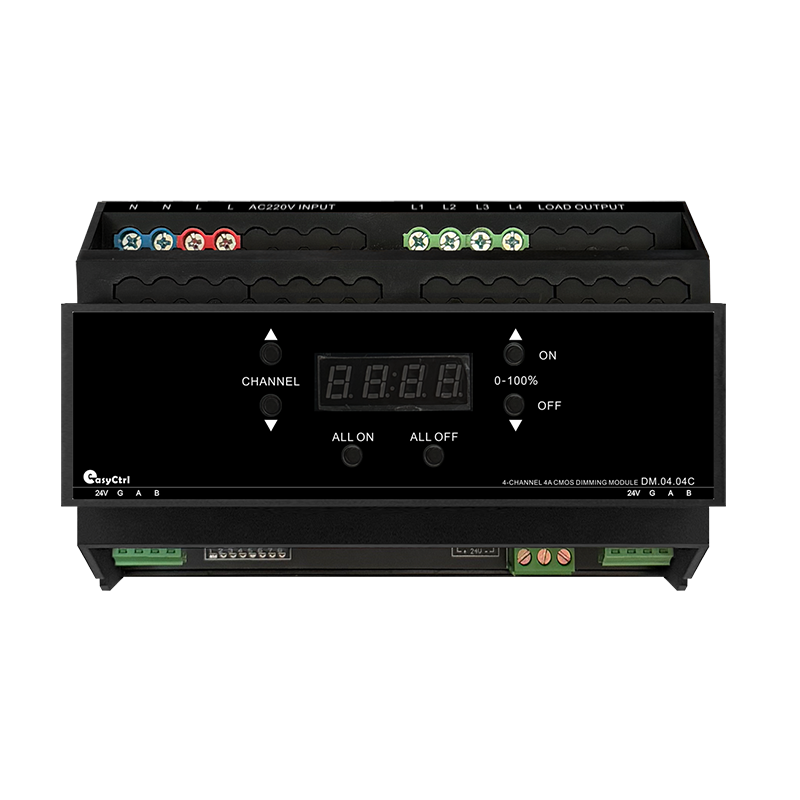

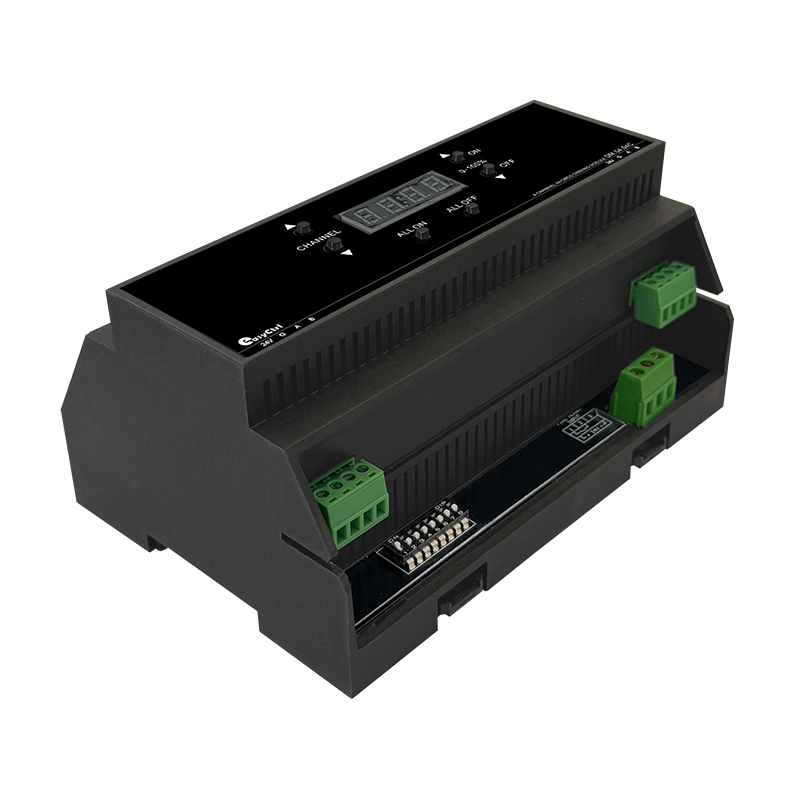

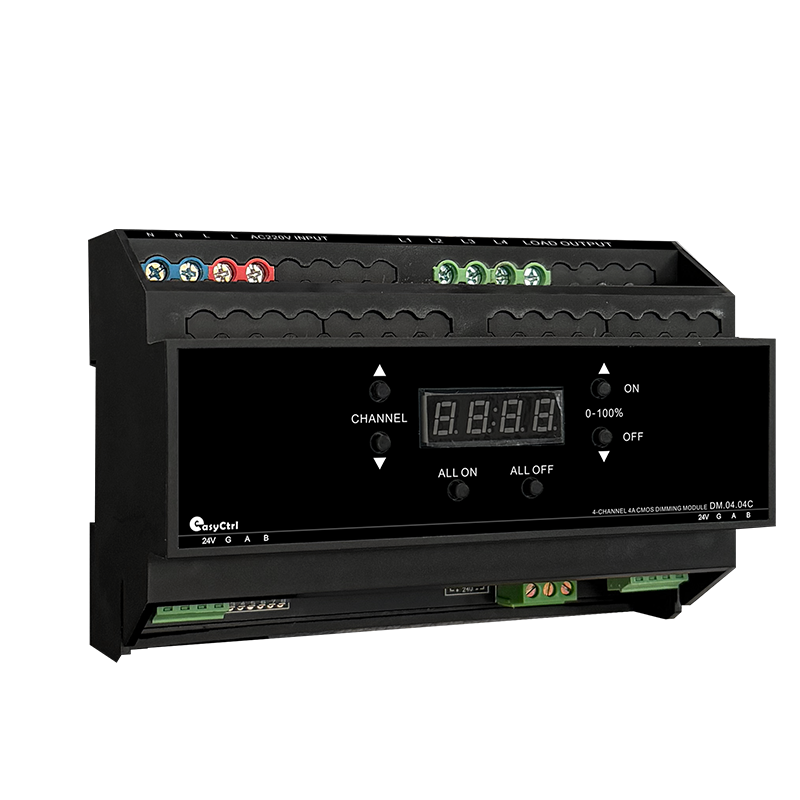

4-CHANNEL 4A CMOS DIMMING MODULE
Model No:DM.04.04C
4-CHANNEL 4A CMOS DIMMING MODULE serves as the system's dimming execution unit. Typically installed in a distribution box, it controls the dimming and switching of halogen, incandescent, fluorescent, and LED lights.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Support leading-edge and trailing-edge dimming mode switching
Provide 4 independent dimming channels
Circuit initial state setting
short-circuit protection
over-temperature protection
Manual control button
Local control
Status feedback
Multiple dimming curves to match different luminaires
Fire alarm linkage
Online program update
YC-BUS protocol
RS485 protocol
Product Specifications
Operating Voltage
AC110~230VAC
Operating Frequency
50/60Hz
Output Circuit
4-Channel Dimming
Max. Current per Channel
4A (Resistive load), Min. load per channel ≥15W
Combined Circuits
2-in-1: 8A (Resistive load) / 3-in-1: 12A (Resistive load) 4-in-1: 16A (Resistive load)
Dimming Mode
Leading edge / Trailing edge (Set via DIP wheel, ID7)
Short-circuit Protection
each circuit
Protection
each circuit
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
144 mm*98 mm*74 mm
Weight
≤520 g/pcs
Enclosure Material
Aluminum housing + PP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
dalidimmermodule1280
dalicdimmermodule1280
classroom
configuration software1280720
HA
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Shixuan International Hotel
