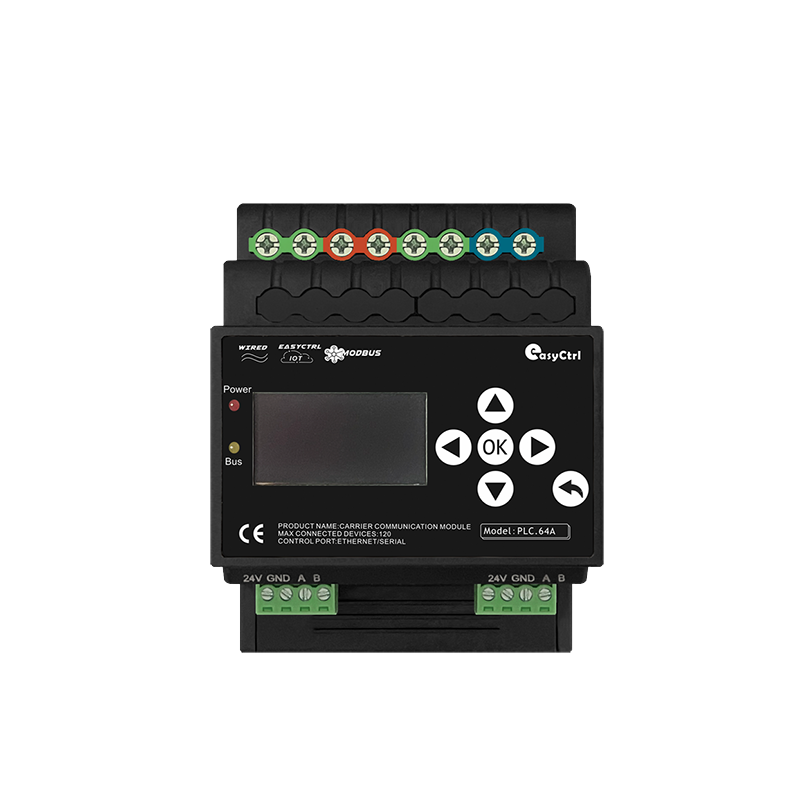

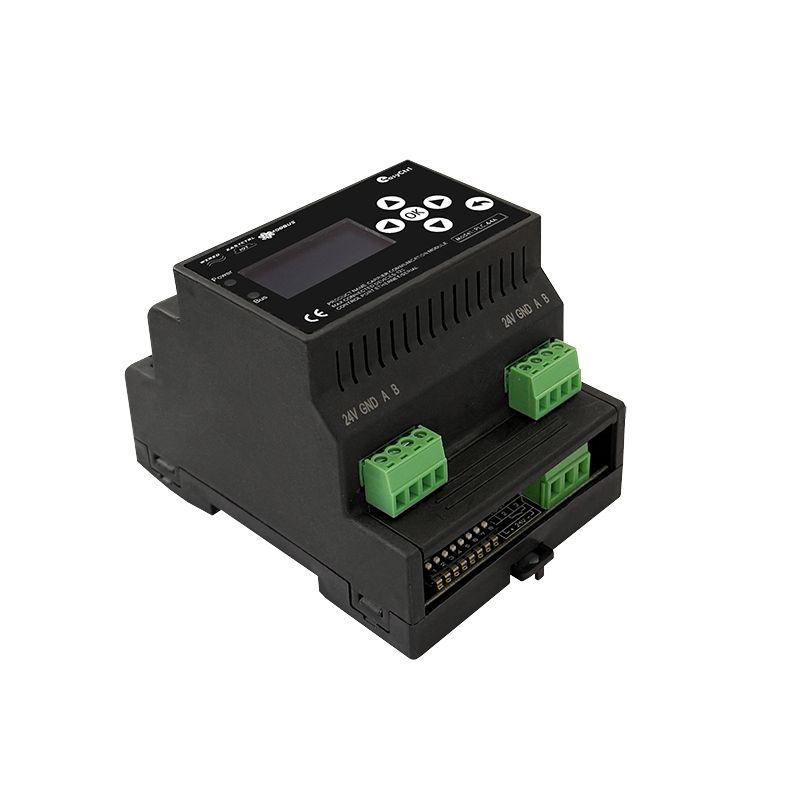

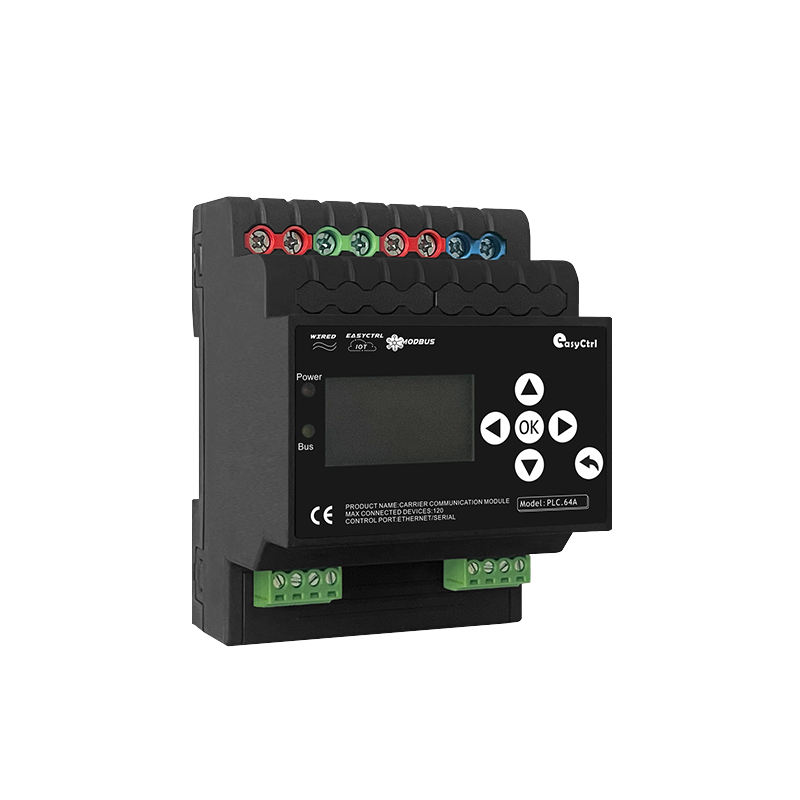

PLC Power Line Carrier Module
Model No:PLC.64A
PLC Power Line Carrier Module serves as a system switch execution unit, typically installed in a distribution box. It utilizes a bus communication protocol for upstream communication and a power line communication chip for downstream interaction. The module communicates with lamp controllers via power lines and operates according to the PLBUS protocol. This setup allows for single-lamp control, broadcast control, group control, scene control, and fault monitoring via the gateway. It eliminates the need for additional wiring, reduces costs, and facilitates easy installation and maintenance, making it ideal for intelligent lighting systems in commercial spaces, hotels, exhibition halls, classrooms, and more.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Supports up to 128 slave devices, which can be divided into 32 groups
Single light, single control
Group control
Scene control
Manual control
Local control
Built-in OLED screen, lighting status at a glance
Fire alarm linkage
Fire-resistant material
Online program update
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Maximum Power Consumption
≤1.3W
Rated Voltage
220V AC
Upstream Communication
bus communication
Downstream Communication
power line communication
Downstream Communication Range
300 meters
Maximum Number Of Slave Devices
128 devices, can be grouped into 32 groups
Control Port
2*Etron-Net
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*102 mm*72 mm
Weight
≤316 g/pcs
Enclosure Material
flame retardantPP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension

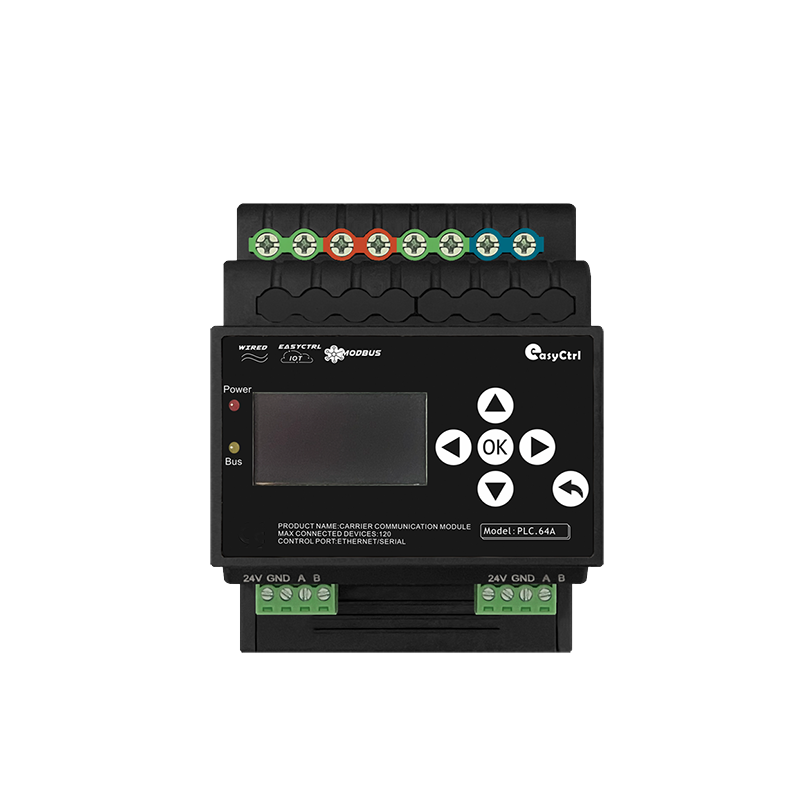

The module uses a compact 4P DIN rail mounting structure
Software Presentation
the underground garage
0420relaymodule1280
configuration software1280720
classroom
controlinterface1280
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
