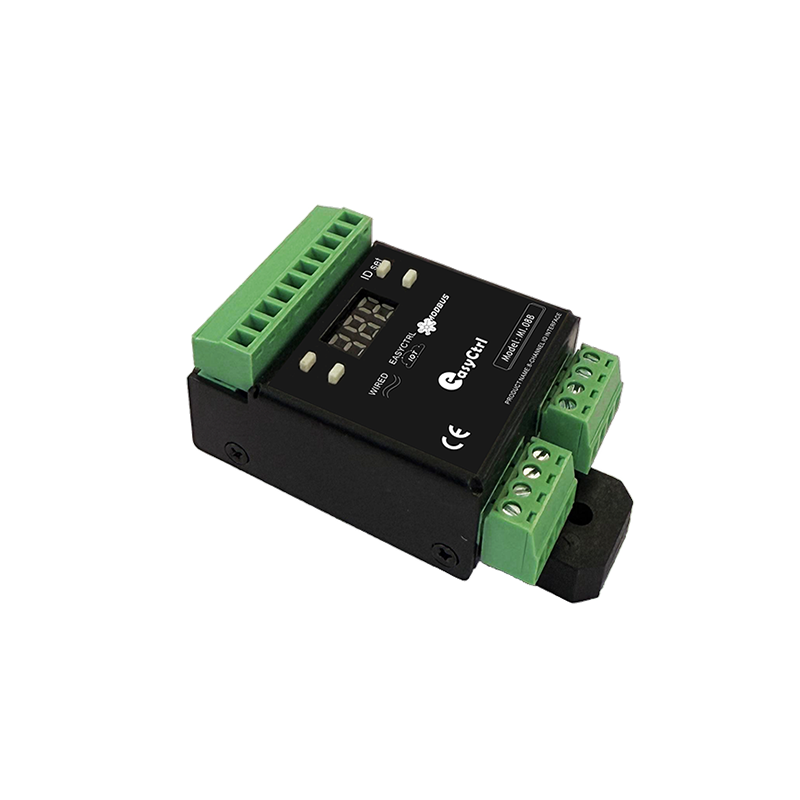

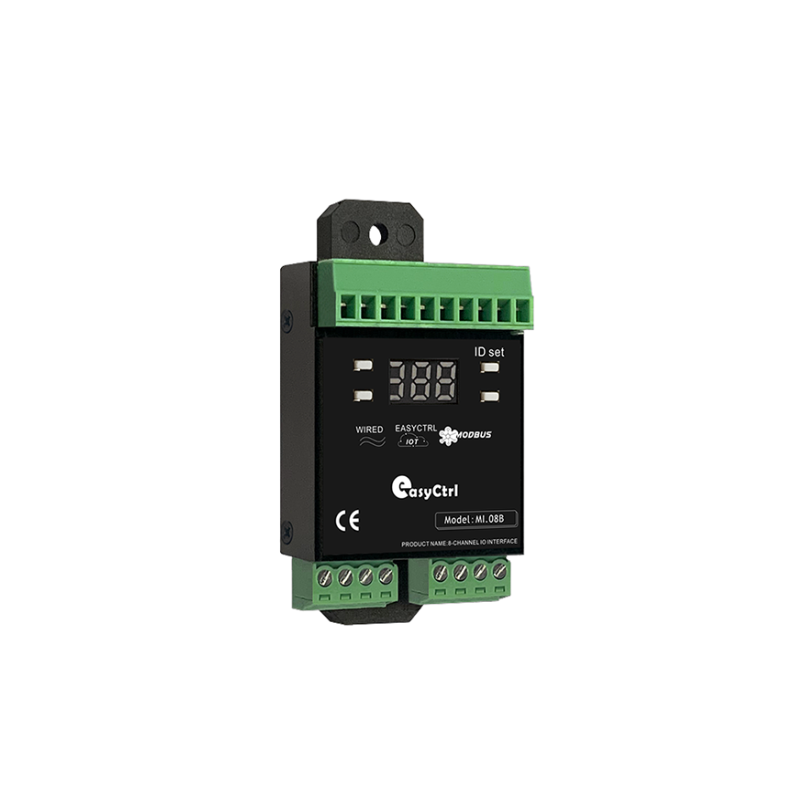

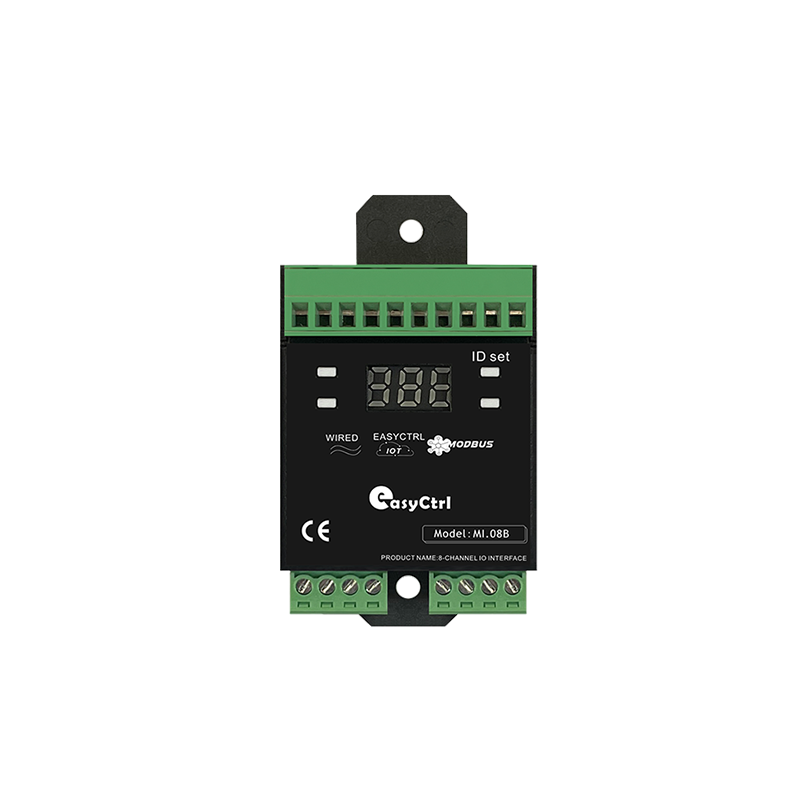

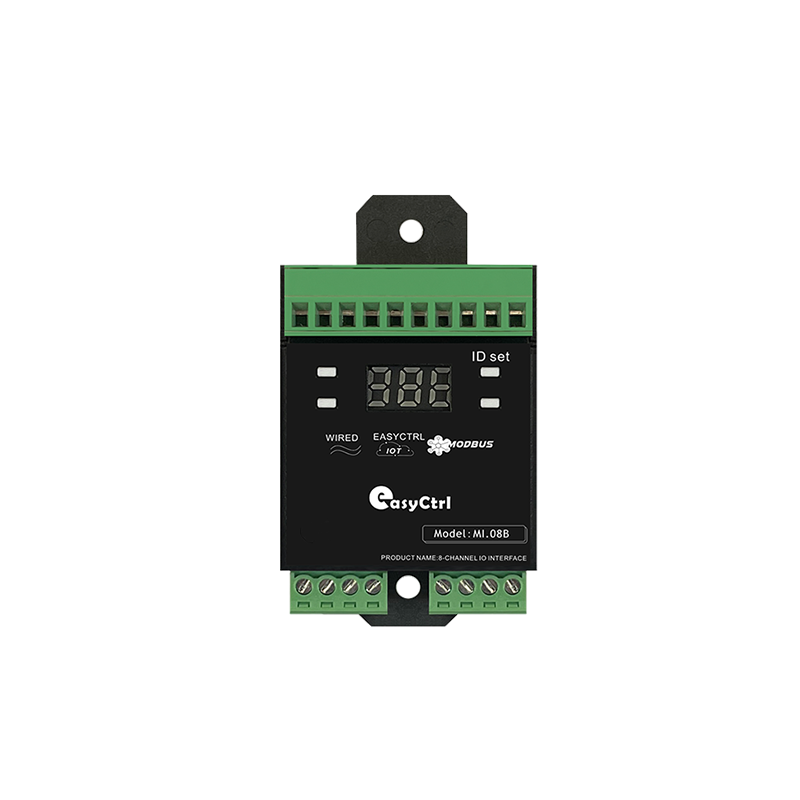

8 CH Dry Contact Module (MI.08B)

Model No:MI.08B

8 CH Dry Contact Module serves as a system control unit, typically installed in a distribution box, with DIN rail installation. It occupies 2.5P module units and provides 8-channel dry contact sensor inputs. Compatible with reset panels or self-locking panels, it can connect to various dry contact output sensors such as motion sensors, radar sensors, and light sensing modules.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
Rail-mounted installation
Provides 8 dry contact signal inputs
Provides 24V voltage output
Simple wiring
Local control
Remote control
Manual control
Scene control
Can connect to various types of dry contact sensors
Can connect to various types of dry contact panels
Digital tube display status
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Rated Power Consumption
≤0.4W
Output Voltage
24VDC ±10%
Dry Contact Input
8 channels
Load Contact
28V
Bus Interface
Bus interface *2
Display Interface
4*tactile function keys; 3*digital tube LED lights
Operating Temperature
-0˚C~70˚C
Operating Relative Humidity
20%~93%
Storage Temperature
-40℃~55℃
Storage Relative Humidity
10%~93%
Dimensions（L*W*H）
42mm*76mm*32mm
Net Weight
≤104g/pcs
Installation Method
Standard 35mm rail installation
Dimension
The module uses a compact 2.5P DIN rail mounting structure
Software Presentation
0820relaymodule1280
configuration software1280720
classroom
controlinterface1280
HA
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
SINGLEAREA2720470
Solution for Single-space lighting control system
Learn more
building720470
Solution for Traditional Building Lighting Retrofit and Upgrade
Learn more
SMARTHOME720470
Solution for Smart Home
Learn more
EXHIBITIONHALL720470
Solution for Exhibition Halls
Learn more
720470NEW
Solution for Office Buildings
Learn more
factory720470
Solution for Large Manufacturing Plant
Learn more
MUSEUMPHOTO720470
Solution for Museum
Learn more
Hotel intelligent dimming system
Solution for Hotel Public Areas
Learn more
User Manual(MI.08B)
English 中文
Related Products
Smart Gateway Host
Smart Gateway Host
Intelligent Lighting Control System Gateway Host Based on the YC-BUS Communication Protocol
8CH 16A Relay Switch Module
8 CH 16A Relay Switch Module
8 CH 16A Relay Switch Module Based on the YC-BUS Communication Protocol
4CH 16A Relay Switch Module
4 CH 16A Relay Switch Module
4 CH 16A Relay Switch Module Based on the YC-BUS Communication Protocol
12CH 16A Relay Switch Module
12 CH 16A Relay Switch Module
12 CH 16A Relay Switch Module Based on the YC-BUS Communication Protocol
16 CH 16A Relay Switch Module
16 CH 16A Relay Switch Module
16 CH 16A Relay Switch Module Based on the YC-BUS Communication Protocol
4 CH 20A Relay Switch Module(With Current Detection)
4 CH 20A Relay Switch Module(With Current Detection)
4 CH 20A Relay Switch Module(With Current Detection) Based on the YC-BUS Communication Protocol
4 CH 20A Relay Switch Module
4 CH 20A Relay Switch Module
4 CH 20A Relay Switch Module Based on the YC-BUS Communication Protocol
8 CH 20A Relay Switch Module
8 CH 20A Relay Switch Module
8 CH 20A Relay Switch Module Based on the YC-BUS Communication Protocol
8 CH 20A Relay Switch Module(With Current Detection) Wiring Diagram
8 CH 20A Relay Switch Module(With Current Detection)
8 CH 20A Relay Switch Module(With Current Detection) Based on the YC-BUS Communication Protocol
RS232 Serial Module
RS232 Serial Module
RS232 module controls third-party serial devices like AC panels and projectors.
6 CH Dry Contact Module
6 CH Dry Contact Module
6 CH dry contact module supports sensor input and TTL output.

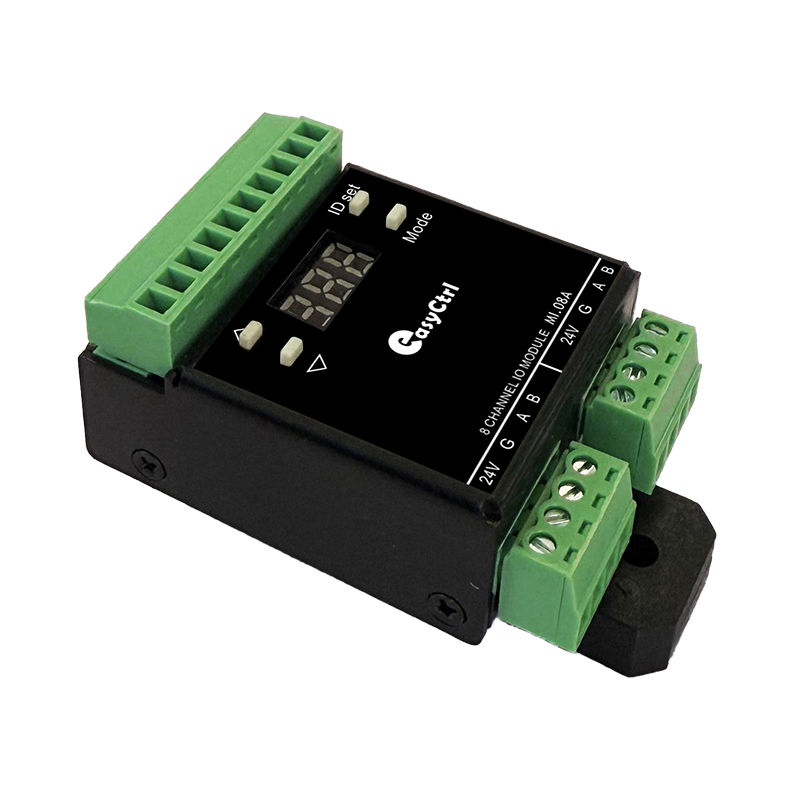

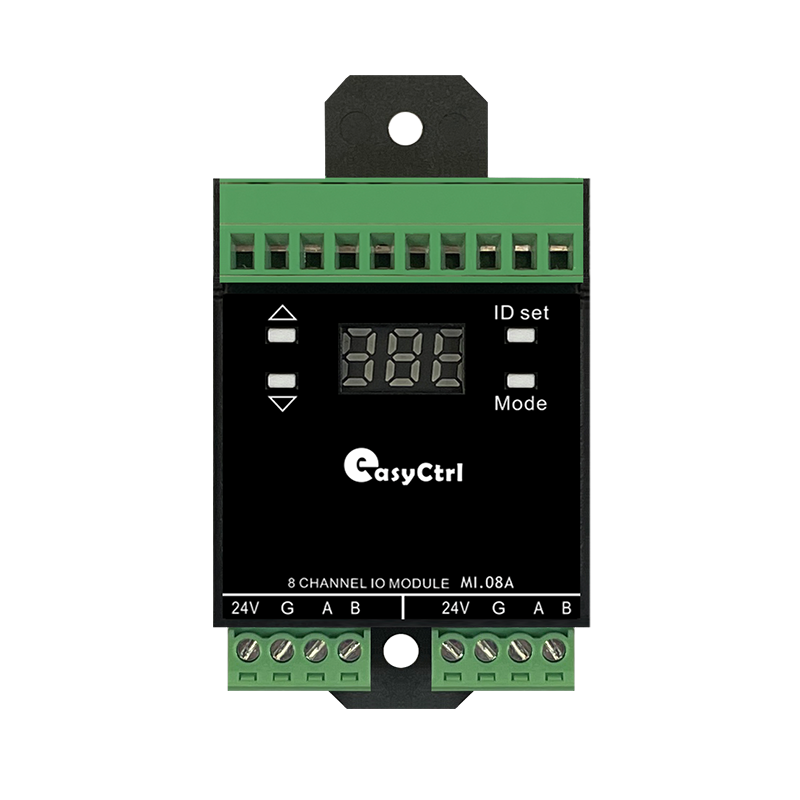

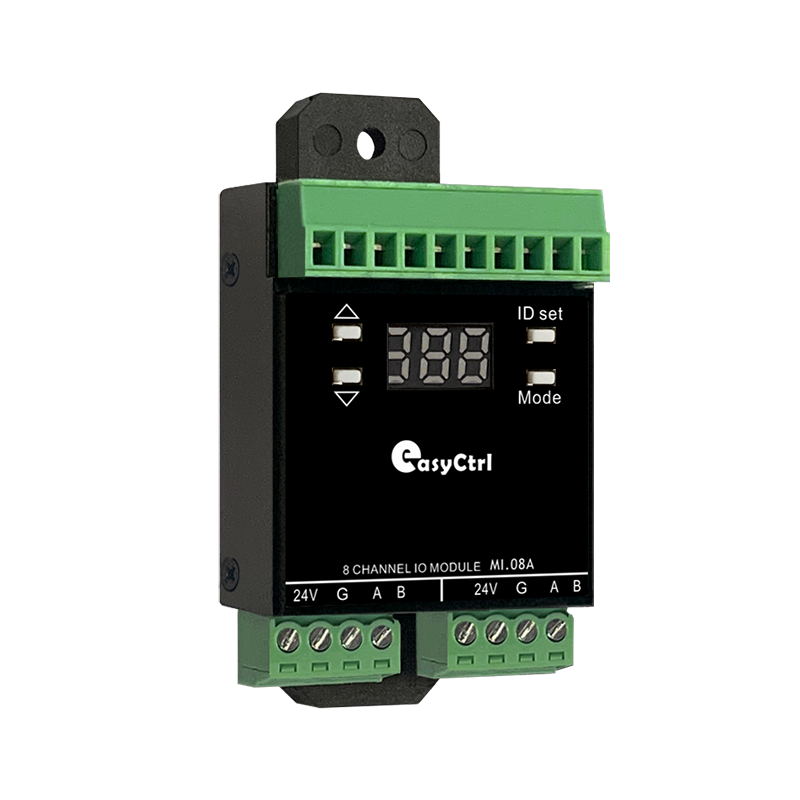

8 CH Dry Contact Module
