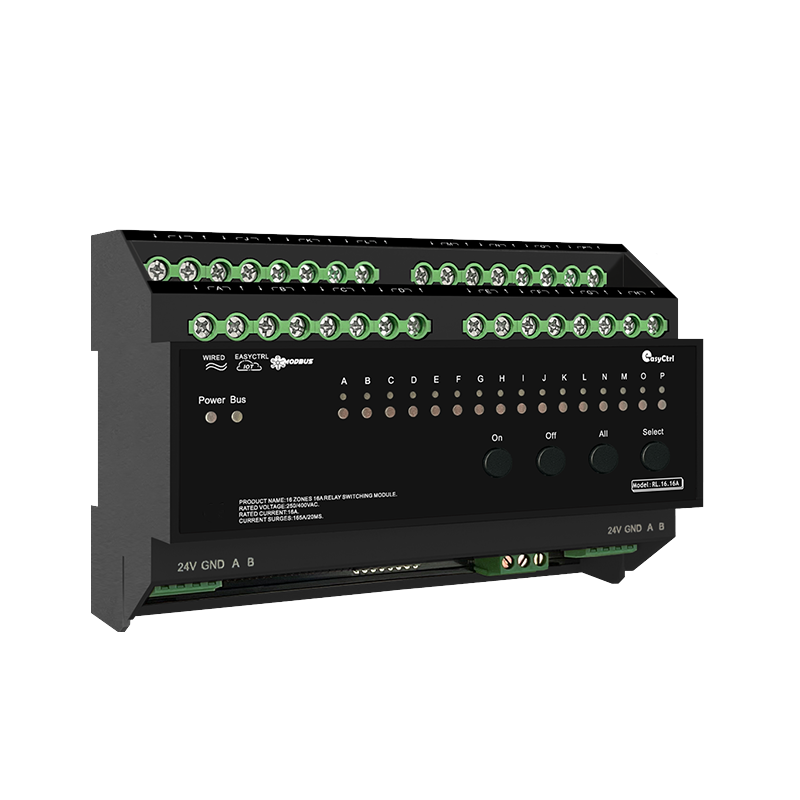

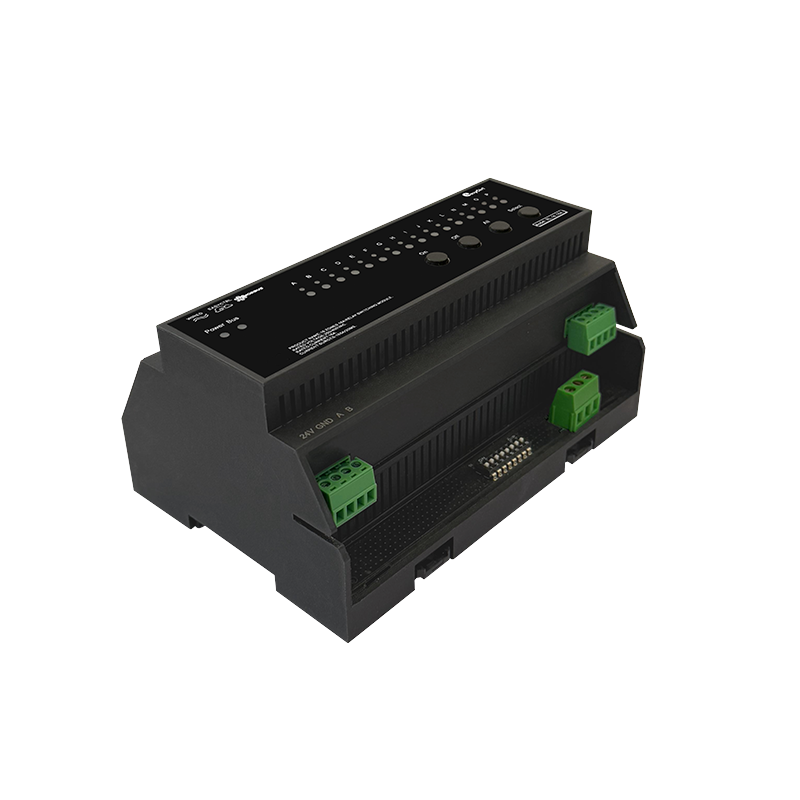

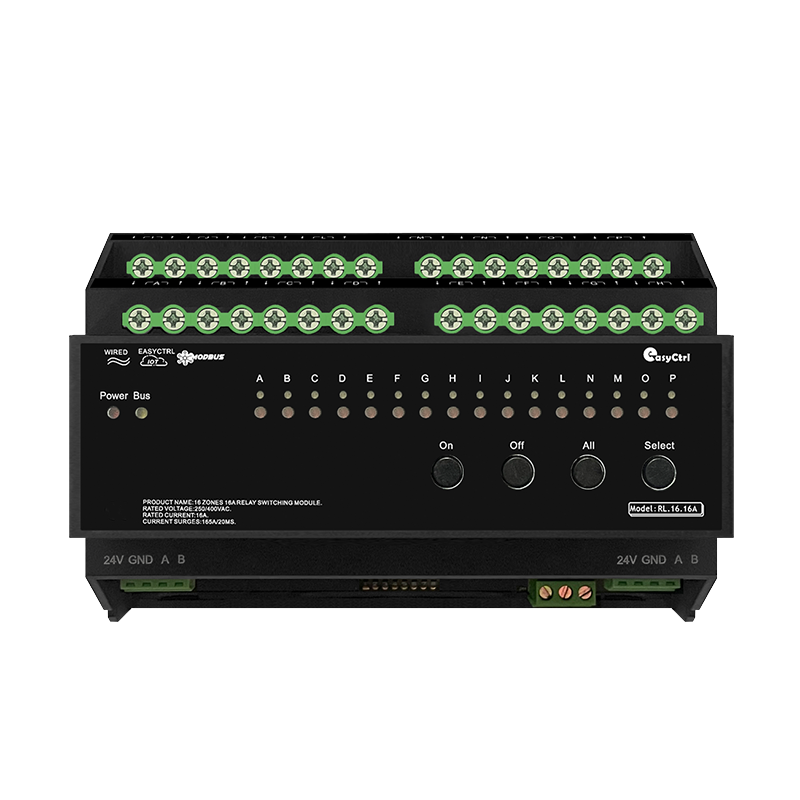

16 CH 16A Relay Switch Module
Model No:RL.16.16A
The 16-channel 16A smart switch module serves as a system switch execution unit, typically installed in a distribution box. It can control the switching of lights, the on/off state of devices, the on/off state of passive dry contacts, the opening and closing of strong or weak current curtains, the hot/cold valve of water-cooled air conditioning, and the switching between high/medium/low fan speeds.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
16-channel 16A relay switching
Circuit initial state setting
Delay control
Configurable interlock mode
Indicator light displays status
Status feedback
Manual control
Local control
Remote control
Control various types of lights
Simple wiring
Scene control
Fire-resistant material
Fire alarmlinkage
Online program update
YC-BUS protocol
RS485 protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤3.7W
Rated Voltage
250/400VAC
Output Circuit
16-channel relay
Relay
Tyco double-contact relay
Rated Current
16A (single channel),Surge current capability: 165A/20ms (single channel)
Switching Cycles
empty load：5,000,000times，empty load：3,000,000times
Protection
circuit breaker for each circuit
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20˚C~60˚C
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
144mm*98 mm*72 mm
Net Weight
≤602 g/pcs
Enclosure Material
flame retardant PP
Installation Methodg Current of Relay
standard 35mm DIN rail mounting
Core Component
Use Tyco double-contact relays (silver-tin oxide contacts and tungsten contacts)
Dimension
The module uses a compact 8P DIN rail mounting structure
Software Presentation
1616relaymodule1280
configuration software1280720
controlinterface1280
hotel
HA
classroom
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Guangzhou Intangible Cultural Heritage Museum Smart Lighting System Project
