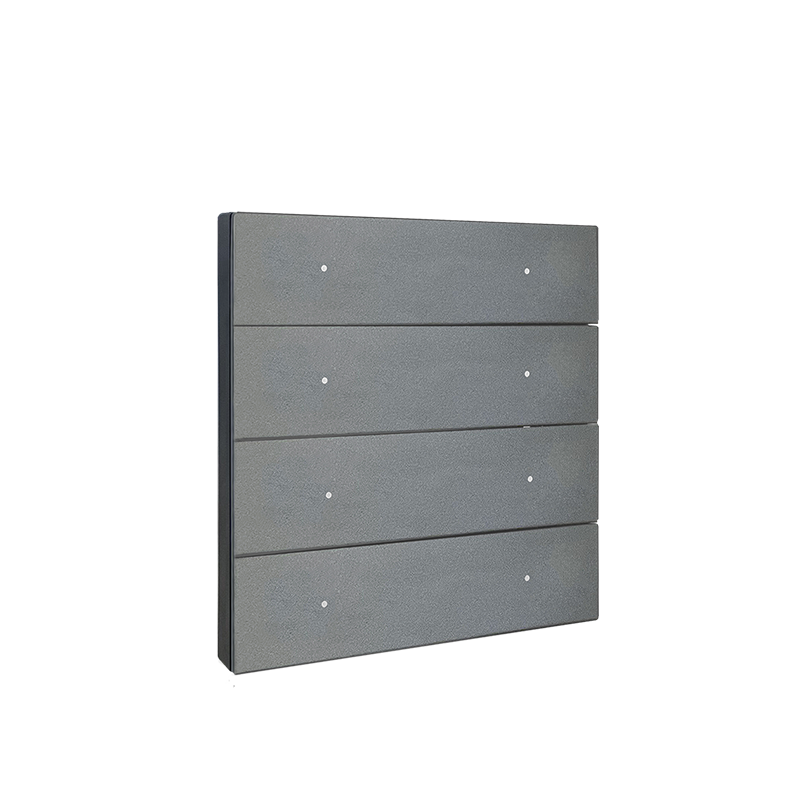

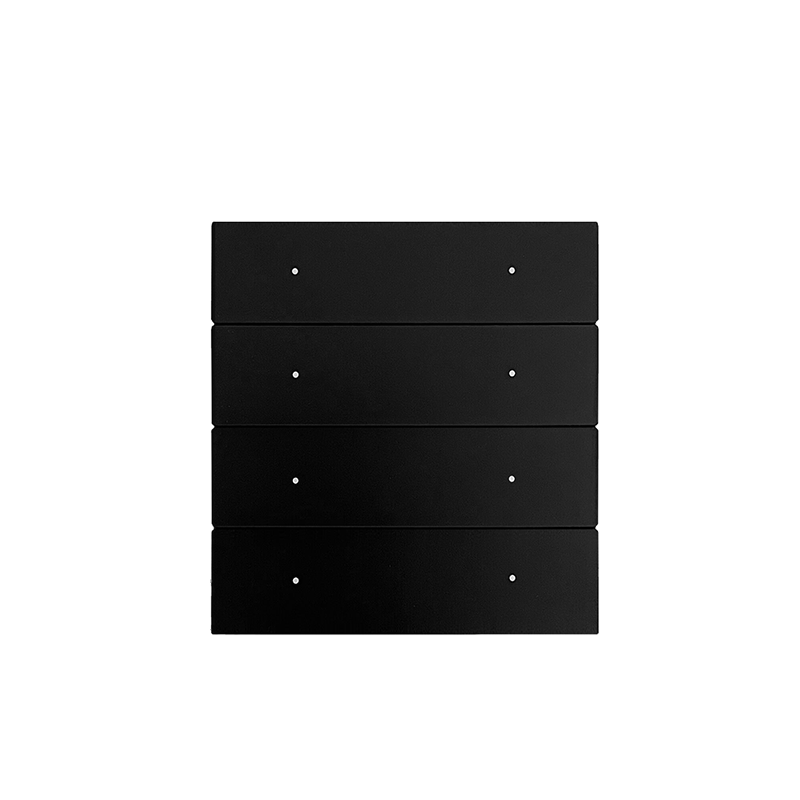

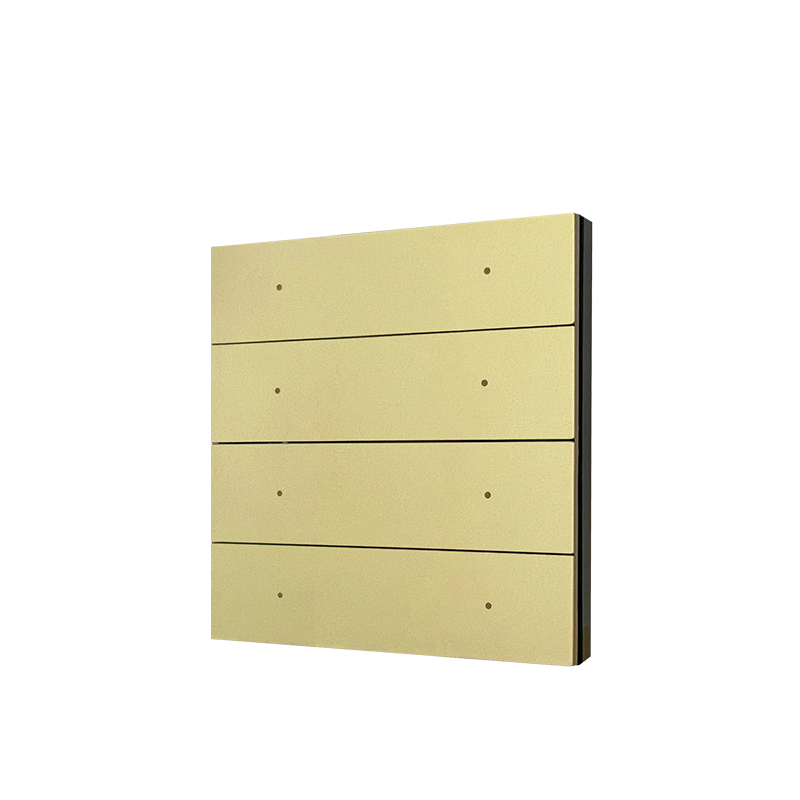

Smart 8-Key Wall Switch (D series 485)
Model No:KP.08D.485
Smart 8-Key Wall Switch, serves as a system control unit , typically installed in the local, to achieve single control or scene control of lighting switch, dimming, curtain opening and closing, music and other devices.
Contact Us
Wiring Diagram
Product Features
86-type back box installation
Provide 8 programmable keys
Icon markings can be engraved
Multiple button operation methods
Scene control
Simple wiring
Stable and reliable
Overcurrent protection
Overvoltage protection
Online program update
RS485 protocol
Product Specifications
Operating Voltage
24VDC±5%
Rated Power Consumption
≤1.2W
Key Indicator Light
white light
Backlight
orange light
Number Of Keys
eight keys
Key Category
reset touch key
Operating Voltage
bus interface*1
Installation Method
standard 86 bottom box mounting
Operating Temperature
0℃~45℃
Operating Relative Humidity
≤93%
Storage Temperature
-20℃~55℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
85.6mm*85.6mm*35.5mm
Net Weight(Two/Four/Six/Eight Key)
95gpcs
Enclosure Material
plastic
Opening Size (L * W)
69mm*58mm，bottom box depth is greater than 40mm
Dimension
The panel adopts a standard 86-type back box for installation
Product Structure Description
Can be connected to third-party central hosts to enable local switching or dimmer control.
Application Scenarios
Wande Plaza Smart Lighting System Project
