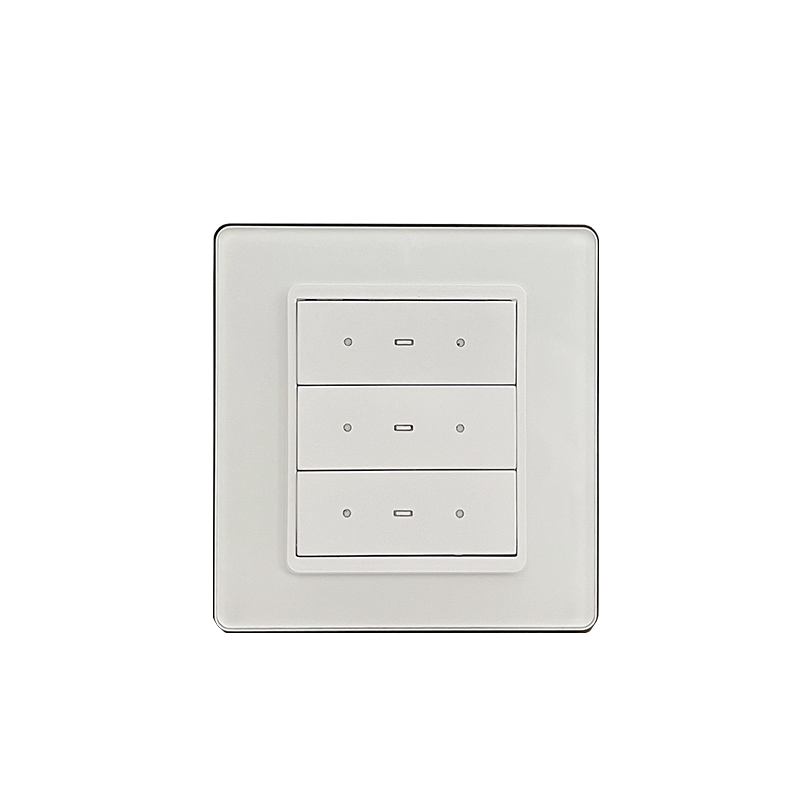

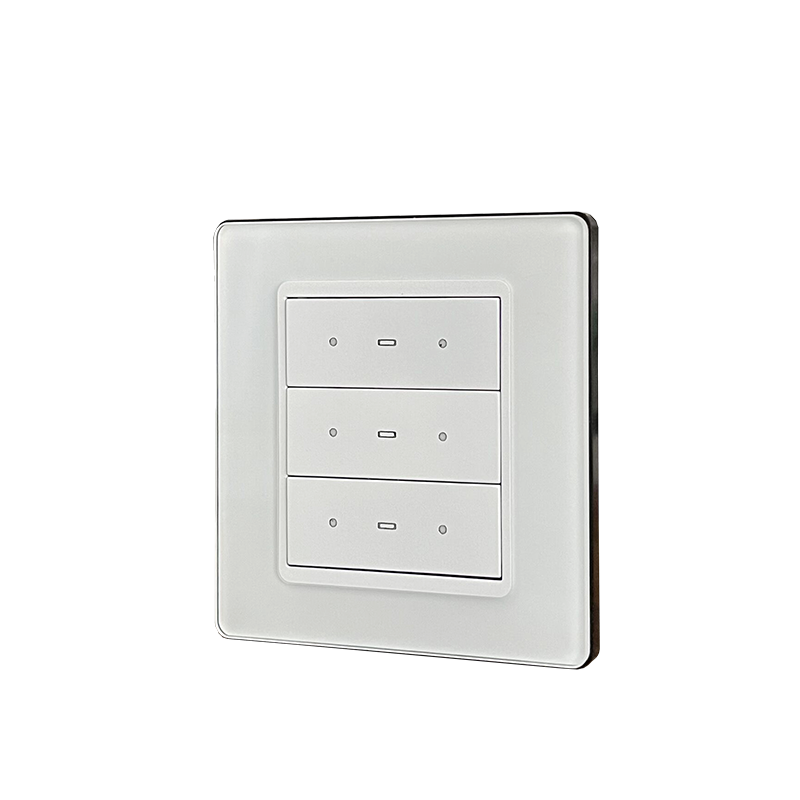

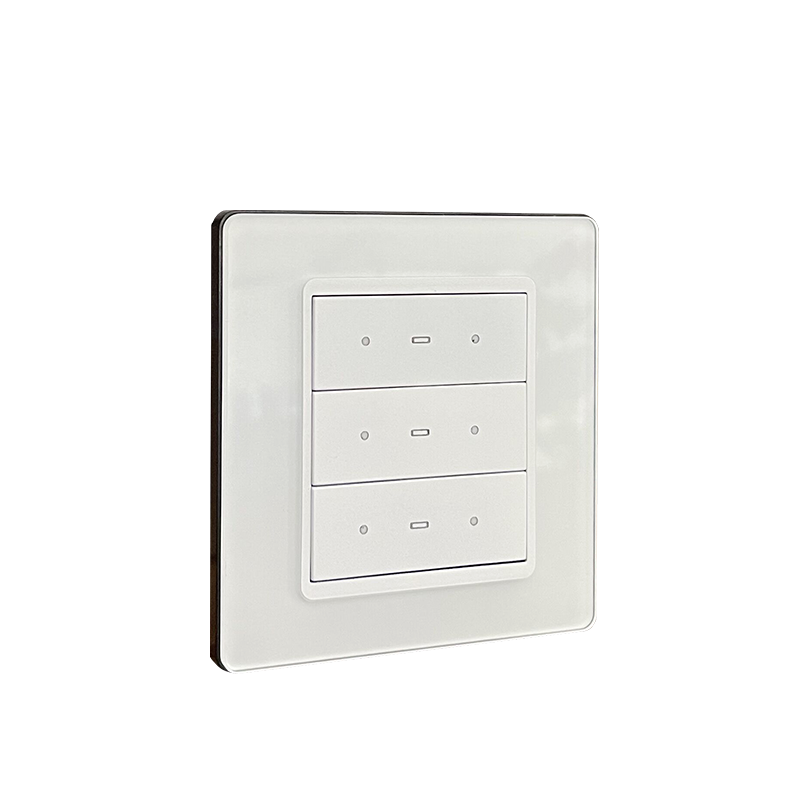

6-Button Smart Panel (A series 485) with Glass Frame
Model No:KP.06A.485
Smart 6-Button Panel , Standard 86 bottom box installation, support seamless connection. Features 6 keys, each with an independent LED indicator. Equipped with reset-type tactile switches. Mature structure and stable performance. Framed with tempered glass. Provides two IO inputs for
connecting external sensors.
Contact Us
Wiring Diagram
Product Features
86-type back box installation
Provide 6 programmable keys
Each key is equipped with base-color and activation-color LEDs
Mature structure and stable performance
Multiple button operation methods
Support multiple panels seamless cascade
Icon markings can be engraved.
Simple wiring
Scene control
Online program update
RS485 protocol
Product Specifications
Operating Voltage
24VDC±10%
Operating Power Consumption
0.5W
Standby Power Consumption
0.3W
Number of Keys
six keys
Appearance Color/Material
white / glass frame
Bus Interface
bus interface*1
Sensor Interface
dry contact interface*2, providing switch signal input
Operating Temperature
0℃~45℃
Operating Relative Humidity
20%～93% RH
Storage Temperature
-40℃~+55℃
Storage Relative Humidity
10%～93% RH
Dimensions（L*W*H）
86mm*86mm*31mm
Net Weight
≤126g/pcs
Installation Method
standard 86 bottom box mounting
Dimension
The panel adopts a standard 86-type back box for installation
Product Structure Description
Can be connected to third-party central hosts to enable local switching or dimmer control.
Application Scenarios
Guangzhou Peaceful Sleep Clinic
