Guangzhou Peaceful Sleep ClinicSmart Lighting System Project

/upload/images/article/20250605/17491051712938678.jpg

Project information

Control Equipment

Dimmable Lights: light strips

Control Areas

Areas in the clinic that require dimming control

Control Requirements

1.Perform 0-10V dimming control on some of the clinic's lighting circuits;

2.Enable zoned lighting control;

3.Enable timed control and scene control;

4.Each area utilizes smart 6-key panels for scene control.

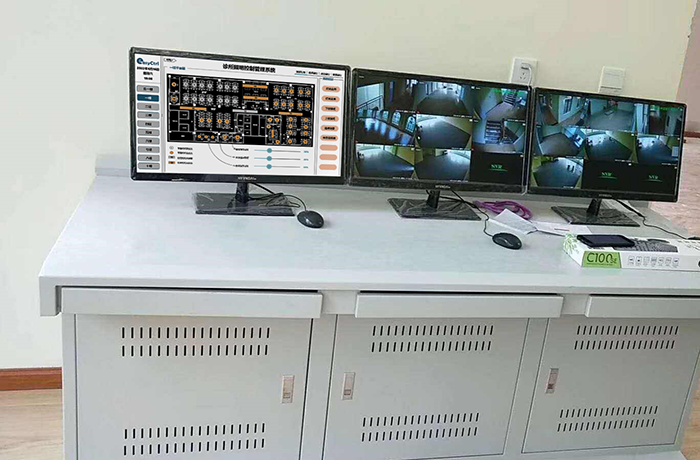

5.Centralized control via PC and pad.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 0-10V smart dimming module, system power supply, Bus coupler and smart 6-key panel.

Control Methods

The clinic uses a smart 6-button panel to achieve 0-10V dimming control of the lighting in different areas. Centralized control is carried out via a PC or mobile terminal.

Performance Outcome

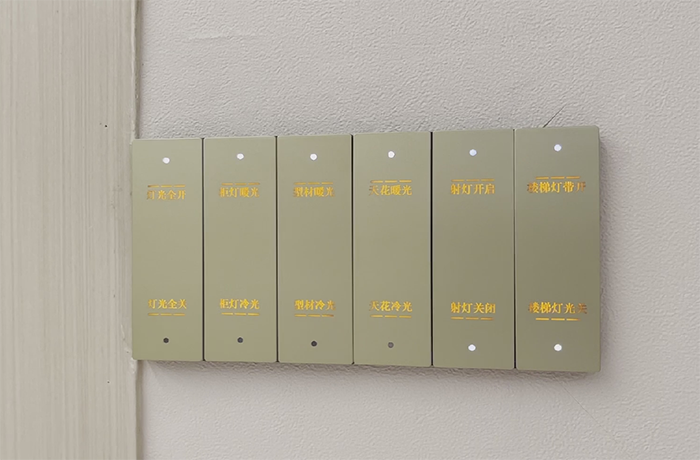

The smart 6-key panel is employed for local area control, with each button’s scene settings adaptable to practical configurations based on the specific project requirements.The interface of the central control app can be customized according to client requirements. The system effectively addresses personalized needs while delivering precise and smooth 0-10V dimming effects, thus providing clients with an enhanced smart clinic experience through tailored configurations.

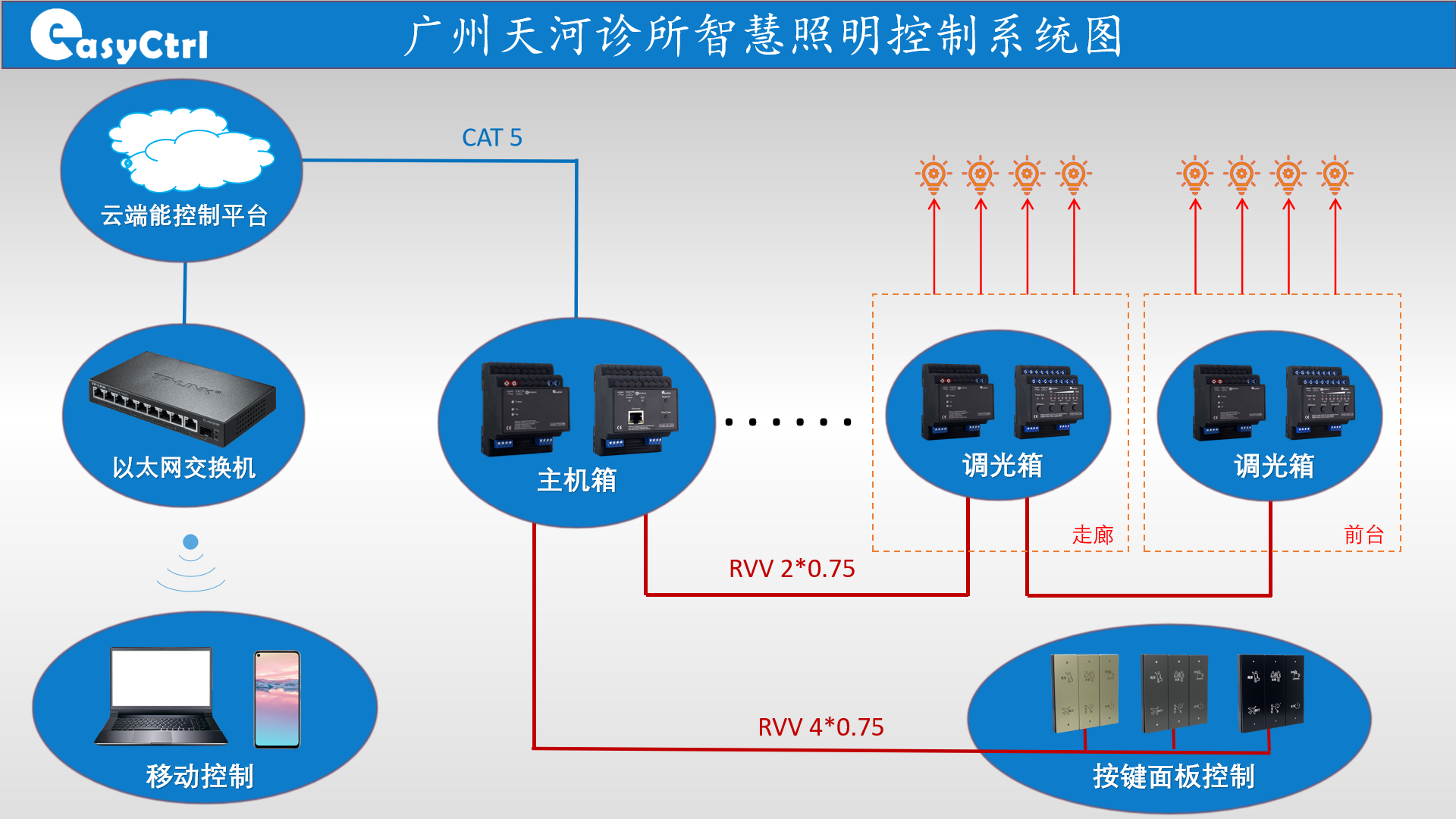

System Architecture Diagram
