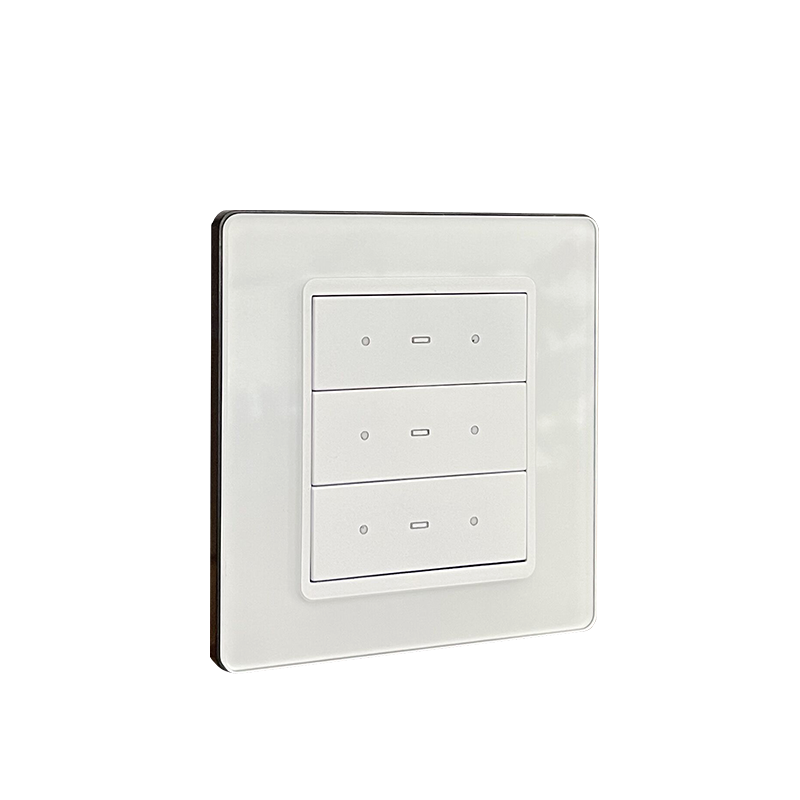

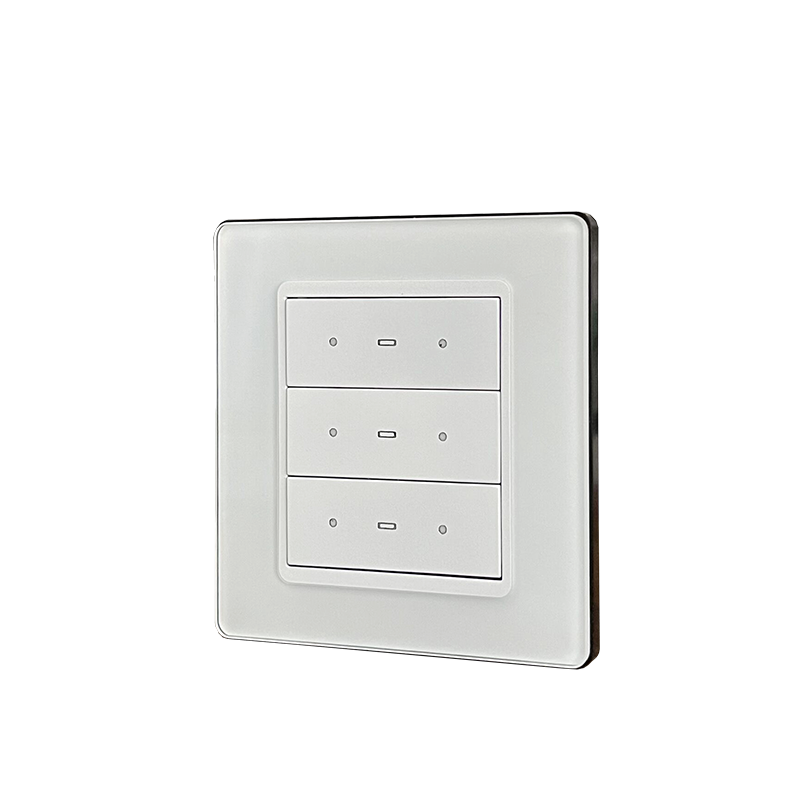

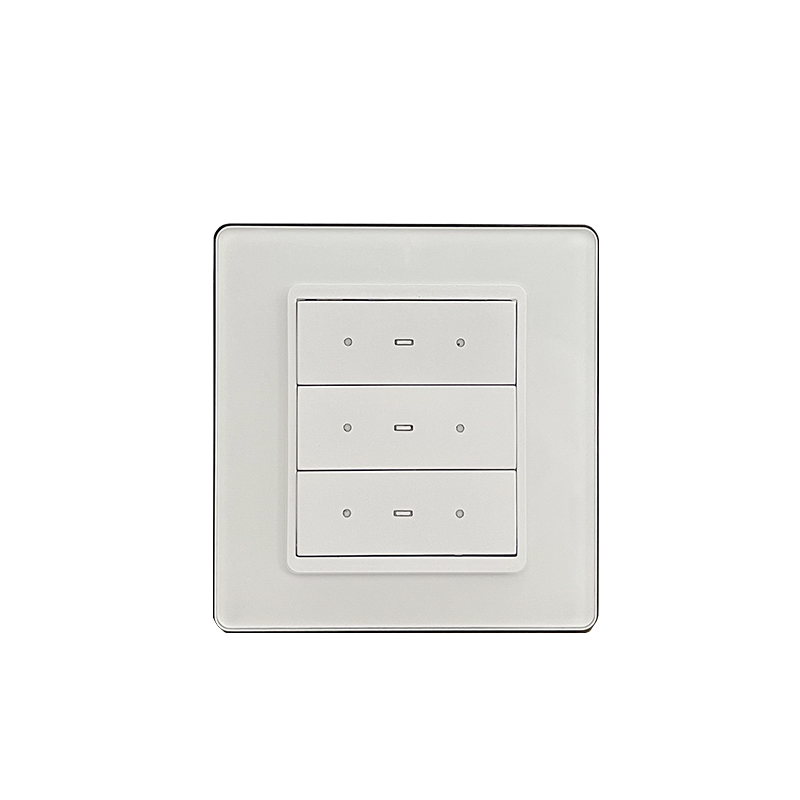

6-Button Smart Panel (A series) with Glass Frame

Model No:KP.06A

Smart 6-Button Panel , Standard 86 bottom box installation, support seamless connection. Features 6 keys, each with an independent LED indicator. Equipped with reset-type tactile switches. Mature structure and stable performance. Framed with tempered glass. Provides two IO inputs for

connecting external sensors.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Provide 6 programmable keys
Each key is equipped with base-color and activation-color LEDs
Mature structure and stable performance
Multiple button operation methods
Support multiple panels seamless cascade
Icon markings can be engraved.
Simple wiring
Scene control
Online program update
YC-BUS protocol
RS485 protocol
Product Specifications
Operating Voltage
24VDC±10%
Operating Power Consumption
0.5W
Standby Power Consumption
0.3W
Number of Keys
six keys
Appearance Color/Material
white / glass frame
Bus Interface
bus interface*1
Sensor Interface
dry contact interface*2, providing switch signal input
Operating Temperature
0℃~45℃
Operating Relative Humidity
20%～93% RH
Storage Temperature
-40℃~+55℃
Storage Relative Humidity
10%～93% RH
Dimensions（L*W*H）
86mm*86mm*31mm
Net Weight
≤126g/pcs
Installation Method
standard 86 bottom box mounting
Dimension
The panel adopts a standard 86-type back box for installation
Software Presentation
configuration software1280720
controlinterface1280
0-10VDIMMERMODULE1280
classroom
HA
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
