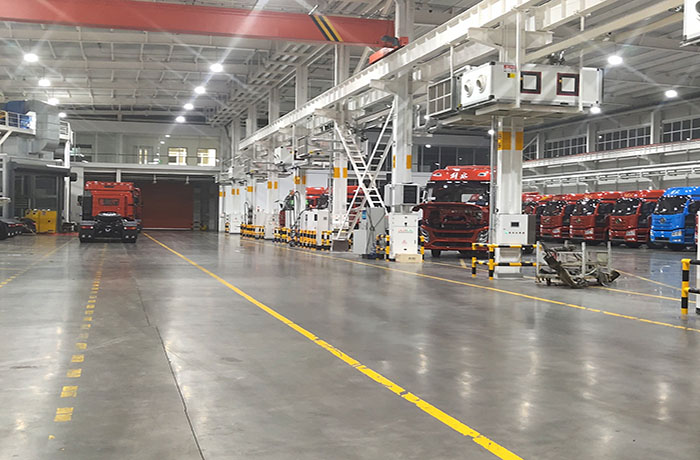

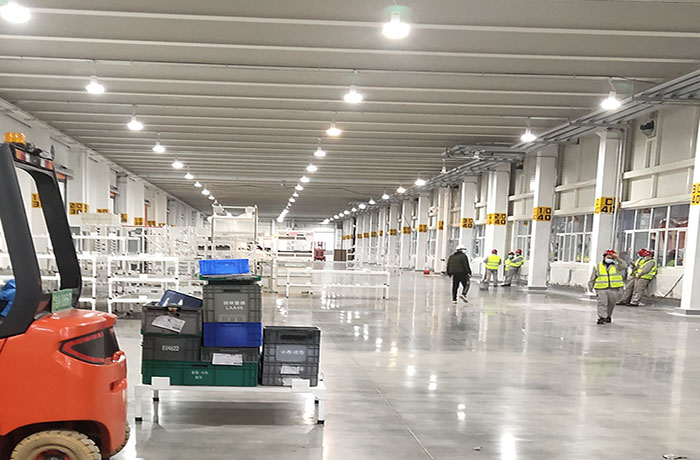

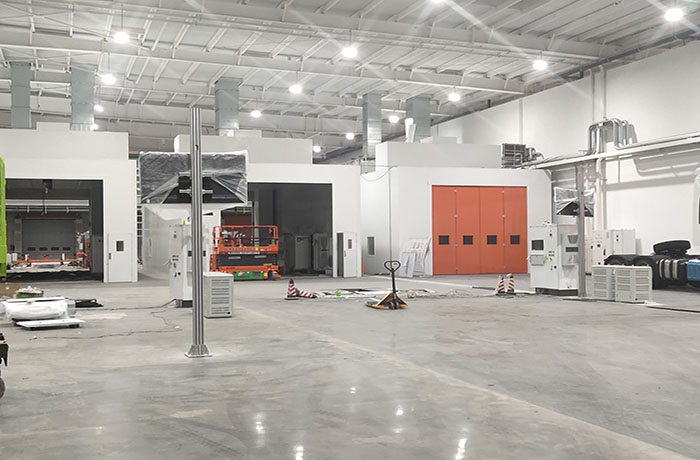

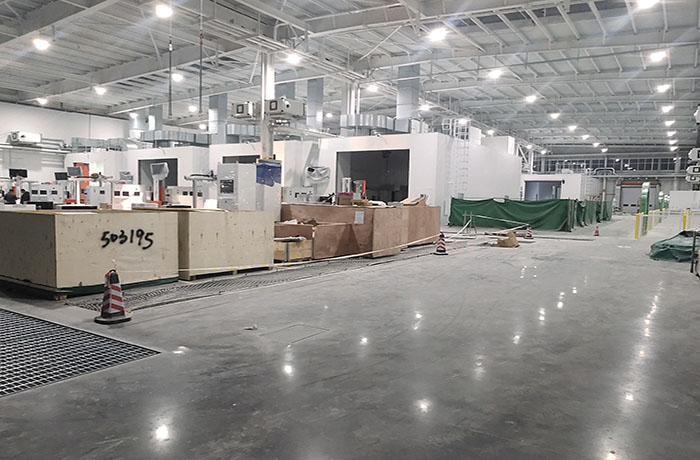

FAW Jiefang Automobile Smart Lighting System Project

/upload/images/article/20250523/17479845592003618.jpg

Project information

Control Equipment

Non-dimmable Lights:factory lighting fixtures

Control Areas

different sections of the factory

Control Requirements

1.Perform on/off control of lighting circuits in each plant area

2.Each area is equipped with several 6-button smart switch panels and 7-inch smart touch screens for both individual circuit control and scene-based lighting control.

3.Enable zoned lighting control;

4.Enable timed control and scene control;

5.Centralized control via PC and pad.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, Bus coupler, and 7-inch smart touch screen.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation and a pad (customizable interfaces).

Performance Outcome

The smart 6-button panels and 7-inch intelligent touch screens are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the factory. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the factory’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

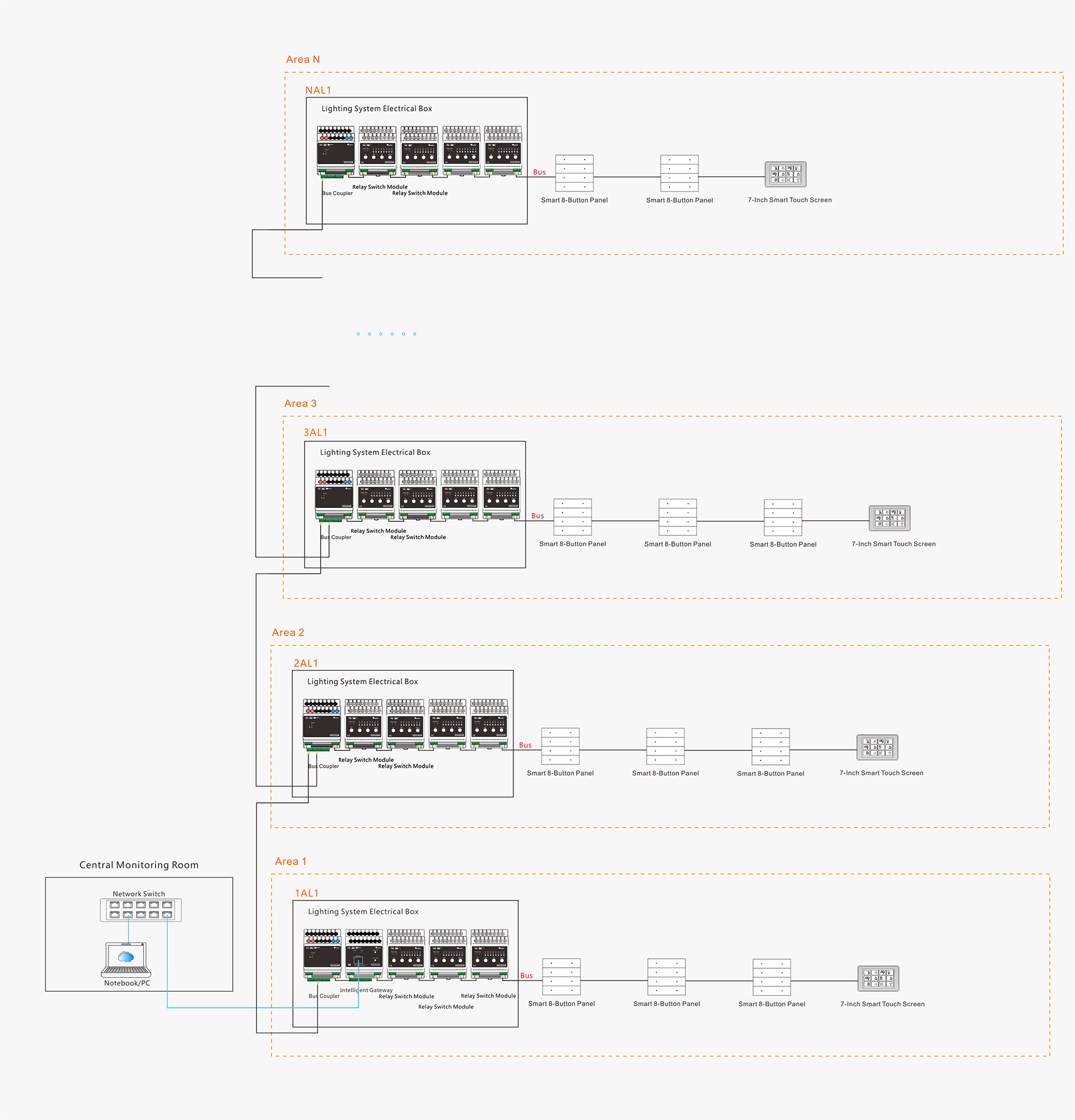

System Architecture Diagram
