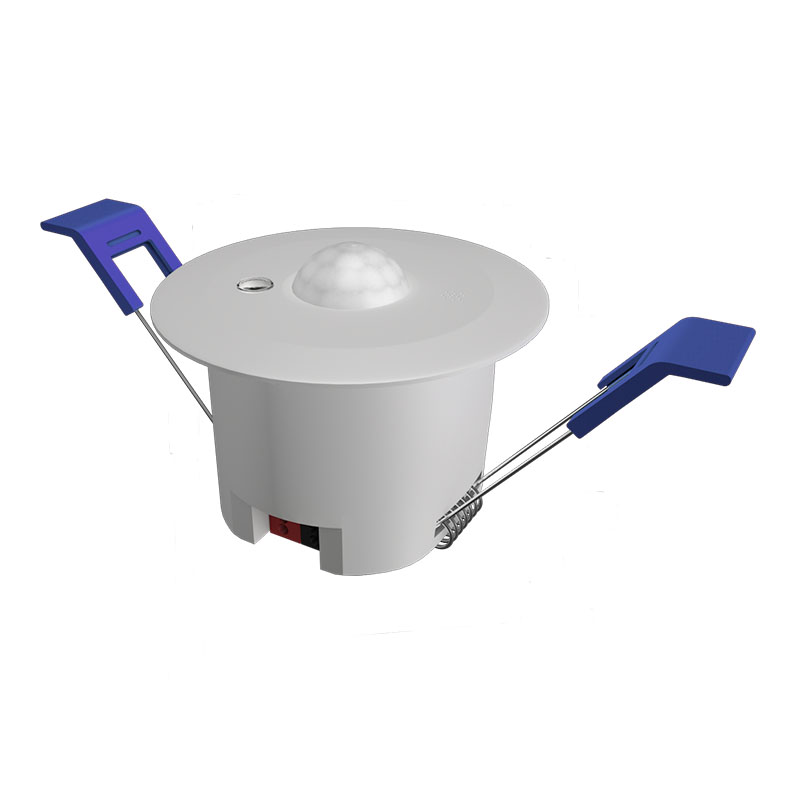

KNX Illuminance & Infrared Motion Sensor（Embedded)
Model No:KE.SNR0202
KNX Light & Infrared Motion Sensor, Flush Mounted, KNX Bus
Contact Us
Wiring Diagram
Product Specifications
Bus voltage
21-30 VDC, KNX bus power
Bus current
≤ 12mA
Bus power
≤ 360mW
Inductive distance
Installation height: 2.5m to 3m;Radiation range: 5m to 7m
Dimensions
Height = 45mm, Diameter = 60mm
Cutout dimensions
Φ 46mm ≤ d ≤ Φ 52mm
Installation method
Ceiling-mounted recessed installation
Shell material
ABS
Weight
About 50g
Working Temperature
-5°C...+45°C
Storage Temperature
-25°C...+55°C
Transportation Temperature
-25°C...+70°C
Relative humidity
Max 90%
Dimension
Induction Diagram
(1) Installation height H: range size 2.5m~3m, recommended value: 2.7m; (2) High sensitivity range D1: 4m~5m; (3) Maximum sensing range D2: 5m~7m
Function
(1) Cyclic output function for illuminance values;
(2) 2-channel illuminance control: supports 1-bit, 4-bit, or 1-byte output.
(3) Infrared movement trigger control function;
(4) Illluminance change-triggered control function
(5) Master-slave function of infrared movement;
(6) Integrated control function for IR motion sensing and illumination sensing;
(7) Enable or disable the channel control output function of illumination and infrared movement by the object;
(8) Infrared movement and illumination, two-in-one sensor.
