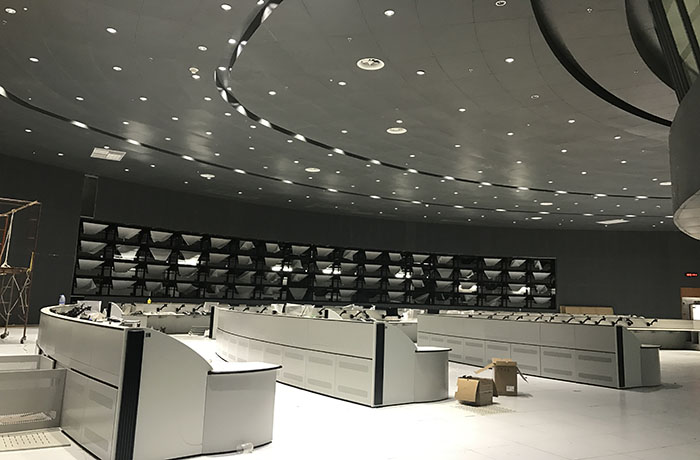

Zhenlong Metro Command Center Smart Lighting System Project

/upload/images/article/20250527/17483545286416172.jpg

Project information

Control Equipment

Dimmable Lights:Dimmable ceiling-mounted luminaires including downlights, spotlights, and other adjustable lighting fixtures.

Non-dimmable Lights:Ceiling light fixtures in the Zhenlong Metro Command Center building

Control Areas

different sections of Zhenlong Metro Command Center

Control Requirements

1.Perform on/off control of lighting circuits in each building area;

2.Achieve thyristor dimming control for specific lighting circuits;

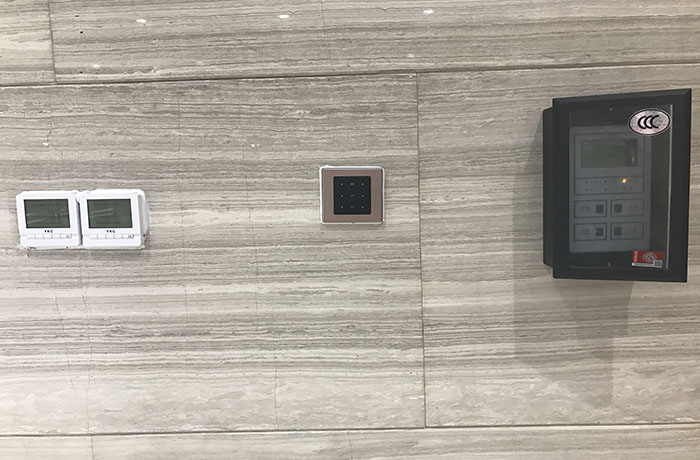

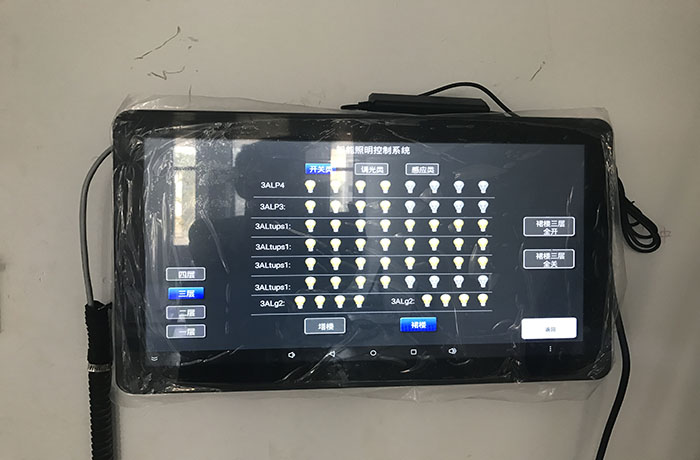

3.Each area is equipped with several 6-button smart switch panels and 7-inch smart touch screens for both individual circuit control and scene-based lighting control.

4.Enable zoned lighting control;

5.Enable timed control and scene control;

6.Centralized control via PC and pad.

Control Solution

System products

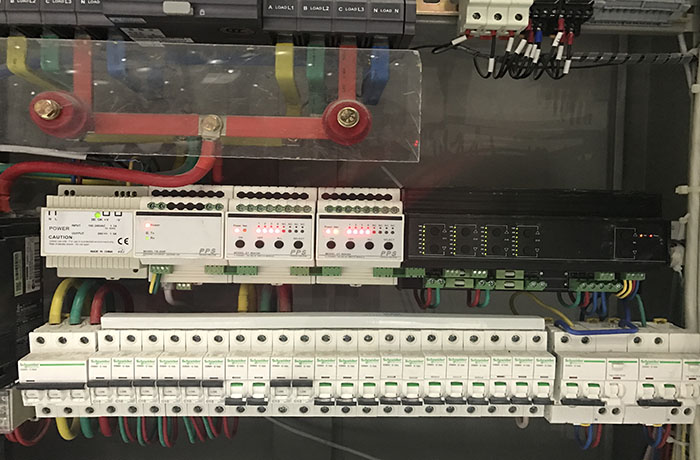

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, Bus coupler,4CH 5A thyristor dimming module and 6-button smart switch panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation.

Performance Outcome

The smart 6-button panels and 7-inch intelligent touch screens are used to achieve on/off control, dimming control,scheduled control, and scene control of lighting circuits across different areas of the building. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the Command Center’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

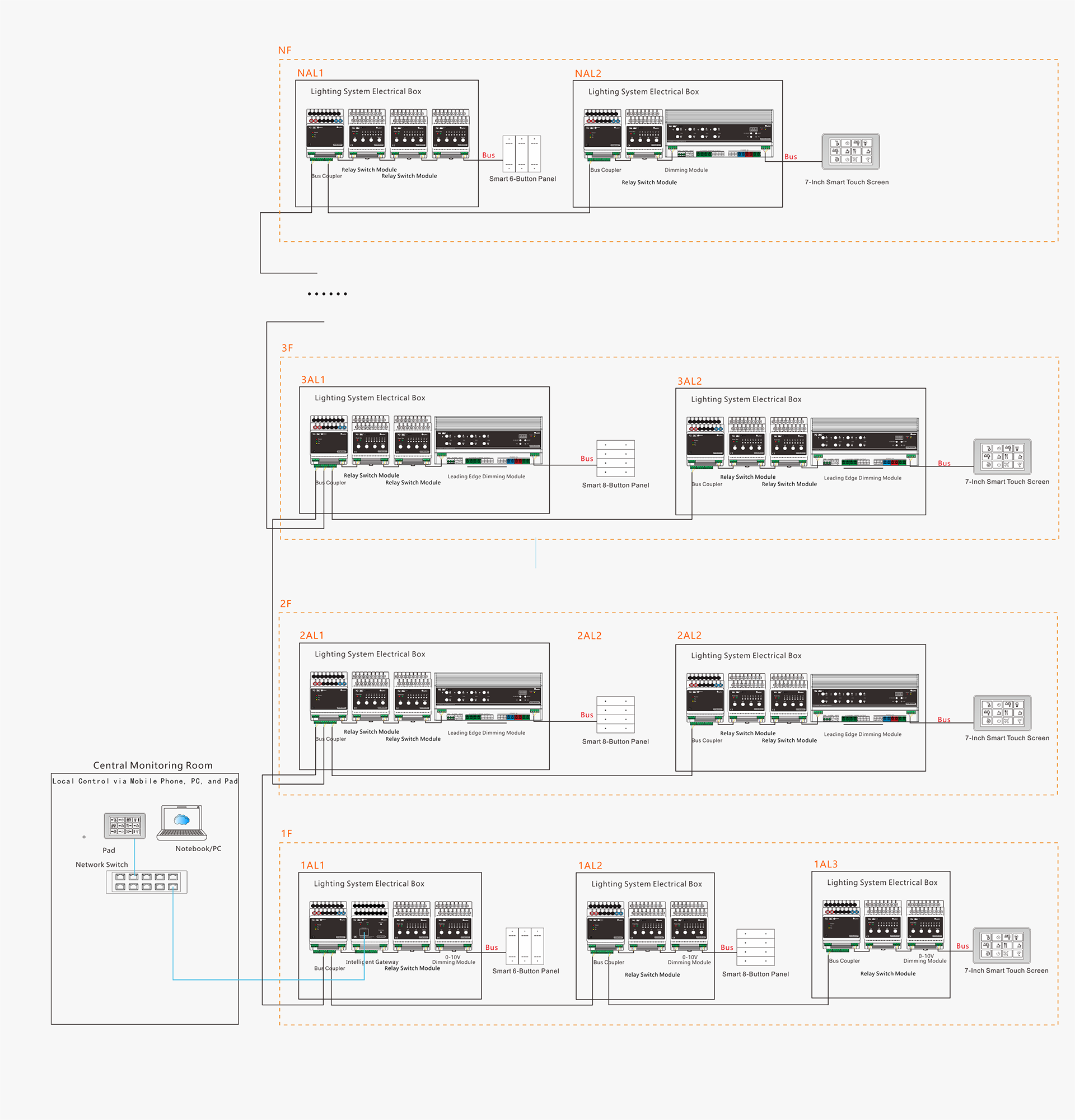

System Architecture Diagram

building smart lighting system1920.png
