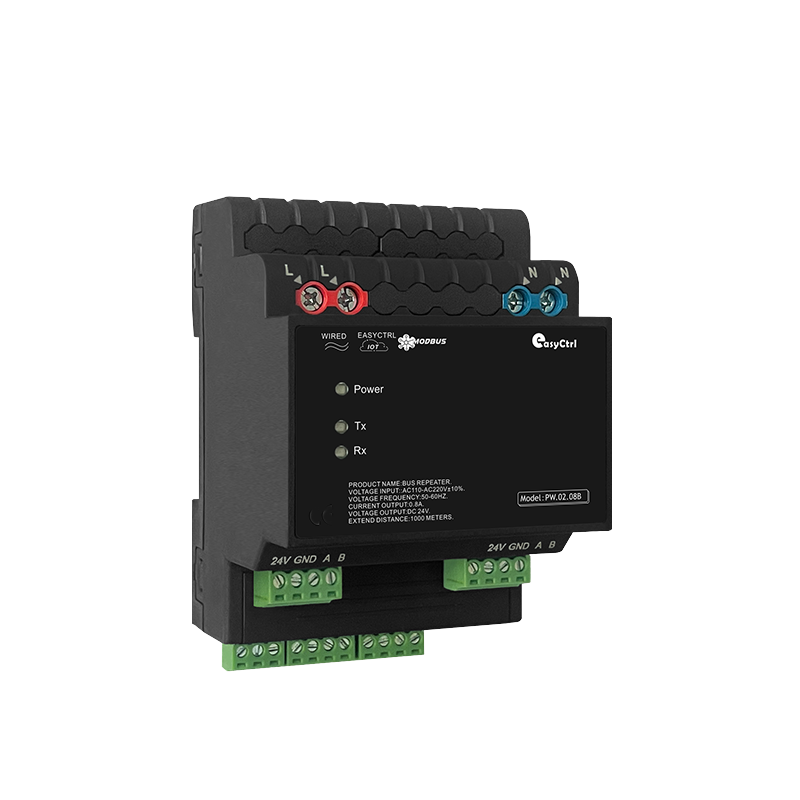

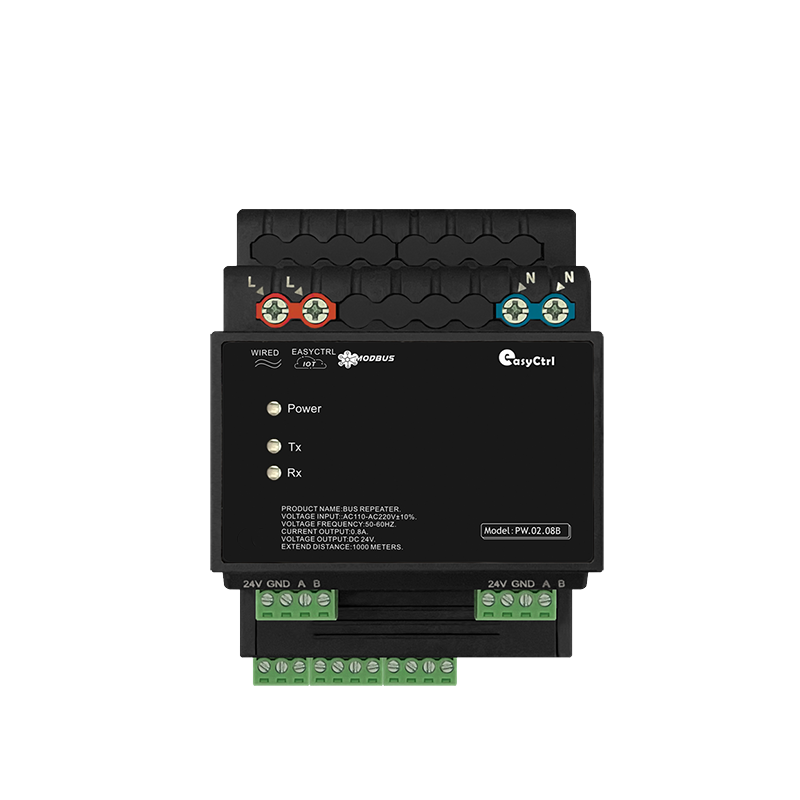

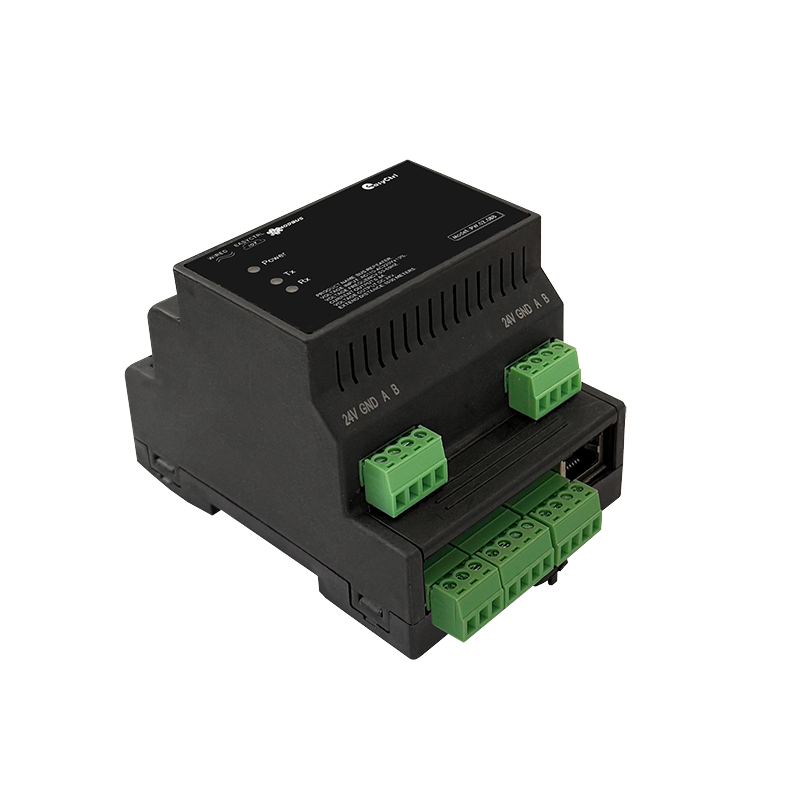

Bus Coupler

Model No:PW.02.08B

Bus Coupler serves as a system power supply unit, typically installed in a distribution box.  DIN rail installation, occupies 4P module units. It serves as a junction box-to-junction box cascading module. When the bus cascade exceeds 400 meters, this module must be additionally equipped. It features a 4-port expansion capability and provides a 24V/800mA power supply, which can deliver power to up to 6 devices.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
Rail-mounted installation
Wide voltage power supply
Stable and reliable
Highly versatile
Simple wiring
Fire-resistant material
Equipped with hot-swappable functionality
Strong anti-interference capability
Overload protection
Overvoltage protection
Effectively extend communication distance
High transmission rate
Product Specifications
Power Input
AC 110~220V(50/60Hz)
Output Voltage
24VDC±10%
Output Current
0.8A/800mA
Extend Distance
effectively extend the distance by 400 meters
Bus Interface
5* bus interface, single interface extension 400 meters
Bus Port
1*RJ45 network port (with indicator light), Class B wiring (single port extension 400 meters)
Transmission Rate
9600 baud rate
Protection
overload and overvoltage protection
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20˚C~60˚C
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*106 mm*68 mm
Net Weight
≤233 g/pcs
Enclosure Material
flame retardantPP
Installation Method
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
