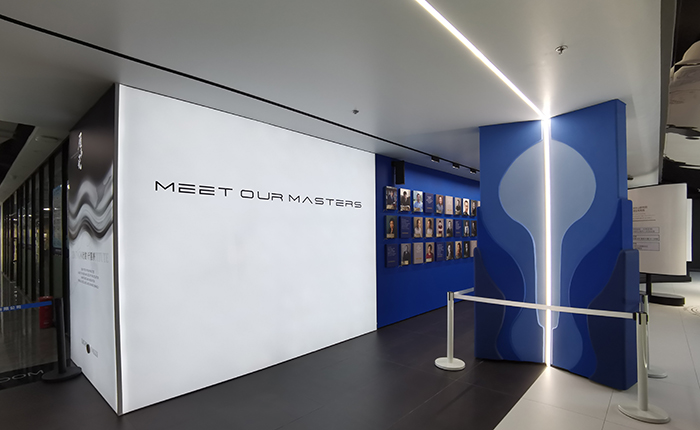

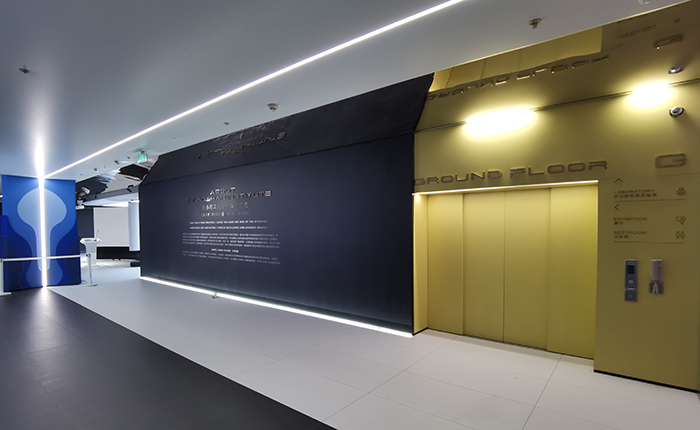

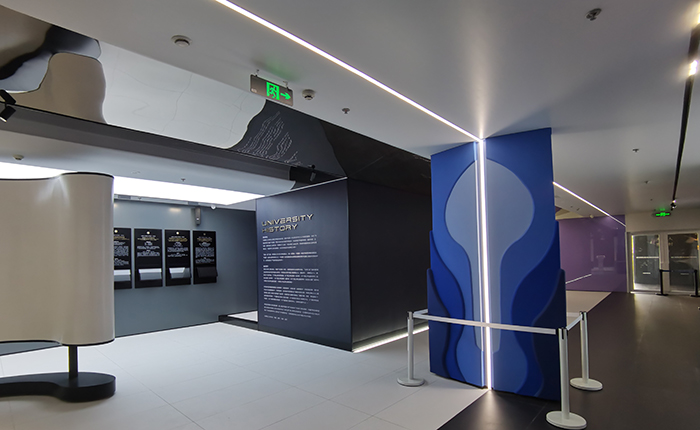

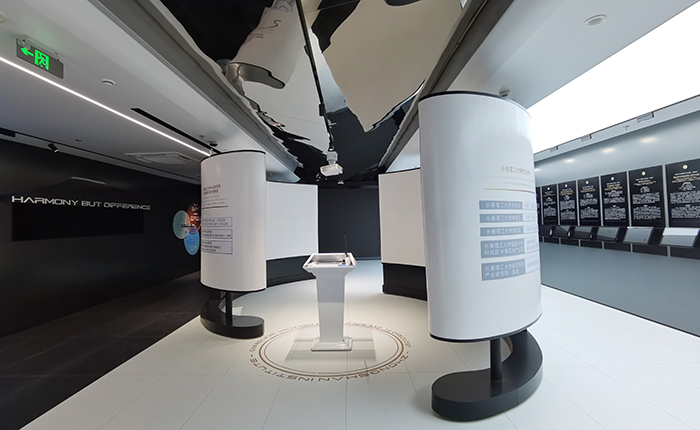

The Cultural Exhibition Hall of Zhongshan Research Institute, Changchun University of Science and Technology Smart Lighting System Project

/upload/images/article/20250609/17494326882633677.jpg

Project information

Control Equipment

Dimmable Lights:Translucent ceiling membrane and LED light strips;

Non-dimmable Lights:exhibition hall's lighting fixtures.

Control Areas

Different exhibition areas in the exhibition hall.

Control Requirements

1.Perform on/off control of some non-dimmable lighting circuits;

2.For the light membrane and light strips in the exhibition hall, PLC Power Line Carrier Modules are re combined with PLC individual lamp controllers to achieve dimming and color adjustment control;

3.Each area is equipped with several 8-button smart switch panels and 4-inch touch screens for both individual circuit control and scene-based lighting control;

4.Enable zoned lighting control;

5.Enable timed control and scene control;

6.Centralized control via PC and pad.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, Bus coupler, PLC Power Line Carrier Module, 4-inch intelligent touch screen, and Smart 8-key wall switch.

Control Methods

A bus-type intelligent lighting control system enables localized control via smart 8-key wall switch and 4-inch smart touch screen, alongside centralized management through a PC workstation.

Performance Outcome

The smart 8-key wall switchs and 4-inch touch screens are used to achieve on/off control, dimming control,scheduled control, and scene control of lighting circuits across different areas of the exhibition hall. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the exhibition hall's lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste. To meet the wiring-free and precise control requirements of the exhibition hall, the system adopts a solution that combines PLC Power Line Carrier Modules with PLC single-lamp controllers, enabling intelligent and precise control of the light strips and translucent ceiling membranes within the venue. The system supports three fundamental functions—on/off switching, dimming, and color temperature adjustment—while allowing personalized parameter settings for brightness and color temperature to accommodate diverse application scenarios such as exhibitions and academic exchanges.

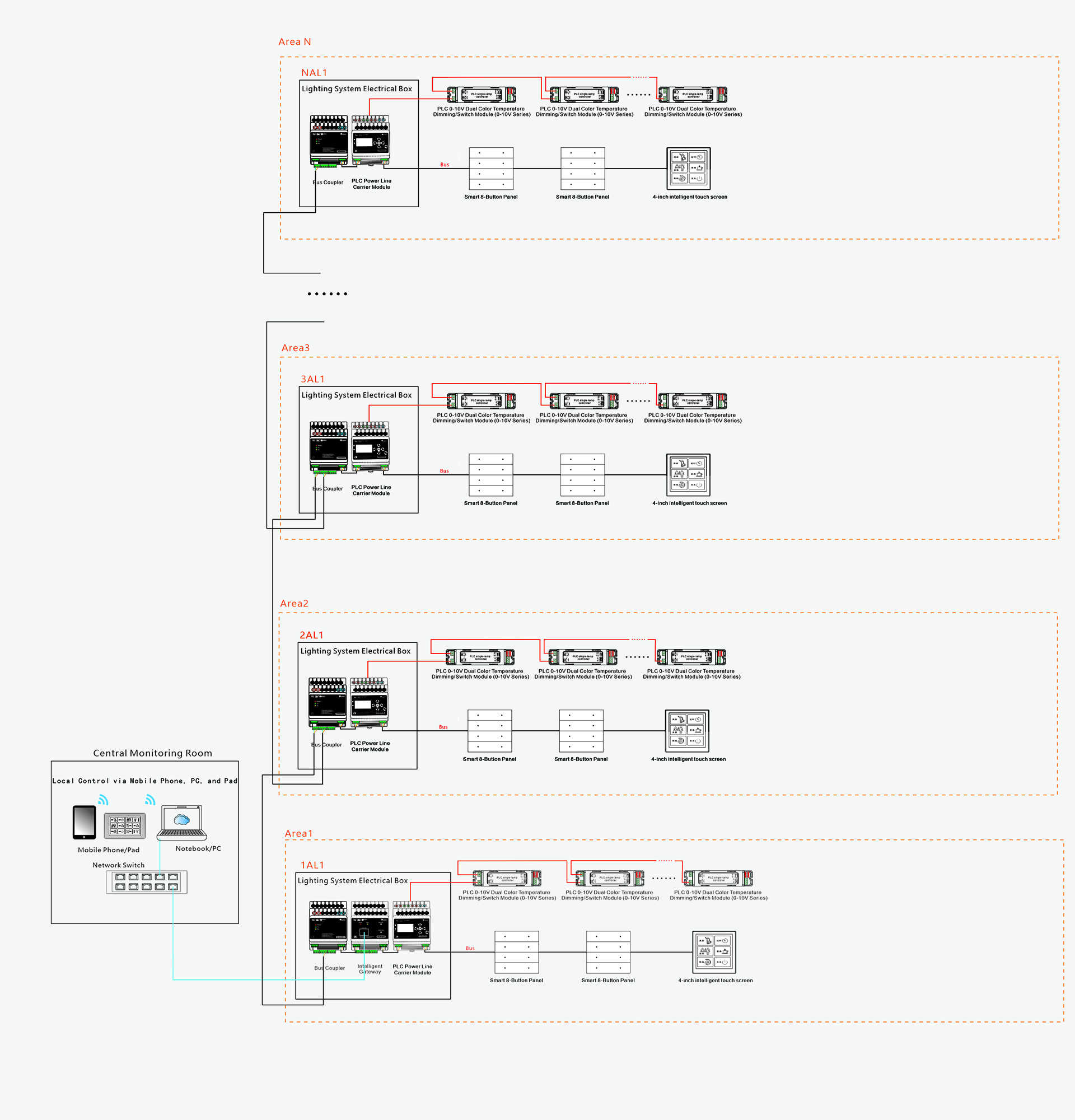

System Architecture Diagram
