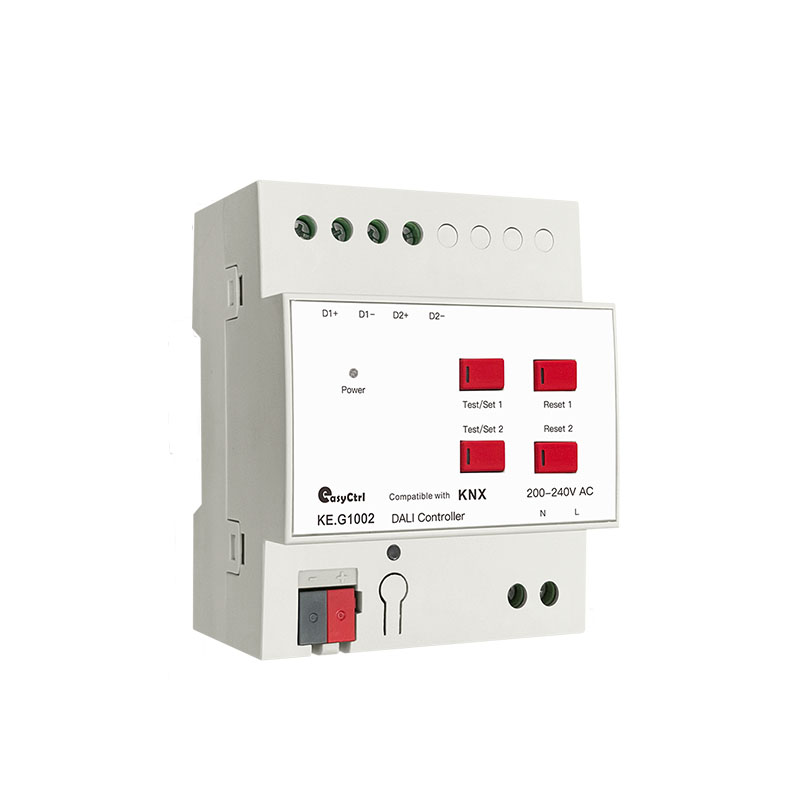

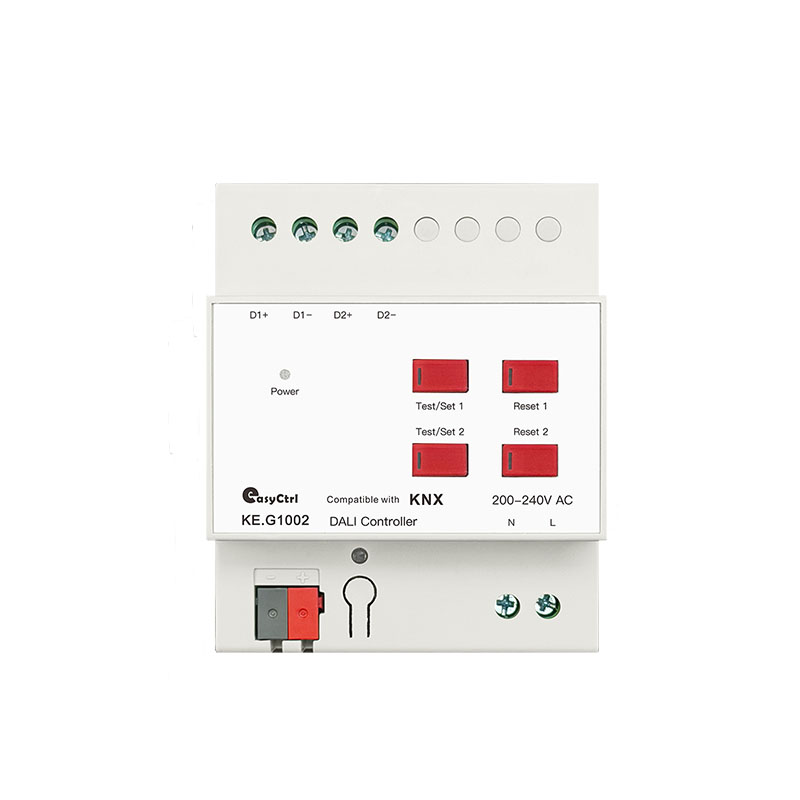

Dual-channel KNX DALI Gateway
Dual-channel KNX DALI Gateway，each channel supports single channel-16 groups-64 DALI devices scene control.
The device is installed in the distribution box and can be installed on the 35mm DIN rail of DIN EN 60715 standard.
(1) 2 DALl outputs, each of which supports 64 DALI devices. Each DALI device can be switched on and off, dimmed, and adjusted in color independently;
(2) Supports access to multiple device types, such as DT6 (LED), DT8 (supports color temperature, RGB, RGBW and XY), DT252 and DT253(supports reading parameters such as voltage, current, power, temperature and electricity);
(3) Group control: Each DALI output can be configured with 16 different groups. The allocation of devices in the group is achieved by the DALI debugging tool, and each group can be switched on, dimmed and color adjusted;
(4) Broadcast control: All DALI devices in each DALI output can be switched on, dimmed and color adjusted;
(5) Group scene control: Each group has 16 KNX scenes or DALI scenes available for call, of which KNX group scenes can be used for switching, dimming, and color adjustment, and the brightness value of DALl group scenes is configured by the DALI debugging tool;
(6) Broadcast scene control: Each DALI output has 16 KNX scenes and 16 DALI scenes available for calling, of which KNX broadcast scenes can be used for switching, dimming, and color adjustment, and the brightness value of DALI broadcast scenes is configured by the DALI debugging tool;
(7) Each DALI output has 48 operation templates. The configured operation templates can be applied to single device control, group control,and broadcast control;
(8) Supports status query, such as switch status, brightness status, color status, device status, voltage status, current status, power status, etc.
(9) Error detection function for DALI device ballasts and lamps;
(10) DALI bus can be powered off by pressing the Reset button.
