Project case for Smart Lighting Control System

Home Projects Office Building

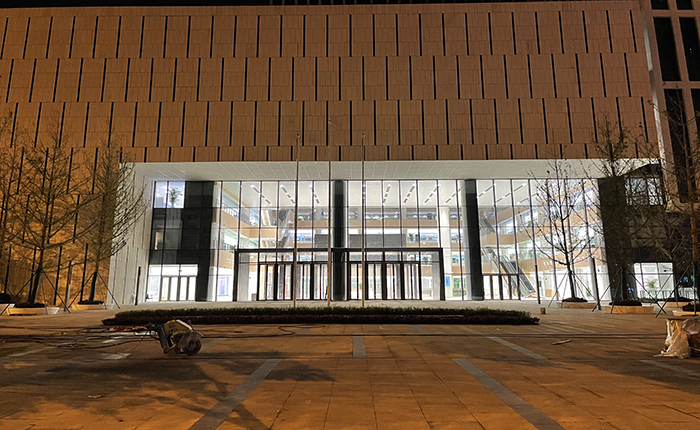

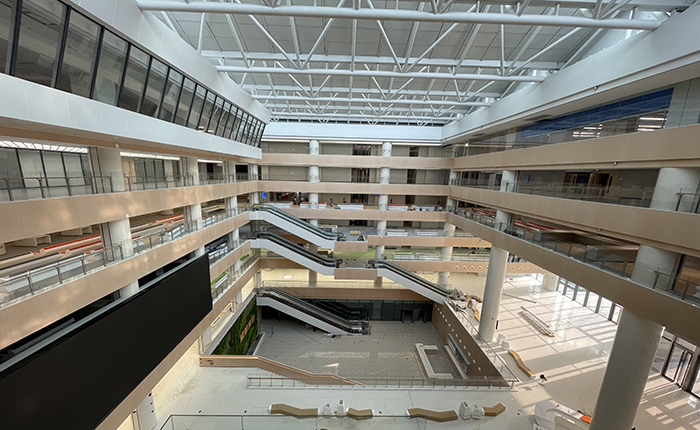

Sichuan Chengdu High-Tech Zone Government Service Center Smart Lighting System Project

/upload/images/article/20250606/17491992477956400.jpg

Project information

Control Equipment

Non-dimmable Lights:Ceiling light fixtures in the Sichuan Chengdu High-Tech Zone Government Service Center.

Control Areas

different sections of Sichuan Chengdu High-Tech Zone Government Service Center.

Control Requirements

1.Perform on/off control of lighting circuits in each building area;

2.The corridor features motion-activated lighting, where lights turn on when people approach and turn off when they leave;

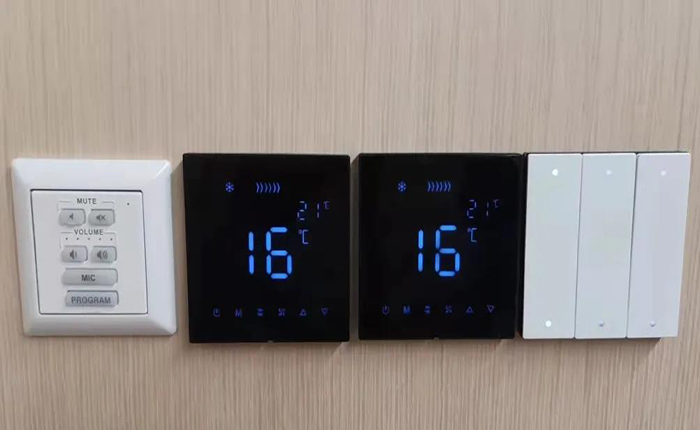

3.Each area is equipped with several 6-button smart switch panels for both individual circuit control and scene-based lighting control;

4.Enable zoned lighting control;

5.Enable timed control and scene control;

6.Centralized control via PC and pad.

Control Solution

System products

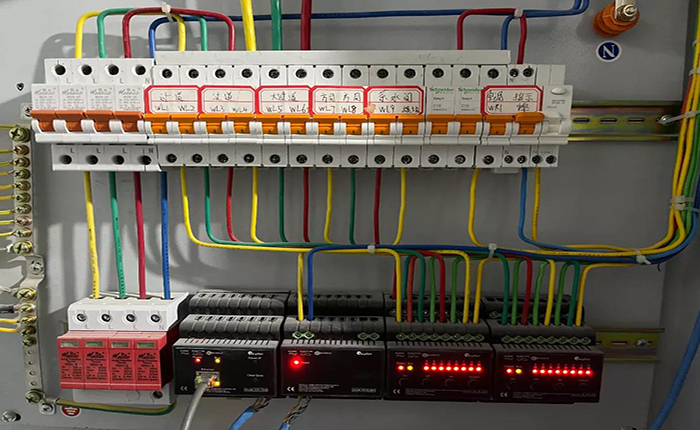

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, Bus coupler, 8CH dry contact module, and 6-button smart switch panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation.

Performance Outcome

The smart 6-button panels are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the building. Several infrared motion sensors are installed in the corridor and integrated with an 8-channel dry contact module to achieve motion-activated lighting — lights turn on when people arrive and turn off when they leave.Meanwhile, centralized lighting management is realized in the central control room via control interface software for android system. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the building’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

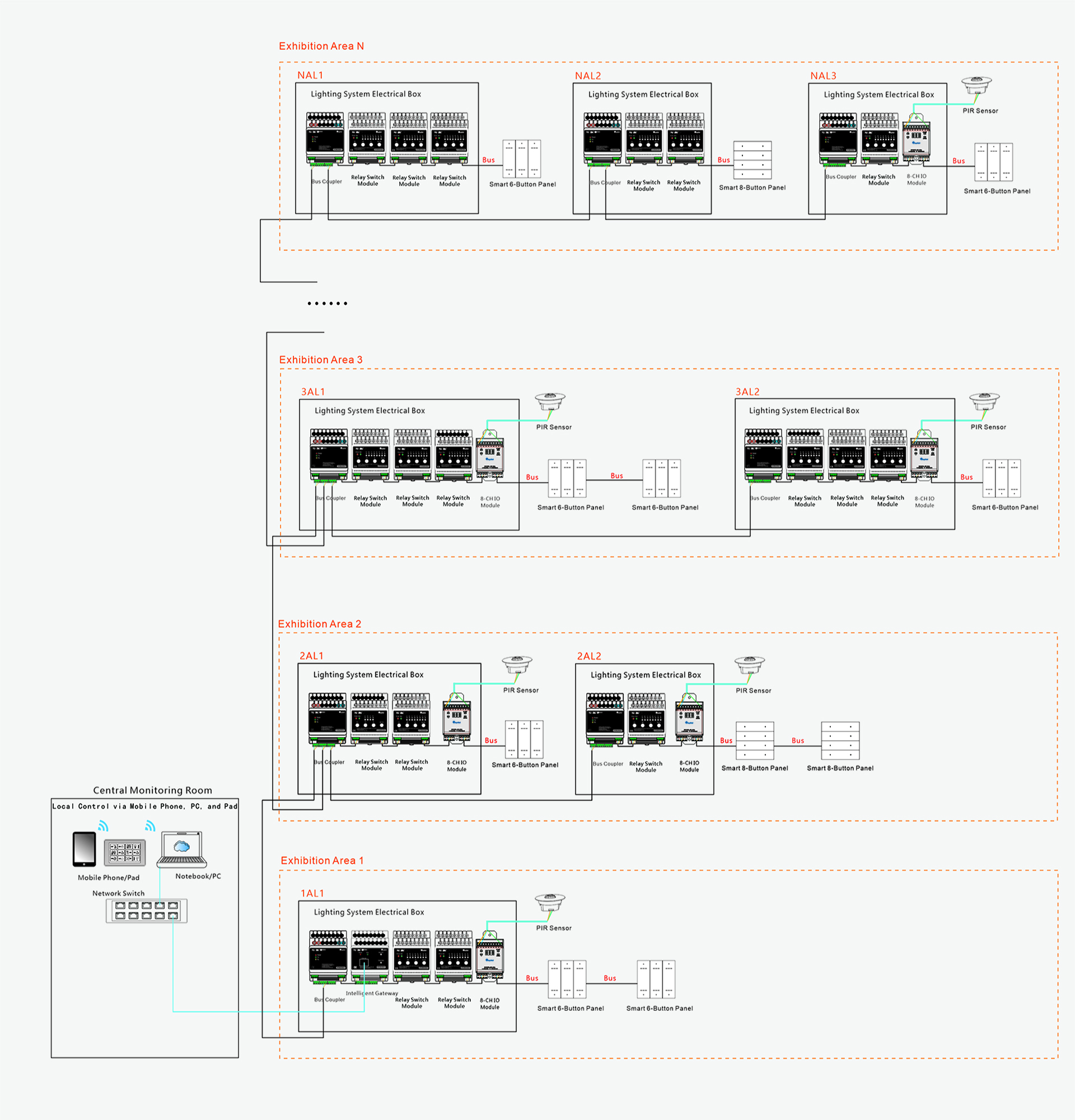

System Architecture Diagram
