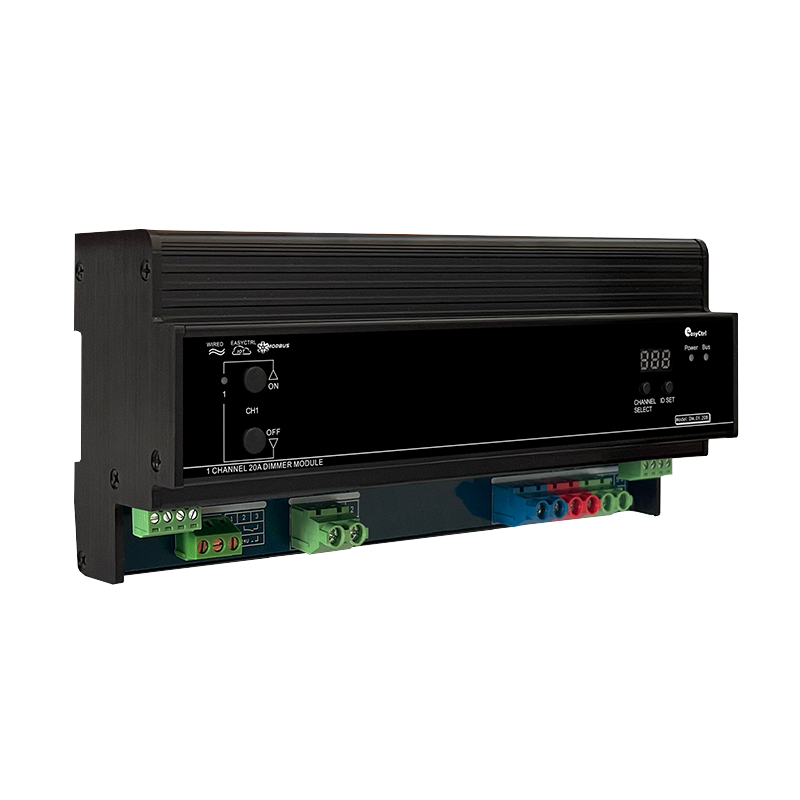

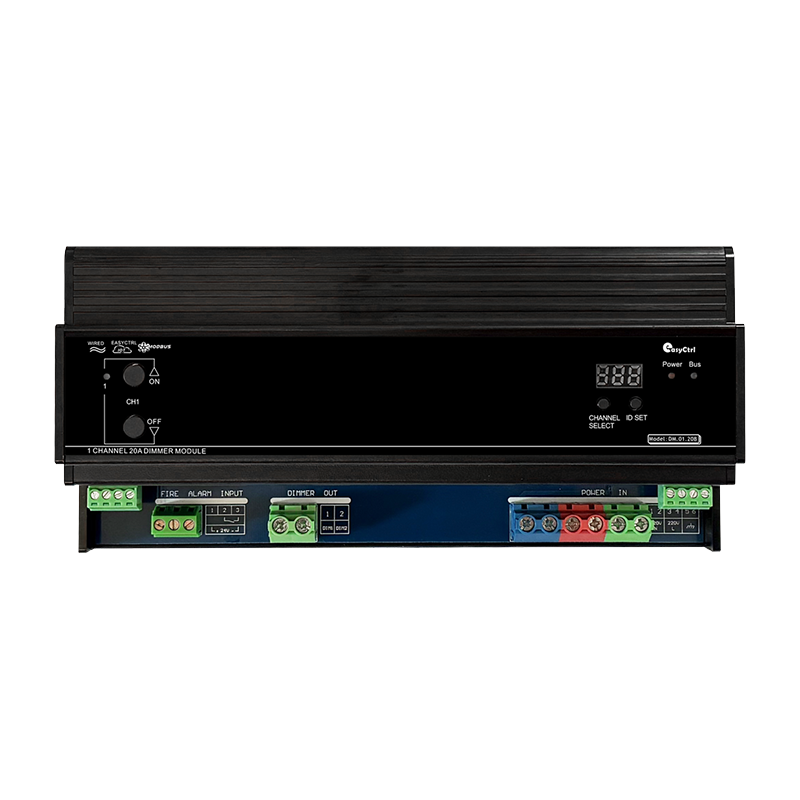

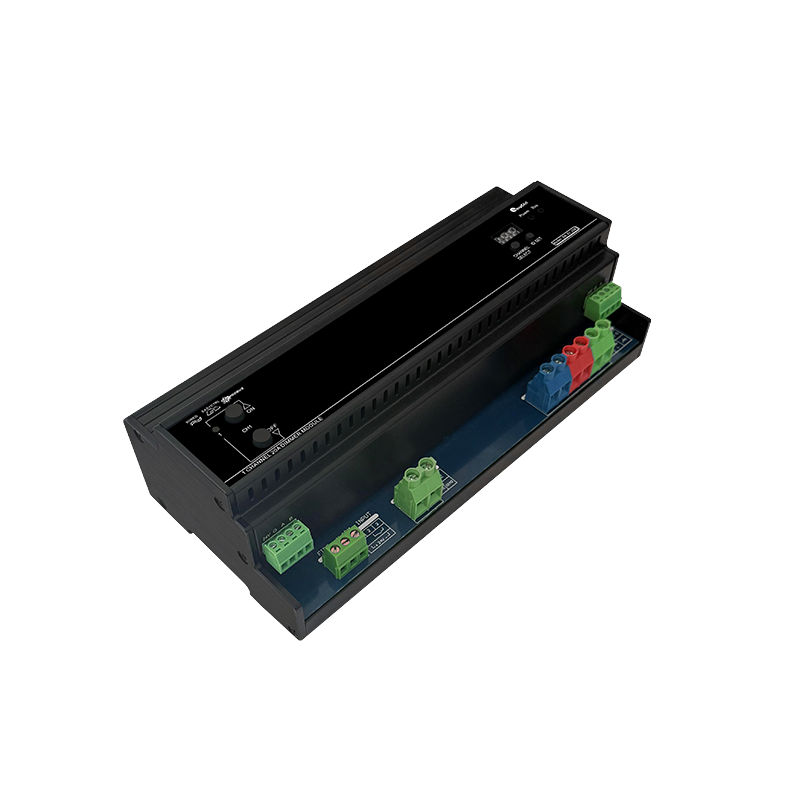

1 CH 20A Thyristor Dimming Module
Model No:DM.01.20B
1 CH 20A Thyristor Dimming module , serve as a system dimmer execution unit, typically installed in a distribution box. It is used to control halogen lamps, incandescent lamp, fluorescent lamp, LED light and shade adjustment, switch function.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Adopt leading edge TRIAC dimmer
Provide 1 CH 20A leading edge dimmer
Circuit initial state setting
Supports parameter settings for each circuit
Overload protection-过载保护
Over temperature automatic protection
Status feedback
Dimmer curves are adjustable
Local control
Online program update
Manual control button enables circuit switch operation during network failure
Fire alarm linkage
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Maximum Power Consumption
≤1.5W
Input Voltage
AC 220~250V(50/60Hz)
Output Circuit
1 CH leading edge dimmer
Rated Current
20A(single channel), 1 channel total power 3600W
Bus Interface
bus interface*2
Load Type
Incandescent lamp, halogen lamp, incandescent lamp, front phase control electronic transformer, etc
Protection
circuit breaker for each circuit
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
216 mm*102 mm*68 mm
Net Weight
≤1082 g/pcs
Enclosure Material
brushed aluminum shell technology
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 12P DIN rail mounting structure
Software Presentation
0405dimmermodule1280
configuration software1280720
classroom
hotel
HA
0603dimmermodule1280
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Shixuan International Hotel
