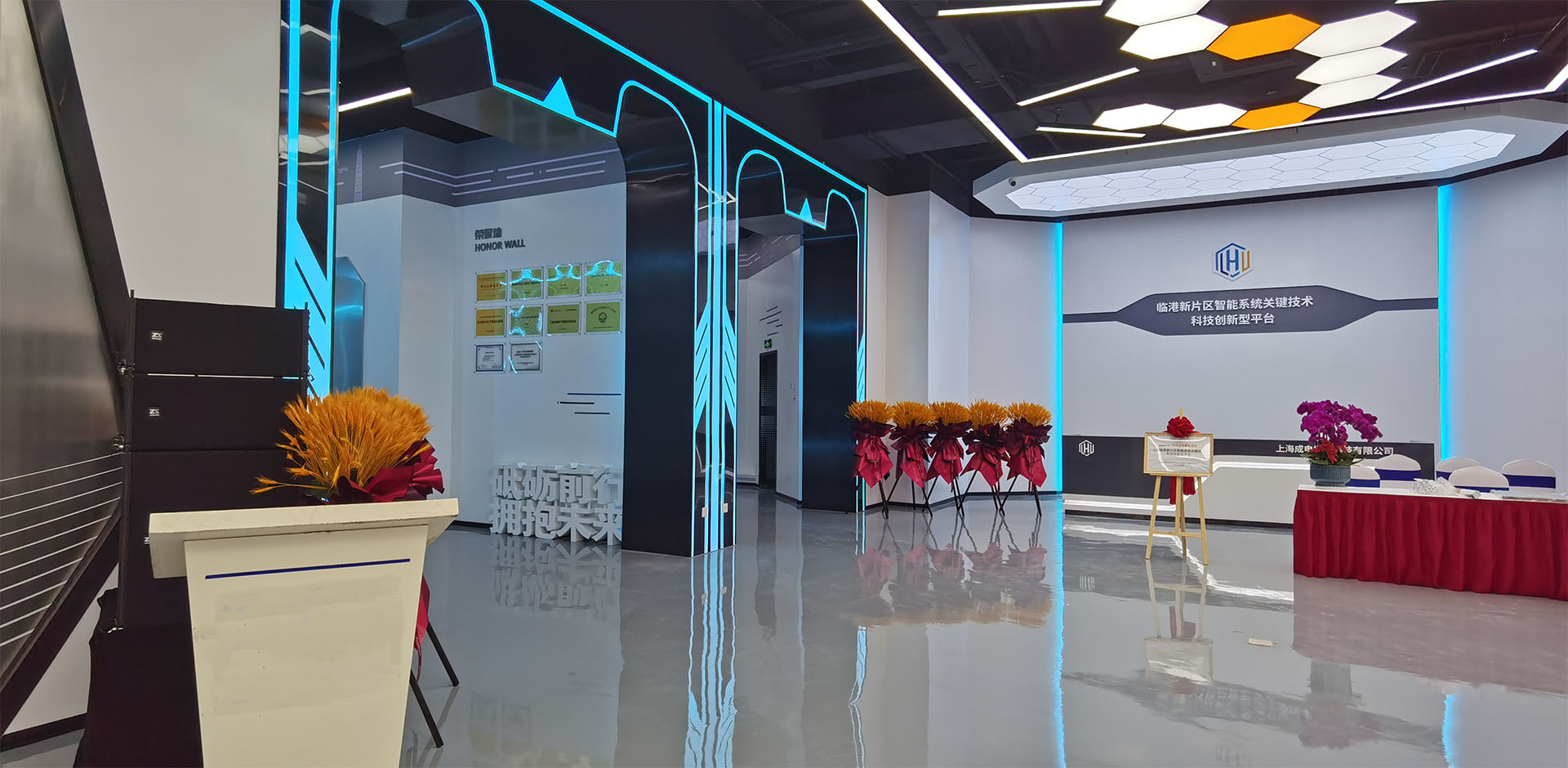

Hangzhou Wuzhen Exhibition Hall Smart Lighting System Project

/upload/images/article/20250526/17482709143373359.jpg

Project information

Control Equipment

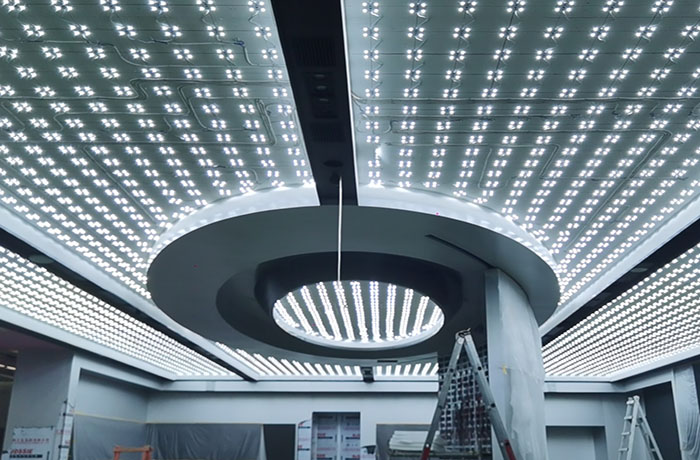

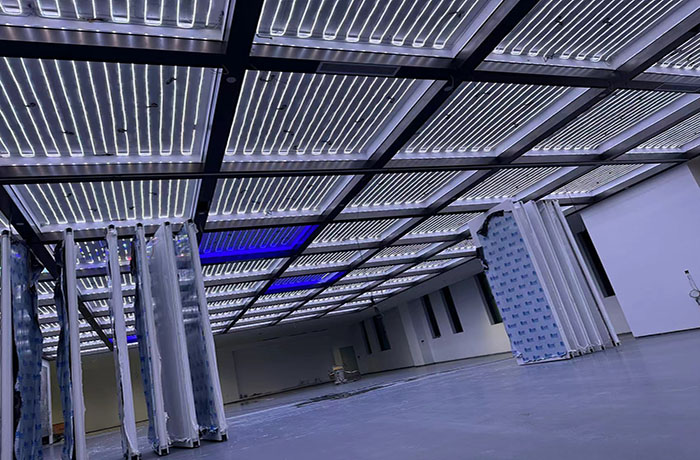

Dimmable Lights:Translucent ceiling membrane and LED light strips

Non-dimmable Lights:exhibition hall's lighting fixtures

Control Areas

Different exhibition areas in the exhibition hall

Control Requirements

1.Perform on/off control of some non-dimmable lighting circuits;

2.For the light membrane and light strips in the exhibition hall, DMX signal modules are used in combination with digital constant voltage drivers to enable dimming and color tuning control, as well as dynamic effects such as breathing, chasing, and gradient transitions.

3.Each area is equipped with several 8-button smart switch panels for both individual circuit control and scene-based lighting control;

4.Enable zoned lighting control;

5.Enable timed control and scene control;

6.Centralized control via PC and pad.

Control Solution

System products

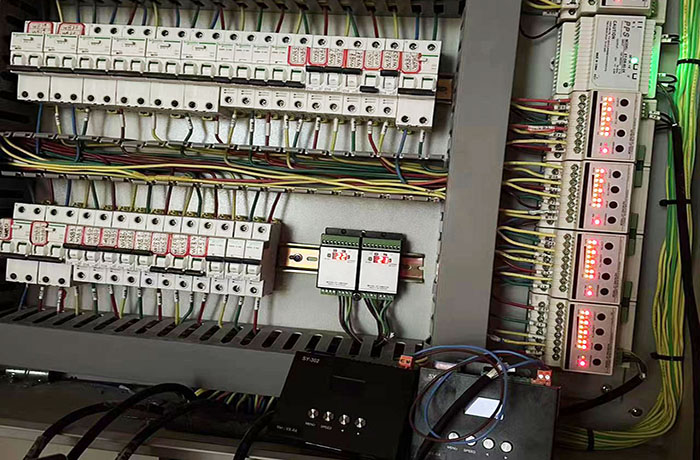

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 4 CH 0-10V dimmer module, 8 CH 16A smart switch module, Bus coupler, 32 CH DMX signal module,4-inch intelligent touch screen,and Smart 8-key wall switch.

Control Methods

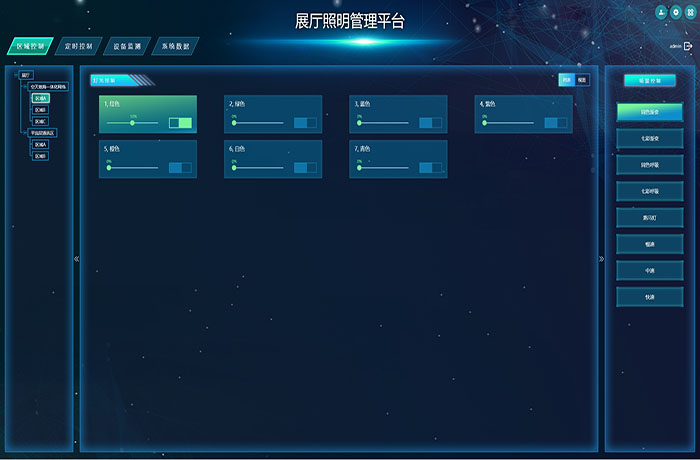

A bus-type intelligent lighting control system enables localized control via smart 8-key wall switch and 4-inch smart touch screen, alongside centralized management through a PC workstation.

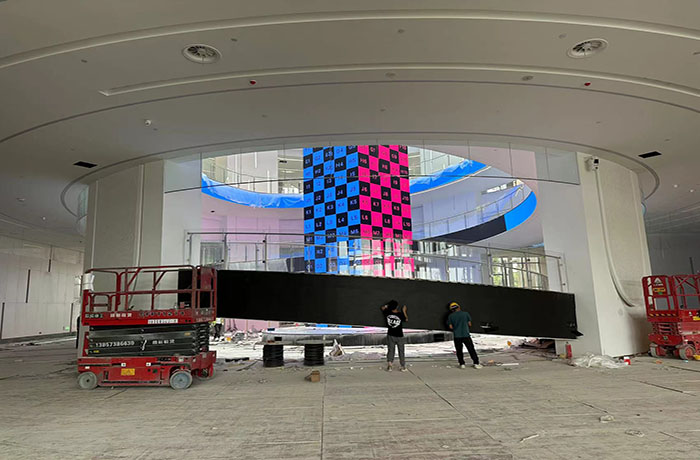

Performance Outcome

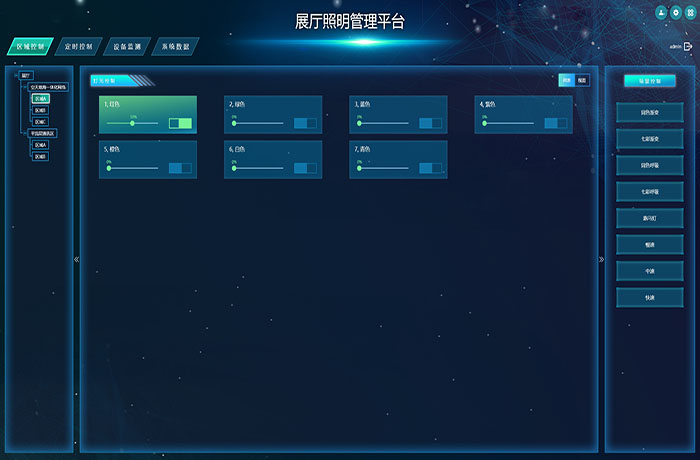

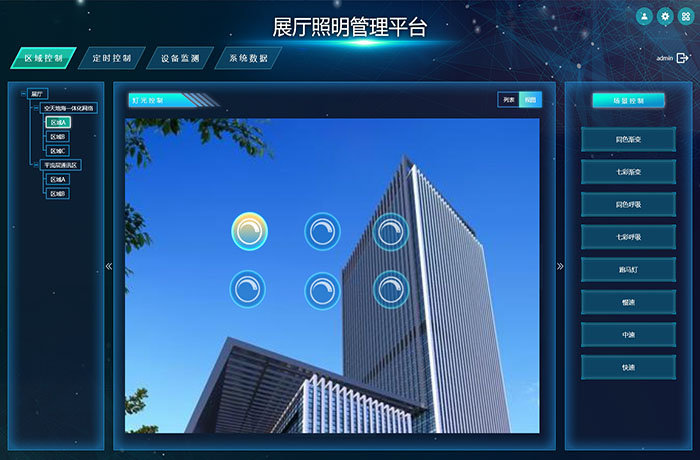

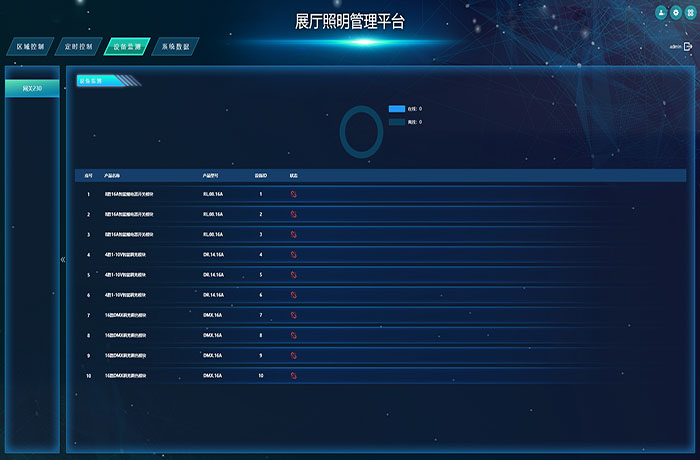

The smart 8-key wall switchs and 4-inch touch screens are used to achieve on/off control, dimming control,scheduled control, and scene control of lighting circuits across different areas of the exhibition hall. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the exhibition hall’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.To meet the specific display requirements of the exhibition hall, the system delivers precise DMX-based dimming and color tuning, along with dynamic lighting effects such as breathing, chasing, and smooth gradient transitions—creating vivid and lifelike light and shadow experiences.

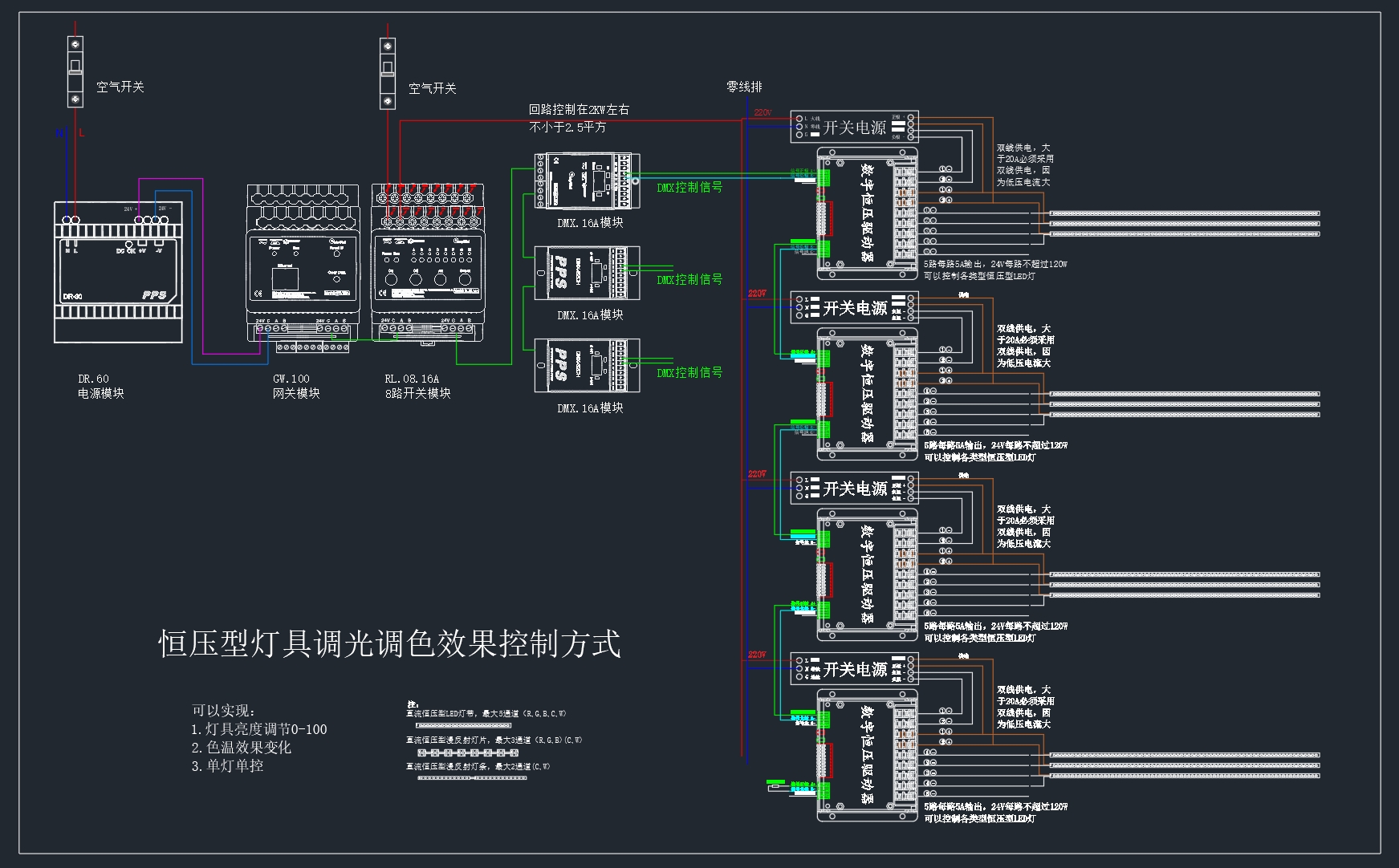

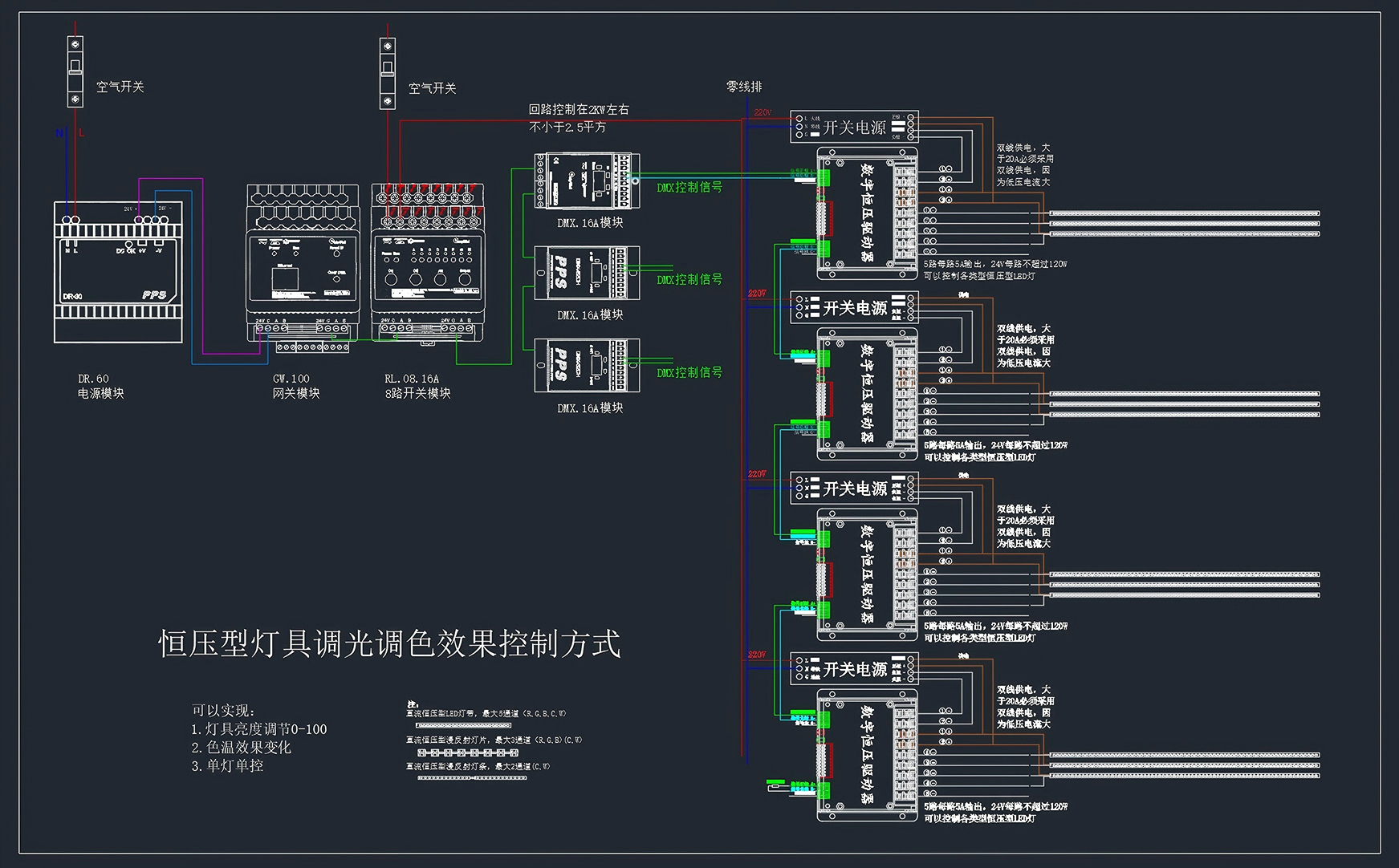

System Architecture Diagram
