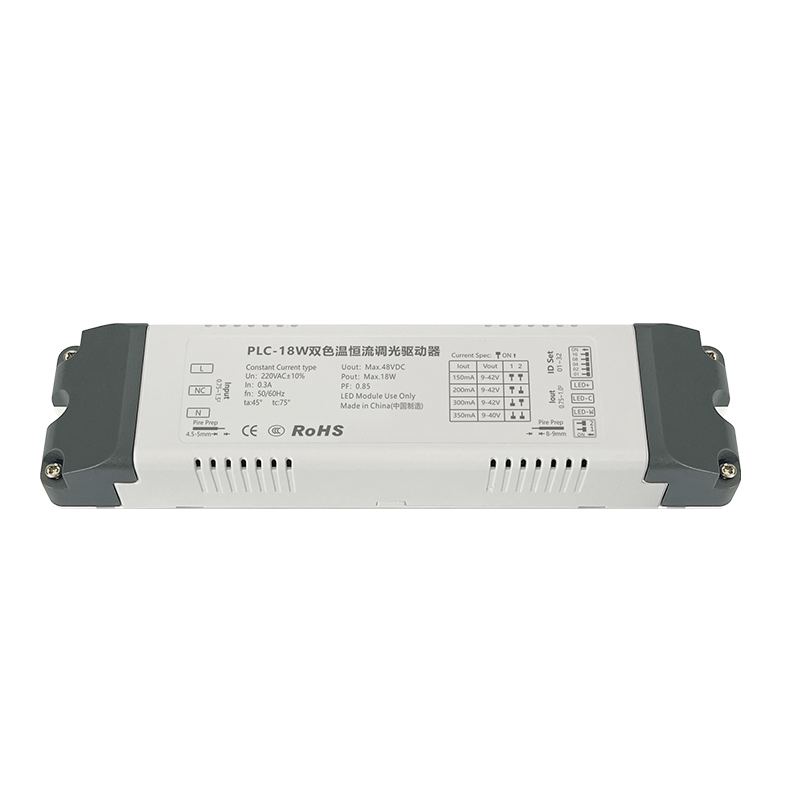

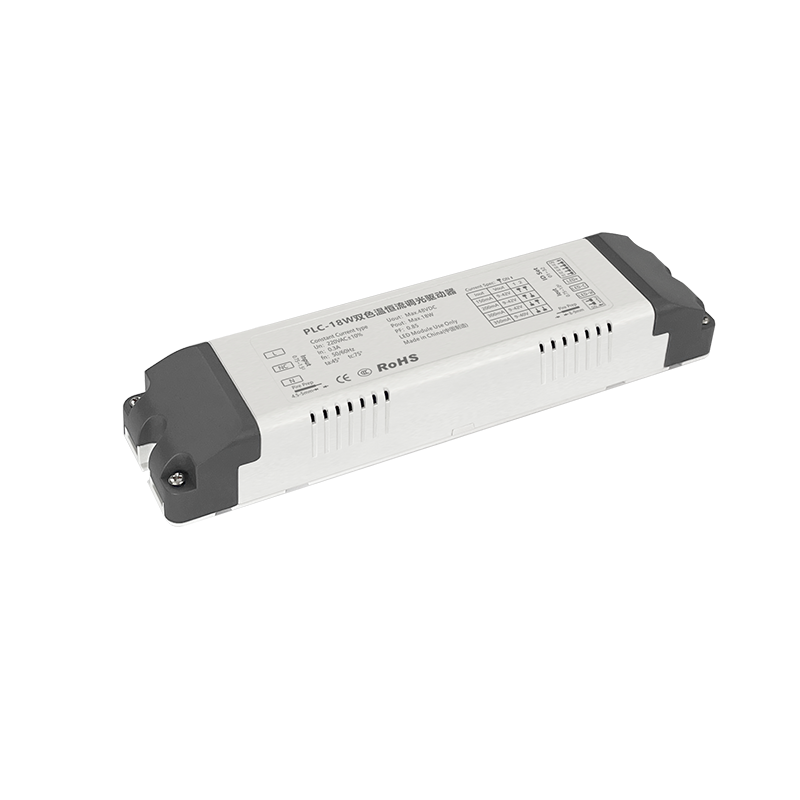

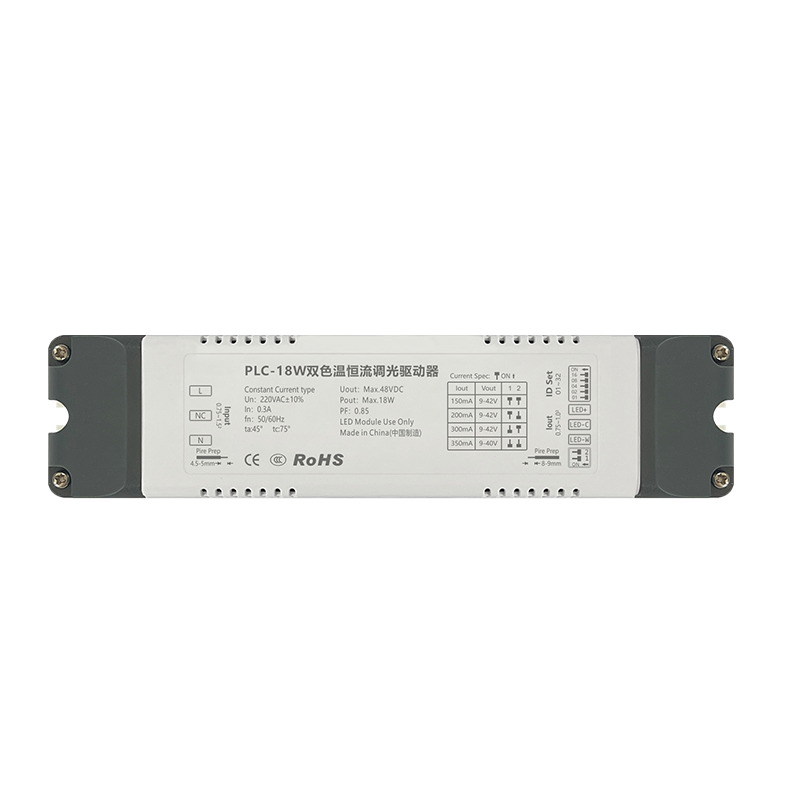

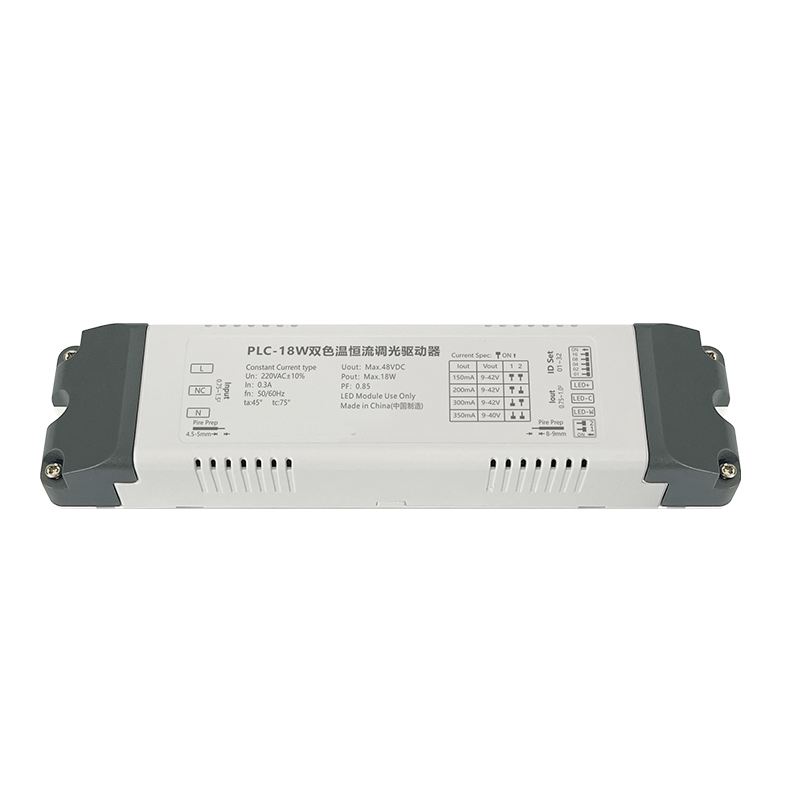

18W Constant Current Dual-Channel Color Temperature Driver (Constant Current Series)
Model No:PLC-18-150-350
This PLBUS intelligent lighting controller utilizes Lihe Micro's high-performance power line communication chip and adheres to the PLBUS protocol, enabling intelligent control through power lines. The controller outputs PWM dimming signals, compatible with standard lighting fixtures on the market, making it widely suitable for smart lighting applications in settings such as malls, hotels, exhibition halls, and classrooms. The application of PLBUS power line communication technology in smart lighting offers advantages such as no need for additional wiring, low cost, and convenient installation and maintenance.
Contact Us
Wiring Diagram
Product Features
Dimming range: 0-100%
LED dimming starts from 0.1%
Dimming curve can be set
Transition time can be adjusted
Multi-current
Wide voltage power
Suitable for LEDs of different power ratings
Group control
Reverse signal connection protection
Overload protection
Over-temperature protection
Short-circuit protection
Complies with SELV (Safety Extra-Low Voltage) standards
Suitable forindoor Class I, Il, and Ill luminaire applications
Product Specifications
Operating Voltage Range
9-42Vdc
Maximum Output Voltage
42Vdc
No-Load Output Voltage
42Vdc
Operating Current Range
150-350mA
Load Power Range
18W
Flicker Level
No Flicker
Dimming Range
0~100%,LED dimming starts from 0.1%
PWM Frequency
14.4KHz
Current Accuracy
±3%
Ripple and Noise
≤2V
Dimming Interface
PLBUS
Input Voltage
100-220Vac
Frequency Range
50/60HZ
Input Current
<0.3A
Power Factor
PF>0.85/230V ac(full load)
Efficiency (Typ.)
>77%
Surge Current
Cold start 20A@230V ac
Surge Immunity
L-N:2kV
Leakage Current
<5mA/230Vac
Operating Temperature
ta:45℃ tc:75℃
Operating Humidity
a:20~95%RH, No Condensation
Storage Temperature / Storage Humidity
-40~80℃,10~95%RH
Temperature Coefficient
±0.03%/℃(0-50)℃
Vibration Resistance
10-500Hz, 2G, 12 minutes per cycle, 72 minutes on each X, Y, Z axis
Over-temperature protection
Based on the PCB temperature exceeding the limit (≥110°C), the current output can be intelligently adjusted or shut down, with automatic recovery.
Overload protection
When the load power is ≥102%, the current will be reduced and can automatically recover.
Short-circuit protection
The output circuit will automatically shut down in the event of a short circuit and can automatically recover.
Dielectric strength
Input to output: 3750Vac
Insulation resistance
Input to output: 100MO/500VDC/25℃/70%RH
Safety standards
IEC/EN61347-1, IEC/EN61347-2-13
Flicker testing standards
IEEE 1789
Product dimensions
160×38×24mm(L×W×H)
Packaging dimensions
PE bag packaging
Product weight
98g±10g
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
0420relaymodule1280
classroom
configuration software1280720
controlinterface1280
the underground garage
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
