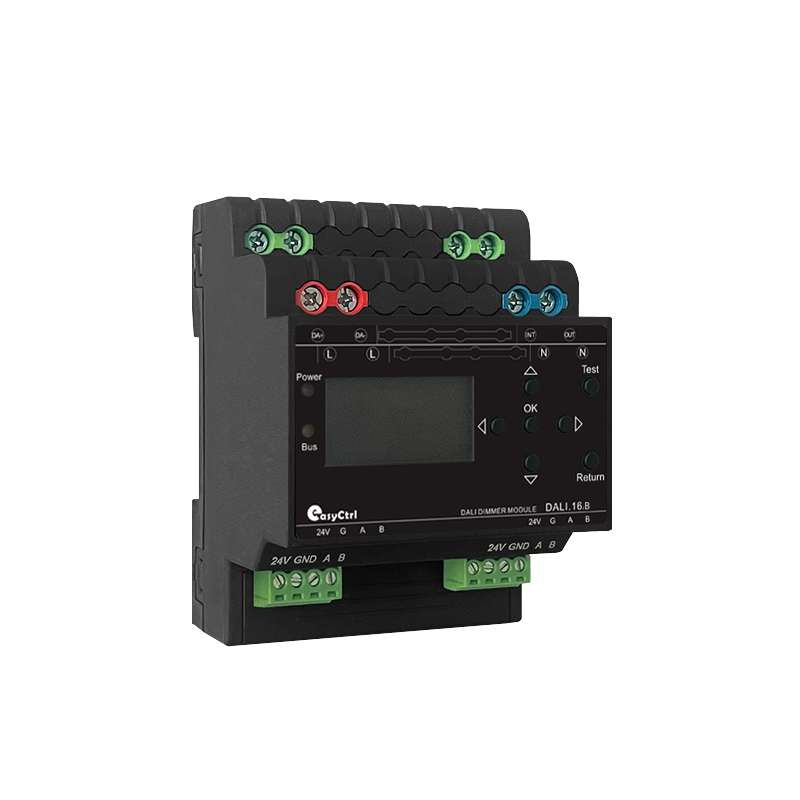

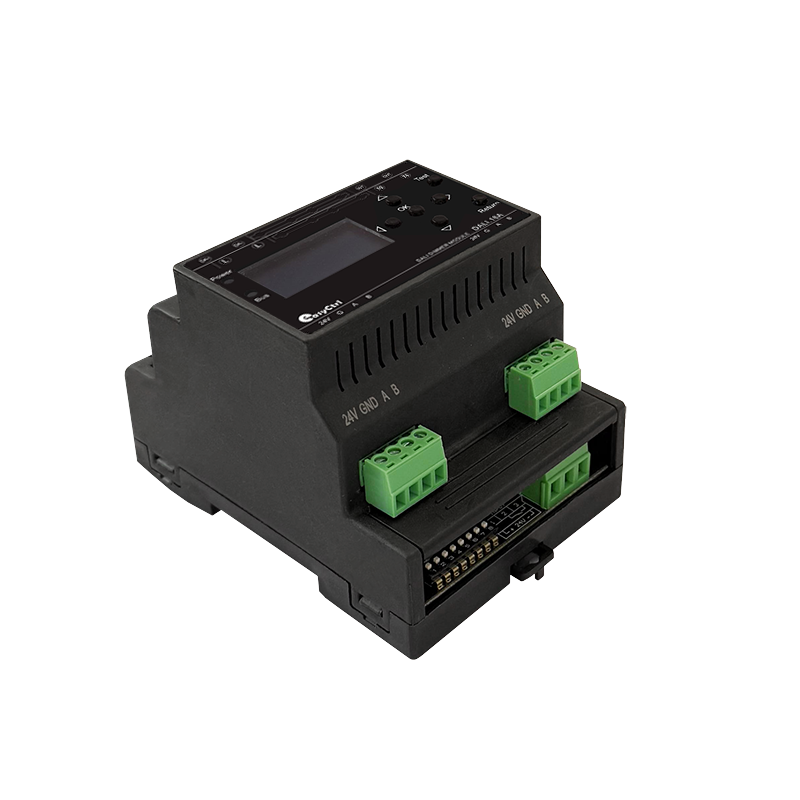

DALI Dimming Module (DALI.16B.485)
Model No:DALI.16B.485
DALI Dimming Module serve as a system dimmer execution unit, typically installed in a distribution box.DALI2.0 dimming execution module support RS485 protocol and DALI protocol conversion, support DALI2.0 protocol, built-in DALI power supply module, with a single DALI bus. Up to 64 DALI drive devices are supported, and the dimming and color of 16 control channels can be realized. The module adopts OLED display, which is convenient for engineering configuration.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Built-in DALI power supply
A single DALI bus
Supports 64 DALI addresses in 16 groups
Circuit initial state setting
30mm X 18mm LCD display
Manual control button enables circuit switch operation during network failure.
Local control
Status feedback
Fire alarm linkage
Online program update
RS485 protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Maximum Power Consumption
≤0.6W
Rated Voltage
AC 220V
Output Circuit
64 DALI independent address management
Secondary Interface
1 CH 16A relay output (for special drive processing)
Display Mode
OLED display screen
Switching Cycles
no-load：5,000,000 cycles， load：3,000,000 cycles
Protection
circuit breaker for each circuit
Operating Temperature
0˚C~45˚C
Operating Relative Humidity
20%～93% RH
Storage Temperature
-40℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*102 mm*72 mm
Weight
≤261 g/pcs
Enclosure Material
flame retardantPP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Product Structure Description
Can be connected to third-party central hosts to enable local switching or dimmer control.
