Hotel smart lighting control system

Solution for Hotel Public Areas

Solution Overview

Based on the YC-BUS bus communication protocol, Yichuang Intelligence offers a public area intelligent lighting control system solution tailored for star-rated hotels. This solution enhances the hotel’s upscale image and management efficiency, promotes energy conservation and emission reduction, reduces operational costs, and serves as a comprehensive intelligent lighting control system for hotel environments.

System Achievements

Hotel Intelligent Dimming Control System

System Achievements

1.Lighting Adaptation for Functional Areas

Key hotel functional zones such as atriums/lobbies, entrance halls, and multifunction halls require dynamic lighting effects tailored to different occasions, creating customizable scene settings (e.g., welcoming, event-specific, or ambient modes). The system employs switch control, dimming control, scene presets, timed schedules, and sensor-triggered automation to deliver balanced and adaptive illumination. This ensures guests experience an elegant and comfortable atmosphere upon entering the hotel.

2.Centralized Management

The system enables centralized control of all public area lighting, streamlining operations and enhancing management efficiency.

3.Energy Efficiency

Hotel lighting accounts for approximately 35% of total energy consumption. The control system significantly reduces energy waste through optimized operation, supporting sustainability goals.

4.Cost Reduction

Advanced switch and dimming circuit controls minimize wear and tear on fixtures, extending their lifespan and lowering long-term maintenance costs for the hotel.

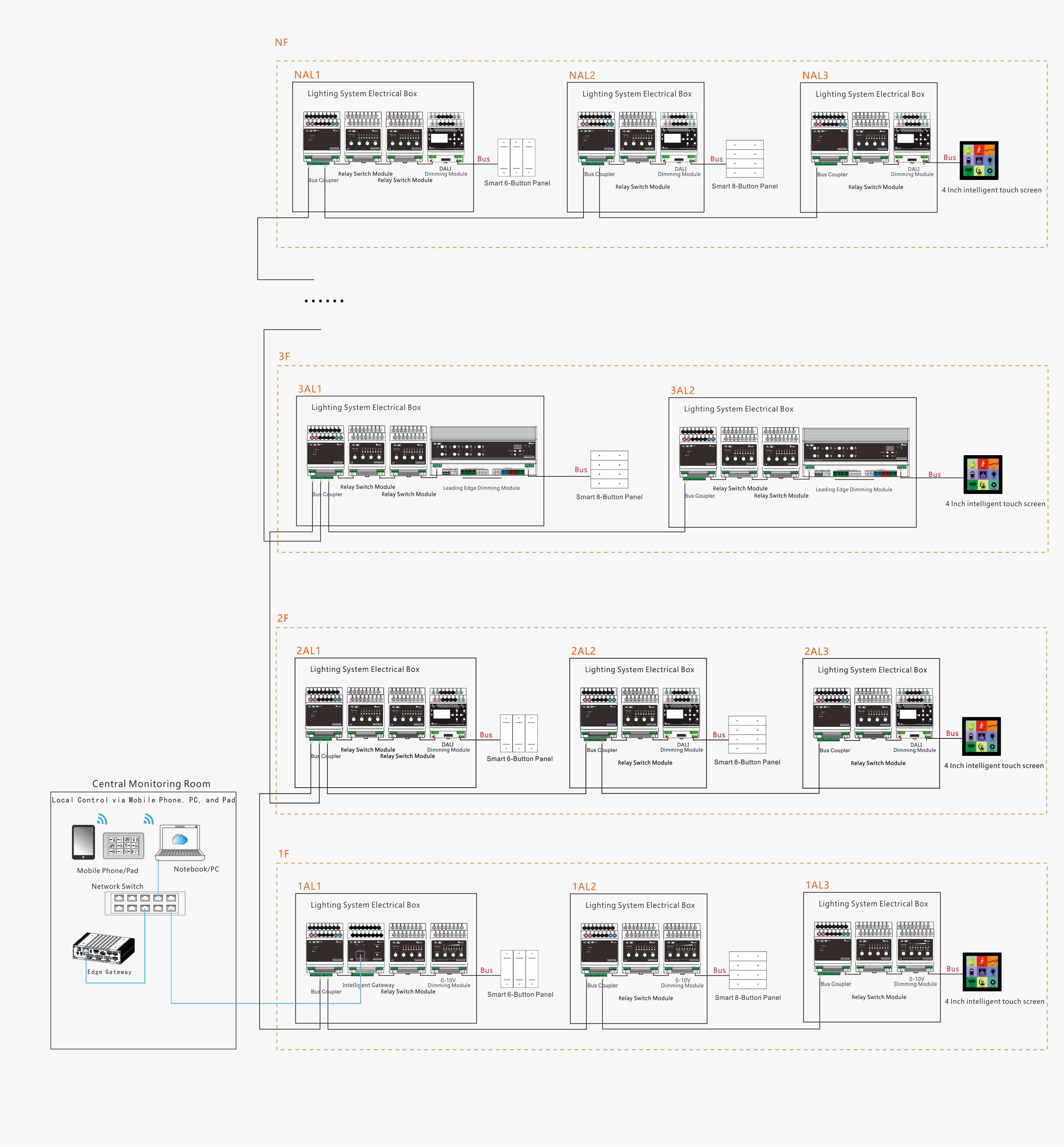

System architecture diagram

未命名 -2.png

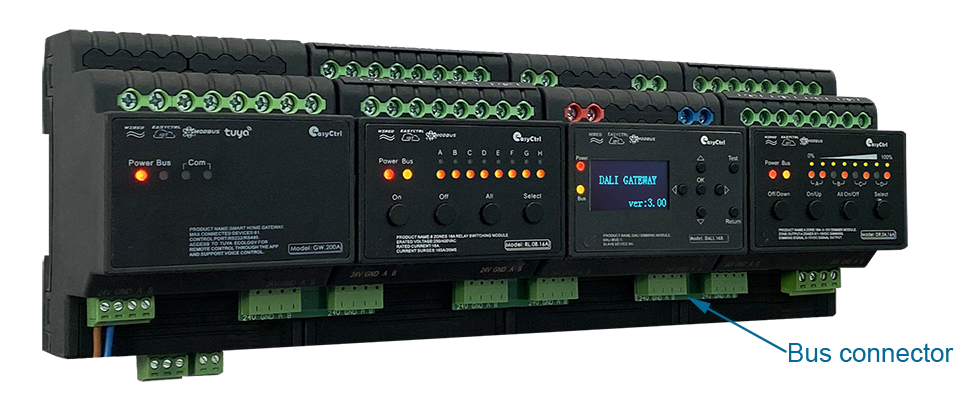

This system uses the EASYCTRL brand intelligent lighting control system based on the YC-BUS protocol. It configures the corresponding intelligent gateway host according to floors and control areas. The gateway host manages several switch modules and triac dimming modules (depending on project needs, 0-10V dimming module, DALI dimming module, Leading Edge dimming module, etc. can be used). Each control area is equipped with control panels or intelligent touch screens as required, and the entire architecture adopts the YC-BUS bus control structure. Each control area is equipped with an intelligent control gateway host, which has a TCP/IP interface and connects to the area network switch. The entire intelligent lighting control system is managed via PC control interface software, and the system also provides integration interfaces to facilitate interconnection with other subsystems in the hotel’s intelligent building management system.

Main Products

Smart lighting Gateway

GW.100A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system.

GW.200A: The gateway of the Hotel Public Area Intelligent Lighting Control System, serving as the core processing unit of the entire system, equipped with logic functions and supporting voice control.

Depending on the project requirements, either gateway can be selected.

The gateway provides a MODBUS-TCP interface for integration with third-party systems (e.g., BA systems).

Relay Switch Module

RL.04.16A: 4-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.08.16A: 8-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.12.16A: 12-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.16.16A: 16-channel 16A relay switch module, utilizing Tyco dual-contact relays.

RL.04.20A: 4-channel 20A relay switch module.

RL.08.20A: 8-channel 20A relay switch module.

RL.04.20C: 4-channel 20A relay switch module(With Current And Voltage Detection).

RL.08.20B: 8-channel 20A relay switch module(With Current Detection).

Dimming Module

DR.04.16A: 4-channel 0-10V Dimming module.

DALI.16B: Dali dimming module.

DMX.32A: DMX dimming module.

DM.04.05B: 4-channel 5A leading edge dimming module.

DM.06.03B: 6-channel 3A leading edge dimming module.

DM.02.10B: 2-channel 10A leading edge dimming module.

Touch panel and Faceplate

KP.02D: 2-Button Smart faceplate.

KP.04C: 4-Button Smart faceplate.

KP.06C: 6-Button Smart faceplate.

KP.08D: 8-Button Smart faceplate.

TP.40A: 4-inch Smart Touch panel.

TP.70A: 7-inch Smart Touch panel.

System Advantages

Robust and stable YC-BUS system bus architecture

Based on YC-BUS technology,the system has powerful intelligent lighting gateway;stable switch control modules with diverse product range to meet project needs;comprehensive dimming control modules with outstanding dimming performance;complete range of supporting modules, panels, and touchpanels.The rail-mounted bus module uses a bus connector, eliminating the need for manual wiring, ensuring stability and reliability.The failure of a single bus device does not affect the normal operation of the entire bus system. Simply replacing the faulty device with a new product and properly setting the ID number completes the replacement.

Complete supporting software

1.System configuration software（Easy to configure, equipped with logic functions, and highly powerful）

2.Control interface APP for mobile phones and pads

3.PC control interface software(Lan-based)

4.Remote control interface software(Browser/server architecture)

The system offers a wide range of external interfaces.

Provides external interface protocols for TCP/UDP and RS232

Provides external Ethernet and serial ports for integration with third-party systems, such as various central control systems, SCADA software, and third-party cloud platforms.
TCP interface protocol
UDP interface protocol
RS232 interface protocol

Provides MODBUS-TCP and MODBUS-RTU interface protocols, facilitating integration with building automation (BA) systems.
