Vision Vally of China Building Smart Lighting Control System Project

/upload/images/article/20250604/17490211123288099.png

Project information

Control Equipment

Non-dimmable Lights: lighting fixtures in the office building

Control Areas

different sections of Vision Vally of China Building

Control Requirements

1.Perform on/off control of lighting circuits in each area.

2.Each area is equipped with several 4-inch smart touch screens and 7-inch smart touch screens for both individual circuit control and scene-based lighting control.

3.Enable zoned lighting control.

4.Enable timed control and scene control.

5.Centralized control via PC.

Control Solution

System products

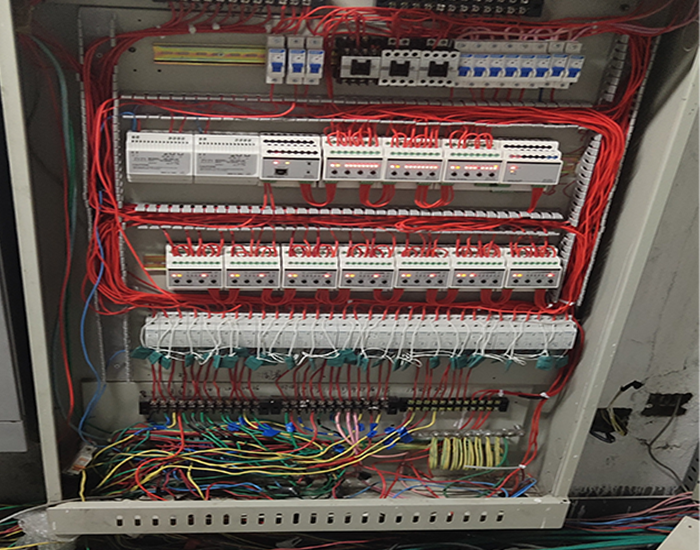

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, Bus coupler, 4-inch smart touch screen, 7-inch smart touch screen, 2ch curtain module, and 8ch dry contact module.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation (customizable interfaces).

Performance Outcome

The 4-inch intelligent touch screens and 7-inch intelligent touch screens are used to achieve on/off control, scheduled control, and scene control of lighting circuits and curtain loops across different areas of the office building. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the office building's lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

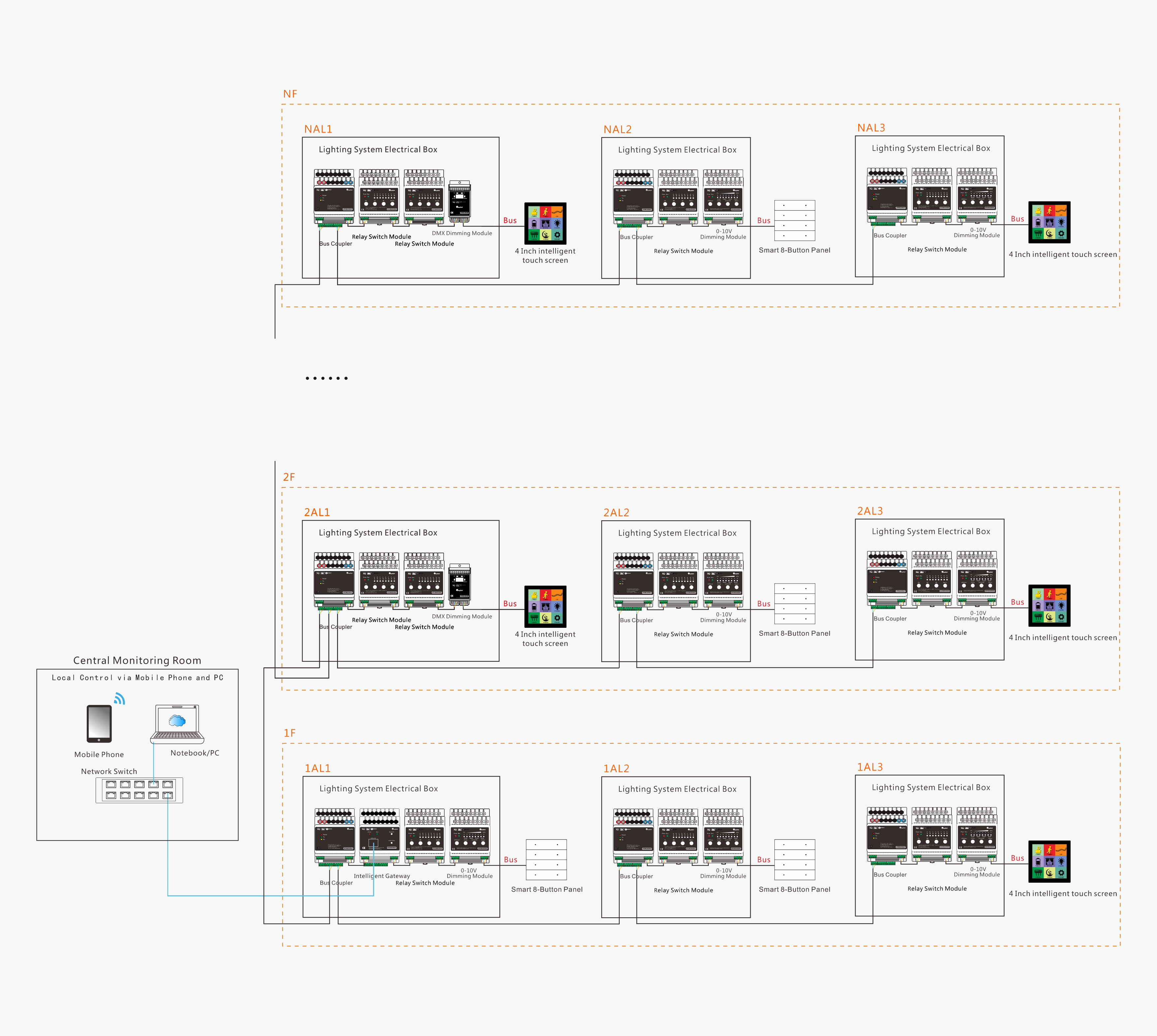

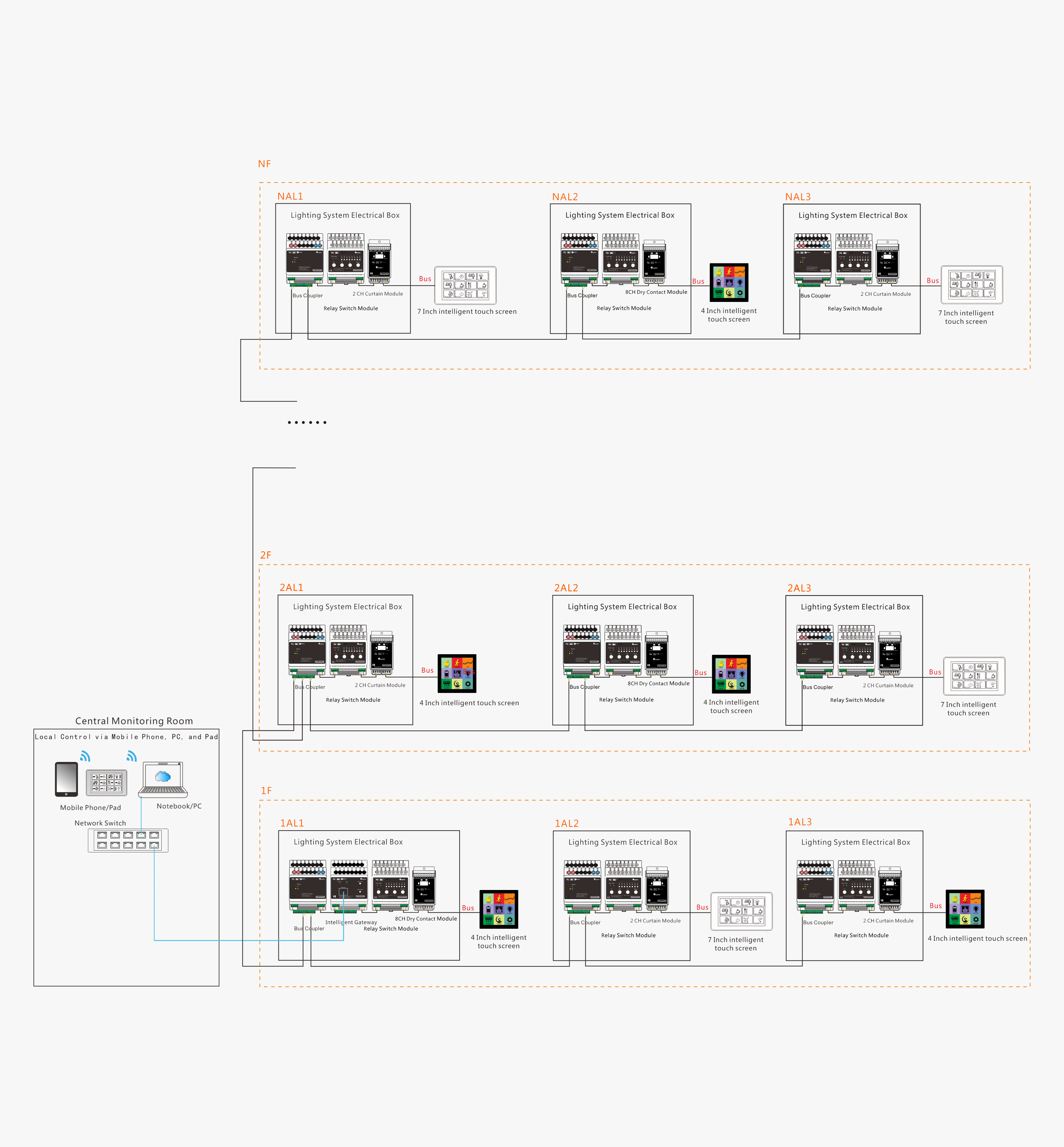

System Architecture Diagram
