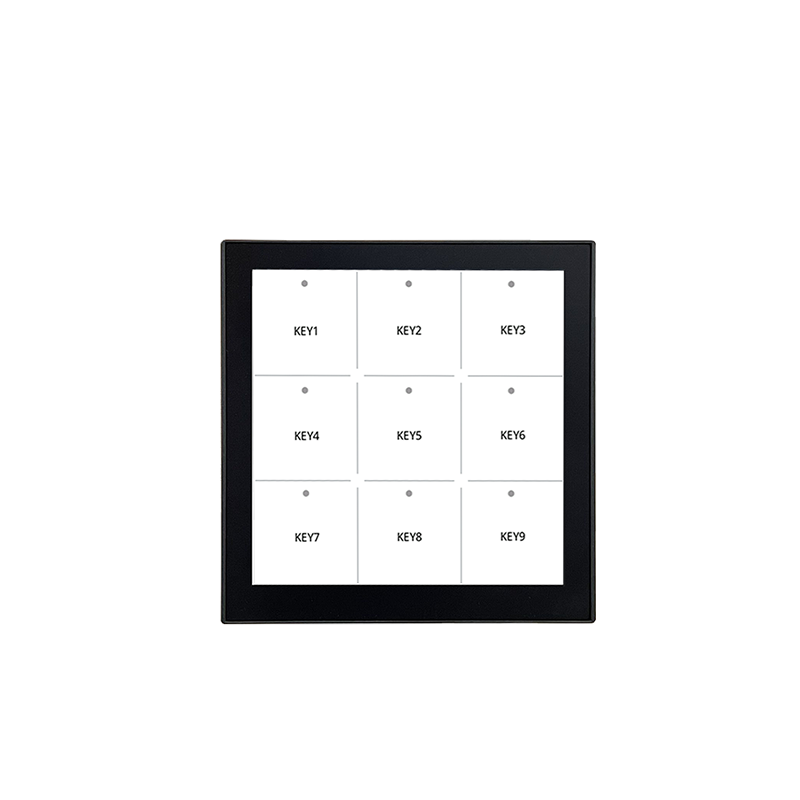

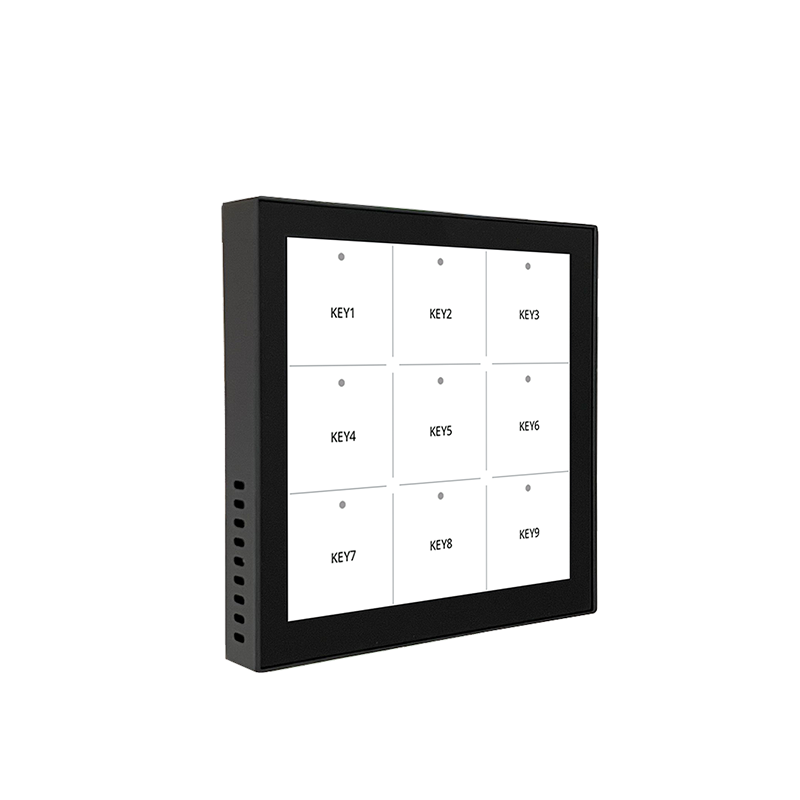

4 Inch Smart Touch Screen

Model No:TP.40A

4 Inch Smart Touch Screen, serves as a system control unit , typically installed in the local, to achieve light switching, dimming, curtain opening and closing, single control or scene control of music and other equipment, data display, temperature, humidity, illumination, PM2.5, etc.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Suports 36 programmable keys
High-definition resolution
Supports bidirectional communication
32bit MCU，powerful functionality
Operation Interface Customization Editing
Simple wiring
Scene control
Timed control
Touch Screen Control
Online program update
RS485 protocol-
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤1.5W
Static Power Consumption
≤0.72W
Touch Control Mode
single point, sliding touch
Number Of Touches
the theory of infinite times and touch life is related to the working environment, dust and humidity
Resolution
480*480
Touch Type
capacitive touch screen
Display Type
TFT LCD screen
Operating Temperature
-5℃~45℃
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93℃
Dimensions（L*W*H）
86mm*86mm*27mm
Net Weight
≤115g/pcs
Installation Method
standard 86 bottom box mounting
Opening Size (L * W)
60mm*60mm，Bottom box depth is greater than 40mm
Dimension

The touch screen adopts a standard 86-type back box for installation

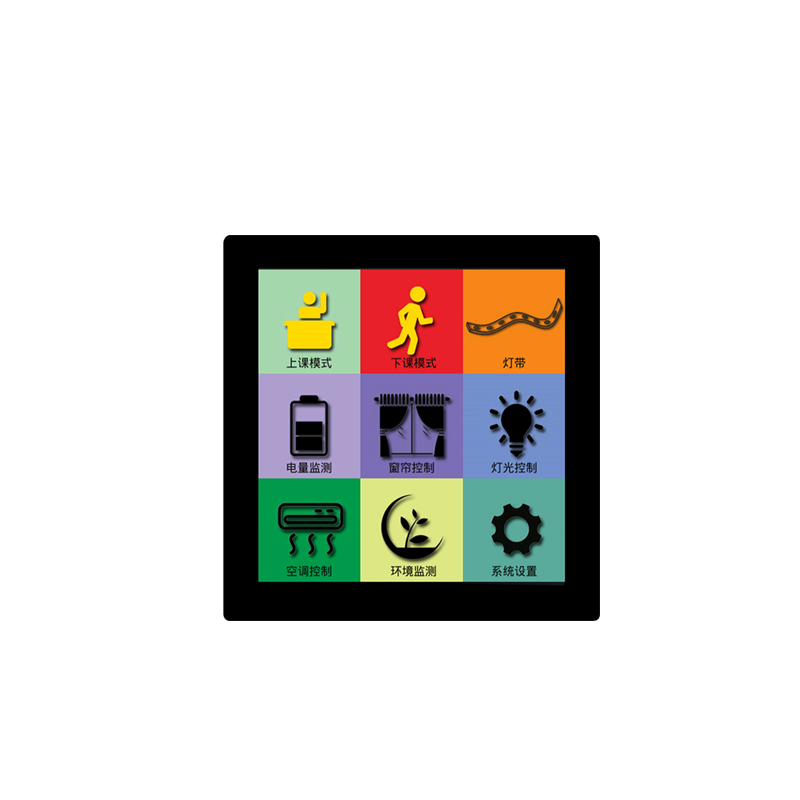

Software Presentation
4inchtouchpanel1280
4inchtouchpanel1280A
classroom
configuration software1280720
daliBdimmermodule1280
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
SINGLEAREA2720470
Solution for Single-space lighting control system
Learn more
building720470
Solution for Traditional Building Lighting Retrofit and Upgrade
Learn more
SMARTHOME720470
Solution for Smart Home
Learn more
EXHIBITIONHALL720470
Solution for Exhibition Halls
Learn more
720470NEW
Solution for Office Buildings
Learn more
factory720470
Solution for Large Manufacturing Plant
Learn more
MUSEUMPHOTO720470
Solution for Museum
Learn more
Hotel intelligent dimming system
Solution for Hotel Public Areas
Learn more
User Manual(TP.40A)
