Project case for Smart Lighting Control System

Denghu Primary School Smart Lighting Control System
/upload/images/article/20250607/17492855564880303.png

Project information

Control Equipment

Non-dimmable Lights:Lighting fixtures for each area.

Control Areas

Different sections of the Denghu Primary School.

Control Requirements

1.Perform on/off control of lighting circuits in each area.

2.Each area is equipped with several 6-button smart switch panels for both individual circuit control and scene-based lighting control.

3.Enable zoned lighting control.

4.Enable timed control and scene control.

5.Centralized control via PC.

Control Solution
System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 4 CH 20A  relay switch module, 8 CH 20A  relay switch module, Bus coupler, and Smart 8-key wall switch.


Control Methods

A bus-type intelligent lighting control system enables localized control via smart 8-key wall switch, alongside centralized management through a PC workstation.

Performance Outcome

The smart 8-key wall switchs are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the library. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the library’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

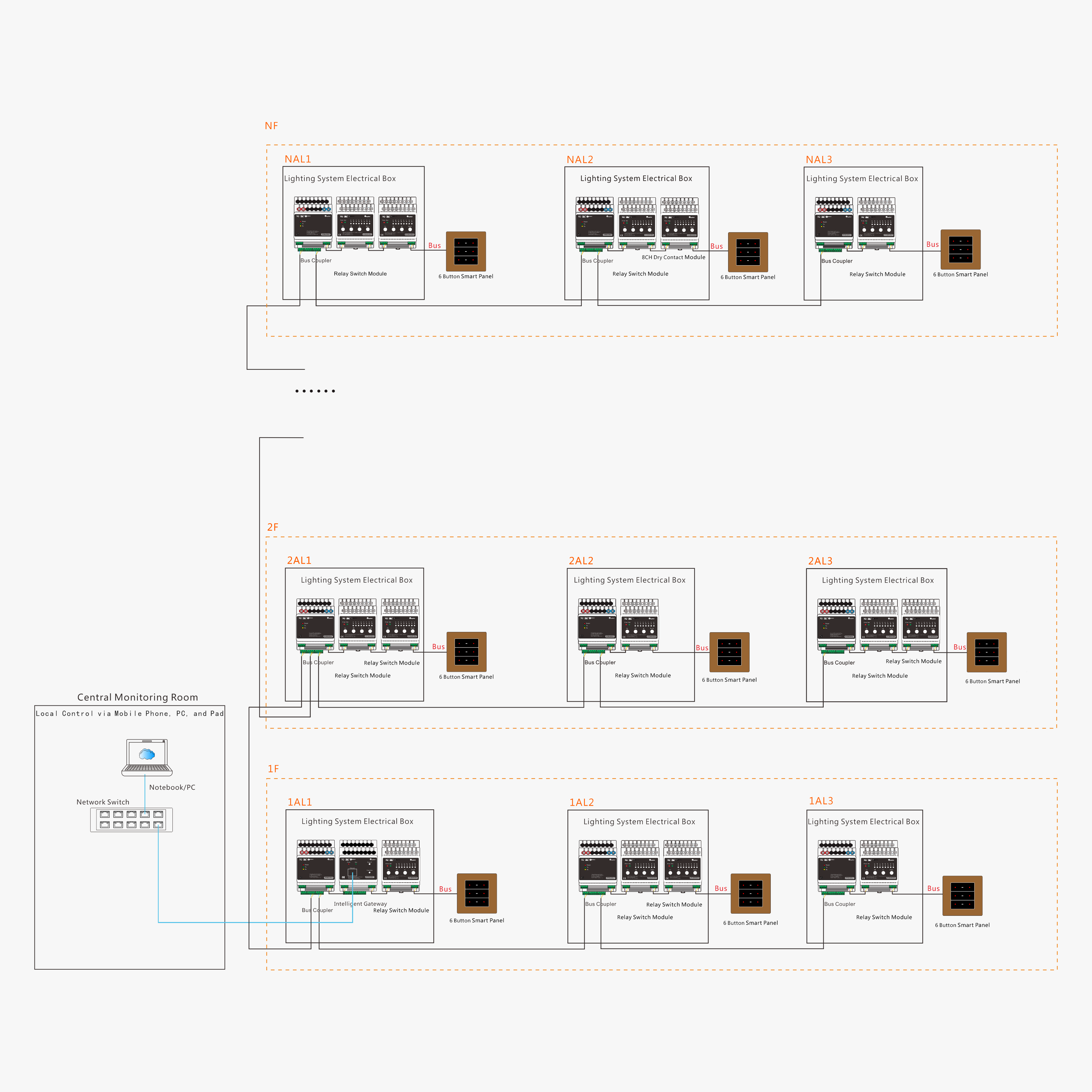

System Architecture Diagram

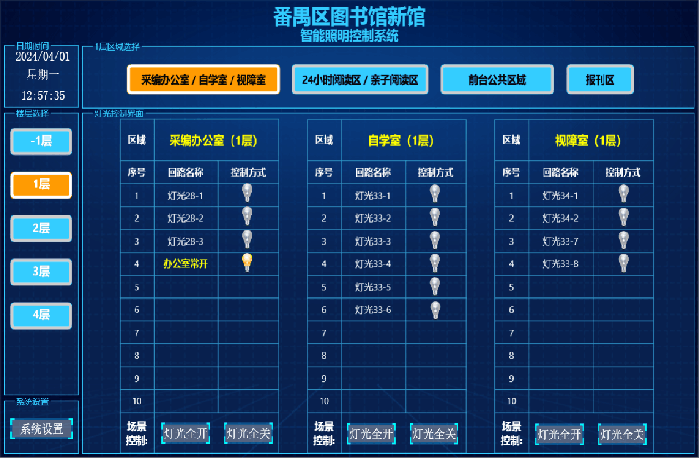

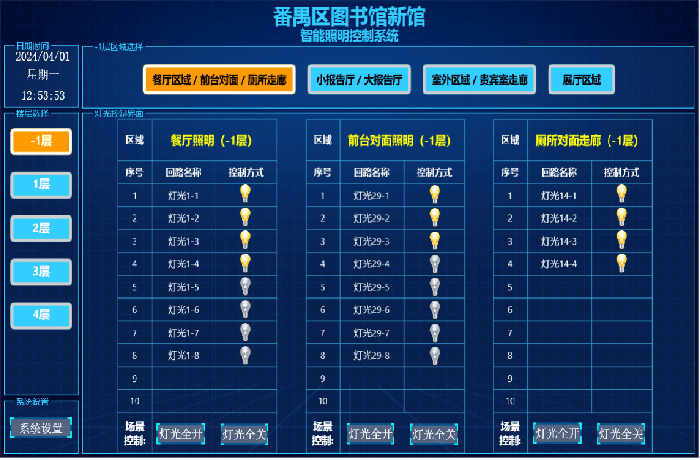

Software Interface

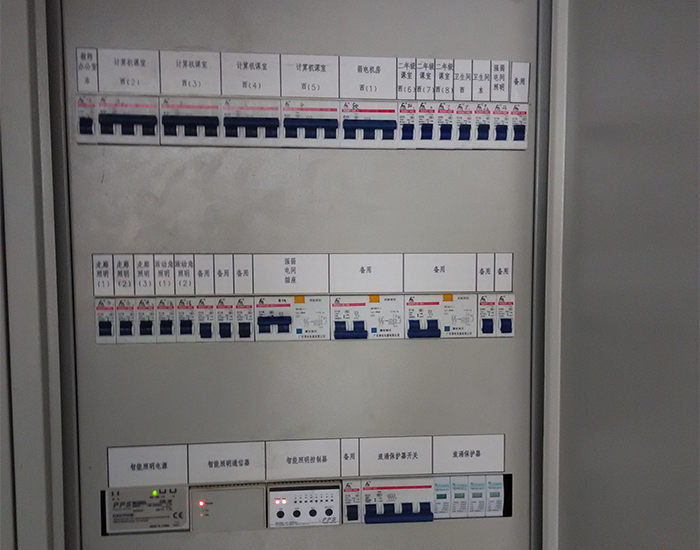

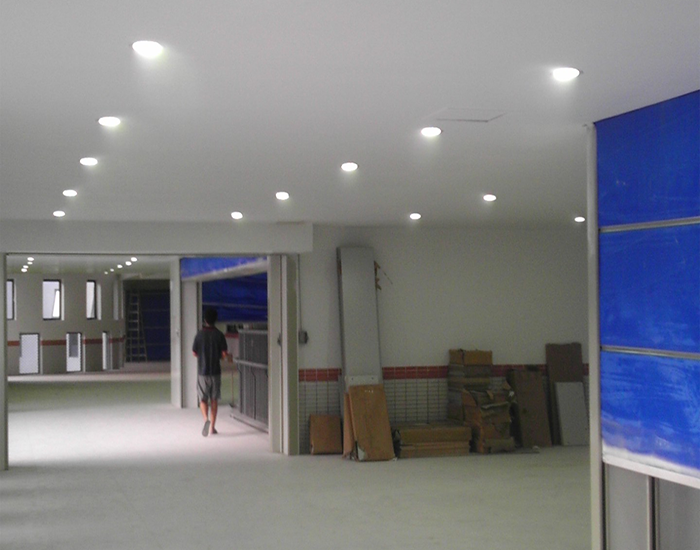

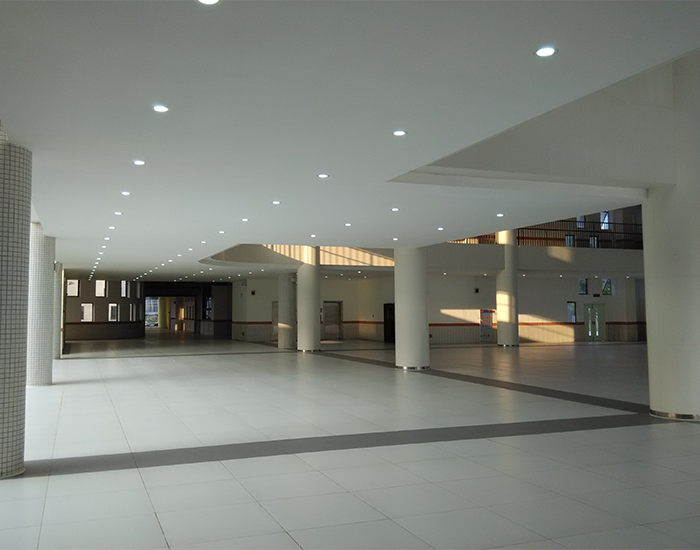

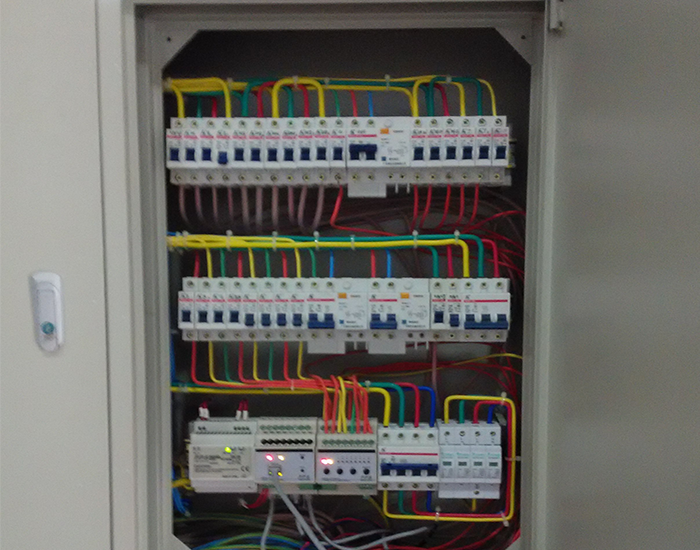

Project Site Photos
on site700550-1.png
on site700550-2.png
on site700550-3.png
on site700550-4.png
