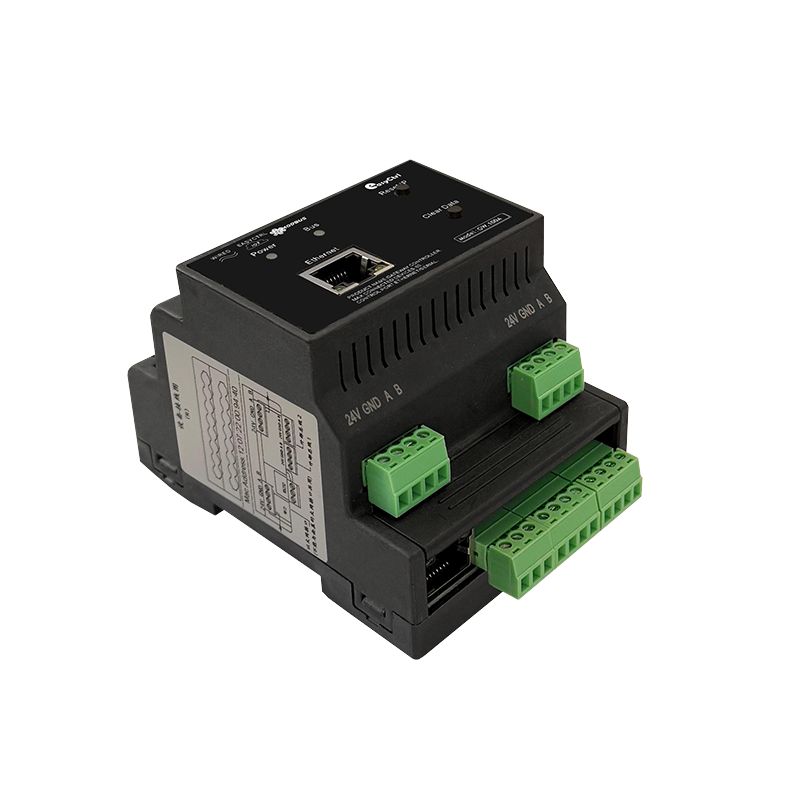

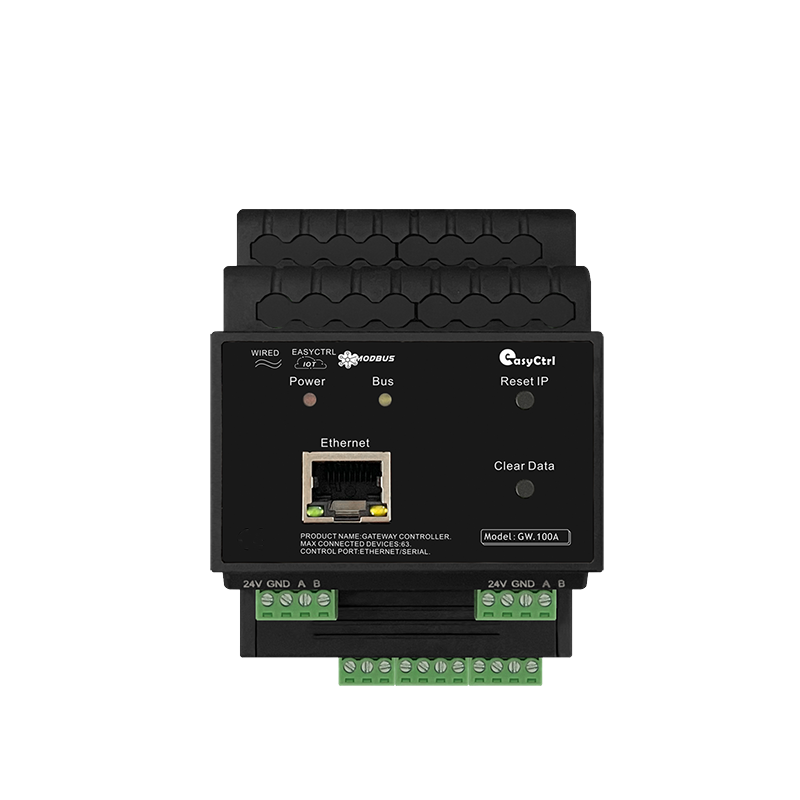

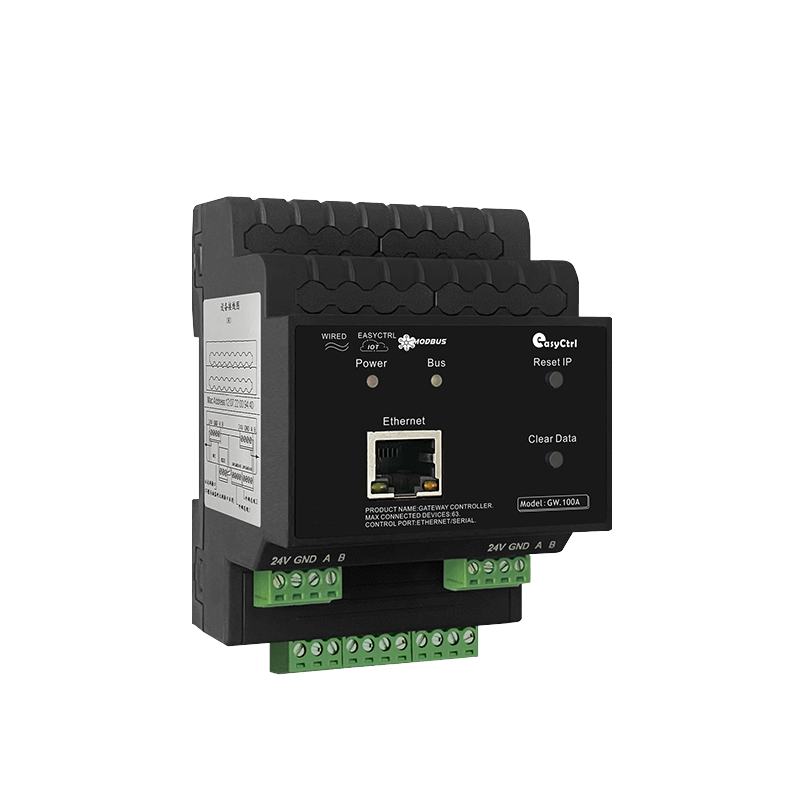

Smart Gateway Host
Model No:GW.100A
Smart Gateway Host , as the core control unit of the Easyctrl intelligent lighting control system, is typically installed in the distribution box near the central control room. It is primarily responsible for connecting the control unit and the execution unit, meeting various control needs through the host configuration software. Additionally, it provides external network and serial ports to interface with third-party systems, such as central control systems, SCADA software, third-party cloud platforms, Home Assistant etc. The system uses the self-developed YC-BUS protocol, which can automatically identify online devices and detect device faults, greatly facilitating both installation and future maintenance.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
YC-BUS protocol
Support integration with Home Assistant
Built-in LINUX OS
ARM 32bit MCU
Built-in clock
Scene control
Timed control
Latitude and longitude-based scheduling
Supports networking between gateways
Supports TCP/UDP control
Supports RS232 serial port control
Supports MODBUS-TCP control
Host project import and export
Online program refresh
Bus LED with disconnection fault alarm
Integration with SCADA software
Automatic detection of online devices
Product Specifications
Operating Voltage
24V DC±10%
Maximum Power Consumption
≤1.3W
Bus Interface
Bus interface*4
Ethernet Port
Ethernet port*2,when using, choose one of two
Slave Equipment
Supports networking of 63 YC-BUS slave devices
Control Panel
2 * running indicator lights，2 * function Keys
External Interface
1 * RS232 serial port
Enclosure Material
Flame retardantPP
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*102 mm*68 mm
Net Weight
≤194 g/pcs
Installation Method
Standard 35mm DIN rail mounting
Protection Leve
IP20
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
Home Assistant Control interface
Iot Gateway configuration software
The software interface for the underground garage intelligent lighting control system
The software interface for the classroom intelligent lighting control system
Gateway configuration software
Software interface based on Browser
System Architecture Diagram
Smart Gateway Host is the core product of the Easyctrl intelligent lighting control system.It adopts the YC-BUS protocol and is primarily responsible for connecting the control unit and the execution unit. It meets various control needs, while also providing external network and serial ports to interface with third-party systems, such as various central control systems, SCADA software, third-party cloud platforms, Home Assistant etc.
