Hainan Guest House Smart Lighting System Project

/upload/images/article/20250603/17489413517597662.png

Project information

Control Equipment

Dimmable Lights: Ceiling pendant lights and downlights.

Non-dimmable Lights: Hotel lighting fixtures.

Control Areas

The public exhibition areas of Hainan Guest House.

Control Requirements

1.Perform switch control on some of the hotel's lighting circuits;

2.Perform triac dimming control on some of the hotel's lighting circuits;

3.Enable zoned lighting control;

4.Enable timed control and scene control;

5.Centralized control via PC.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 4CH 5A leading edge triac dimming module, intelligent relay switch module, bus coupler, system power module and smart 8-key wall switch.

Control Methods

A bus-type intelligent lighting control system enables localized control via smart 8-key wall switch, alongside centralized management through a PC workstation.

Performance Outcome

The smart 8-key panel is employed for local area control, with each button’s scene settings adaptable to practical configurations based on the specific project requirements. Simultaneously, centralized management of the lighting system can be achieved in the central control room via PC-based interface software. The system effectively addresses personalized needs while delivering precise switch control and smooth triac dimming effects, thus providing clients with an enhanced smart hotel experience through tailored configurations.

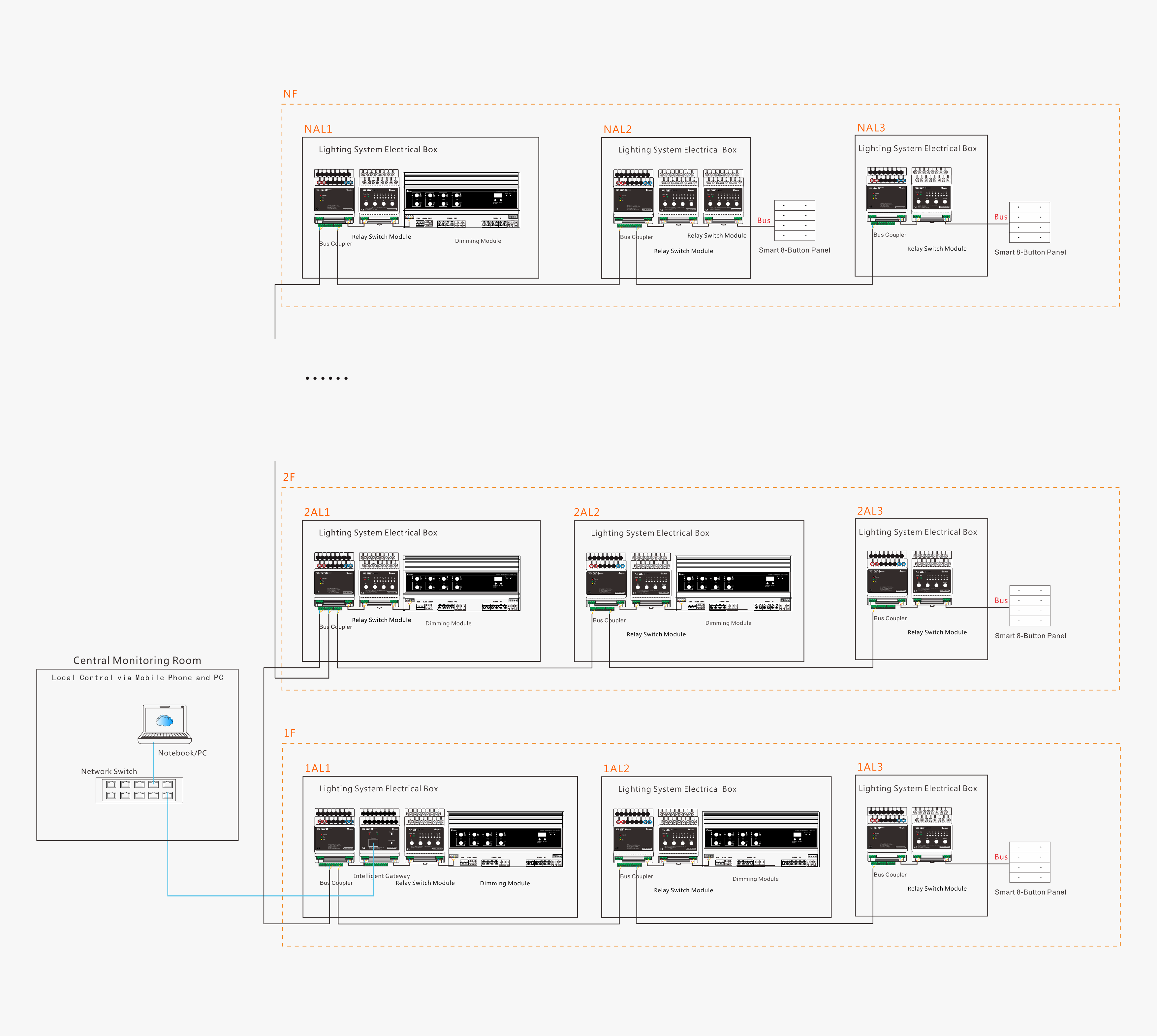

System Architecture Diagram

hainan hotel-system diagram.png
