Project case for Smart Lighting Control System

China Ceramics Museum Smart Lighting System Project
/upload/images/article/20250527/17483365229604325.jpg

Project information

Control Equipment

Dimmable Lights: ceiling light strips

Non-dimmable Lights: Ceiling downlights and spotlights

Control Areas

The public exhibition areas of Changsha Museum.

Control Requirements

1.Perform switch control on some of the museum's lighting circuits;

2.Perform 0-10V dimming control on some of the museum's lighting circuits;

3.Enable zoned lighting control;

4.Enable timed control and scene control;

5.Centralized control via PC and pad.

Control Solution
System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 0-10V smart dimming module, intelligent relay switch module, system power supply,bus coupler, and 7-inch smart touch screen.


Control Methods

A bus-type intelligent lighting control system enables localized control via 6-button smart switch panels and 7-inch smart touch screen (customizable interfaces), alongside centralized management through a PC workstation(customizable interfaces).

Performance Outcome

The system includes a gateway controller, smart switch modules, bus couplers, 6-button smart panels, and a 7-inch smart touch screen. It enables switch control, scheduled control, and scene-based control of lighting circuits. The system effectively reduces energy consumption, lowers labor costs, and enhances management efficiency for the museum.

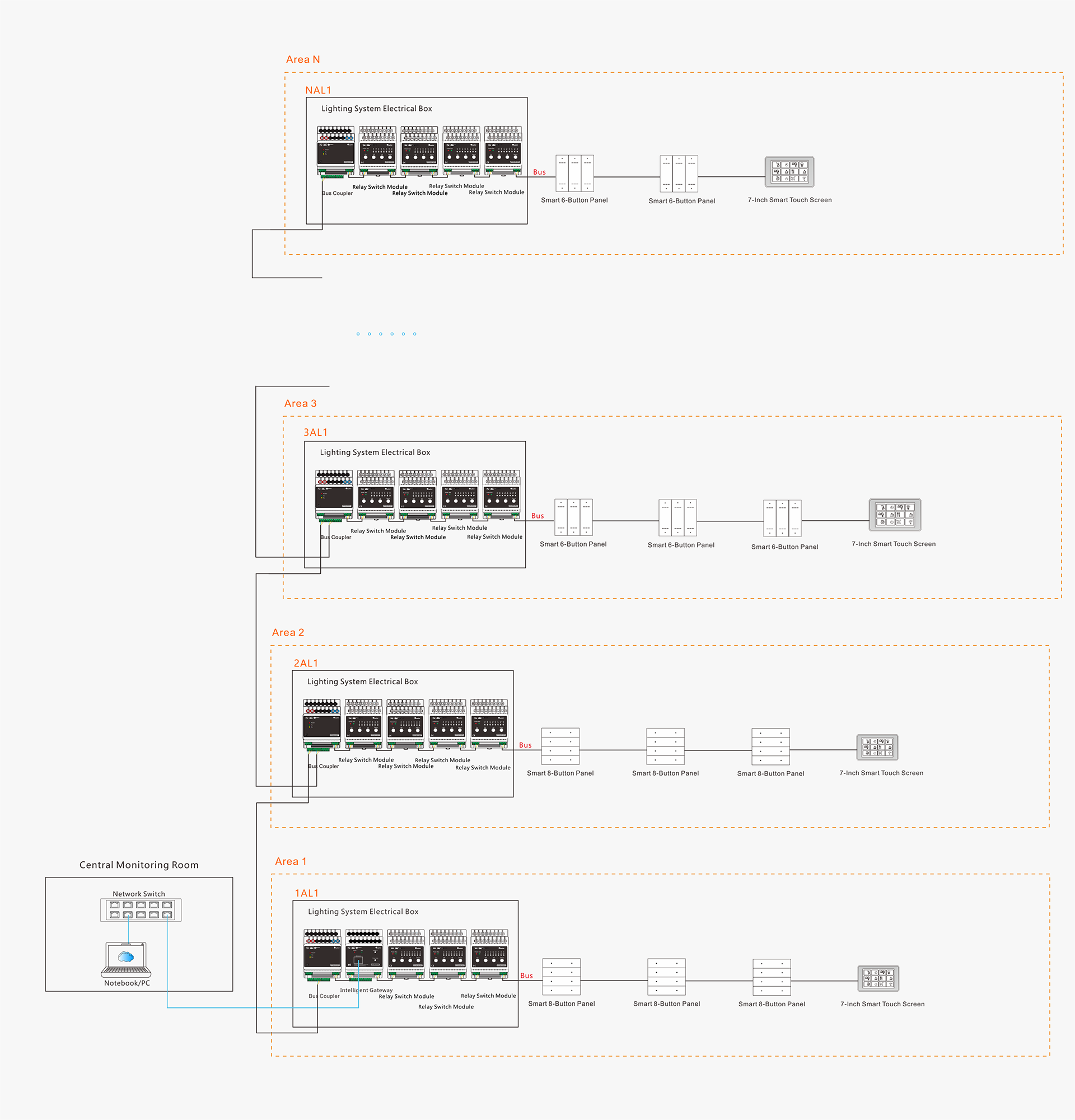

System Architecture Diagram

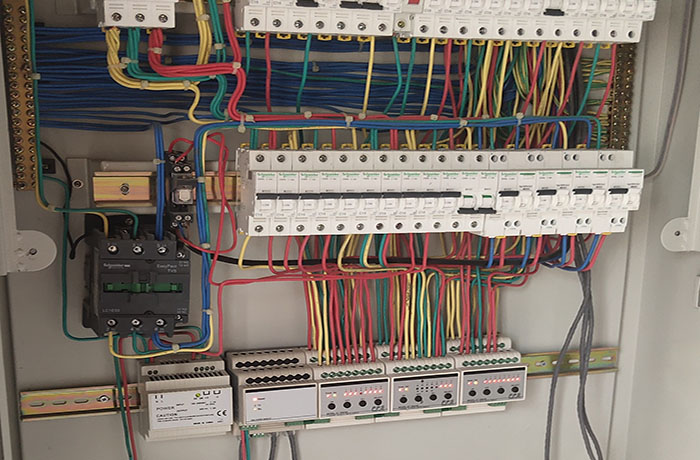

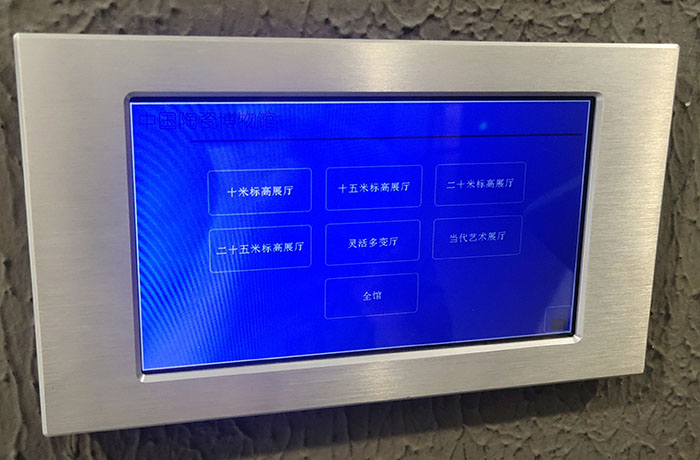

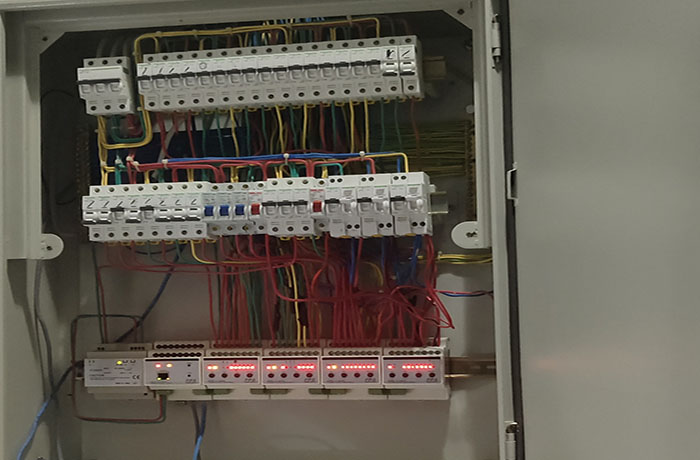

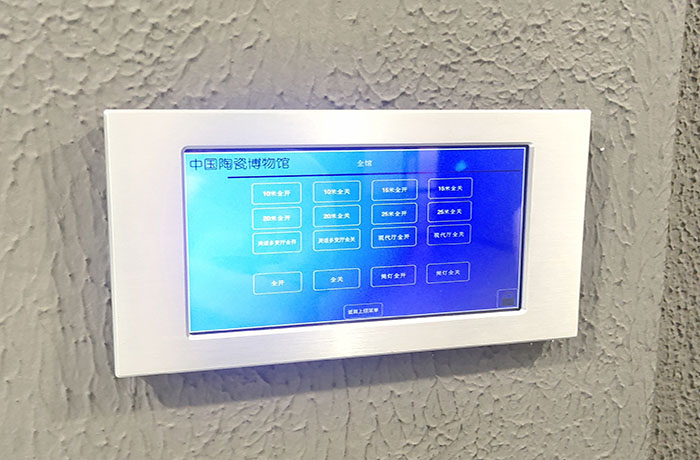

Project Site Photos
