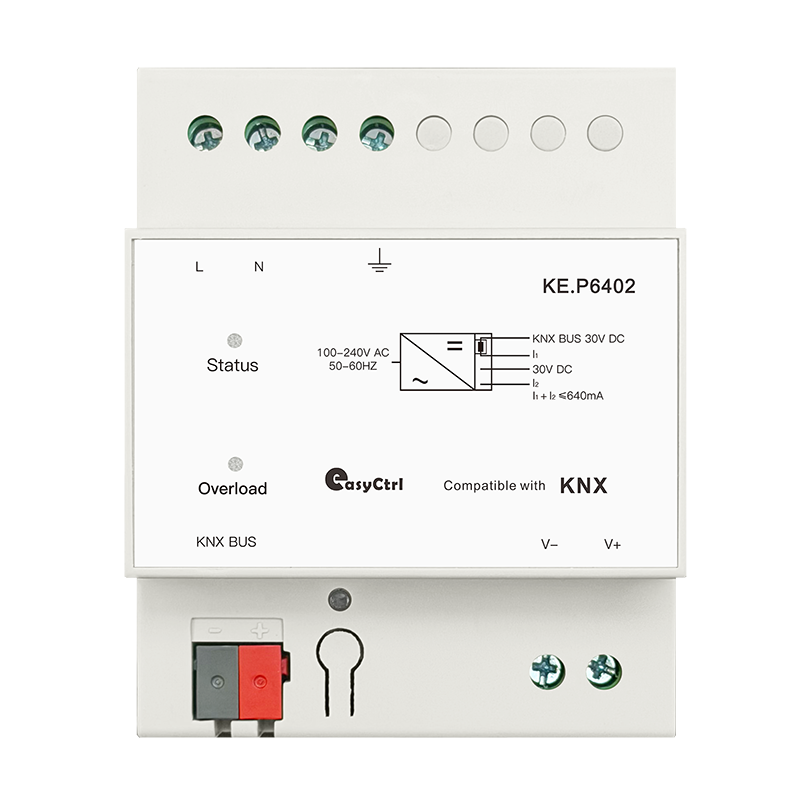

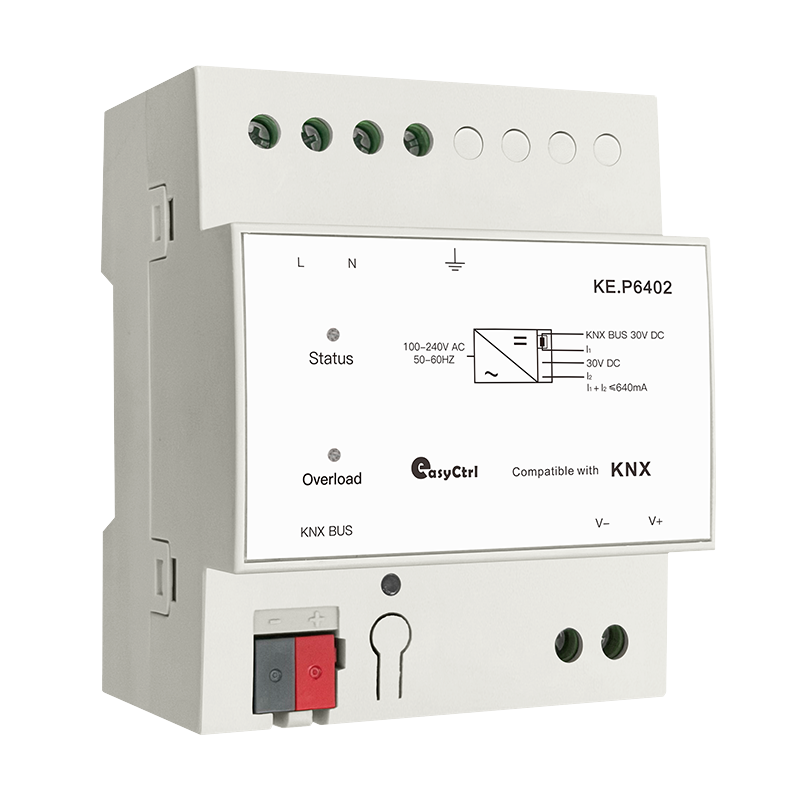

KNX Power Supply (640mA)
640mA/30VDC，KNX Bus Power Supply with 1 Channel Auxiliary Power Output
The device is installed in the distribution box and can be installed on the 35mm DIN rail of DIN EN 60715 standard.
Bus power supply is used to provide and monitor the voltage of the EIB /KNX system. The output has two terminals, including one KNX bus output for EIB bus power supply and signal transmission. One 30V DC auxiliary output and provides a power supply voltage of 30V DC, 640mA which can be sent to the terminal; the reactor has been integrated into the bus connection terminal; if a reactor is connected to the 30V DC auxiliary power supply terminal, it can also be used as a bus power supply terminal and also has a signal transmission function.
(1) Meet the power supply of KNX/ EIB bus equipment;
(2) With output short circuit, over current function;
(3) Load status indication;
(4) Reset function;
(5) Ripple is less than 100mV.
