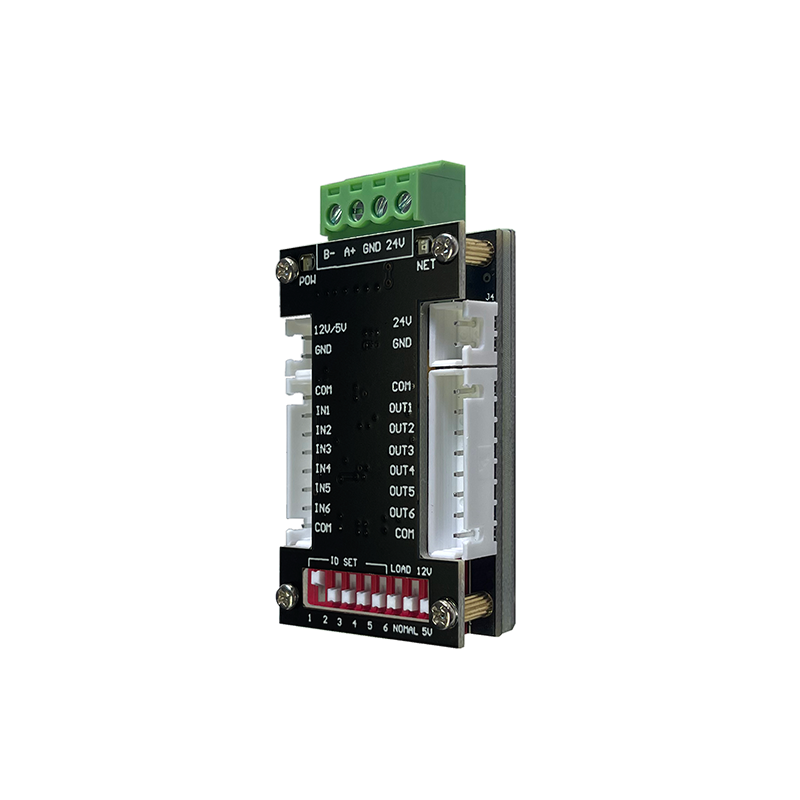

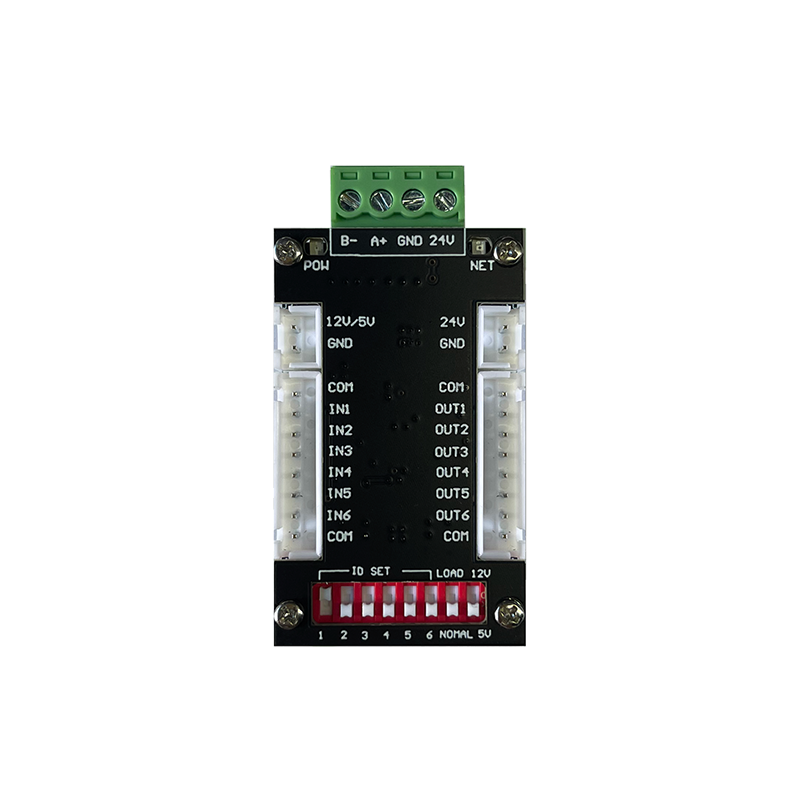

6 CH Dry Contact Module

Model No:MI.06A

6 CH Dry Contact Module serves as a system control unit, typically installed in the 86 bottom box. The product is small in size, can be hidden installation, provides 6 channels dry contact sensor input and 6 channels TTL level output, can be used with reset panel or self-locking panel, can access a variety of sensors input dry contact, such as human body sensing, radar sensing, light sensing module.


Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Provides 6 dry contact signal inputs
Provides 6 channels of TTL level output
Can connect to various types of LED switch panel
Can connect to various types of dry contact sensors
Built-in logic functions
Simple wiring
Scene control
Indicator light displays status
Status feedback
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Rated Power Consumption
≤0.5W
Bus Interface
bus interface*1
Dry Contact Input
6 dry contact inputs, contact 28V
LED Output
6 ordinary switch LED output control, 5V/12V can be set
Logical Function
1 way or logic and 1 way with logic input
Control Panel
2*running light
Protection
NONE
Operating Temperature
-5˚C~45˚C
Operating Relative humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
60mm*30mm*14mm
Net Weight
≤41 g/pcs
Enclosure Material
PCB board quality
Installation Method
hidden installation
Dimension
Compact size, ideal for concealed installation within 86-type junction boxes
Software Presentation
1616relaymodule1280
classroom
configuration software1280720
controlinterface1280
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
