Project case for Smart Lighting Control System

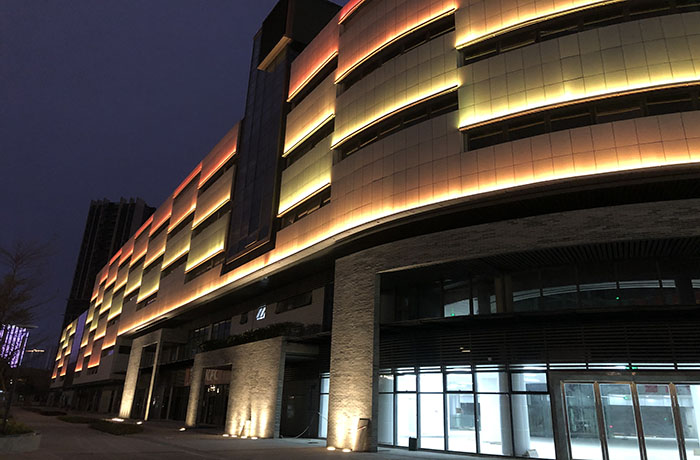

Wande Plaza Smart Lighting System Project
/upload/images/article/20250605/17491110657897210.jpg

Project information

Control Equipment

Non-dimmable Lights: Facade lighting fixtures

Control Areas

The exterior lighting area of Wande Plaza

Control Requirements

1.Perform switch control on the plaza's exterior lighting circuits;

2.Enable zoned lighting control;

3.Enable timed control and scene control;

4.Centralized control via PC and pad.

Control Solution
System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway,  intelligent relay switch module, system power supply,bus coupler, and 6-button smart switch panel.


Control Methods

A bus-type intelligent lighting control system enables localized control via 6-button smart switch panels ,alongside centralized management through a PC workstation(customizable interfaces).

Performance Outcome

The system includes a gateway controller, smart switch modules, bus couplers, 6-button smart panels. It enables switch control, scheduled control, and scene-based control of lighting circuits. The system effectively reduces energy consumption, lowers labor costs, and enhances management efficiency for the plaza.

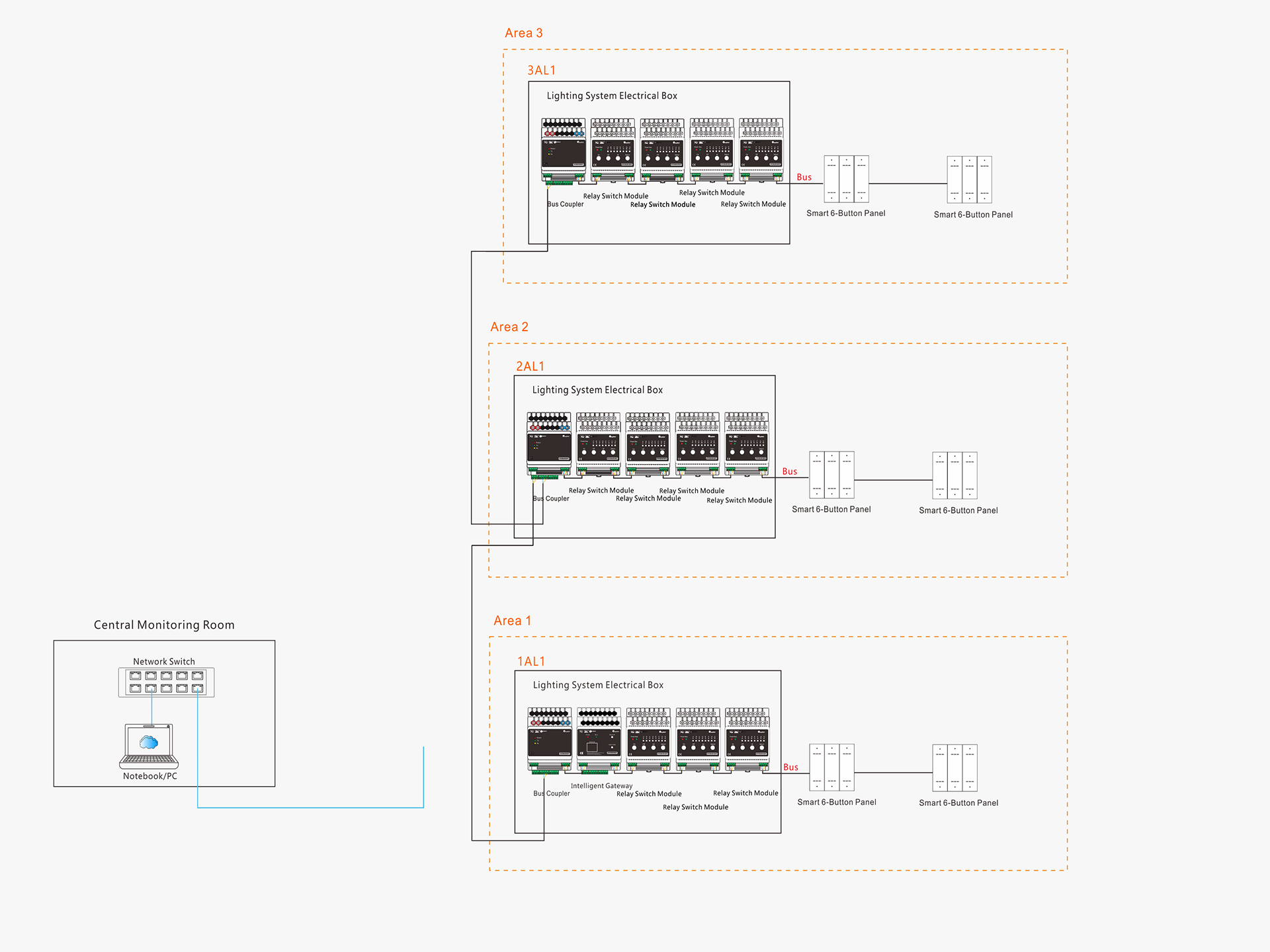

System Architecture Diagram

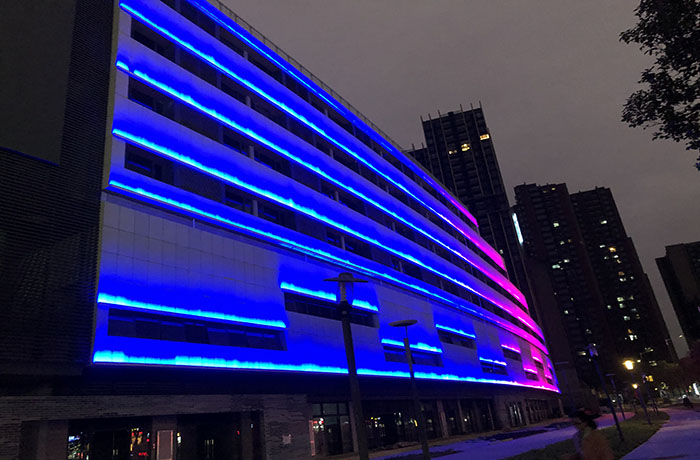

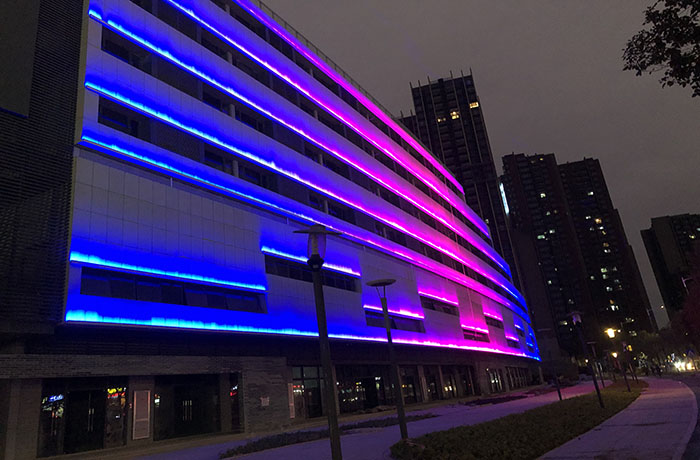

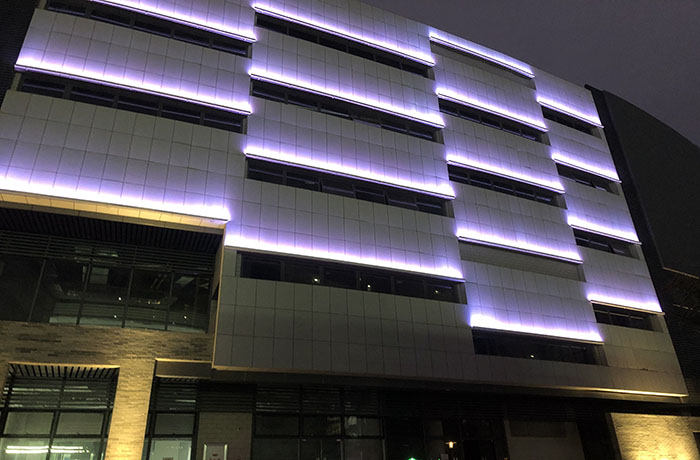

Project Site Photos
