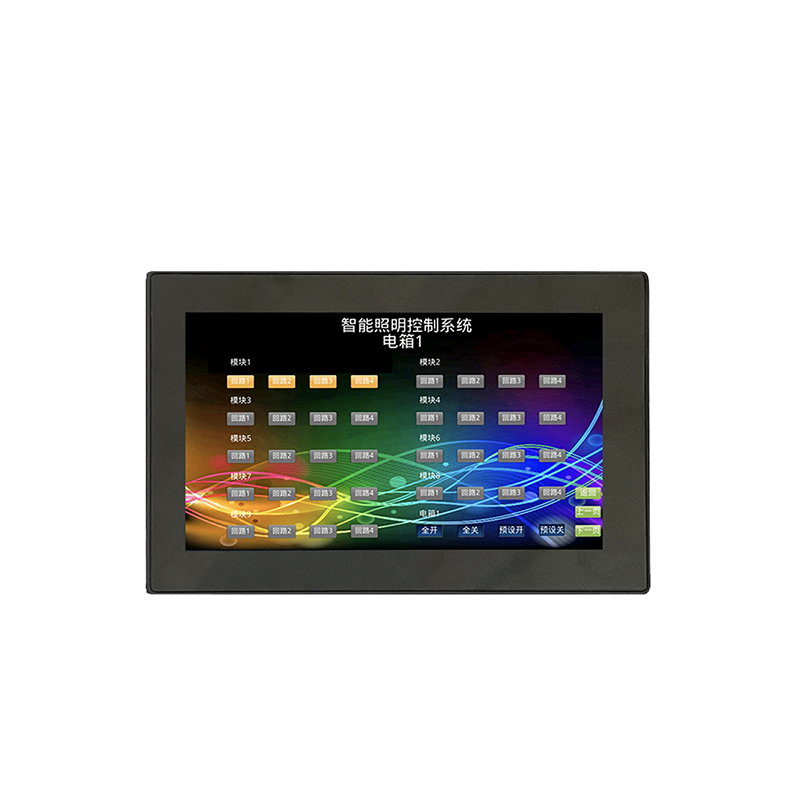

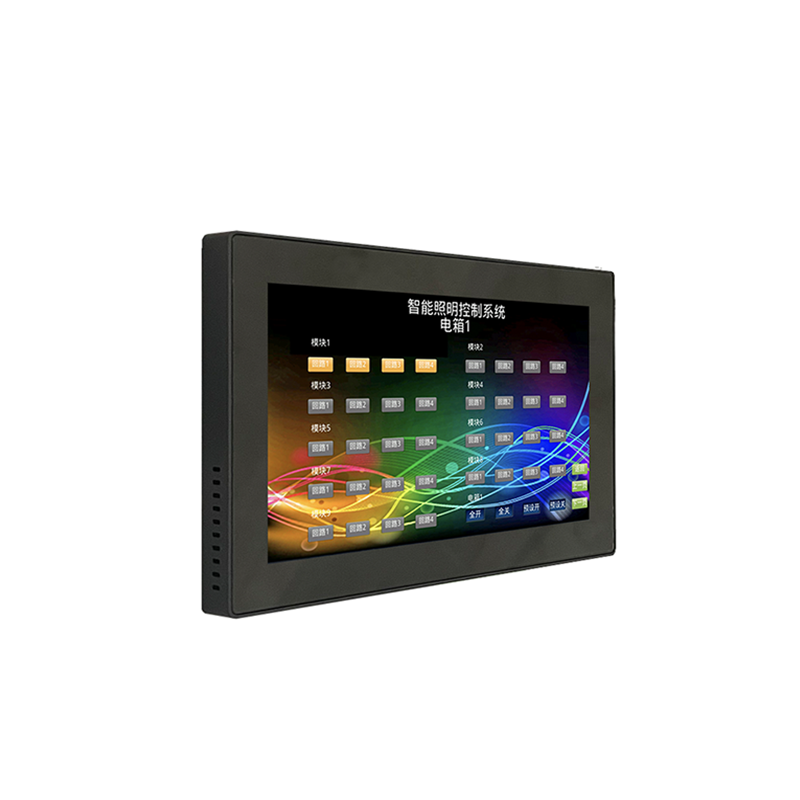

7 Inch Smart Touch Screen

Model No:TP.70A

7 Inch Smart Touch Screen, serves as a system control unit , typically installed in the local, to achieve light switching, dimming, curtain opening and closing, single control or scene control of music and other equipment, data display, temperature, humidity, illumination, PM2.5, etc.

Contact Us
Wiring Diagram
Features
Application scenarios
Product tutorial
Product Features
86-type back box installation
Supports 255 programmable keys
High-definition resolution
Supports bidirectional communication
32bit MCU，powerful functionality
Multi-angle rotation installation
Operation interface customization editing
Touch screen control
Timed control
Scene control
Simple wiring
Online program update
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤3.12W
Static Power Consumption
≤1.73W
Touch Control Mode
single point, sliding touch
Number Of Touches
the theory of infinite times and touch life is related to the working environment, dust and humidity
Resolution
1024*600
Touch Type
capacitive touch screen
Display Type
TFT LCD screen
Operating Temperature
-5℃~45℃
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93℃
Dimensions（L*W*H）
184mm*118mm*15mm(maximum height:36mm)
Net Weight
≤391g/pcs
Installation Method
standard 86 bottom box mounting
Opening Size (L * W)
60mm*60mm，Bottom box depth is greater than 40mm
Dimension

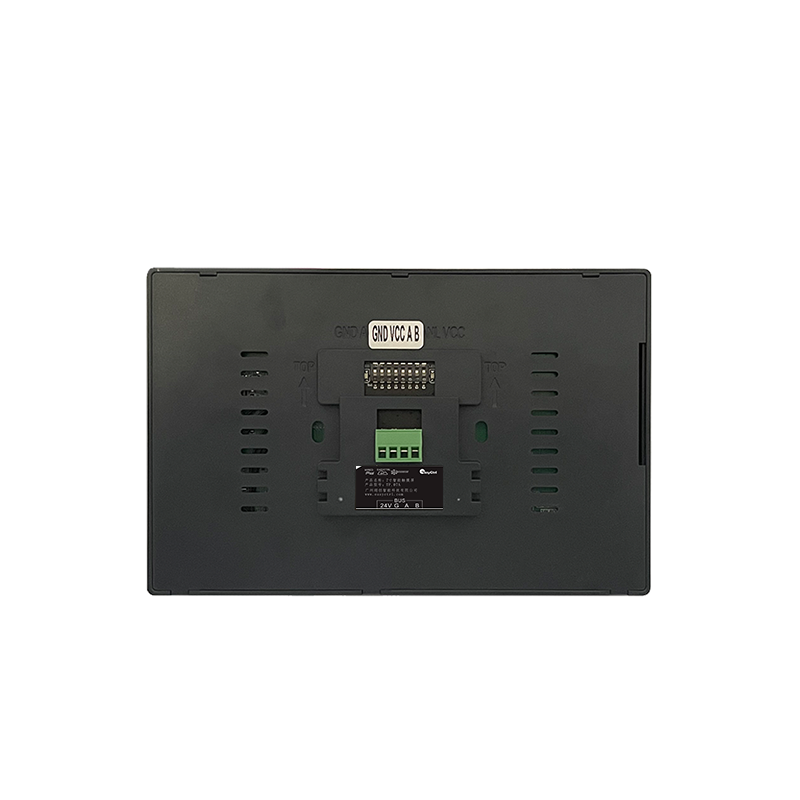

The touch screen adopts a standard 86-type back box for installation

Software Presentation
dalicdimmermodule1280
7inchtouchpanel1280
configuration software1280720
classroom
controlinterface1280
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
