Guangzhou Intangible Cultural Heritage Museum Smart Lighting System Project

/upload/images/article/20250530/17485847252359003.jpg

Project information

Control Equipment

1.Non-dimmable Lights: Ceiling downlights and spotlights;

2.Power supply for equipment: All - in - one computers in the exhibition area and 98 - inch televisions.

Control Areas

The public areas of the Guangzhou Intangible Cultural Heritage Museum.

Control Requirements

1.The museum utilizes intelligent switch modules to turn on or off the lighting circuits and connected load devices;

2.Enable zoned lighting control;

3.Enable timed control and scene control;

4.Centralized control via PC and pad.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, and Bus Coupler.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation and a pad (customizable interfaces).

Performance Outcome

The museum's switching circuits achieve intelligent operation with reliability and efficiency in individual circuit control, scene programming, and scheduling. The centralized control interface ensures operational simplicity and significantly enhanced management efficiency.

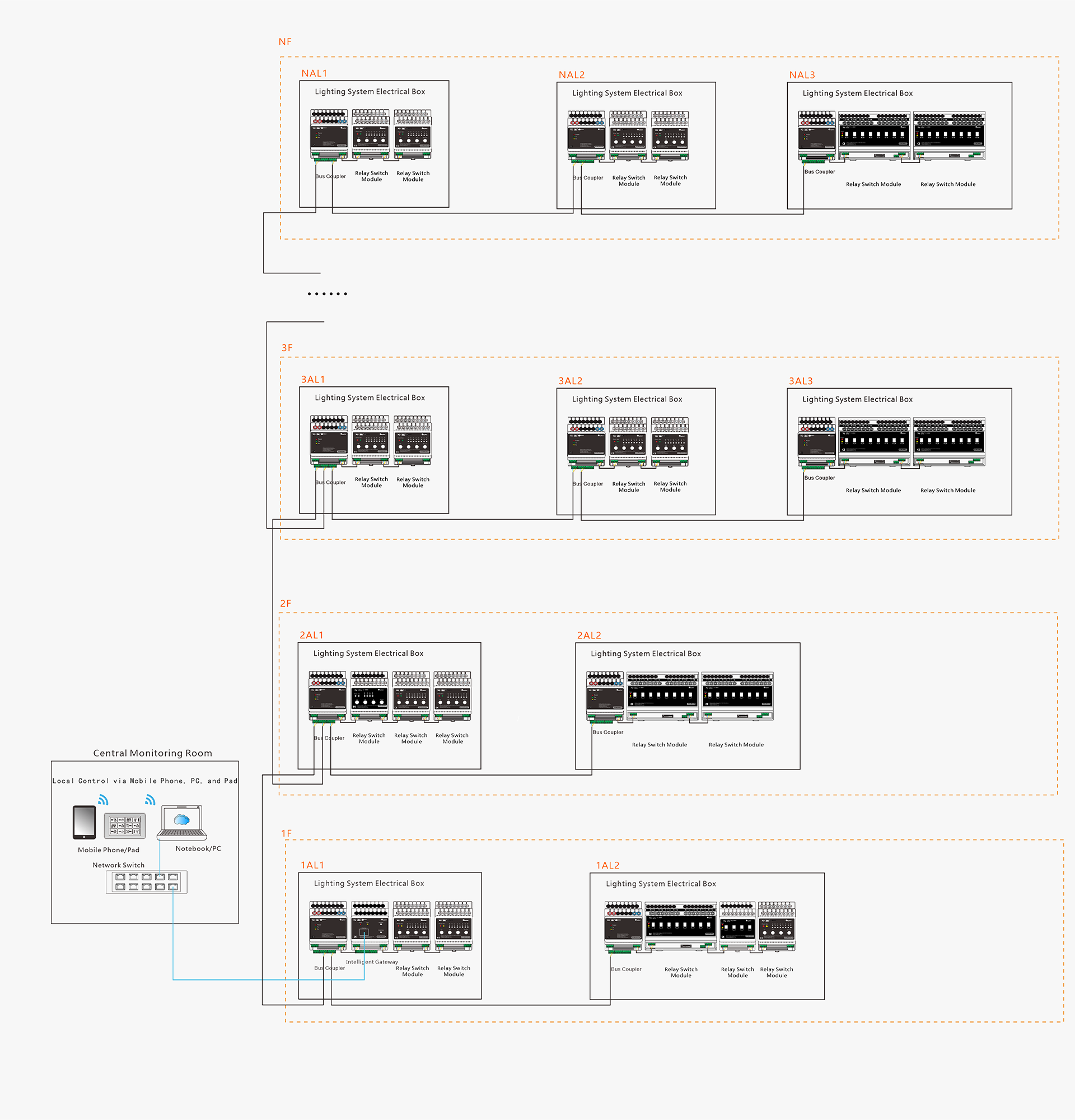

System Architecture Diagram
