4 CH 0-10V Dimming Module
Model No:DR.04.16A

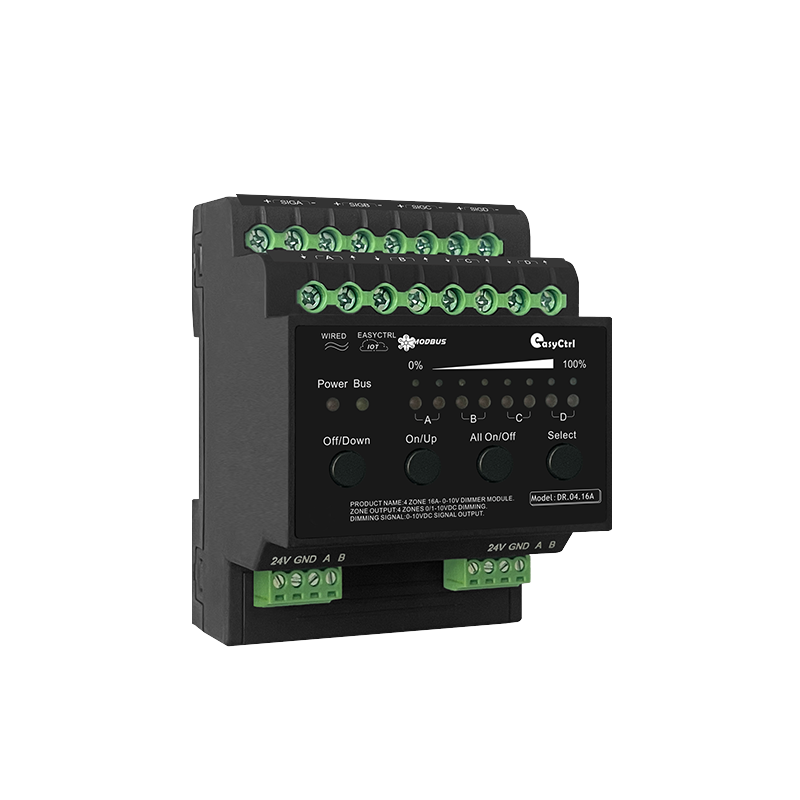

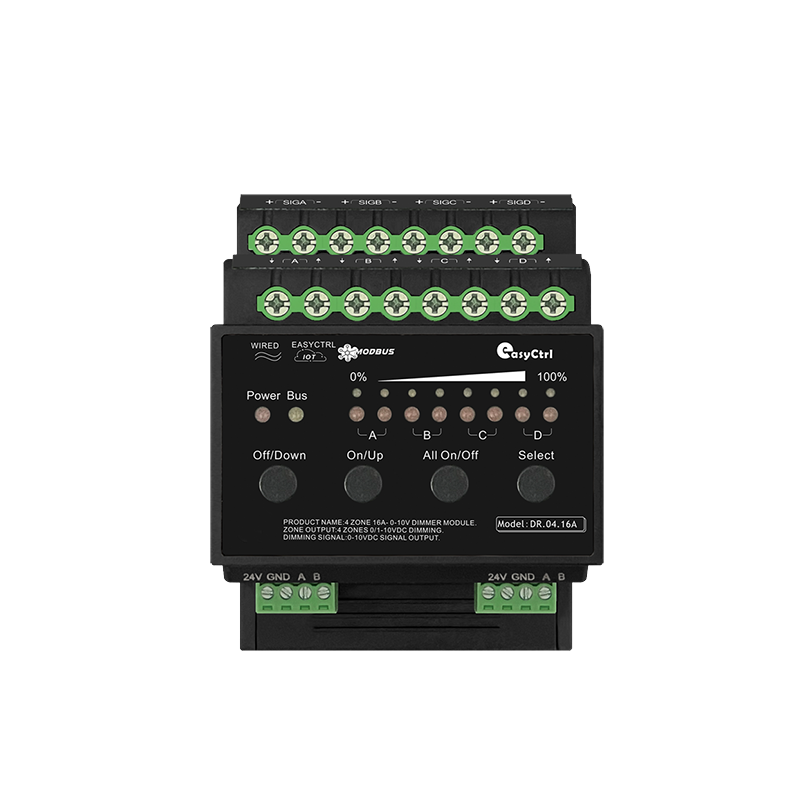

4 CH 0-10V Dimming Module, serves as a system dimming execution unit, typically installed in a distribution box, using DIN rail mounting. It occupies 4P module units. It provides 4 channels of fluorescent lamp dimming, compatible with 0/1-10V dimmable electronic ballasts for LED lights, enabling brightness adjustment and switch control of the lighting.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
4-channel 16A relay switching
Circuit initial state setting
Remote control
Local control
Manual control
Scene control
Overcurrent protection
Short-circuit protection
Simple wiring
Fire-resistant material
Status feedback
Fire alarm linkage
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Dynamic Power Consumption
≤2.5W
Rated Current
250/400VAC
Output Circuit
0-10V output, maximum current 40mA (per channel)
Relay
4 relay outputs, 16A/3520W (per channel)
Switching Cycles
no-load: 5,000,000 cycles， load: 3,000,000 cycles
Bus Interface
bus interface*2
Protection
circuit breaker for each circuit
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*102 mm*72mm
Net Weight
≤316 g/pcs
Enclosure Material
flame retardantPP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension

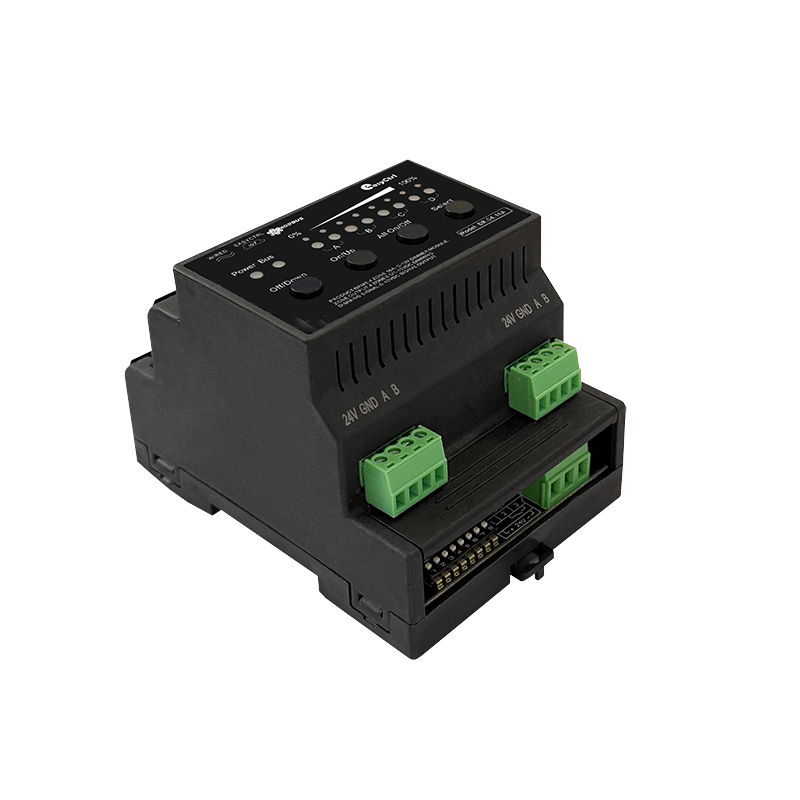

The module uses a compact 4P DIN rail mounting structure
Software Presentation
0-10VDIMMERMODULE1280
configuration software1280720
configuration software
classroom
controlinterface1280
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
