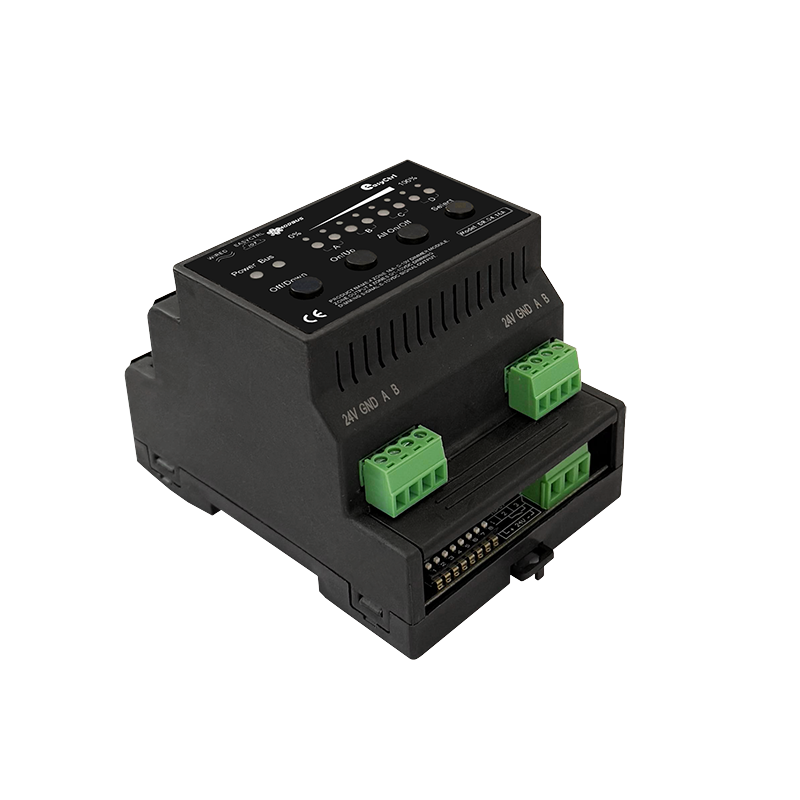

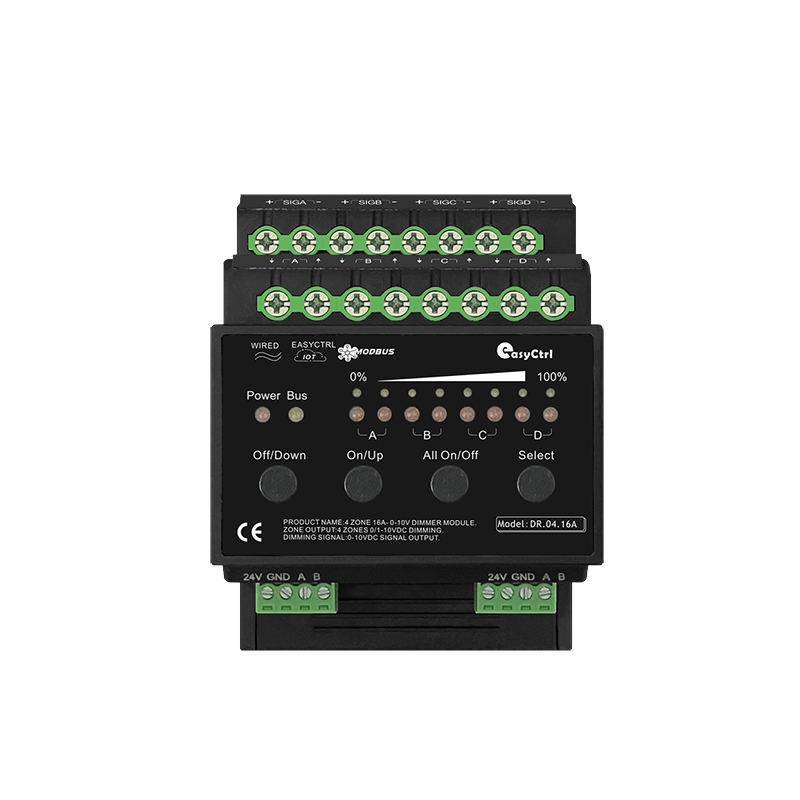

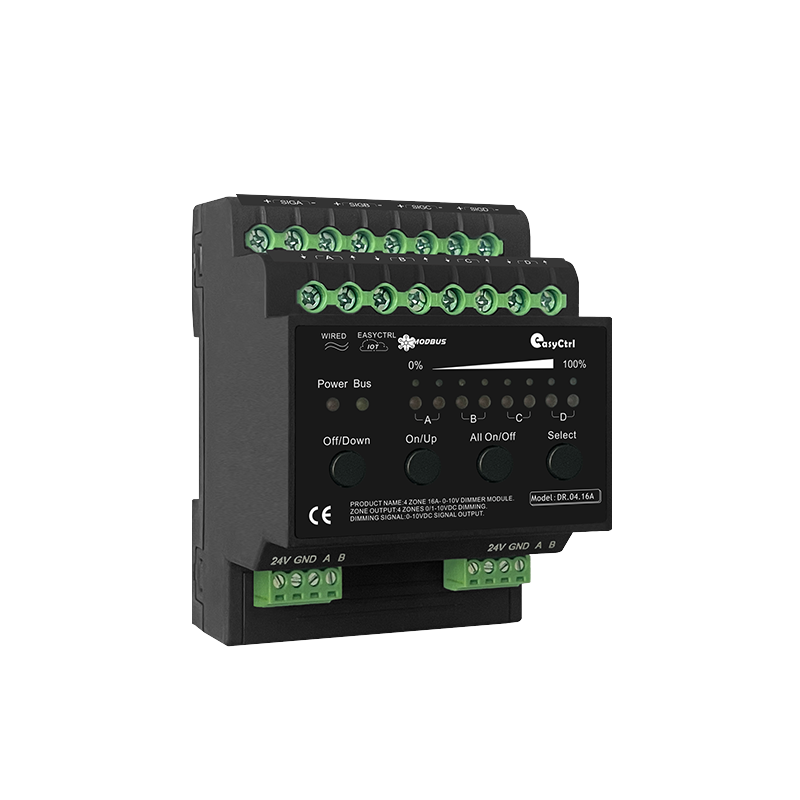

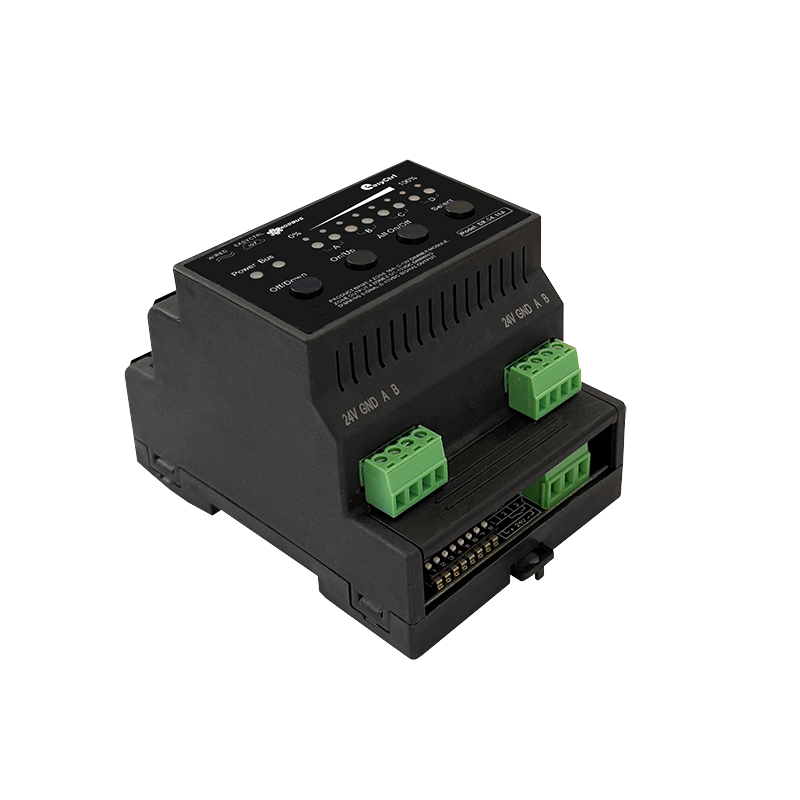

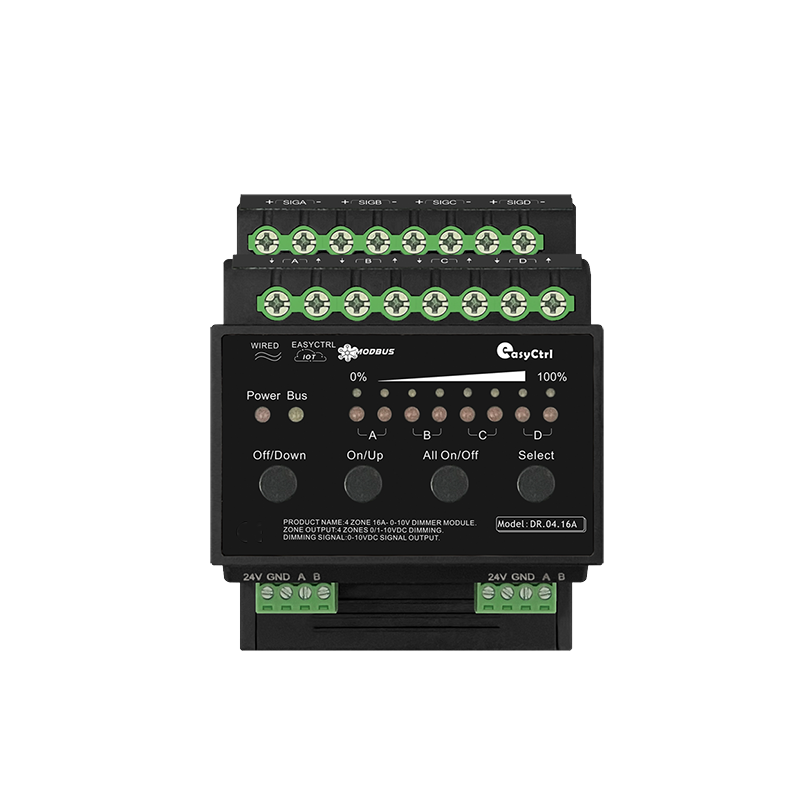

4 CH 0-10V Dimming Module (485)
Model No:DR.04.16A.485
4 CH 0-10V Dimming Module, serves as a system dimming execution unit, typically installed in a distribution box, using DIN rail mounting. It occupies 4P module units. It provides 4 channels of fluorescent lamp dimming, compatible with 0/1-10V dimmable electronic ballasts for LED lights, enabling brightness adjustment and switch control of the lighting.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
4-channel 16A relay switching
Circuit initial state setting
Remote control
Local control
Manual control
Scene control
Overcurrent protection
Short-circuit protection
Simple wiring
Fire-resistant material
Status feedback
Fire alarm linkage
RS485 protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Dynamic Power Consumption
≤2.5W
Rated Current
250/400VAC
Output Circuit
0-10V output, maximum current 40mA (per channel)
Relay
4 relay outputs, 16A/3520W (per channel)
Switching Cycles
no-load: 5,000,000 cycles， load: 3,000,000 cycles
Bus Interface
bus interface*2
Protection
circuit breaker for each circuit
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20℃~60℃
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*102 mm*72mm
Net Weight
≤316 g/pcs
Enclosure Material
flame retardantPP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Product Structure Description
Can be connected to third-party central hosts to enable local switching or dimmer control.
