Shixuan International Hotel Smart Lighting System Project

/upload/images/article/20250701/17513361226930861.png

Project information

Control Equipment

Dimmable Lights: Ceiling light strips

Non-dimmable Lights: Ceiling downlights and spotlights

Control Areas

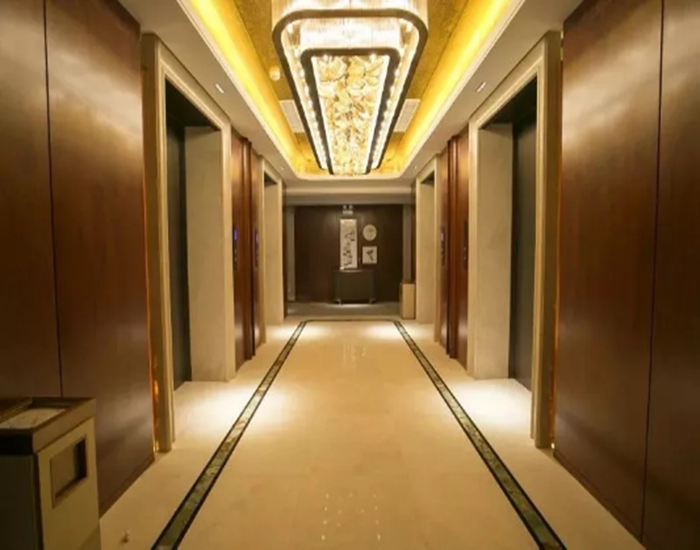

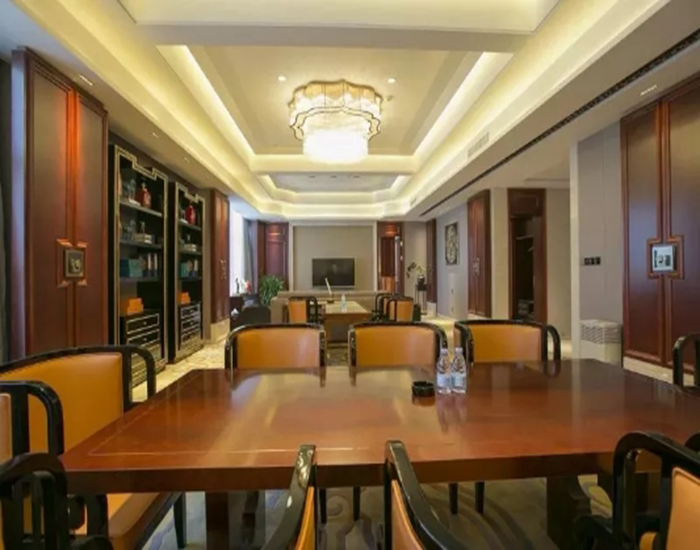

The public exhibition areas of Shixuan International Hotel.

Control Requirements

1.Perform switch control on some of the hotel's lighting circuits;

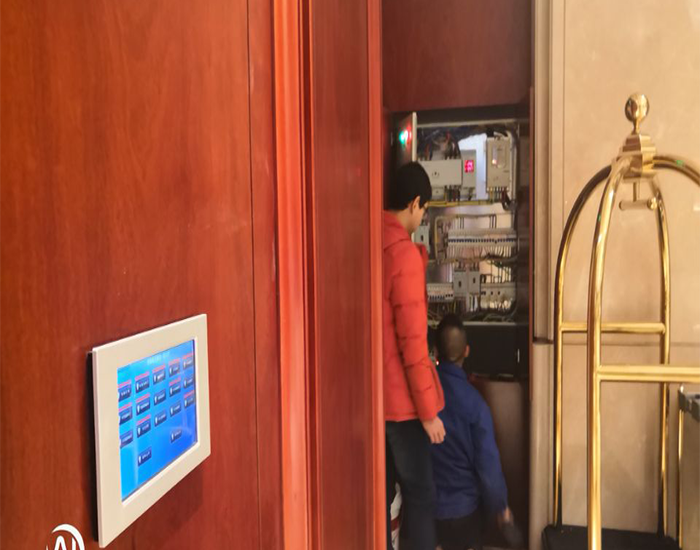

2.Each area is equipped with several smart 8-key wall switchs and 7-inch smart touch screens for both individual circuit control and sence-based ligting control;

3.Enable zoned lighting control;

4.Enable timed control and scene control;

5.Centralized control via smart touch screen.

Control Solution

System products

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, bus coupler, 7 inch touch screen, Android pad andsmart 8-key wall switch.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through touch screens (customizable interfaces).

Performance Outcome

The smart 8-key panel is employed for local area control, with each button’s scene settings adaptable to practical configurations based on the specific project requirements.The interface of the central control app and touch screen can be customized according to client requirements. The system effectively addresses personalized needs while delivering precise switch control and smooth scene control, thus providing clients with an enhanced smart hotel experience through tailored configurations.

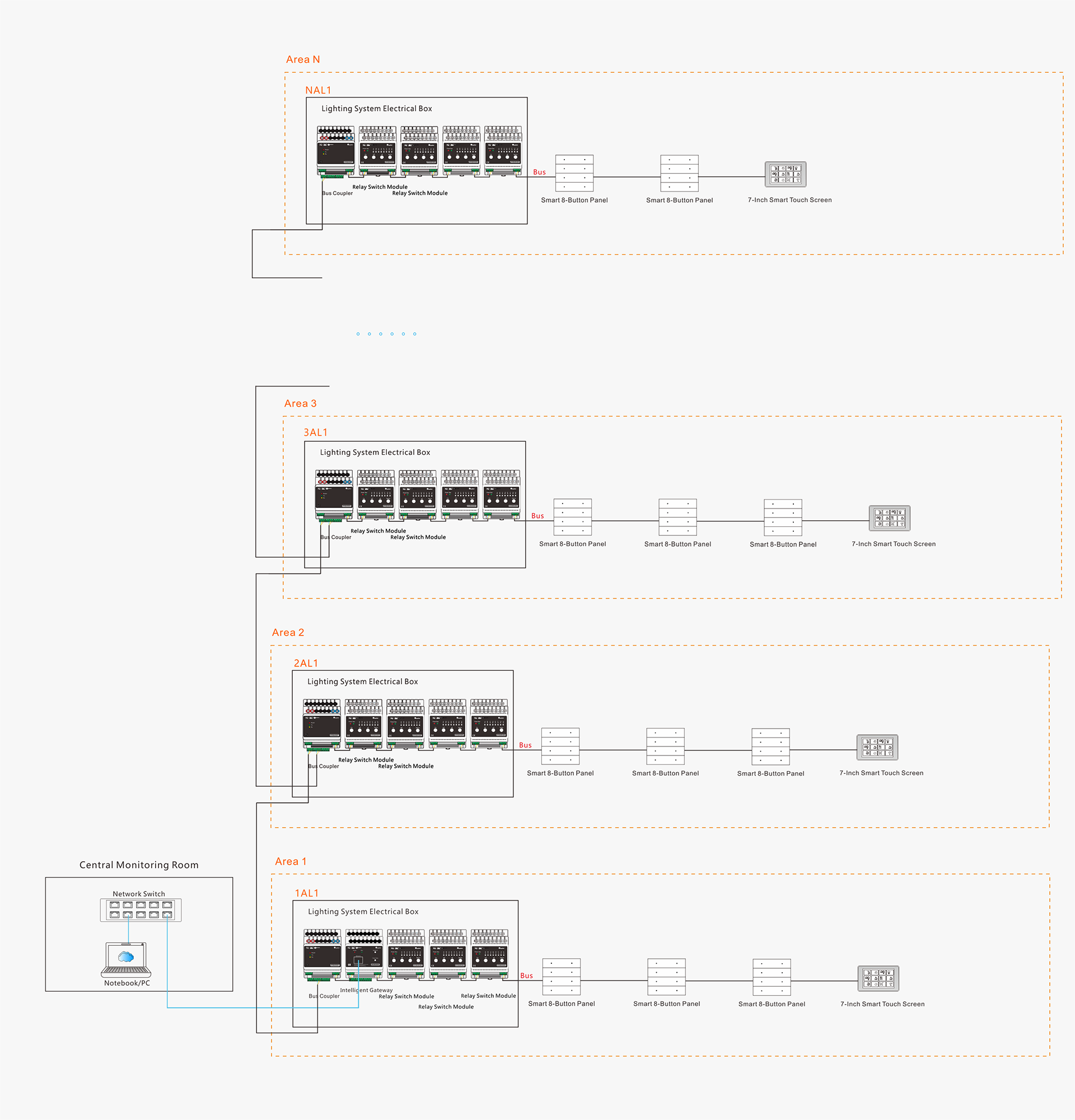

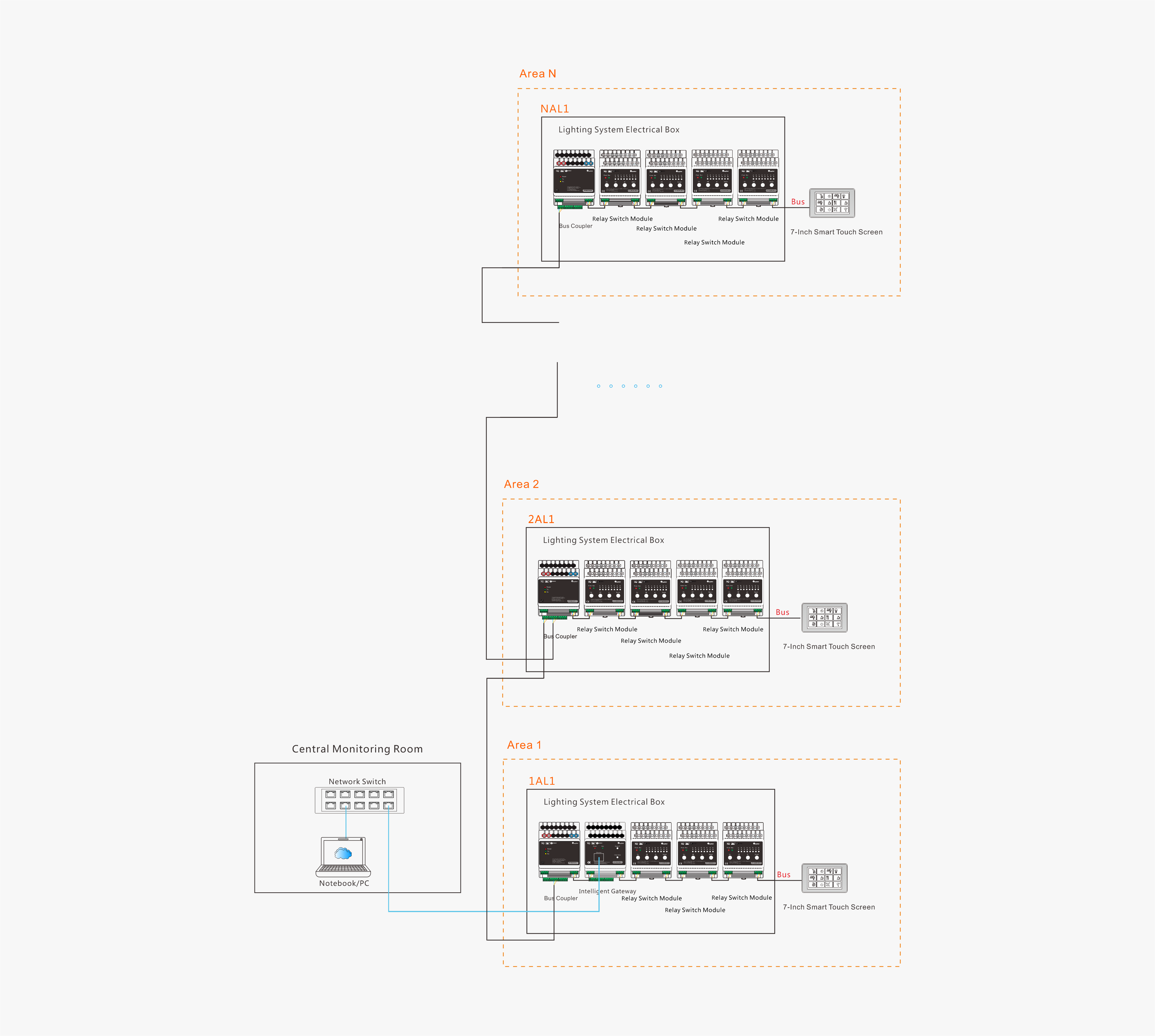

System Architecture Diagram

shixuan hotel-system picture.png
