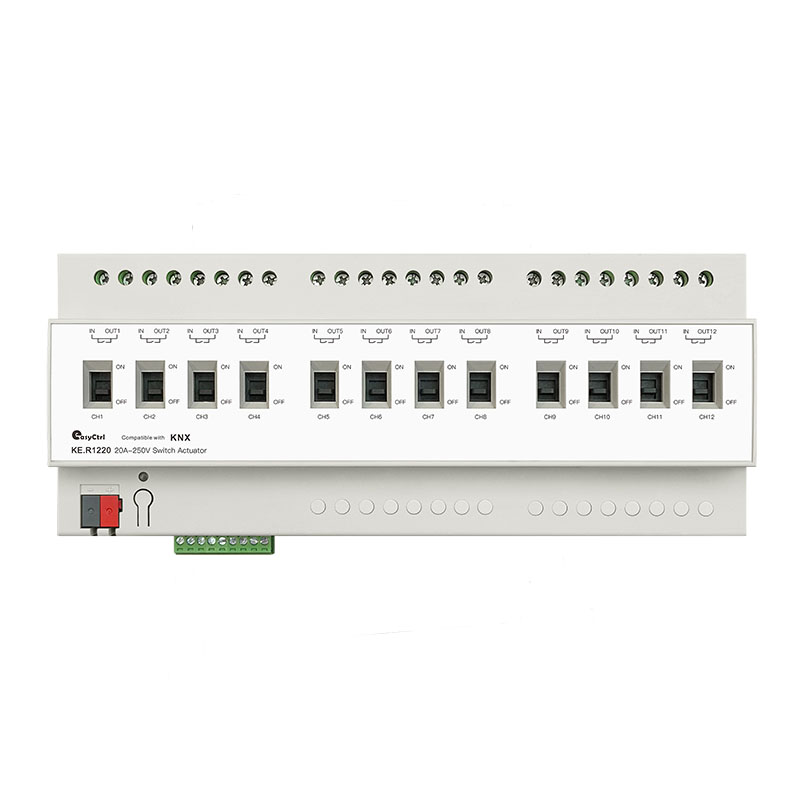

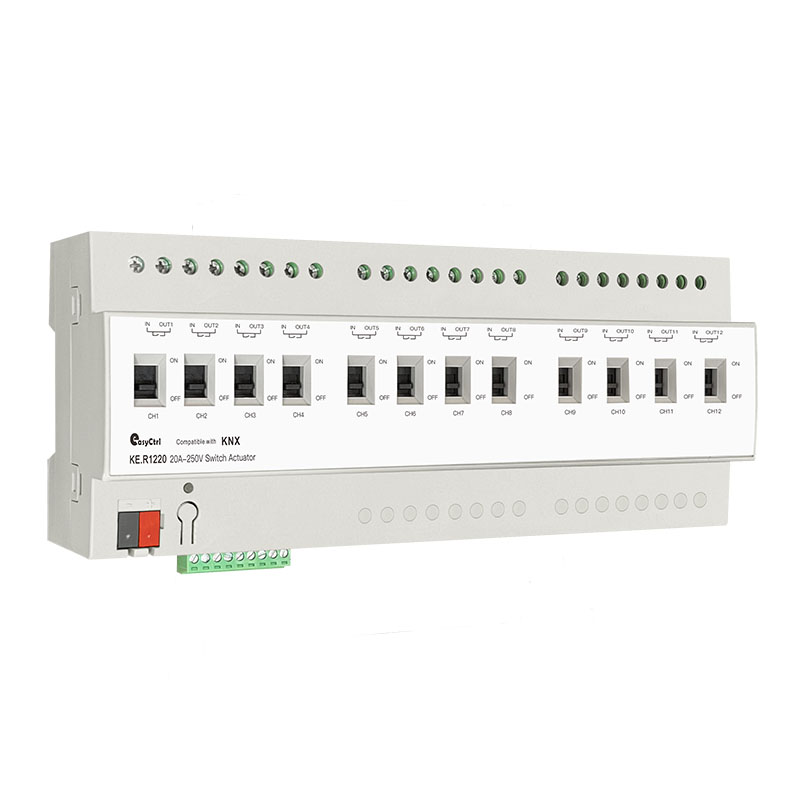

KNX 12CH 20A Switch Actuator
KNX 12 CH 20A Switch Actuator Module, Lighting Switch & Scene Control,with 4 fold I/O, with the function of recording number of relay operations, KNX bus
The device is installed in the distribution box and can be installed on the 35mm DIN rail of DIN EN 60715 standard.
(1) Independent control 12CH;
(2) With manual forced cut dial;
(3) With relay magnetic hold function;
(4) Value sending, which can send 1bit/1byte value;
(5) Timing off and cycle switch;
(6) With status value query and reply function;
(7) With scene combination control and scene learning function;
(8) With logical operation function;
(9) With interlock group function and channel lock function;
(10) With the function of recording number of relay operations;
(11) With the function of real-time detection of relay status by manual
forced switch dial;
(12) With the function of selecting the relay switch status after bus power
failure and voltage recovery;
(13) 4 fold I/O, connect with keypad, curtain, dimming, scene ets control
commend, can directly link fire emergency lighting;
(14) 1/O less than 10m.
