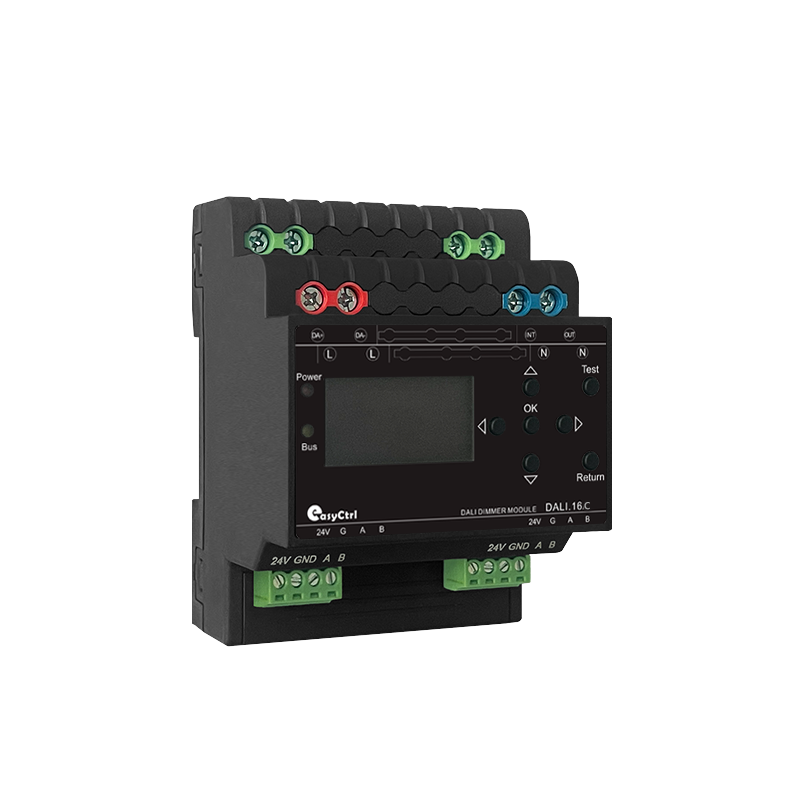

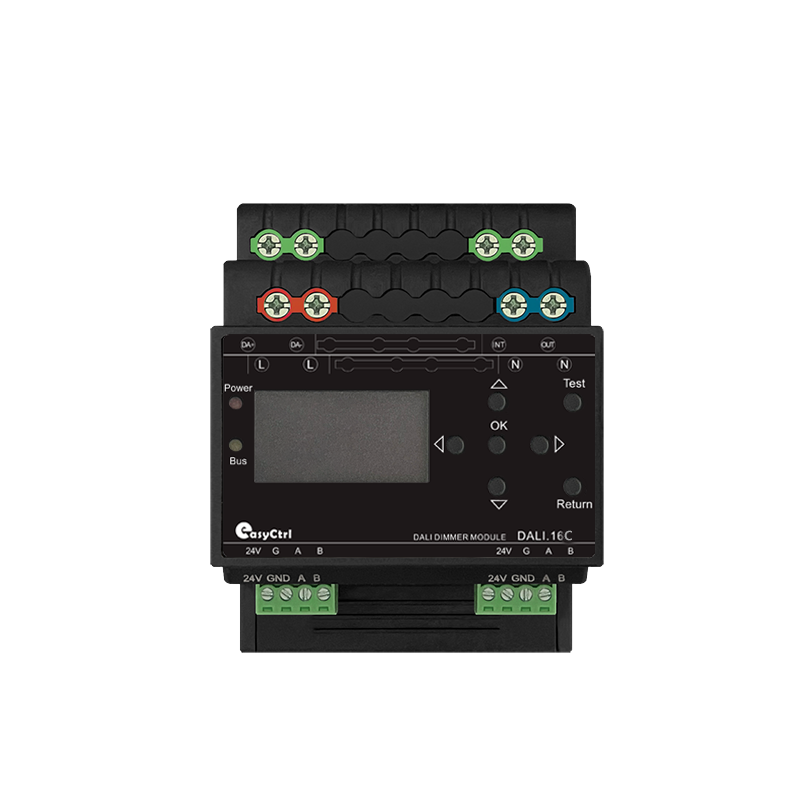

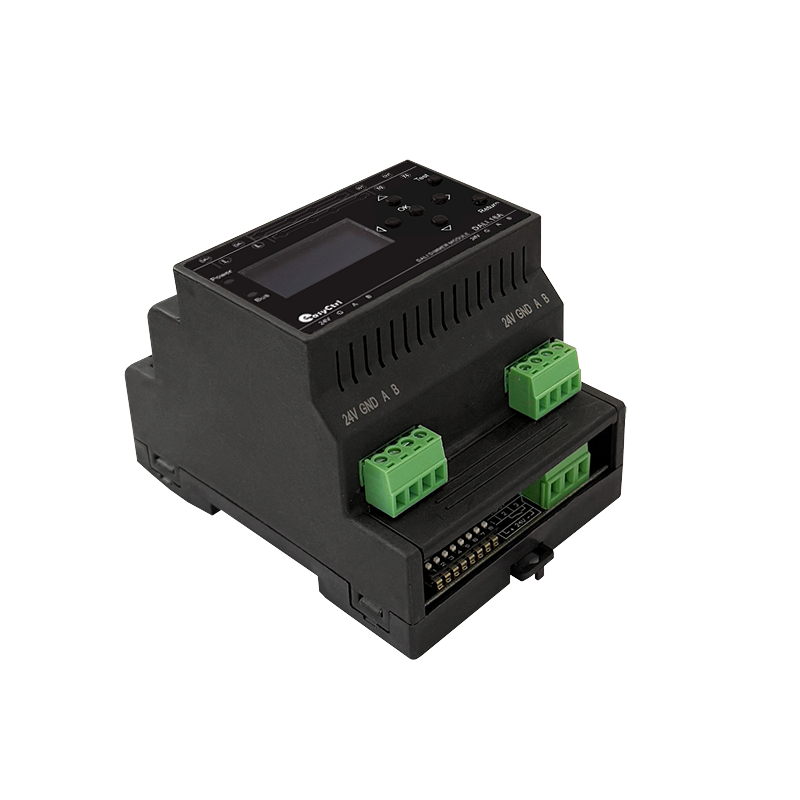

DALI Dimming Module (DALI.16C)
Model No:DALI.16C
DALI Dimming Module serve as a system dimmer execution unit, typically installed in a distribution box. It supports the conversion between ETRON-NET protocol and DALI protocol, and is compatible with both DT6 and DT8 driver protocols. The module supports single-color and dual-color DALI drivers. It comes with a built-in DALI power supply and features a single DALI bus, which can extend up to 300 meters. The module supports up to 64 DALI driver devices, divided into 64 groups, 16 scenes, and 16 zones. It is equipped with an OLED display for convenient engineering configuration.
Contact Us
Wiring Diagram
Product Features
Rail-mounted installation
Built-in DALI power supply
A single DALI bus
Supports 64 DALI addresses in 64 groups, 16 scenes, and 16 zones
Groups 1-16 are DALI protocol groups，groups 17-64 are auxiliary groups
Circuit initial state setting
30mm X 18mm LCD display
Manual control button enables circuit switch operation during network failure.
Local control
Status feedback
Fire alarm linkage
Online program update
YC-BUS protocol
RS485 protocol
Product Specifications
Operating Voltage
DC 24V ±10%
Maximum Power Consumption
≤0.6W
Communication Interface
2XEtron-Net
Output Interface
1-channel DALI bus output
Secondary Interface
1 CH 16A relay output (for special drive processing)
Display Mode
OLED display screen
Switching Cycles
no-load：5,000,000 cycles， load：3,000,000 cycles
Protection
circuit breaker for each circuit
Operating Temperature
0˚C~45˚C
Operating Relative Humidity
20%～93% RH
Storage Temperature
-40℃~50℃
Storage Relative Humidity
10%～93% RH
Dimensions（L*W*H）
72 mm*102 mm*72 mm
Weight
≤261 g/pcs
Enclosure Material
flame retardantPP
Installation Method Current of Relay
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
dalidimmermodule1280
dalicdimmermodule1280
classroom
configuration software1280720
HA
hotel
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
Application Scenarios
Shixuan International Hotel
