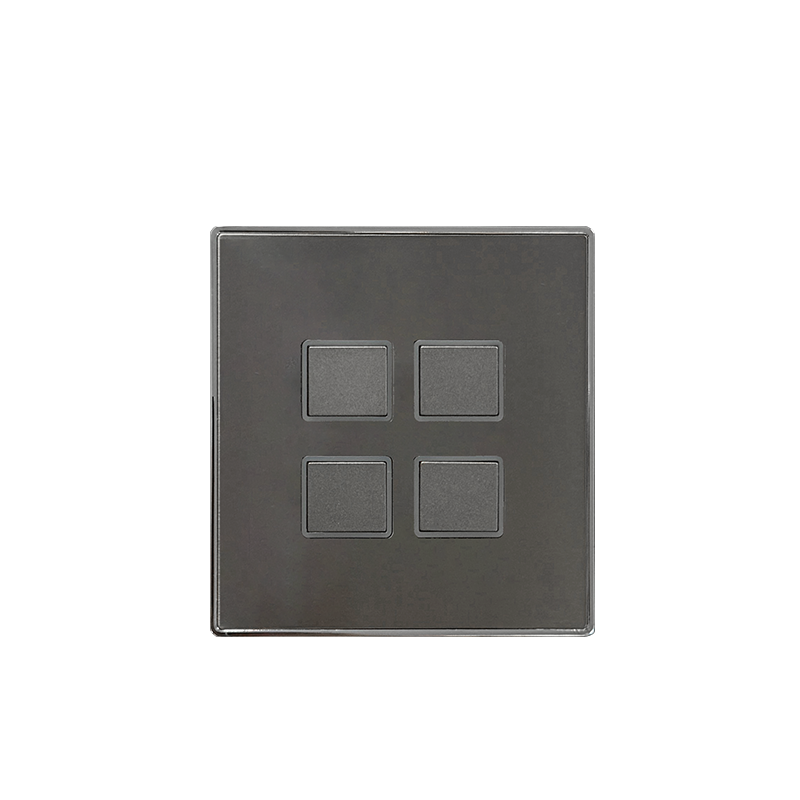

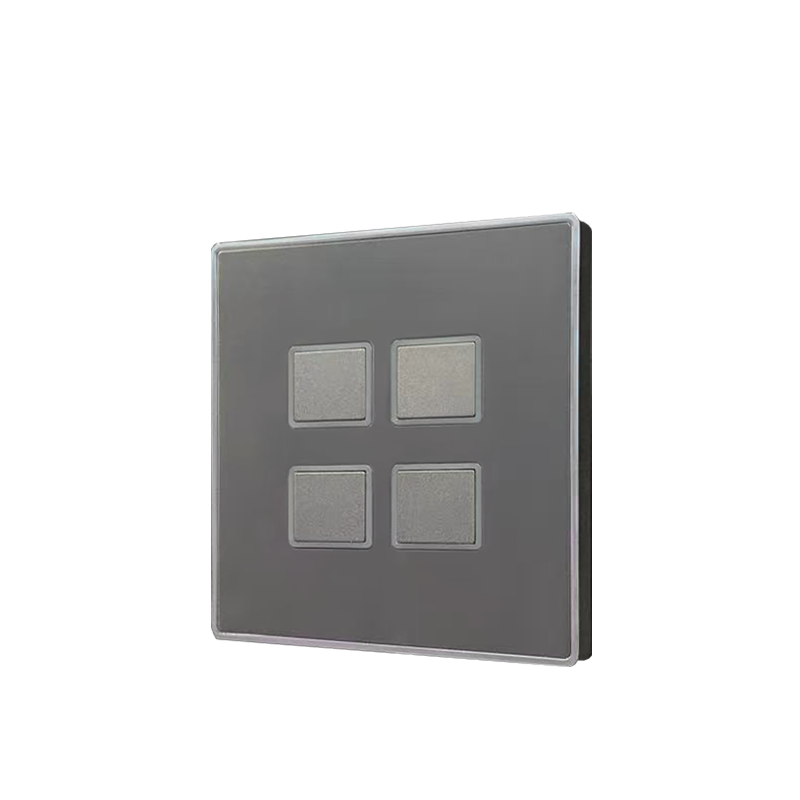

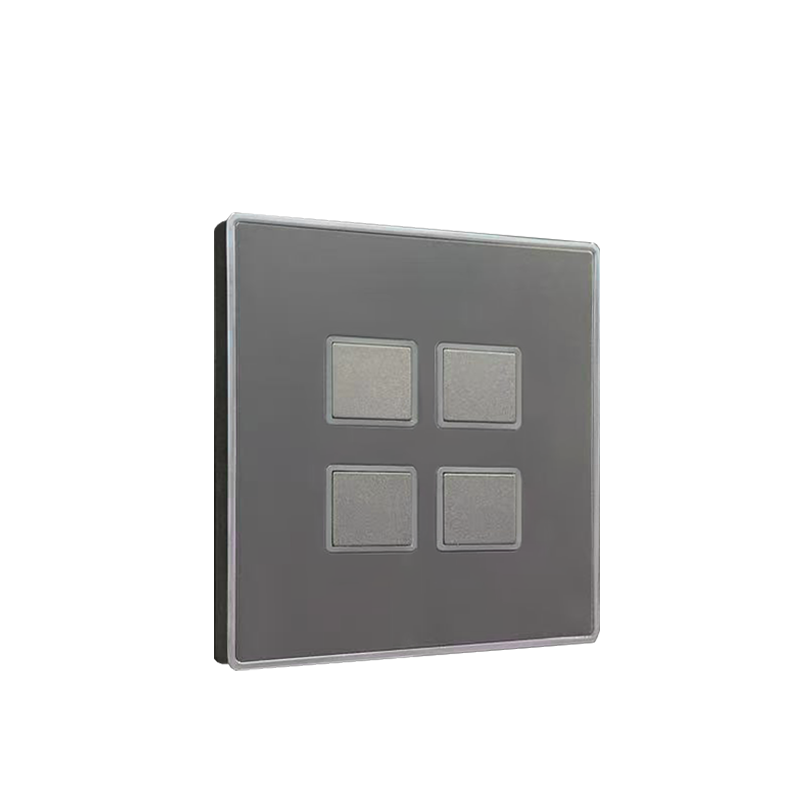

4-Button Metal Smart Panel (M series 485)
Model No:KP.04M.485
4-Button Metal Smart Panel , standard 86 bottom box installation, support seamless connection, can be matched with a variety of materials and colors of the panel, provide 4 key panel, reset type touch switch, mature structure, stable performance, high light process.
Contact Us
Wiring Diagram
Product Features
86-type back box installation
Provide 4 programmable keys
Mature structure and stable performance
Support multiple panels seamless cascade
Multiple button operation methods
Icon markings can be engraved
Each key is equipped with base-color and activation-color LEDs
Scene control
Simple wiring
Online program update
RS485 protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤1W
Number Of Keys
four keys
Key Category
reset touch key
Key Indicator Light
white light
Backlight
orange light
Bus Interface
bus interface*1
Installation Method
standard 86 bottom box mounting
Operating Temperature
0℃~45℃
Operating Relative Humidity
20%～93% RH
Storage Temperature
-20℃~+55℃
Storage Relative Humidity
10%～93% RH
Dimensions（L*W*H）
85.6mm*85.6mm*30mm
Net Weight
≤145g/pcs
Enclosure Material
metal cover, plastic casing
Opening Size (L * W)
54mm*67mm，bottom box depth is greater than 40mm
Dimension
The panel adopts a standard 86-type back box for installation
Product Structure Description
Can be connected to third-party central hosts to enable local switching or dimmer control.
Application Scenarios
Hainan Guest House
