Project case for Smart Lighting Control System

Home Projects Office Building

Guangxi Normal University Press Group Smart Lighting Control System Project

/upload/images/article/20250607/17492609267328635.png

Project information

Control Equipment

Non-dimmable Lights: lighting fixtures in the office building

Control Areas

different sections of Guangxi Normal University Press Group

Control Requirements

1.Perform on/off control of lighting circuits in each area.

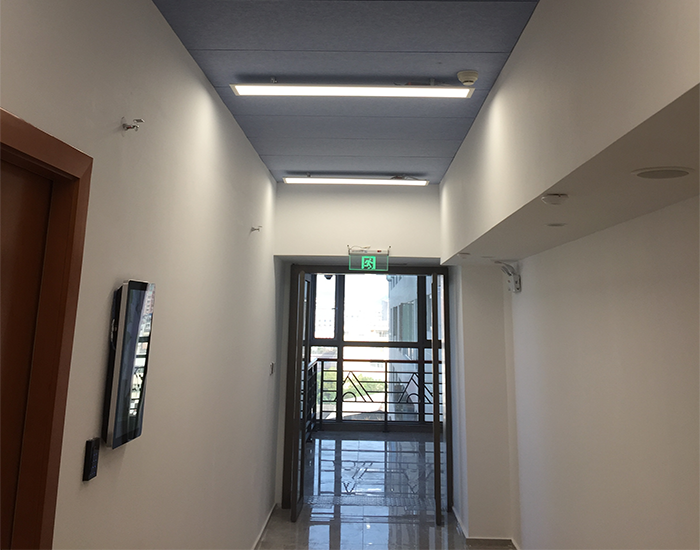

2.The corridor features motion-activated lighting, where lights turn on when people approach and turn off when they leave.

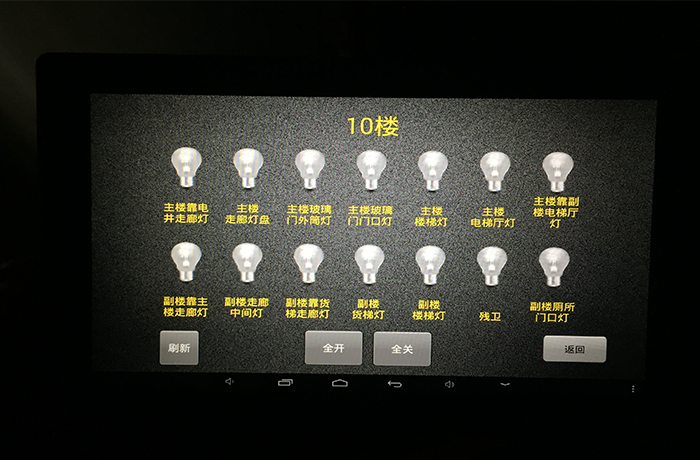

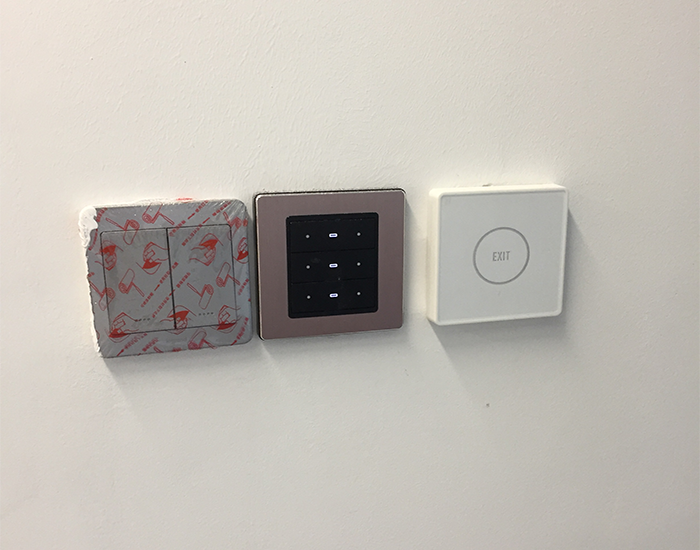

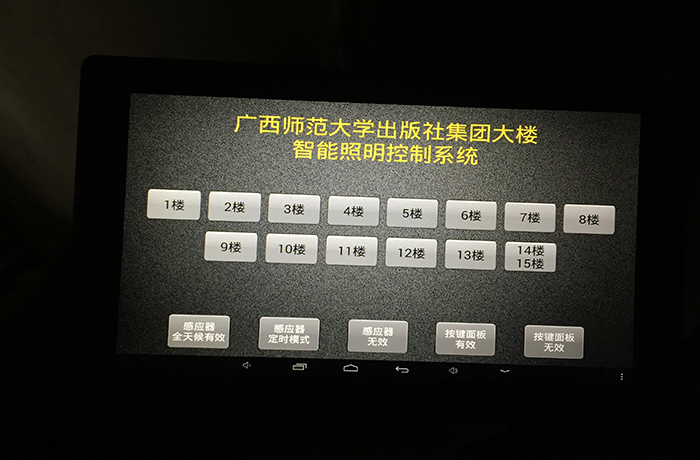

3.Each area is equipped with several 6-button smart switch panels and 7-inch smart touch screens for both individual circuit control and scene-based lighting control.

4.Enable zoned lighting control.

5.Enable timed control and scene control.

6.Centralized control via PC.

Control Solution

System products

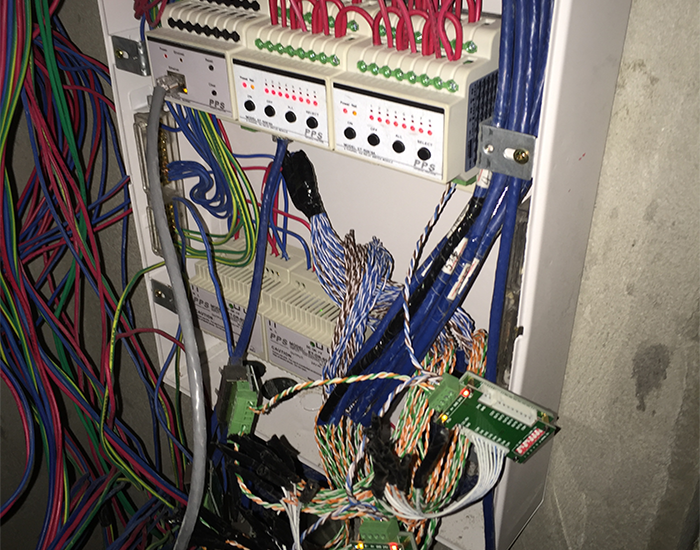

To meet on-site control requirements,Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, intelligent relay switch module, 6ch dry contact module, 6 button smart panel, 7-inch smart touch screen and bus coupler.

Control Methods

A bus-type intelligent lighting control system enables localized control via touch panels (customizable interfaces), alongside centralized management through a PC workstation and a pad (customizable interfaces).

Performance Outcome

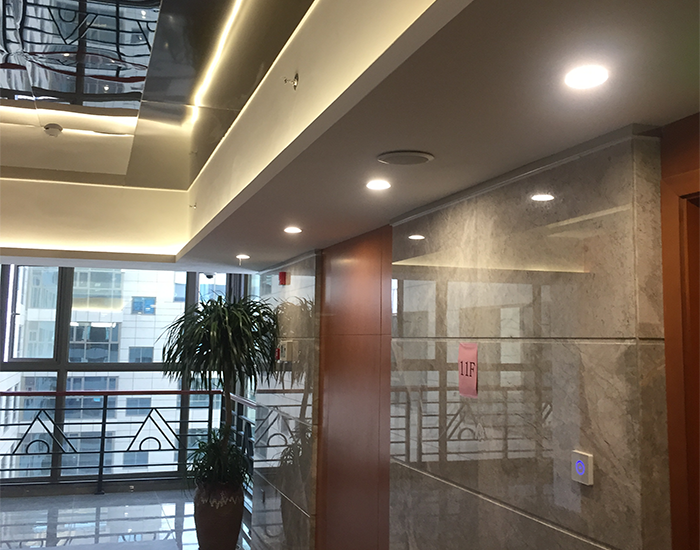

The smart 6-button panels and 7-inch intelligent touch screens are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the office building. Several infrared motion sensors are installed in the corridor and integrated with an 6-channel dry contact module to achieve motion-activated lighting — lights turn on when people arrive and turn off when they leave. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the factory’s lighting system. It reduces labor costs, enhances operational efficiency, and effectively eliminates energy waste.

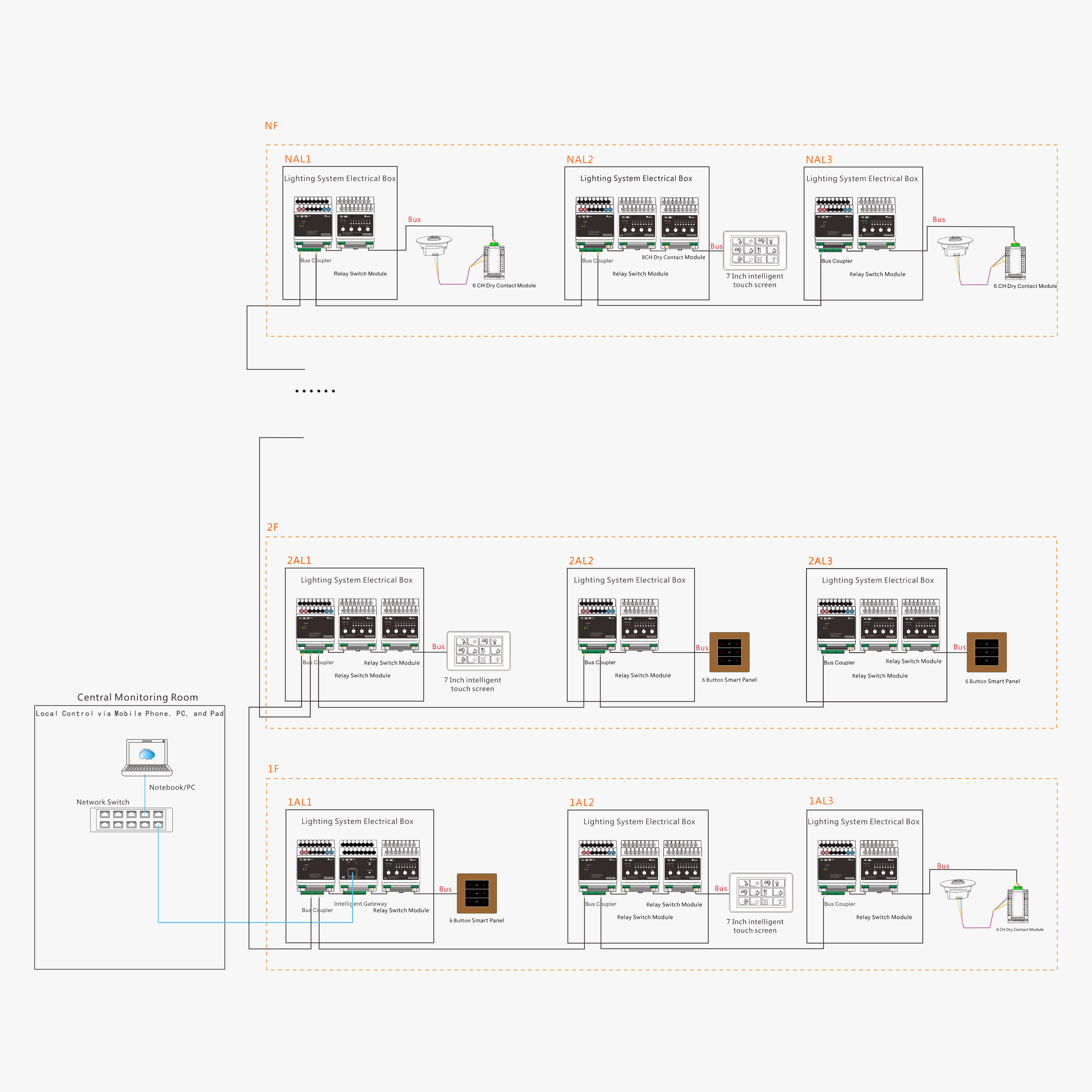

System Architecture Diagram
