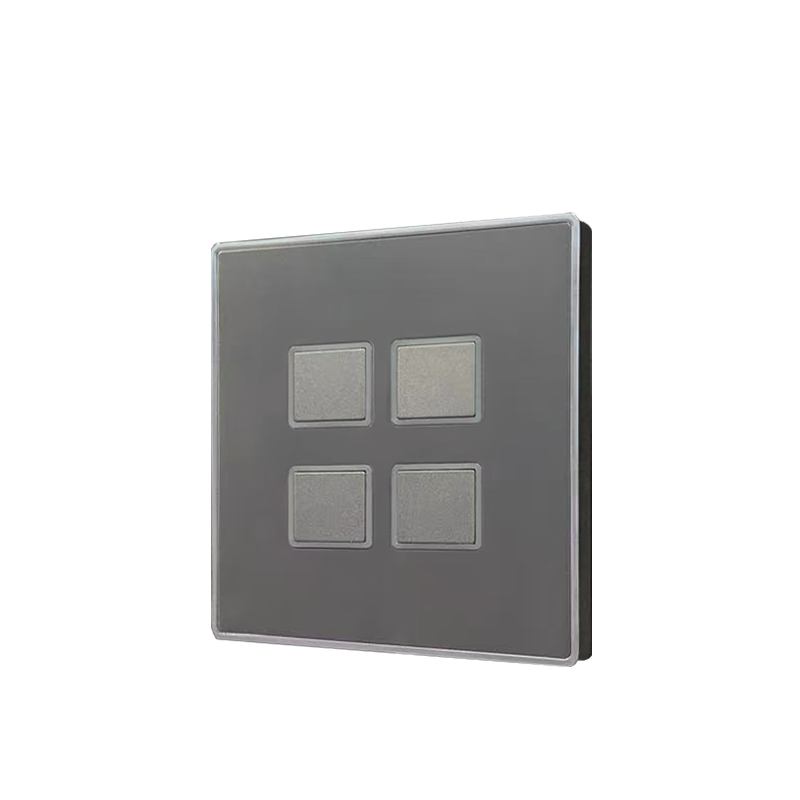

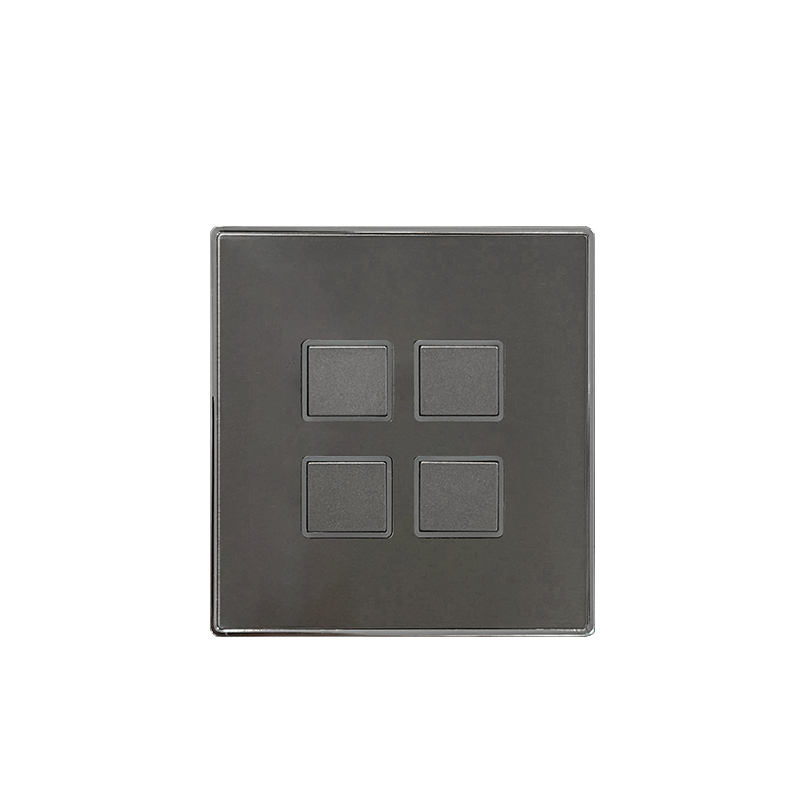

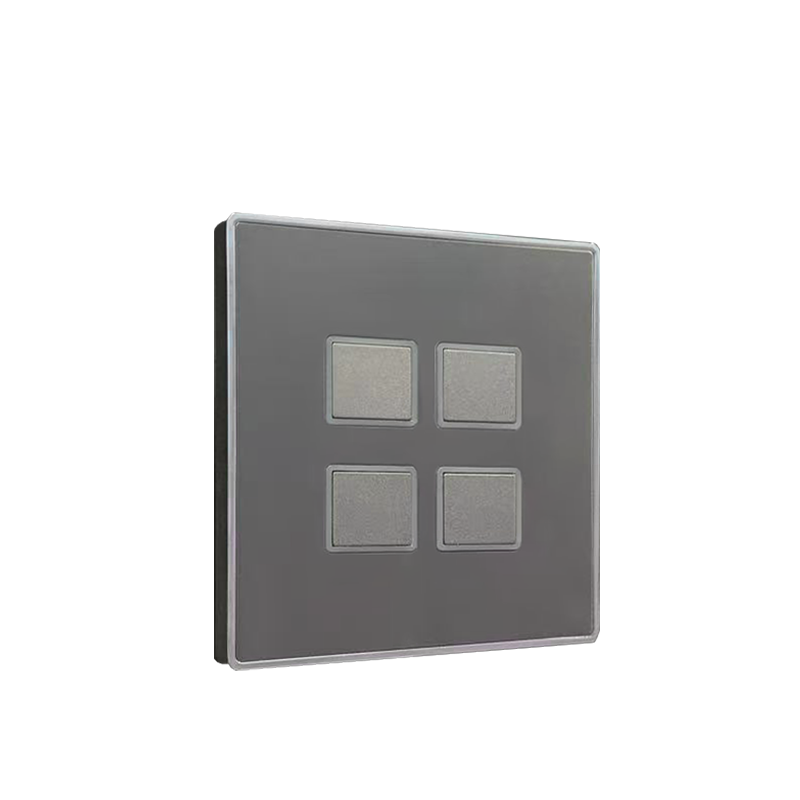

4-Button Metal Smart Panel (M series)
Model No:KP.04M
4-Button Metal Smart Panel , standard 86 bottom box installation, support seamless connection, can be matched with a variety of materials and colors of the panel, provide 4 key panel, reset type touch switch, mature structure, stable performance, high light process.
Contact Us
Wiring Diagram
Product Features
86-type back box installation
Provide 4 programmable keys
Mature structure and stable performance
Support multiple panels seamless cascade
Multiple button operation methods
Icon markings can be engraved
Each key is equipped with base-color and activation-color LEDs
Scene control
Simple wiring
Online program update
RS485 protocol
YC-BUS protocol
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤1W
Number Of Keys
four keys
Key Category
reset touch key
Key Indicator Light
white light
Backlight
orange light
Bus Interface
bus interface*1
Installation Method
standard 86 bottom box mounting
Operating Temperature
0℃~45℃
Operating Relative Humidity
20%～93% RH
Storage Temperature
-20℃~+55℃
Storage Relative Humidity
10%～93% RH
Dimensions（L*W*H）
85.6mm*85.6mm*30mm
Net Weight
≤145g/pcs
Enclosure Material
metal cover, plastic casing
Opening Size (L * W)
54mm*67mm，bottom box depth is greater than 40mm
Dimension
The panel adopts a standard 86-type back box for installation
Software Presentation
configuration software1280720
0-10VDIMMERMODULE1280
classroom
controlinterface1280
hotel
HA
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT.
