Baiyun Airport Mother and Baby Room Smart Lighting Control System

Project case for Smart Lighting Control System

Home Projects Comprehensive Project

/upload/images/article/20250607/17492675102187223.png

Project information

Control Equipment

Non-dimmable Lights: lighting fixtures in various areas.

Control Areas

different sections of the Baiyun Airport Mother and Baby Room.

Control Requirements

1.Perform on/off control of lighting circuits in each area.

2.Perform 0-10V dimming control on some of the office's lighting circuits.

3.Each area is equipped with several 6-button smart switch panels for both individual circuit control and scene-based lighting control.

4.Enable zoned lighting control.

5.Enable timed control and scene control.

6.Centralized control via PC.

Control Solution

System products

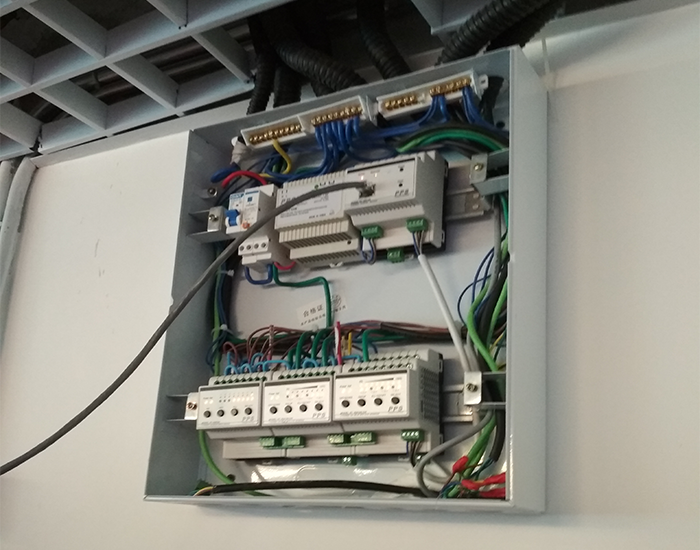

To meet on-site control requirements, Easyctrl Intelligent Lighting System will be deployed, featuring core components including intelligent lighting gateway, 8 CH 16A relay switch module, 4 CH 0-10V dimming module, 6ch dry contact module, bus coupler, and 6-button smart panel.

Control Methods

A bus-type intelligent lighting control system enables localized control via 6-button smart panel, alongside centralized management through a PC workstation.

Performance Outcome

The 6-button smart panels are used to achieve on/off control, scheduled control, and scene control of lighting circuits across different areas of the Mother and Baby Room. Meanwhile, centralized lighting management is realized in the central control room via PC-based interface software. The Easyctrl intelligent lighting control system by Easyctrl Intelligent enables efficient centralized management of the Mother and Baby Room's lighting system.

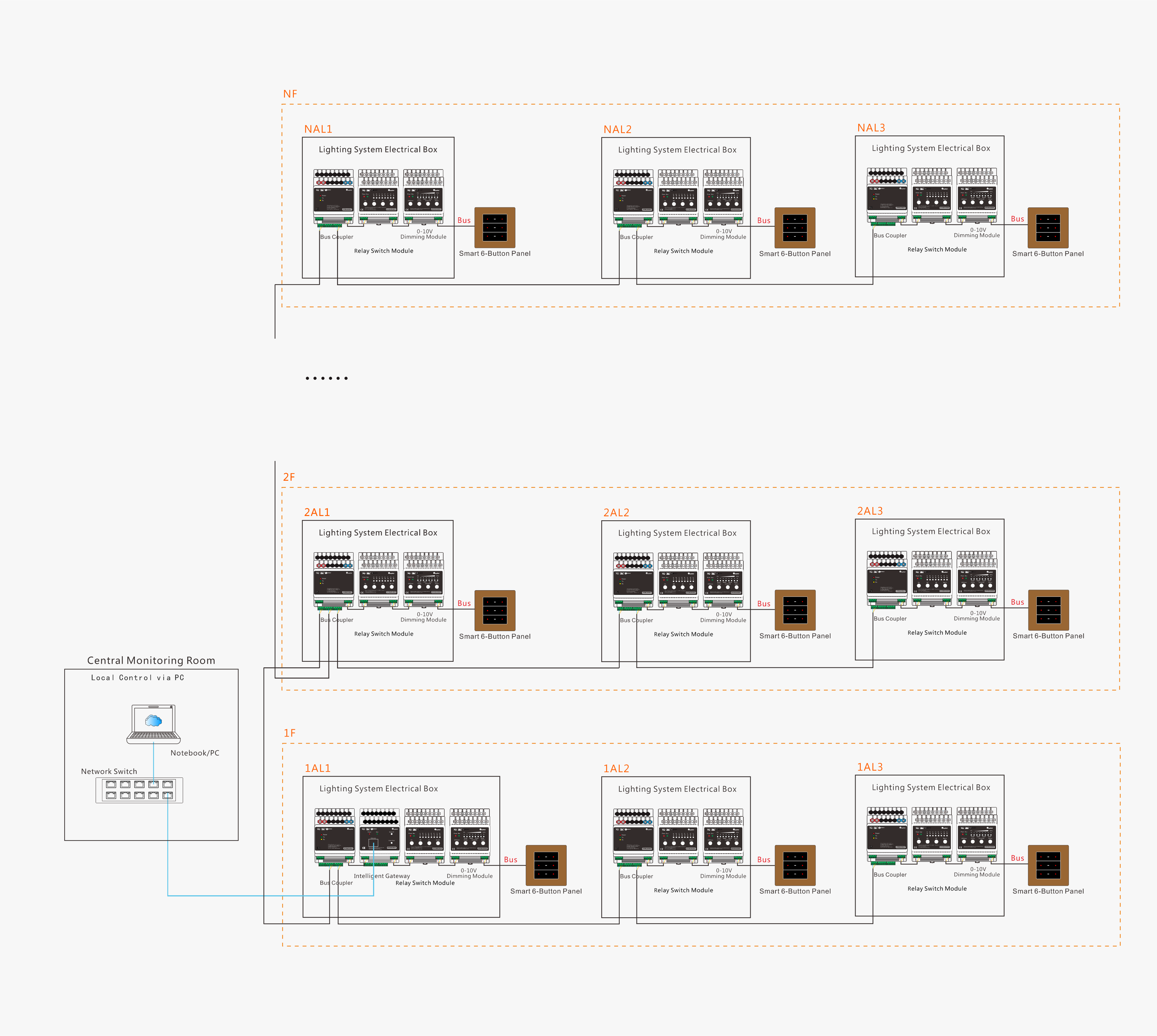

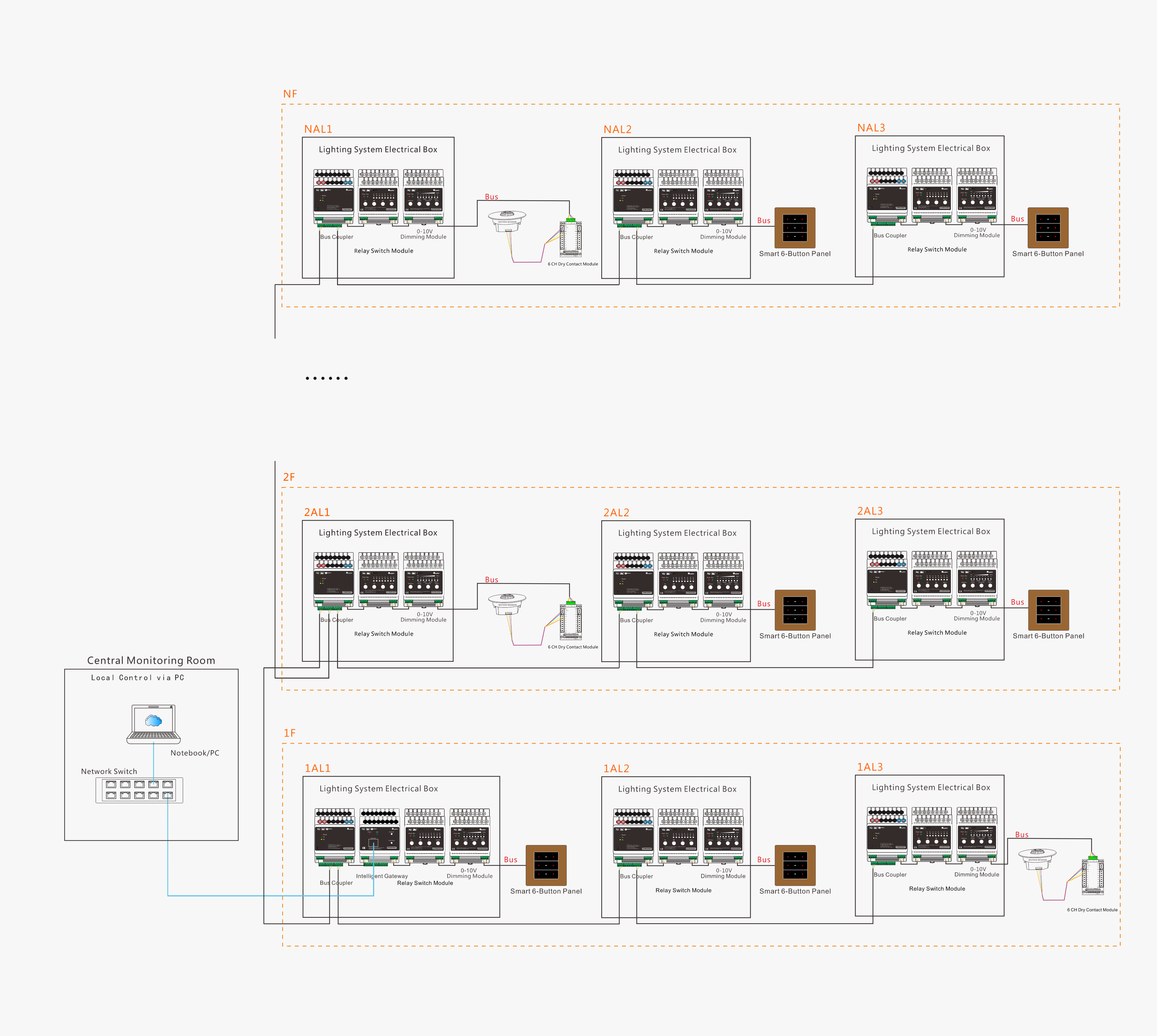

System Architecture Diagram

baiyun airport- system diagram-new.png
