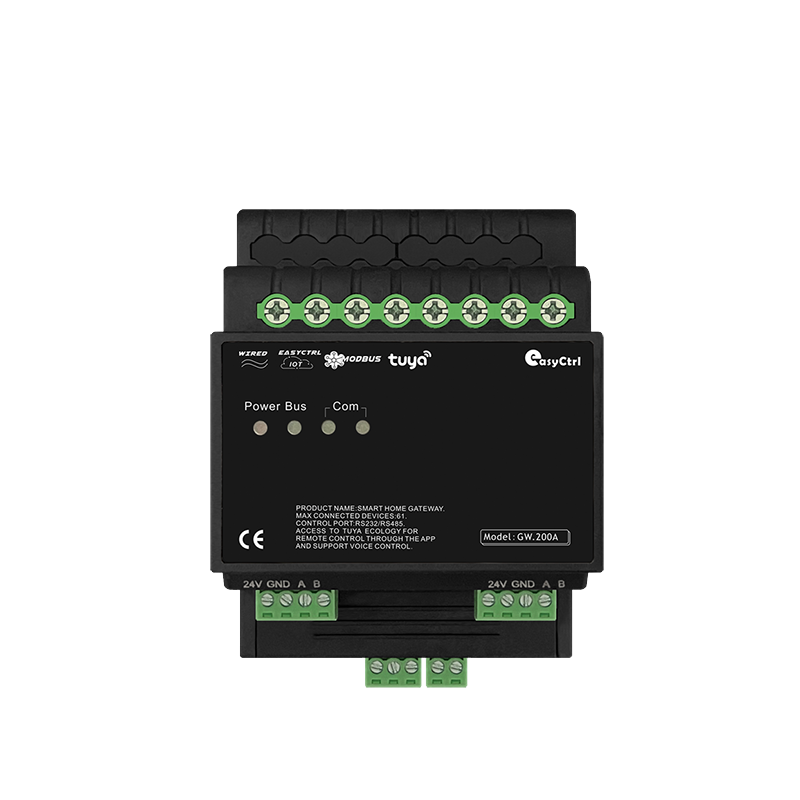

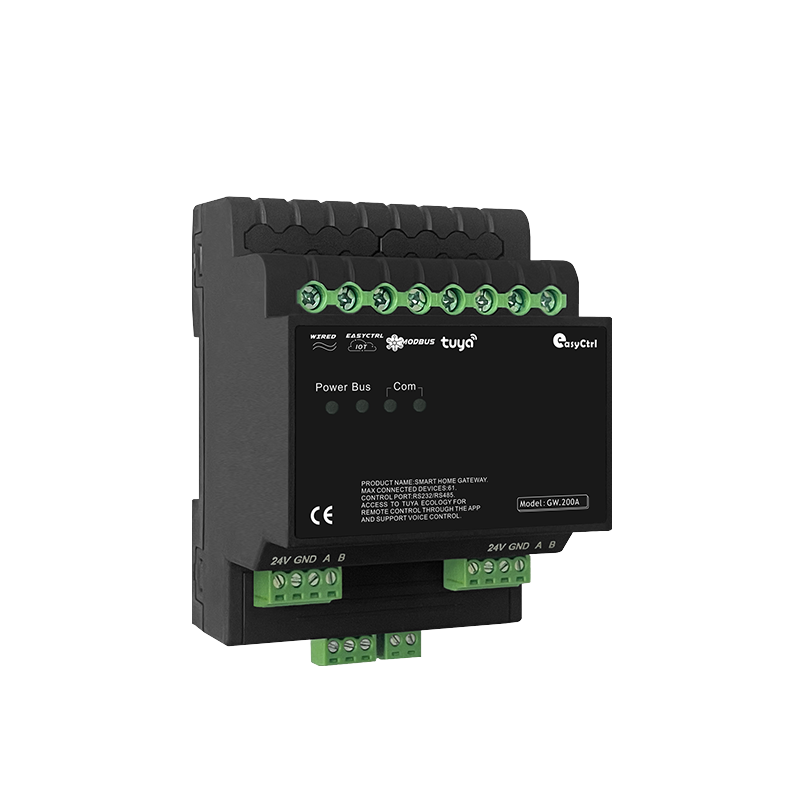

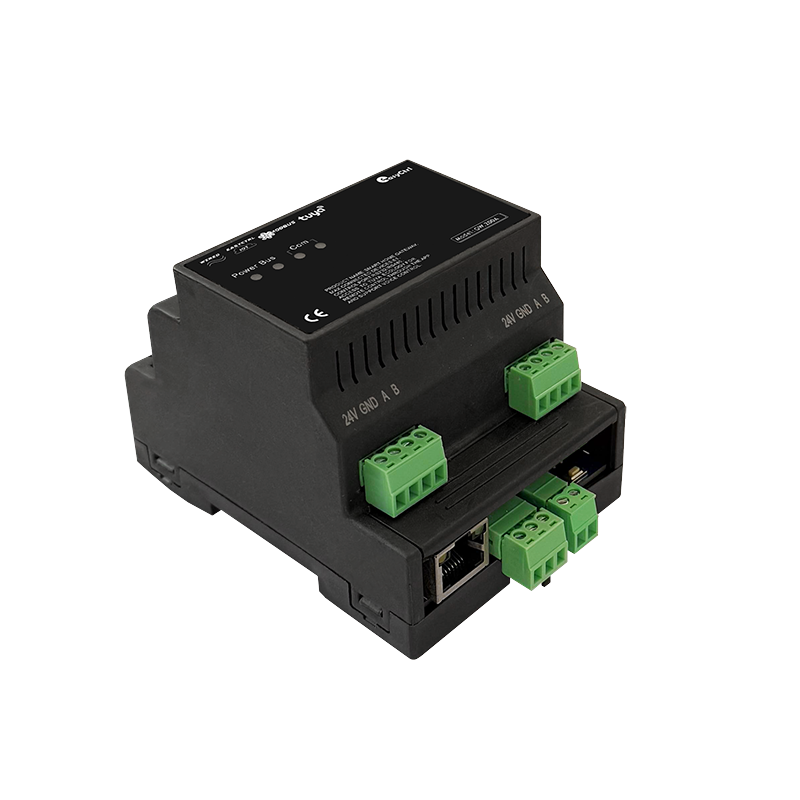

IOT Smart Gateway
Model No:GW.200A
The IOT Smart Gateway serves as a system core control unit, typically installed in a distribution box near the control room. GW200A has rich hardware interfaces and powerful computing and processing capabilities. It adopts industrial-grade chips and designs, which are stable and reliable. It can integrate and convert various popular communication protocols based on RS485 and RS232, TCP/IP, UDP protocol, ModbusRTU/TCP, etc. And it can be upgraded and customized according to the actual needs to achieve a real intelligent solution.
Contact Us
Wiring Diagram
Product Features
Remote control
Local control
Manual control
Sensor-triggered linkage
Non-volatilememory
Delay control
Simple wiring
Energy-efficient
Scene control
YC-BUS protocol
Fire-resistant material
Rail-mounted installation
Timed control
Status feedback
Fire alarmlinkage
Control various types of lights
High-power
Supported protocols
Product Specifications
Operating Voltage
24VDC±10%
Maximum Power Consumption
≤1.3W
Bus Interface
bus interface*2
Bus Port
bus port*1(with indicator light)
Slave Equipment
supports 61 YC-BUS slave devices
Control Key
reset key*2
Programmable Serial Port
RS485 serial port * 5
Main Control Serial Port
RS232 serial port * 1
Operating Temperature
-5˚C~45˚C
Operating Relative Humidity
≤90%
Storage Temperature
-20˚C~60˚C
Storage Relative Humidity
≤93%
Dimensions（L*W*H）
72 mm*106 mm*68 mm
Net Weight
≤198 g/pcs
Enclosure Material
flame retardantPP
Installation Method
standard 35mm DIN rail mounting
Dimension
The module uses a compact 4P DIN rail mounting structure
Software Presentation
gateway configuration software
edgegateway software
edgegateway1280720a11
control interface
software interface
1c361b3cc0fb5d696abc2ff8c66cbd0
Product Structure Description
By integrating with an intelligent lighting gateway, local switch control and remote switch control can be achieved. It can also be connected to HOMEASSISTANT and Tuya.
Application Scenarios
Guangzhou Peaceful Sleep Clinic
